ATLAS BY KVADRAT (LW) LW

Share Link
Print Link
  • Material Type
    Textiles
    Material Sub-type
    Woven
    Price Grade
    D

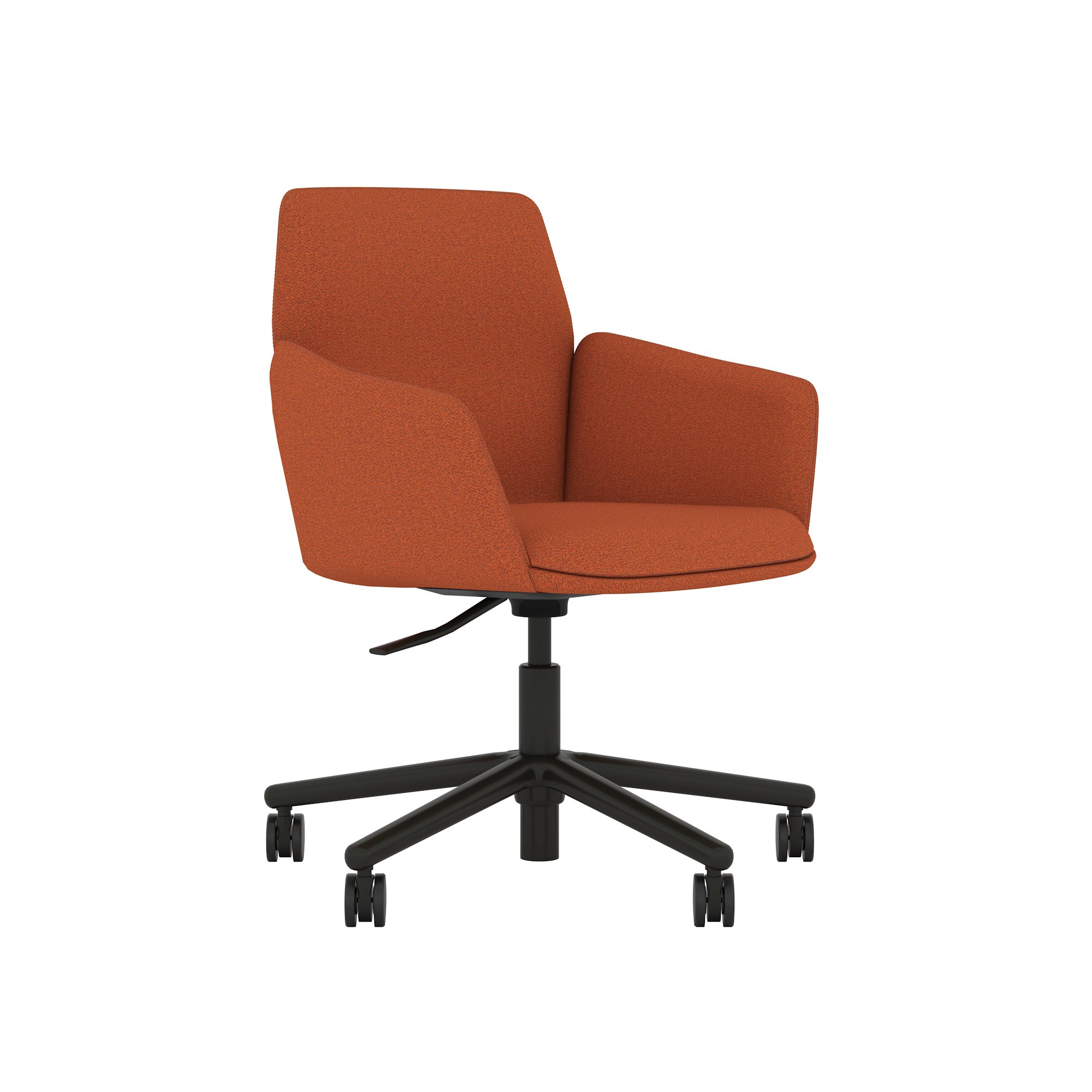

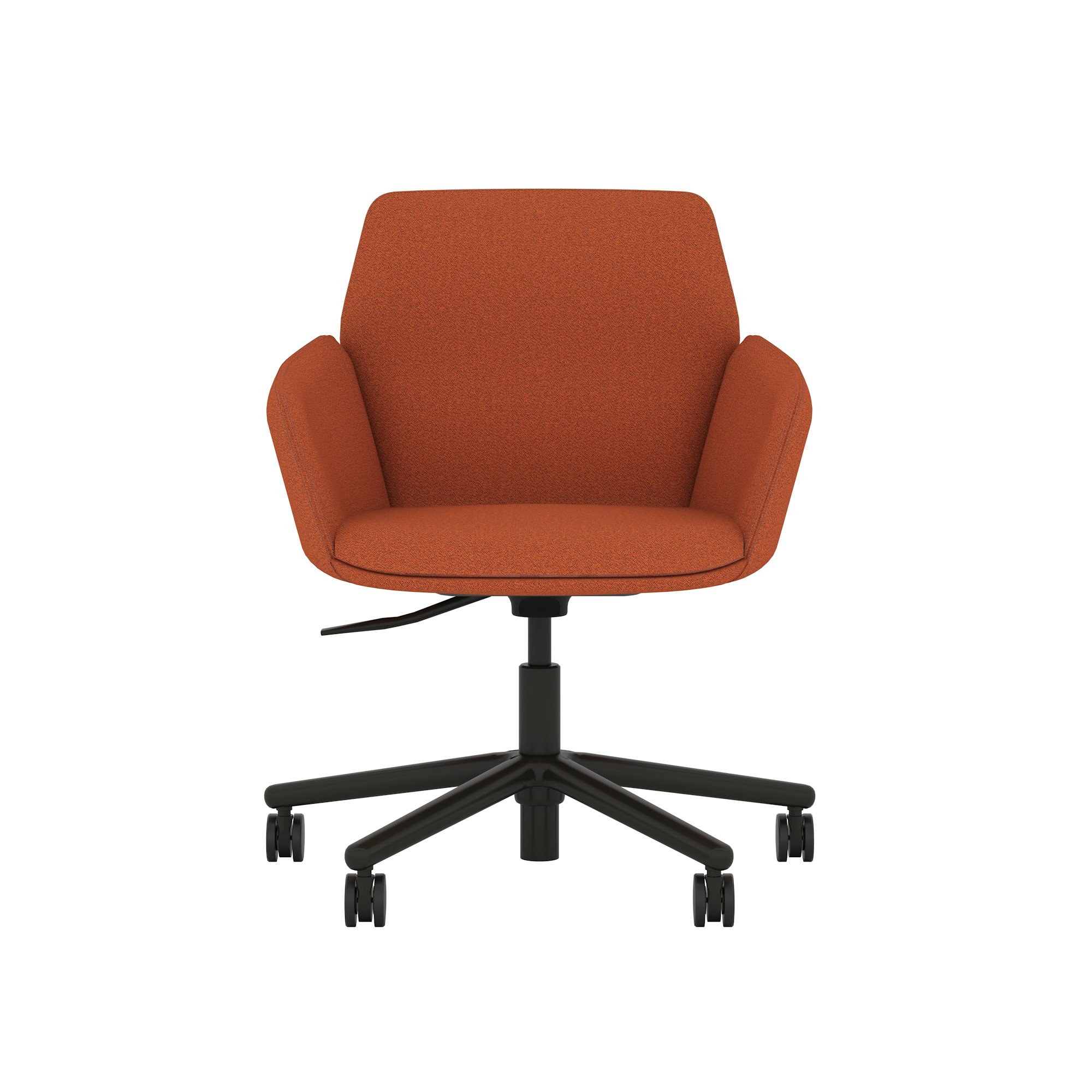

    Image Shown
    Downroll
    Brand
    Haworth,Ancillary Brands,Haworth Health
    Program
    Standard
    Lead Time

    • This color available within normal lead times. For larger quantities, contact OneTouch@haworth.com.

      This color may have extended lead times. Contact OneTouch@haworth.com for details.

    • Lead time Guide
  • Textile Abrasion Test
    Martindale
    Abrasion
    100,000
    Flammability
    TB117-2013
    Content
    10% NYLON
    Content
    90% WOOL
    Lightfastness
    CLASS 4.5 MIN @ 40HRS
    ACT

    Abrasion!

    (resistance to damage from wear and rubbing)

    • Heavy-duty specification ASTM 4157-02 modified (#10 cotton duck); 30,000 double rubs Wyzenbeek method.
    • Heavy-duty specification ASTM D4966-98 (21 oz. weight); 40,000 cycles Martindale method.

    Fire Retardancy

    (resistance to burning)

    Seating upholstery meets California Technical Bulletin 117-2013

    Vertical fabrics meet ASTM E-84 Class A on Haworth panel systems

    Colorfastness to Light

    (fabric retains its color when exposed to light)

    All textiles meet AATCC option 1 or 3 - 2003, Class 4 minimum at 40 hours.

    Physical Properties

    (resistance to pilling, tearing and coming apart at the seams)

    Seating upholstery meets:

    • Brush pill ASTM D3511, 3-4 minimum
    • Breaking strength ASTM D5034-95 50lbs. minimum in warp and weft
    • Seam slippage ASTM D3597-02 D434-95 25 lbs. minimum in warp and weft.
  • Composition
    WOVEN
    Width
    55.12 inches
    Weight (Per Linear Yard)
    12.82 OZ/LY
    Pattern Repeat H
    No Repeat
    Pattern Repeat V
    No Repeat
    Directional
    Yes
    Backing
    No
  • Finish Code Grade Application Program
    LW-A D Seating Standard
    LWV-A E Vertical Standard
    RR-710 E Vertical Standard
    LW-B D Seating Standard
    LWV-B E Vertical Standard
    RR-711 E Vertical Standard

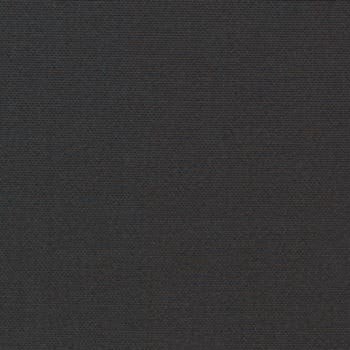

    LW-C D Seating Standard
    LWV-C E Vertical Standard
    RR-712 E Vertical Standard

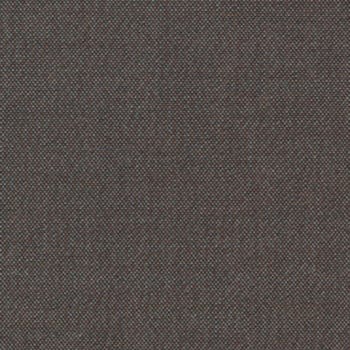

    LW-D D Seating Standard
    LWV-D E Vertical Standard
    RR-713 E Vertical Standard

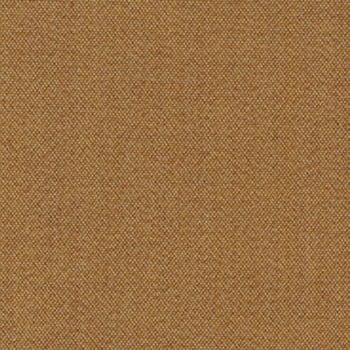

    LW-E D Seating Standard
    LWV-E E Vertical Standard
    RR-714 E Vertical Standard

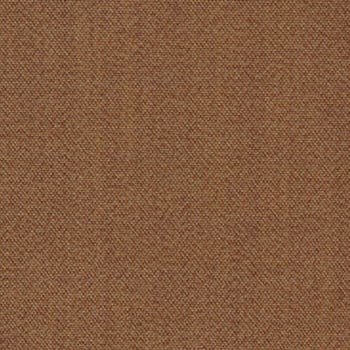

    LW-F D Seating Standard
    LWV-F E Vertical Standard
    RR-715 E Vertical Standard

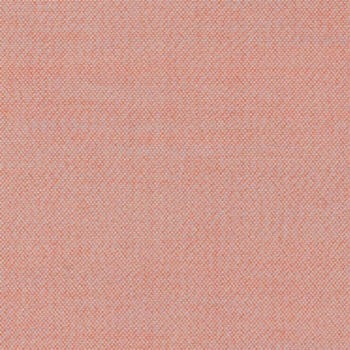

    LW-G D Seating Standard
    LWV-G E Vertical Standard
    RR-716 E Vertical Standard

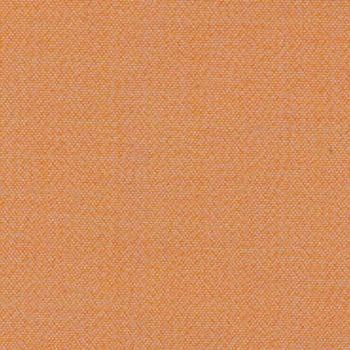

    LW-H D Seating Standard
    LWV-H E Vertical Standard
    RR-717 E Vertical Standard
    LW-J D Seating Standard
    LWV-J E Vertical Standard
    RR-718 E Vertical Standard

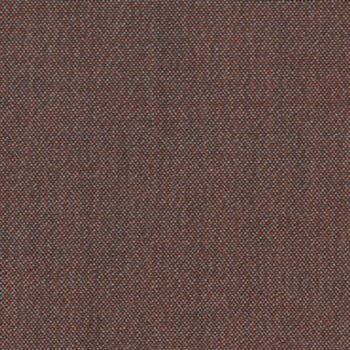

    LW-K D Seating Standard
    LWV-K E Vertical Standard
    RR-719 E Vertical Standard

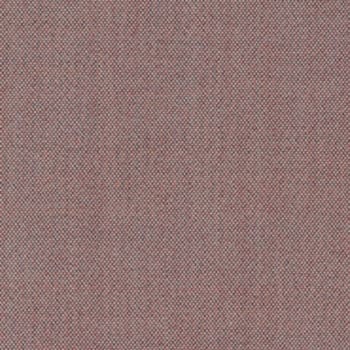

    LW-L D Seating Standard
    LWV-L E Vertical Standard
    RR-720 E Vertical Standard

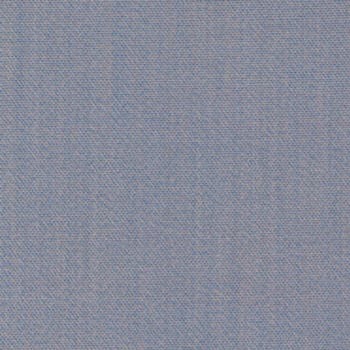

    LW-M D Seating Standard
    LWV-M E Vertical Standard
    RR-721 E Vertical Standard

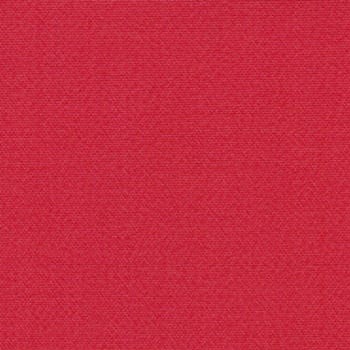

    LW-N D Seating Standard
    LWV-N E Vertical Standard
    RR-722 E Vertical Standard

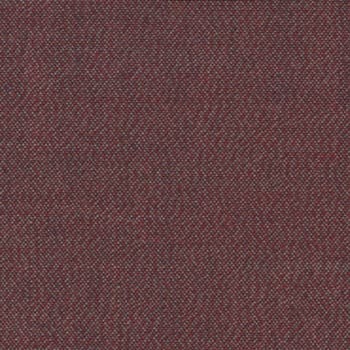

    LW-P D Seating Standard
    LWV-P E Vertical Standard
    RR-723 E Vertical Standard

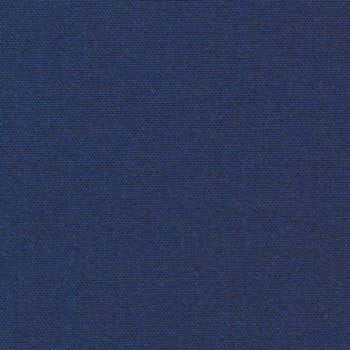

    LW-Q D Seating Standard
    LWV-Q E Vertical Standard
    RR-724 E Vertical Standard
    LW-R D Seating Standard
    LWV-R E Vertical Standard
    RR-725 E Vertical Standard

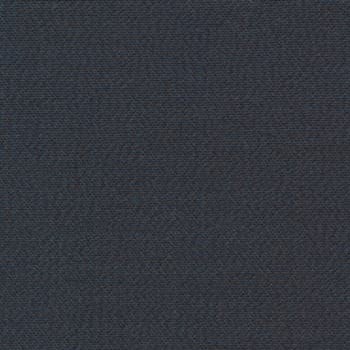

    LW-S D Seating Standard
    LWV-S E Vertical Standard
    RR-726 E Vertical Standard

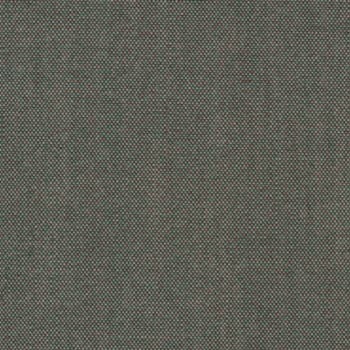

    LW-T D Seating Standard
    LWV-T E Vertical Standard
    RR-727 E Vertical Standard
    LW-V D Seating Standard
    LWV-V E Vertical Standard
    RR-728 E Vertical Standard
