Planes Height Adjustable Tables

Haworth

By Dan West

The Planes Height Adjustable table is designed and tested to enable peak workplace performance. The adjustable table height allows the user to customize to their optimal ergonomic height. Planes tables use advanced workplace knowledge to support the most dynamic office work environments.

Where to Buy

Tables - Height-Adjustable NA Price List February 2021

Planes Height Adjustable Tables Overview

    • 2-leg, 3-leg, 120°, or benching applications in a variety of widths
    • Incremental (pin adjustment) height range of 22" - 35"
    • Crank adjustment height range of 27" - 45"

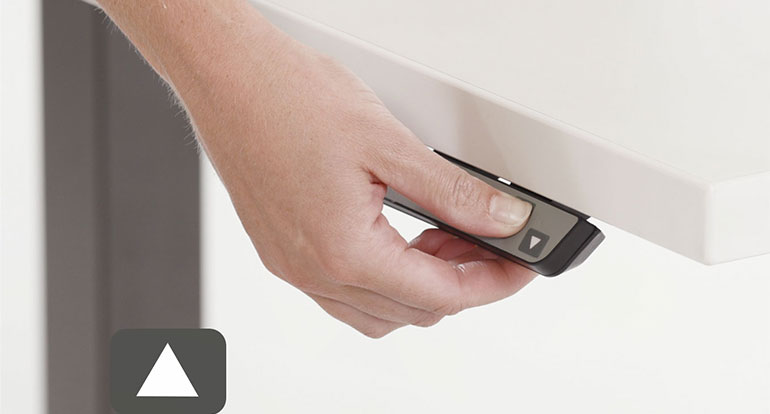

    • Electric adjustment (up/down or programmable handset) height ranges - Standard (single-stage): 26.6" - 45.6"; extended (dual-stage): 22.5" - 48.5" (low), or 23" - 50" (high)
    • 8 top shapes in high pressure laminate or veneer
    • C-Leg base design
    • Glides
    • Trim colors available in all Integrated Palette colors

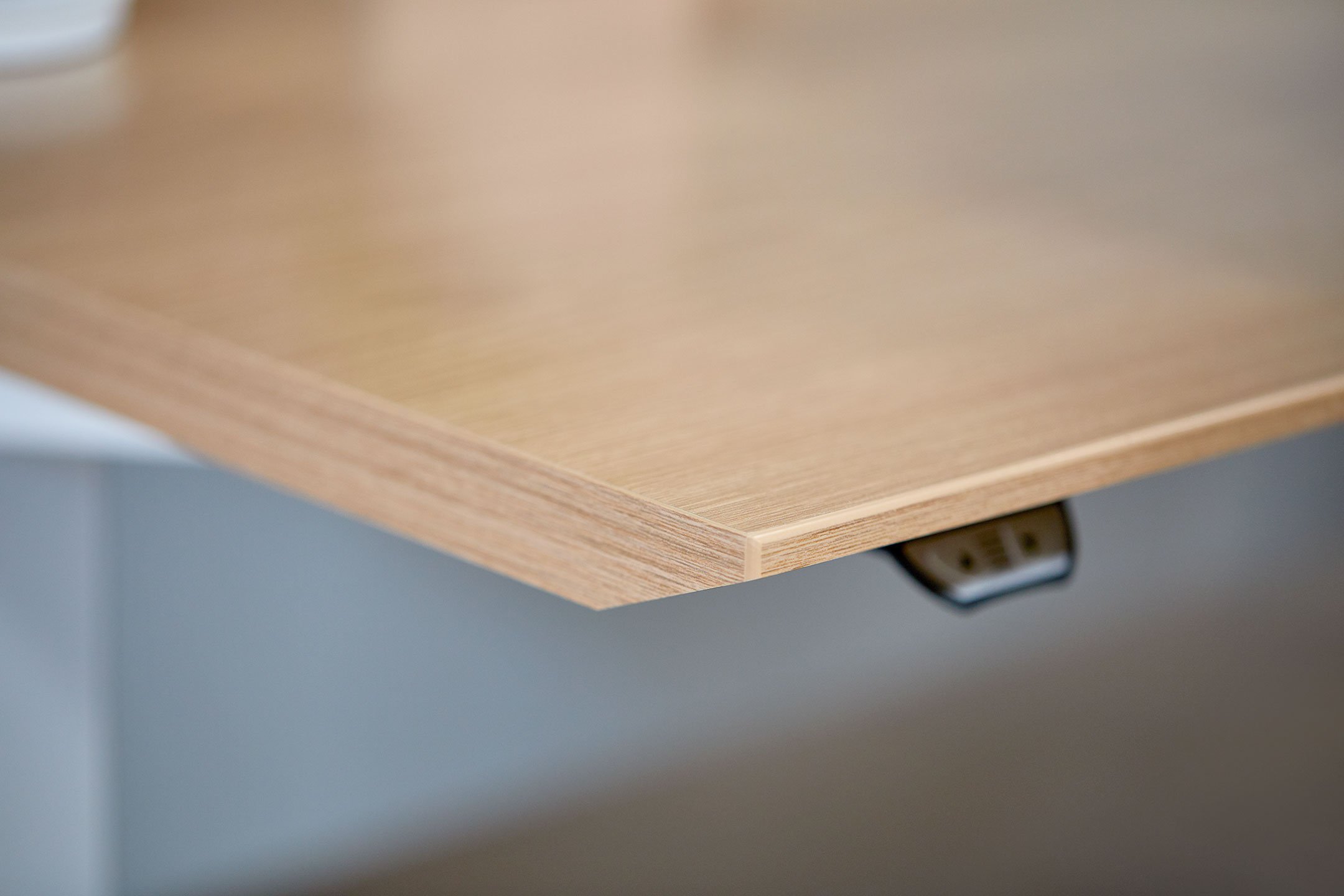

    • Edgeband or knife edge
    • Collision sensor kit, wire/power management, and casters available
    • Supports privacy screens, monitor arms, and security drawers
    • BIFMA LEVEL 3 Certified
    • FSC® Certified
    • GREENGUARD Certified
    • Best of NeoCon - Gold Award
    • Healthier Hospitals Initiative

Price Guides

Tables - Height-Adjustable NA Price List February 2021

CAD/Symbols

{{alt}}

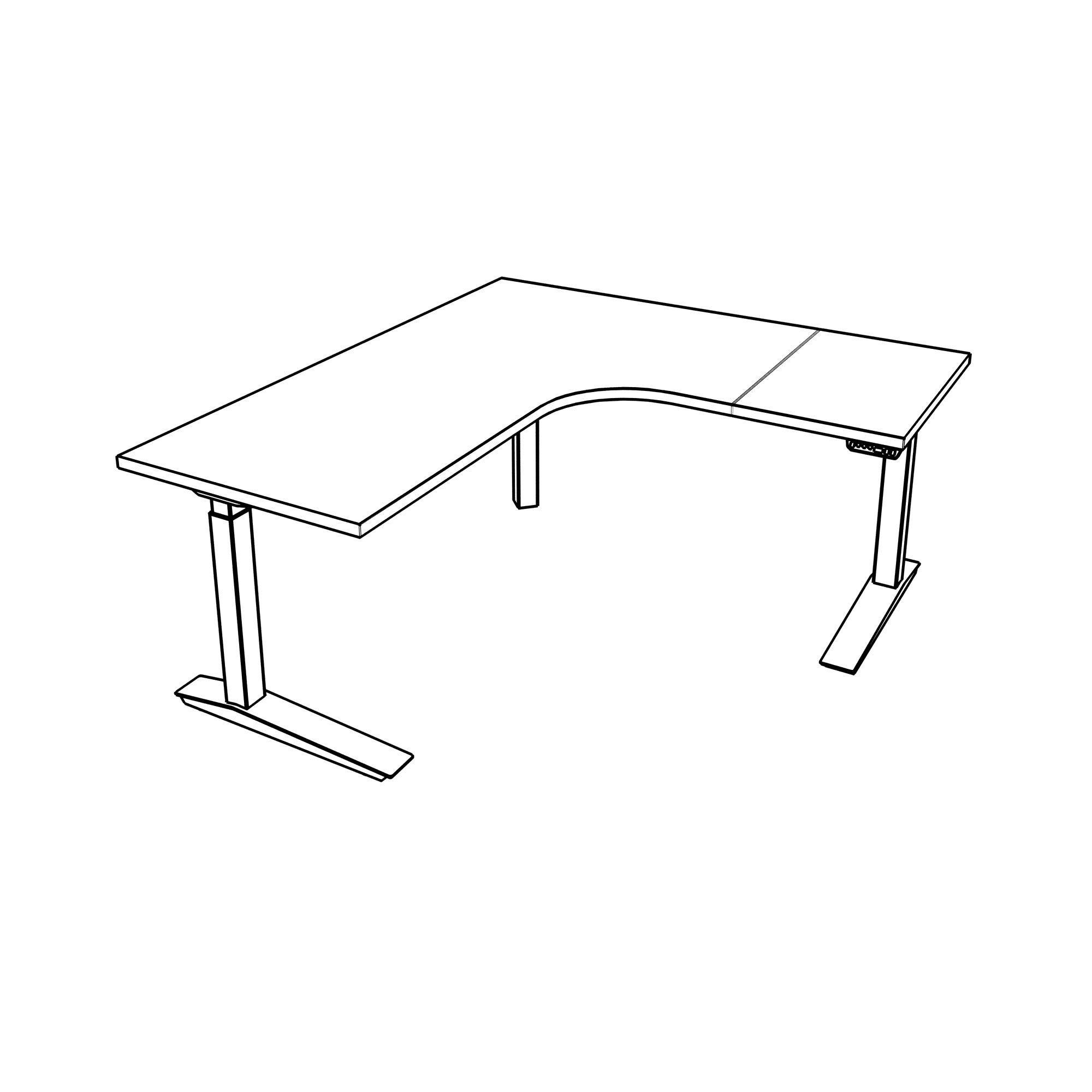

Corner, 90Deg Wrap-Around Extended

Two Pieces

Laminate Top

Edgeband

Standard Core

Single Stage, Progr Adj: 27"-46"

L/R Depth: 29"/29"

Length: 70"

Width: 64"

Orientation: Left

Catalog Number TACE-6470-LJSNCRF

2D DWG 3D DWG
{{alt}}

Corner, 90Deg Notched Extended

Two Pieces

Laminate Top

Edgeband

Standard Core

Incremental Adjustment: 22"-35"

L/R Depth: 29"/29"

Length: 70"

Width: 64"

Orientation: Left

Catalog Number TACP-6470-LJSNCDF

2D DWG 3D DWG
{{alt}}

Corner, 90Deg Notched Extended

Two Pieces

Laminate Top

Edgeband

Standard Core

Single Stage, Std Adj: 27"-46"

L/R Depth: 29"/29"

Length: 70"

Width: 64"

Orientation: Left

Catalog Number TACP-6470-LJSNCEF

2D DWG 3D DWG
{{alt}}

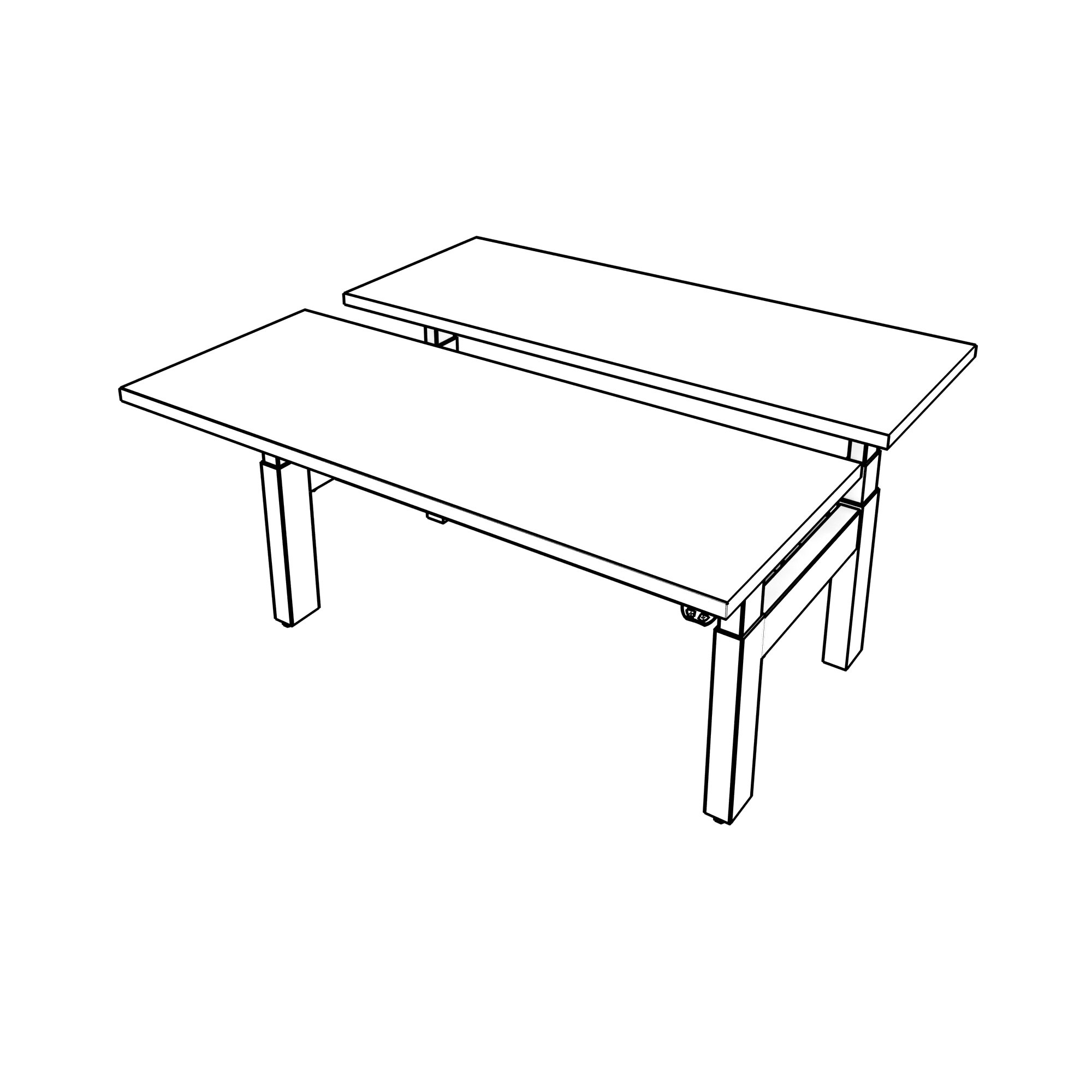

Rectangular - 23" Deep

Bench Base

Laminate Top

Edgeband

Standard Core

No Electrical Cutouts

Dual Stage Low, Std Adj: 22"-48"

Width: 46" - 70"

Catalog Number TARA-23xx-LJSNHP

2D DWG 3D DWG
{{alt}}

Corner, 90Deg Notched Extended

Two Pieces

Laminate Top

Edgeband

Standard Core

Single Stage, Progr Adj: 27"-46"

L/R Depth: 29"/29"

Length: 70"

Width: 64"

Orientation: Right

Catalog Number TACP-6470-LJSNCRJ

2D DWG 3D DWG
{{alt}}

Rectangular - 29" Deep

Bench Base

Laminate Top

Edgeband

Standard Core

No Electrical Cutouts

Manual Adjustment, 27"-45"

Width: 46" - 70"

Catalog Number TARA-29xx-LJSNHB

2D DWG 3D DWG
{{alt}}

Rectangular - 36" Deep

Bench Base

Laminate Top

Edgeband

Standard Core

No Electrical Cutouts

Dual Stage High, Progr Adj: 24"-50"

Width: 46" - 70"

Catalog Number TARA-36xx-LJSNHT

2D DWG 3D DWG
{{alt}}

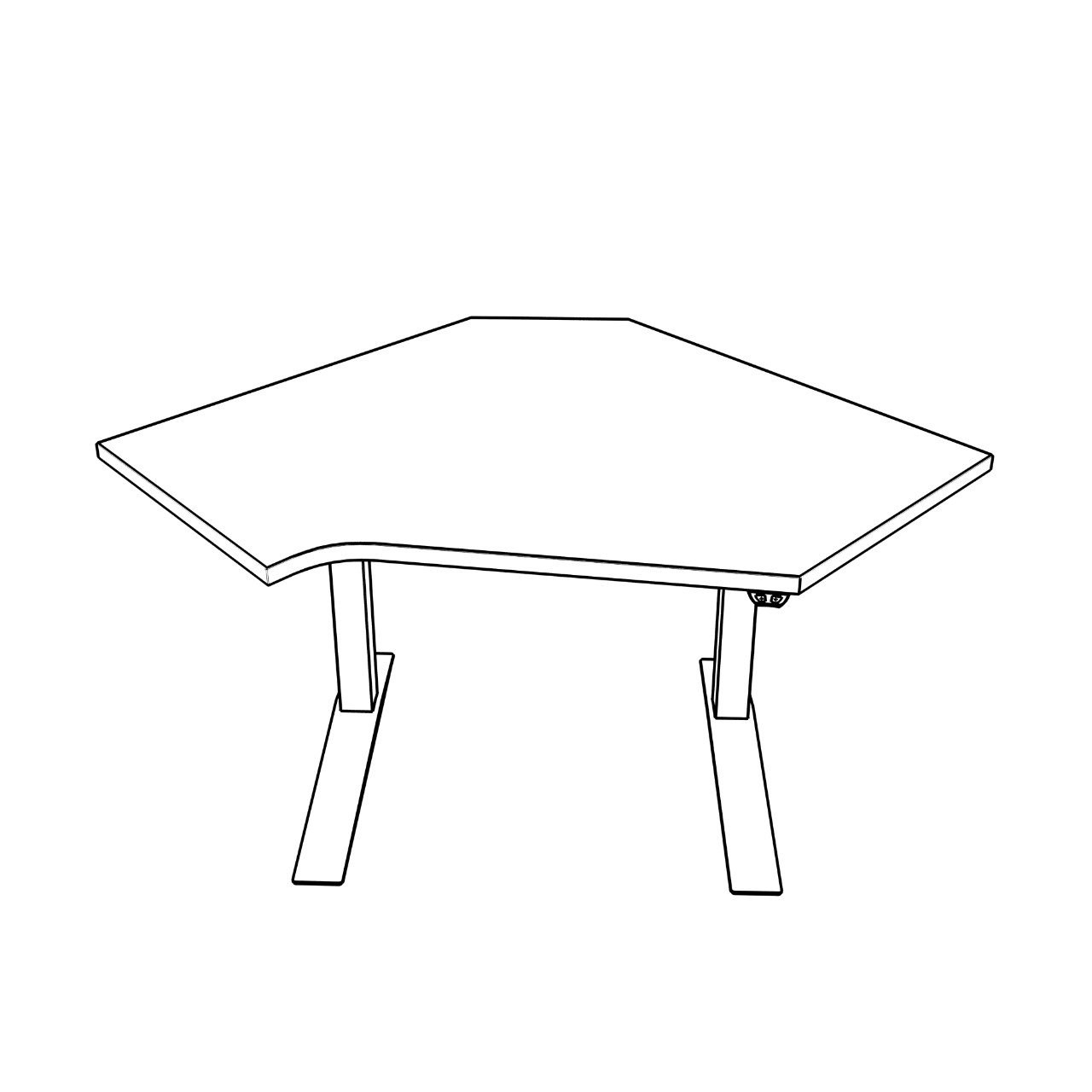

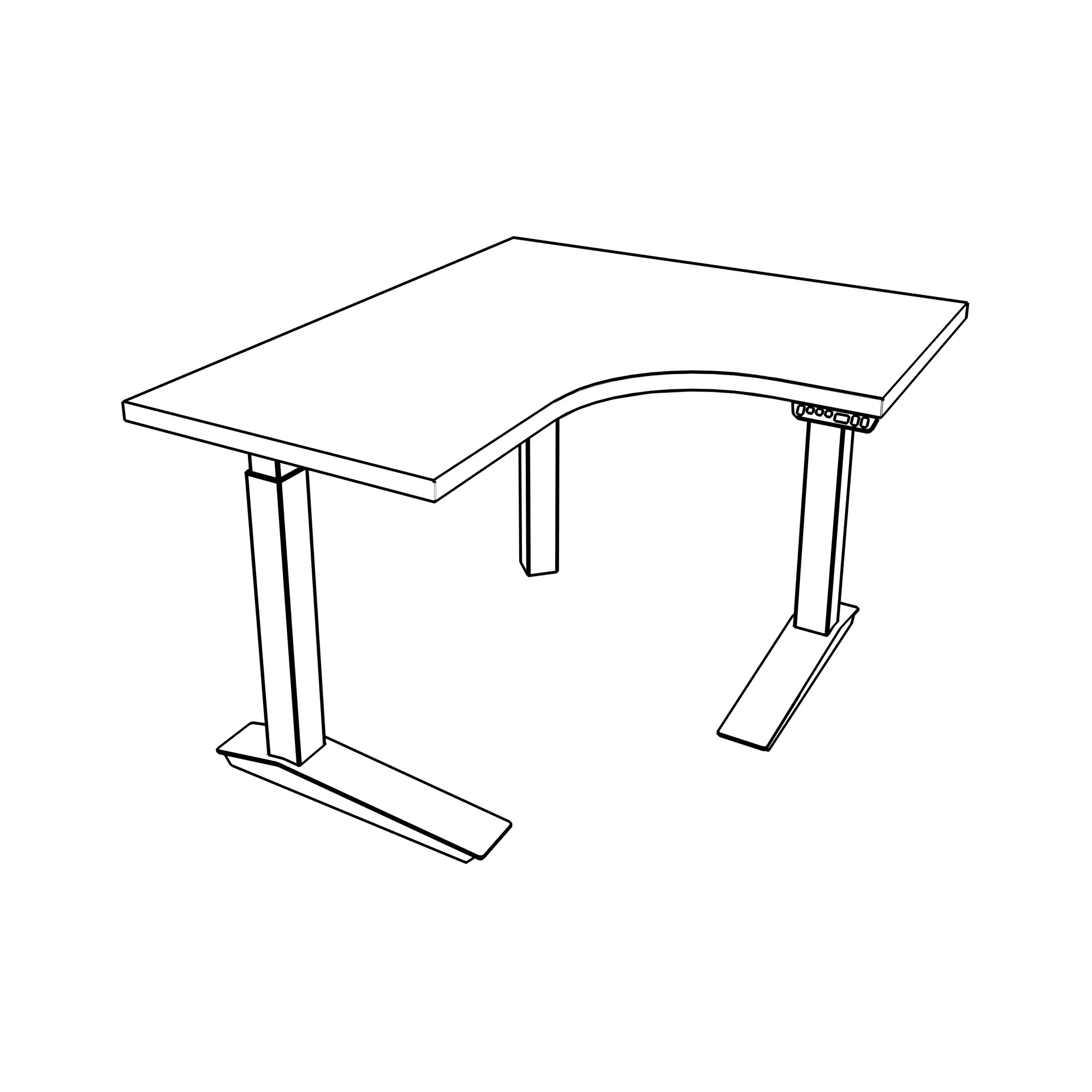

Corner, 90Deg Wrap-Around Extended

One Piece

Laminate Top

Edgeband

Standard Core

Single Stage, Std Adj: 27"-46"

L/R Depth: 23"/23"

Length: 46"/52"/58"/64"/70"

Width: 40"/46"/52"/58"

Orientation: Left

Catalog Number TACE-xxxx-LJSNCEE

2D DWG 3D DWG

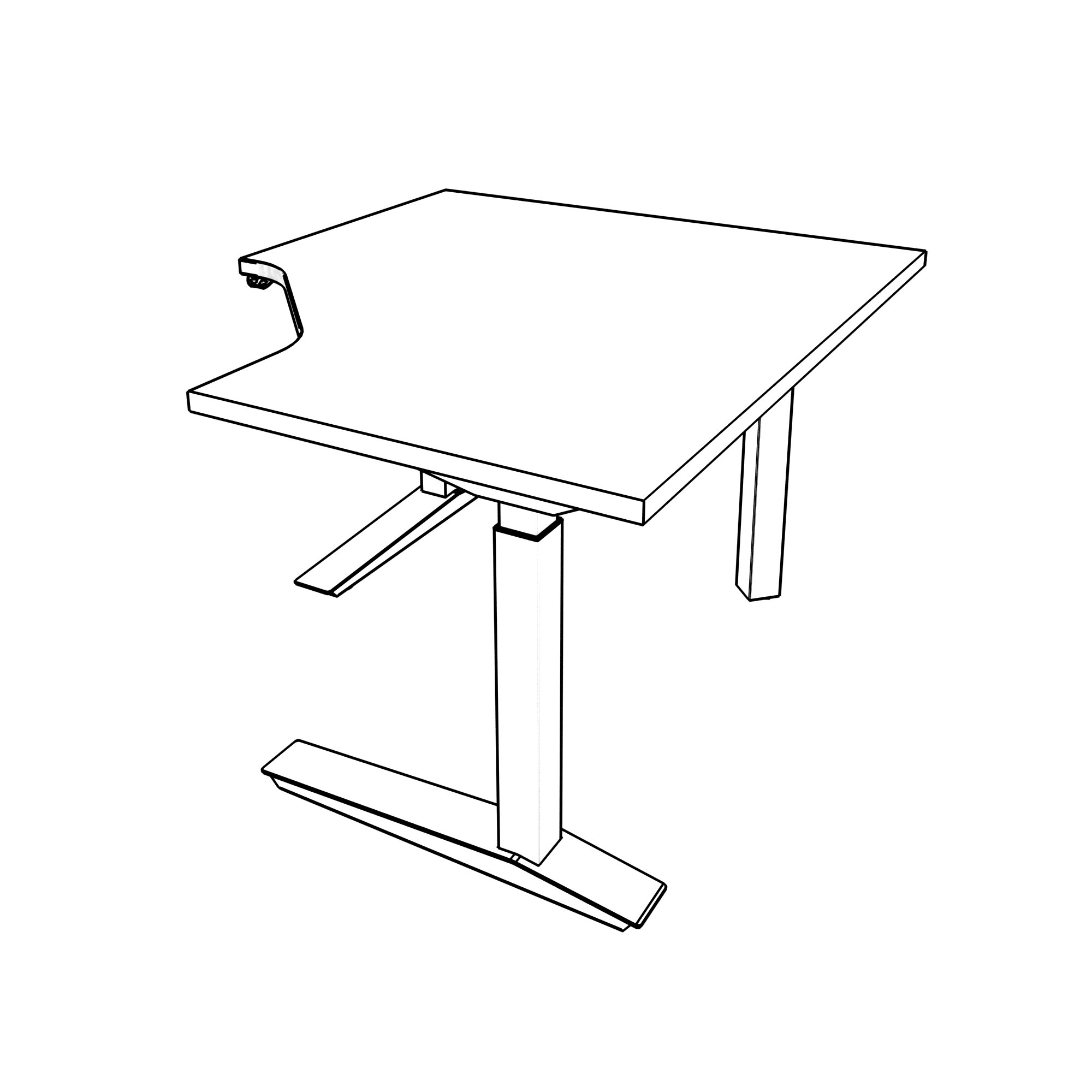

{{alt}}

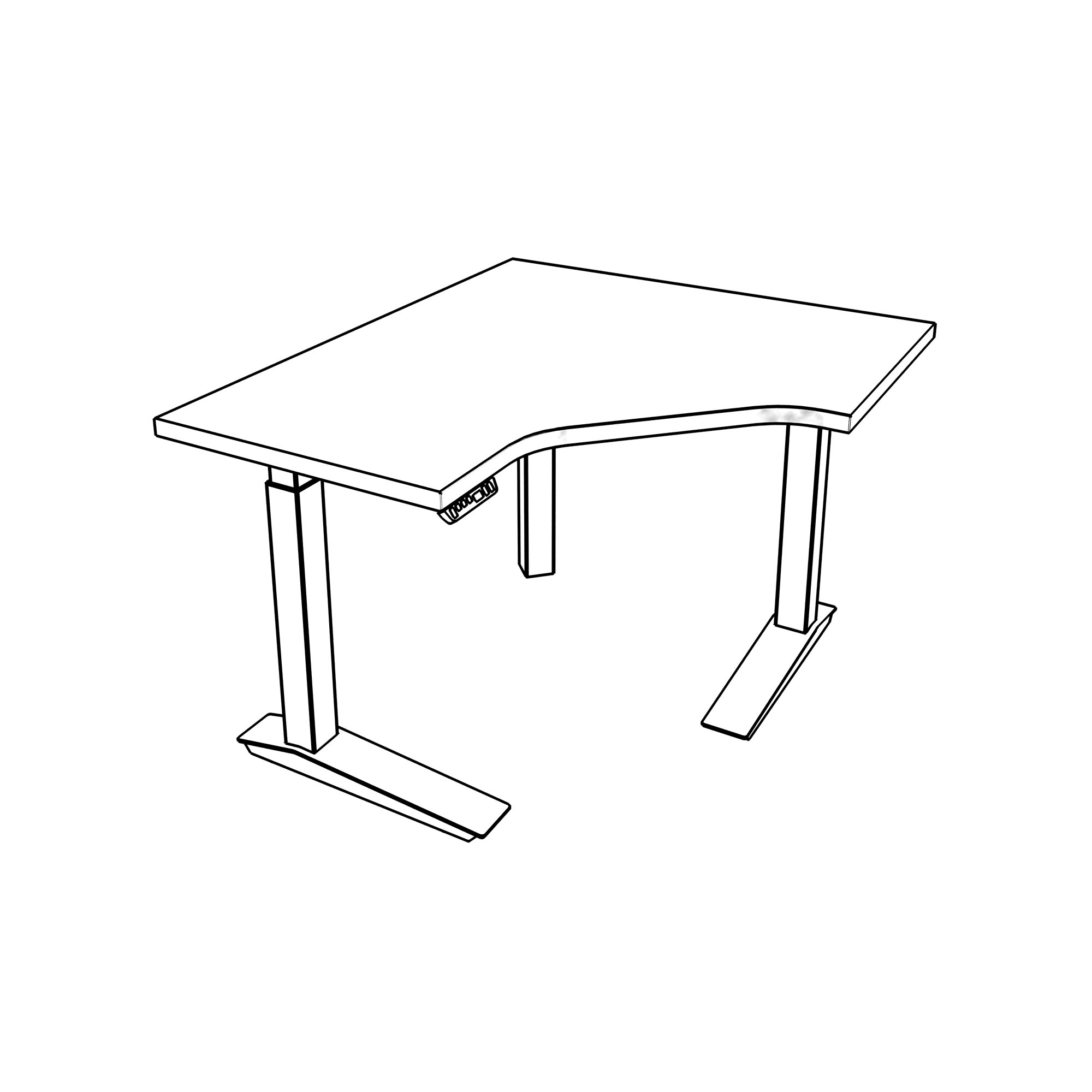

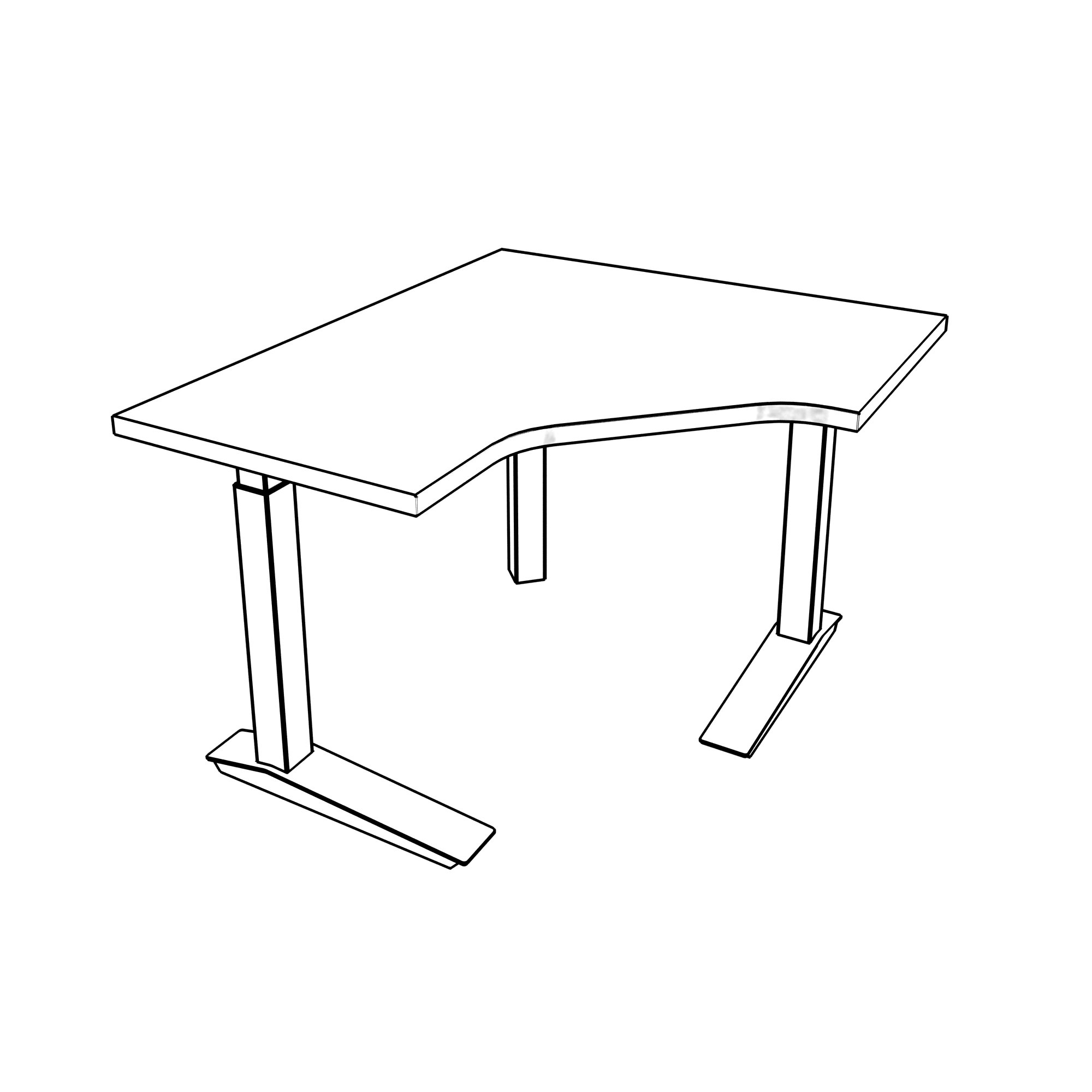

Corner, 90Deg Notched Extended

One Piece

Laminate Top

Edgeband

Standard Core

Single Stage, Std Adj: 27"-46"

L/R Depth: 29"/29"

Length: 52"/58"/64"/70"

Width: 46"/52"/58"

Orientation: Right

Catalog Number TACP-xxxx-LJSNCEJ

2D DWG 3D DWG

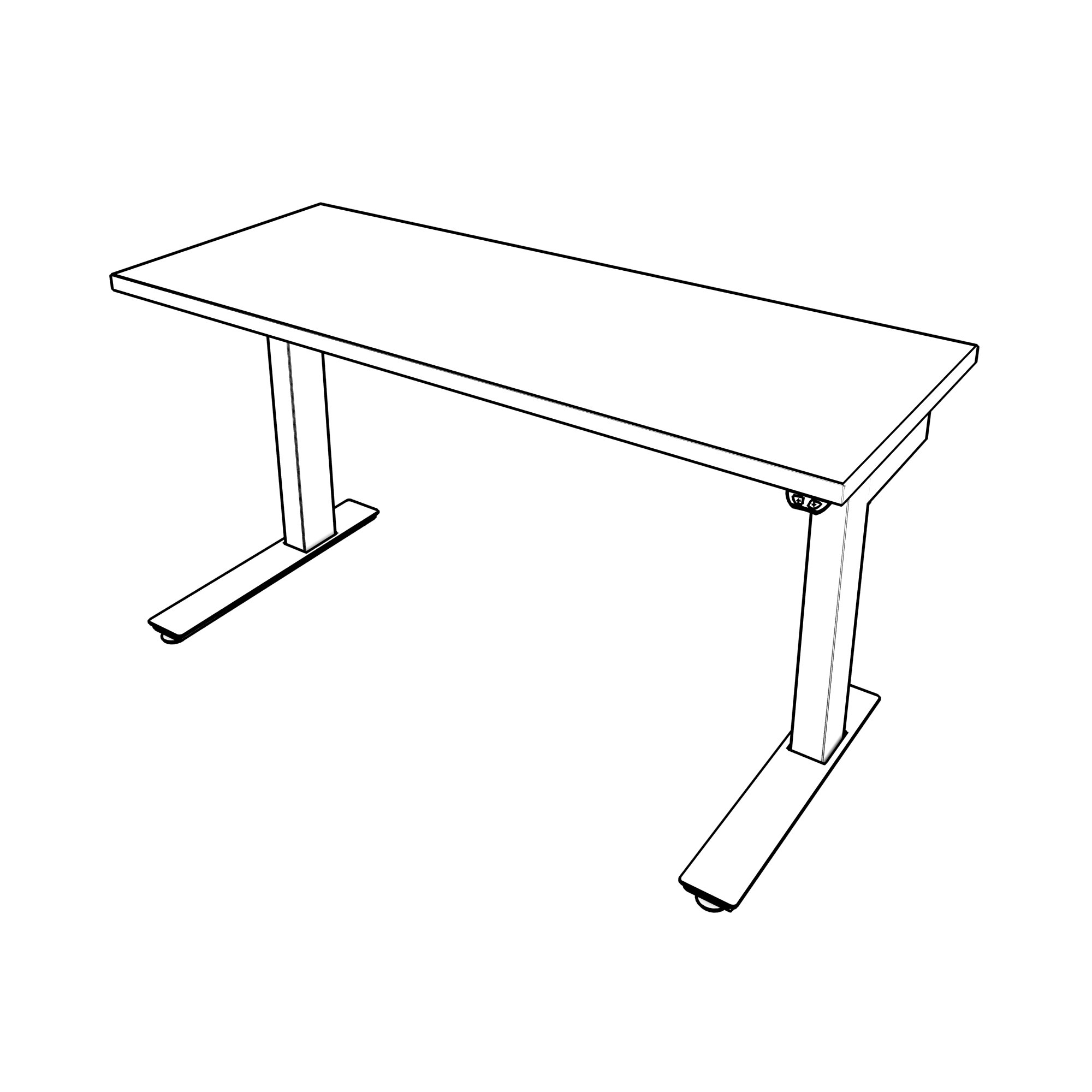

{{alt}}

Rectangular - 23" Deep

Bench Base

Laminate Top

Edgeband

Standard Core

No Electrical Cutouts

Single Stage, Std Adj: 27"-46"

Width: 46" - 70"

Catalog Number TARA-23xx-LJSNSE

2D DWG 3D DWG
{{alt}}

Rectangular - 35" Deep

Bench Base

Laminate Top

Edgeband

Standard Core

No Electrical Cutouts

Dual Stage Low, Progr Adj: 22"-48"

Width: 46" - 70"

Catalog Number TARA-35xx-LJSNHS

2D DWG 3D DWG
{{alt}}

Corner, 90Deg Wrap-Around Extended

Two Pieces

Laminate Top

Edgeband

Standard Core

Incremental Adjustment: 22"-35"

L/R Depth: 23"/23"

Length: 70"

Width: 64"

Orientation: Right

Catalog Number TACE-6470-LJSNCDH

2D DWG 3D DWG
{{alt}}

Rectangular - 30" Deep

Bench Base

Laminate Top

Edgeband

Standard Core

No Electrical Cutouts

Dual Stage Low, Progr Adj: 22"-48"

Width: 46" - 70"

Catalog Number TARA-30xx-LJSNHS

2D DWG 3D DWG
{{alt}}

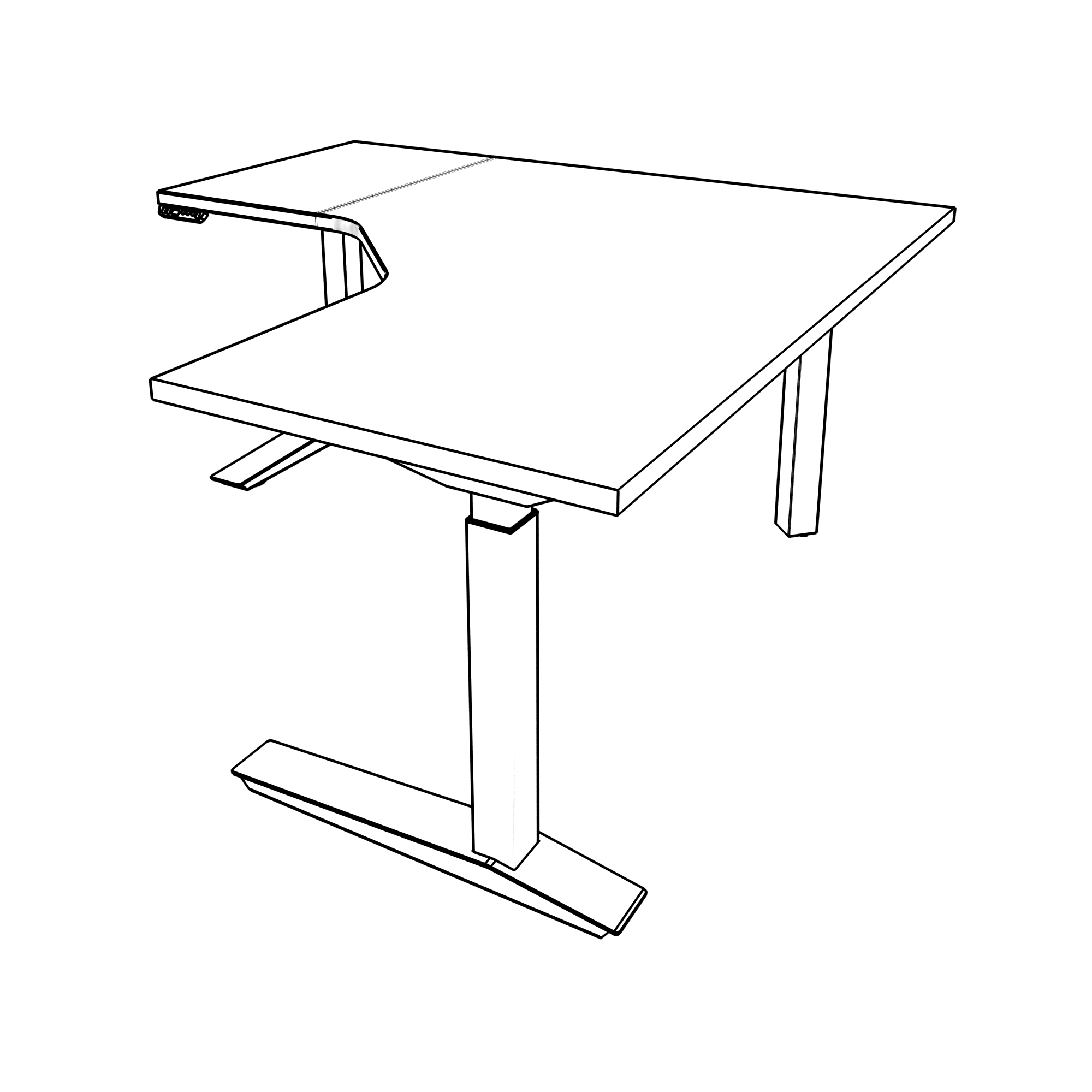

Corner, 90Deg Notched

Two Pieces

Laminate Top

Edgeband

Standard Core

Incremental Adjustment: 22"-35"

L/R Depth: 23"/23"

Width: 64"/70"

Orientation: Right

Catalog Number TACN-xxxx-LJSNCDH

2D DWG 3D DWG
{{alt}}

Corner, 90Deg Wrap-Around Extended

One Piece

Laminate Top

Edgeband

Standard Core

Crank Adjustment: 27"-45"

L/R Depth: 23"/23"

Length: 52"/58"/64"/70"

Width: 40"/46"/52"/58"

Orientation: Right

Catalog Number TACE-xxxx-LJSNCBH

2D DWG 3D DWG
{{alt}}

Corner, 90Deg Notched Extended

Two Pieces

Laminate Top

Edgeband

Standard Core

Crank Adjustment: 27"-45"

L/R Depth: 29"/29"

Length: 70"

Width: 64"

Orientation: Right

Catalog Number TACP-6470-LJSNCBJ

2D DWG 3D DWG
{{alt}}

Rectangular - 29" Deep

Bench Base

Laminate Top

Edgeband

Standard Core

No Electrical Cutouts

Dual Stage Low, Progr Adj: 22"-48"

Width: 46" - 70"

Catalog Number TARA-29xx-LJSNHS

2D DWG 3D DWG
{{alt}}

Rectangular - 29" Deep

Bench Base

Laminate Top

Edgeband

Standard Core

No Electrical Cutouts

Dual Stage High, Std Adj: 24"-50"

Width: 46" - 70"

Catalog Number TARA-29xx-LJSNSQ

2D DWG 3D DWG
{{alt}}

Rectangular - 29" Deep

Bench Base

Laminate Top

Edgeband

Standard Core

No Electrical Cutouts

Single Stage, Crank/Std Adj: 27"-46"

Width: 46" - 70"

Catalog Number TARA-29xx-LJSNSB

2D DWG 3D DWG
{{alt}}

Corner, 90Deg Wrap-Around Extended

One Piece

Laminate Top

Edgeband

Standard Core

Crank Adjustment: 27"-45"

L/R Depth: 23"/23"

Length: 52"/58"/64"/70"

Width: 40"/46"/52"/58"

Orientation: Left

Catalog Number TACE-xxxx-LJSNCBE

2D DWG 3D DWG
See All

Surface Materials

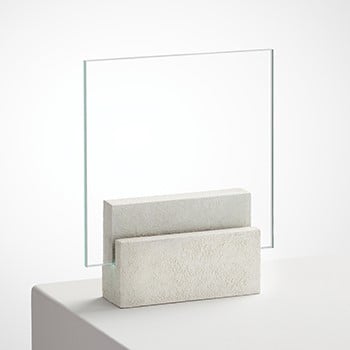

Glass (5) results

View All
Clear swatch Clear (2G-1C)
Clear swatch Clear (9T-1C)
Satin Etch swatch Satin Etch (2G-E21)
Satin Etch swatch Satin Etch (9T-E21)
White Backpainted Low Iron swatch White Bkpnt Low Iron (2G-SLW)

Laminate (39) results

View All
Amber Cherry swatch Amber Cherry (H-AM)
Beige swatch Beige (H-34)
Chalk swatch Chalk (H-AK)
Charcoal swatch Charcoal (H-8J)
Drift swatch Drift (H-C2)
Graphite swatch Graphite (H-3J)
Gray Tone swatch Gray Tone (H-62)
Hatch swatch Hatch (H-C6)
Hay swatch Hay (H-C1)
Maple swatch Maple (H-AE)
Medium Cherry swatch Medium Cherry (H-AD)
Mineral swatch Mineral (H-C5)
Molasses swatch Molasses (H-C4)
Pecan swatch Pecan (H-C3)
Platinum swatch Platinum (H-3P)
Putty swatch Putty (H-AA)

Seating Upholstery (2) results

View All
Aegean swatch Tellure (3A)

Translucents (1) results

View All
White Translucent swatch White Translucent (55-WT)

Trim (35) results

View All
Accent Blue swatch Accent Blue (TR-1C)
Accent Orange swatch Accent Orange (TR-1E)
Black swatch Black (TR-F)
Blue Jay swatch Blue Jay (TR-1G)
Brownstone swatch Brownstone (TR-1R)
Chalk swatch Chalk (TR-AK)
Chartreuse swatch Chartreuse (TR-CTS)
Cocoa swatch Cocoa (TR-C1)
Dark Bronze Metallic swatch Dark Bronze Metallic (TR-DM)
Night swatch Night (TR-1N)
Park swatch Park (TR-1Q)
Putty swatch Putty (TR-AA)
Sable swatch Sable (TR-1M)
Sky Blue swatch Sky Blue (TR-1J)
Smoke swatch Smoke (TR-E)
Terra swatch Terra (TR-1H)

Vertical Fabrics (21) results

View All
Sandpiper swatch Birds Nest (PH)
Alfalfa swatch Camp (33)
Alfalfa (RR) swatch Camp (RAILROAD)
Bargello swatch Chevron (6X)
Art swatch Classic (L5)
Cameo swatch Etch (35)
Alfalfa swatch Fields (34)
Glen swatch Highlands (L6)
Wisp swatch Hue (6)
Bead swatch Peca (32)
Compass swatch Point (EE)
Boomy swatch Reverb (3V)
Black Tie swatch Ritz (PV)
Cellophane swatch Shimmer (WS)
Alder swatch Sisal (SW)
Band swatch Striae (C1)

Wood (24) results

View All
Light QC Anegre swatch Anegre QC (NP)
Applegate (HZ) swatch Applegate (2P-RL)
Butternut (HZ) swatch Butternut (2R-RL)
Amber On Cherry swatch Cherry (VC)
Medium QC Cherry swatch Cherry QC (NX)
Clear (RCWO) swatch Clear On (RCWO) (NR-W35)
Echo (HZ) swatch Echo (2N-RL)
Light On Figured Anegre swatch Figured Anegre (VU)
Harbor (HZ) swatch Harbor (W3-HR)
Light Maple swatch Maple (VP)
Natural On QC Maple swatch Maple QC (NM)
Brindle swatch Oak (VJ)
Espresso (RCWO) swatch Oak Rift Cut (NR)
Pebble (HZ) swatch Pebble (W4-PB)
Mahogany Satin On Walnut swatch Walnut (VR)
Walnut Grove (HZ) swatch Walnut Grove (CQ-WG)
Surfaces

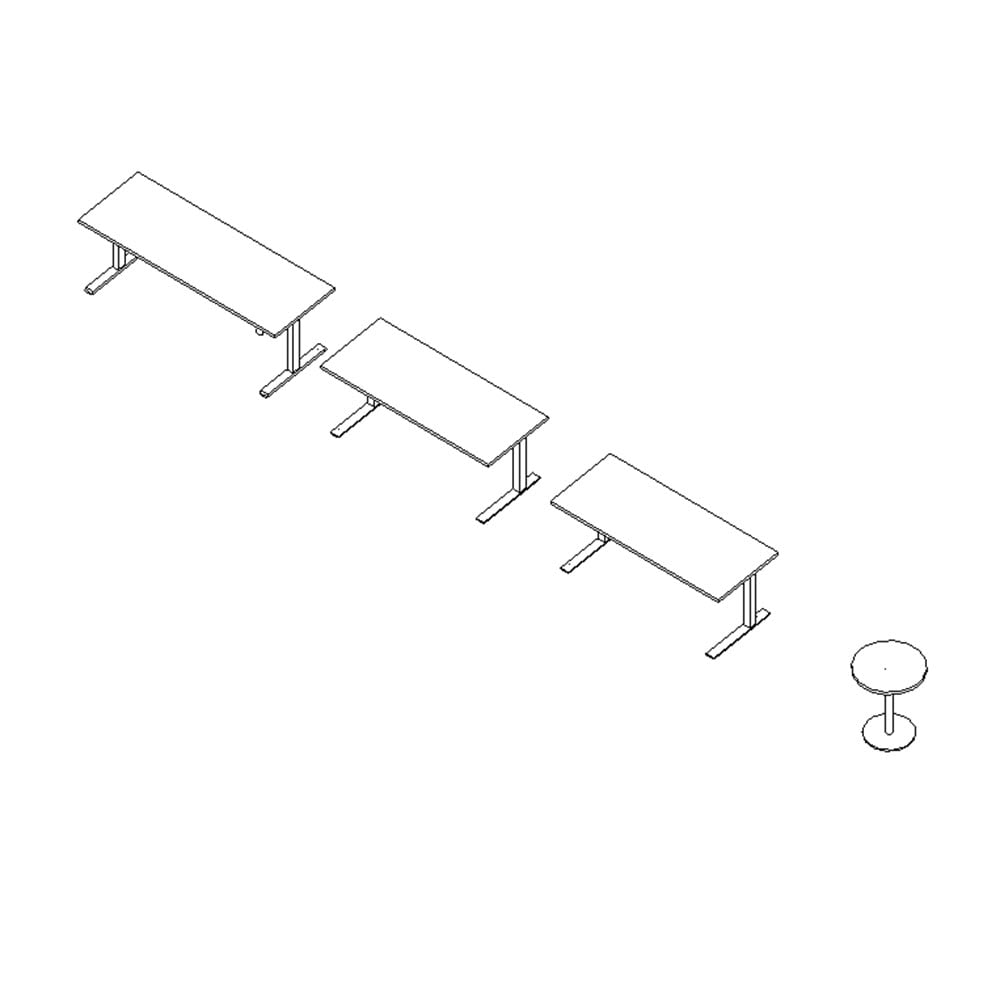

Revit

Planes Height Adjustable Tables Models

Planes Height Adjustable Table Corner 90 Wrap Around

612KB

Planes Height Adjustable Table 90-Angled

508KB

Planes Height Adjustable Table 90-Notched

512KB

Planes Height Adjustable Table 90-Straight

520KB

Planes Height Adjustable Table 90-WrapAround

536KB

Planes Height Adjustable Table Corner 120

732KB

Planes Height Adjustable Table Corner 90 Notched

596KB

Planes Height Adjustable Table Rectangular

524KB

Additional Models

All Families Zip File

741MB

Height Adjustable Tables Revit Family (Zip File)

7MB

Downloads

Product Documents

Planes Height-Adjustable Table Product Sheet

Certificates and Sustainability

Planes Height Adjustable Product Environmental Data sheet

Technical Information

Planes - Height Adjustable Table - Recycling

Wide choice

Seven top shapes create a variety of individual workstations for rectangular, 90°, and 120° planning. C-leg base design provides generous knee clearance and allows for positioning of lower storage over the low-profile foot.

Colors, Materials, Finishes

Planes worksurfaces are available in standard Haworth finishes, including laminates and veneers. The base is available in all standard Integrated Palette™ paint colors.

View All Images

Compare with Similar Items

Configurations

Standard Range (Single-Stage)

Extended Range (Dual-Stage)

Top Widths

Top Finishes

Base Options

Base Finishes

Frame

Benching

Warranty

Planes Height Adjustable Tables

2-Leg, 3-Leg, 120°

27" - 46"

L

34", 40", 46", 52", 58", 64", 70"

High Pressure Laminate, Veneer

C-Leg

36 Colors

Fixed

Yes

10 Years (Mechanical and Electrical)

Configure & Price

Planes Value Model Height-Adjustable Tables

2-Leg, 3-Leg, 120°

27" – 46”

23” – 48.7”

46", 52", 58", 64", 70"

High Pressure Laminate

C-Leg, T-Leg

36 Colors

Frameless

Yes

10 Years (Mechanical and Electrical)

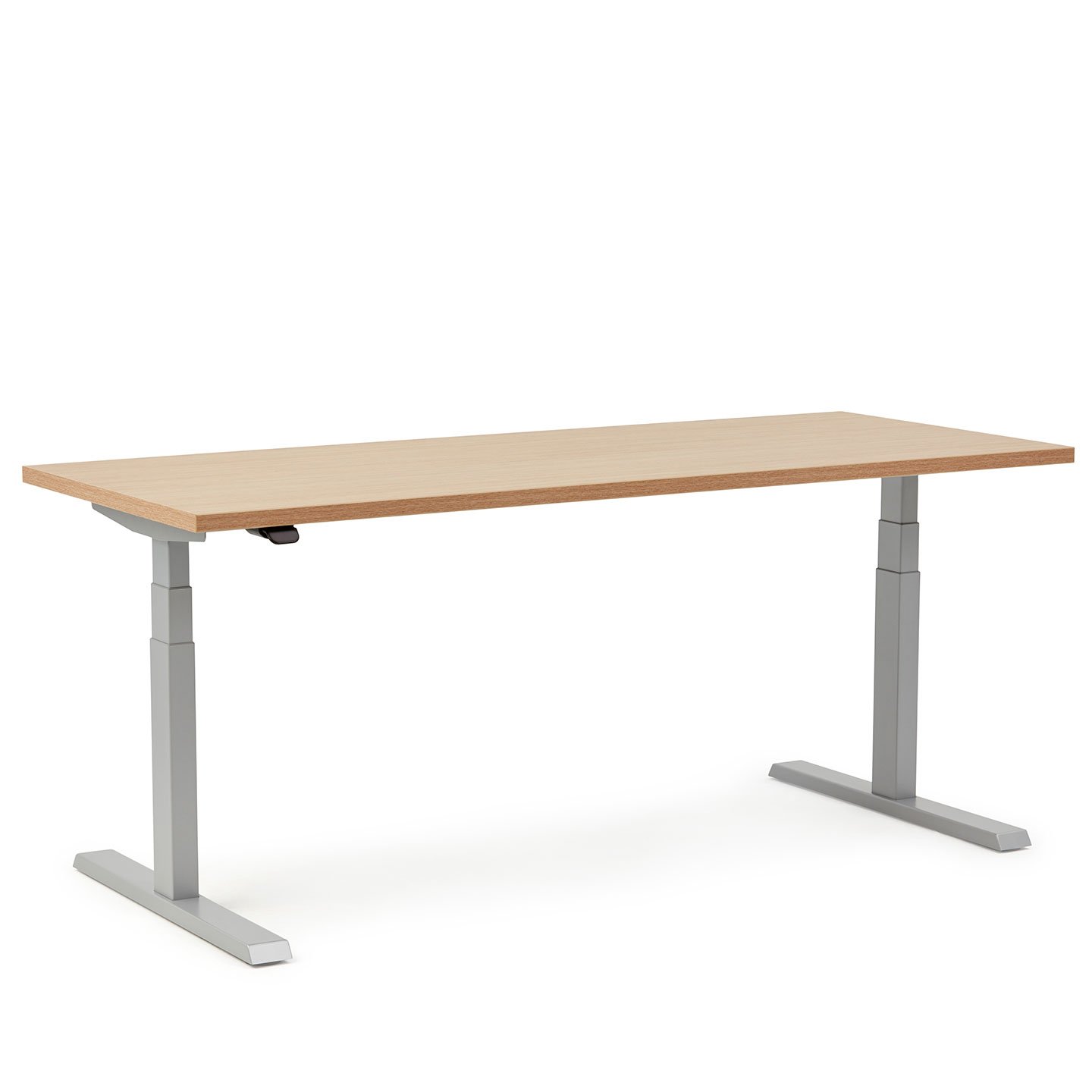

Haworth Upside Height Adjustable Table with chalk rectangular top and steel legs

Upside Height-Adjustable Tables

2-Leg

27.4” – 46.6”

22.6"-48.7" (BIFMA G1 compliant)

46", 52", 58", 64", 70", 76", 82"

High Pressure Laminate, Veneer

C-Leg, T-Leg

Standard Model - 20 colors Value Model - 3 colors

Expandable

No

10 Years (Mechanical and Electrical)

Related Content

The Office "Ouch Factor"

Learn More

4 Basic Ergonomic Design Tips

Learn More

You May Also Like

Planes Value Model Height-Adjustable Tables

Haworth

Upside Height-Adjustable Tables

Haworth

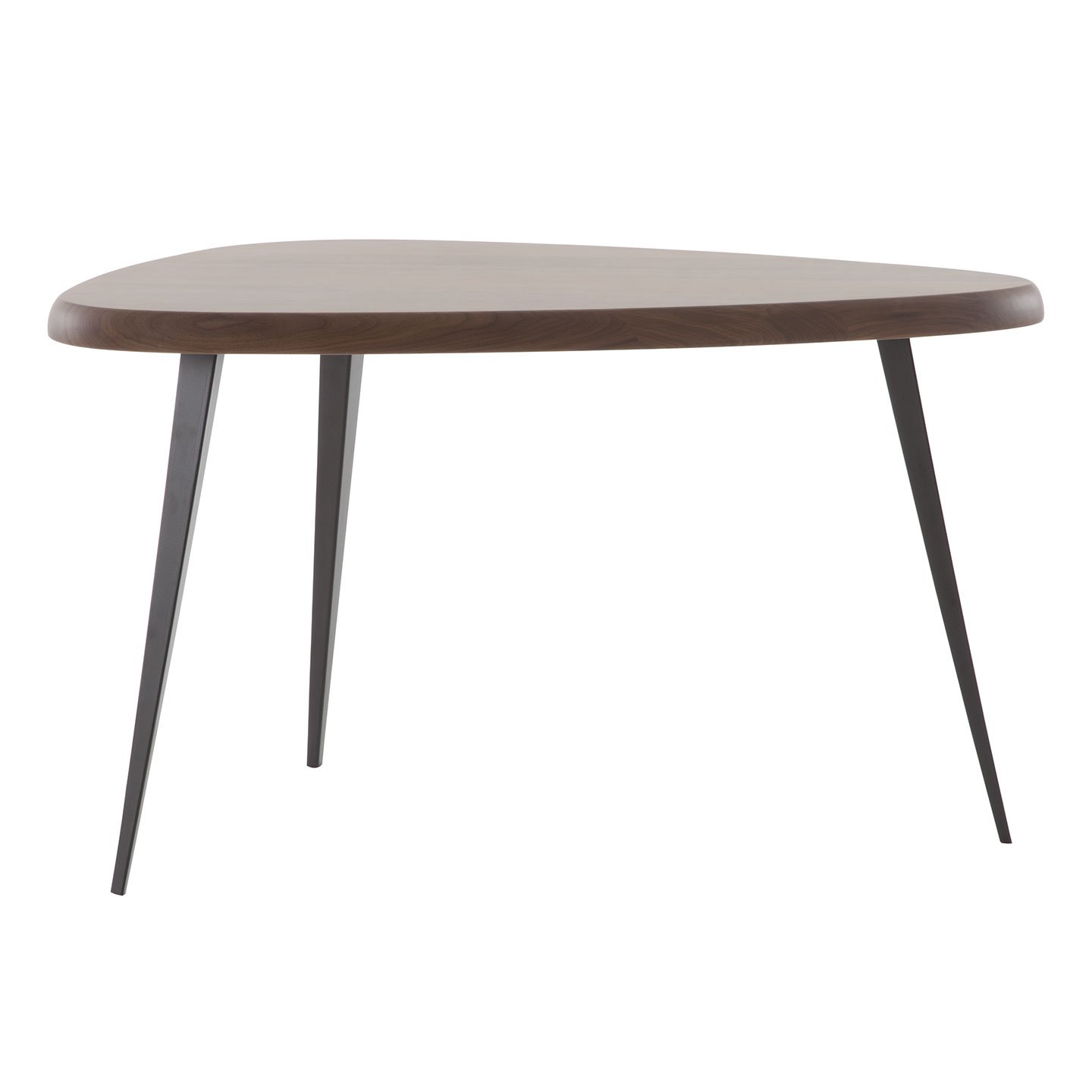

Mexique Tables

Cassina

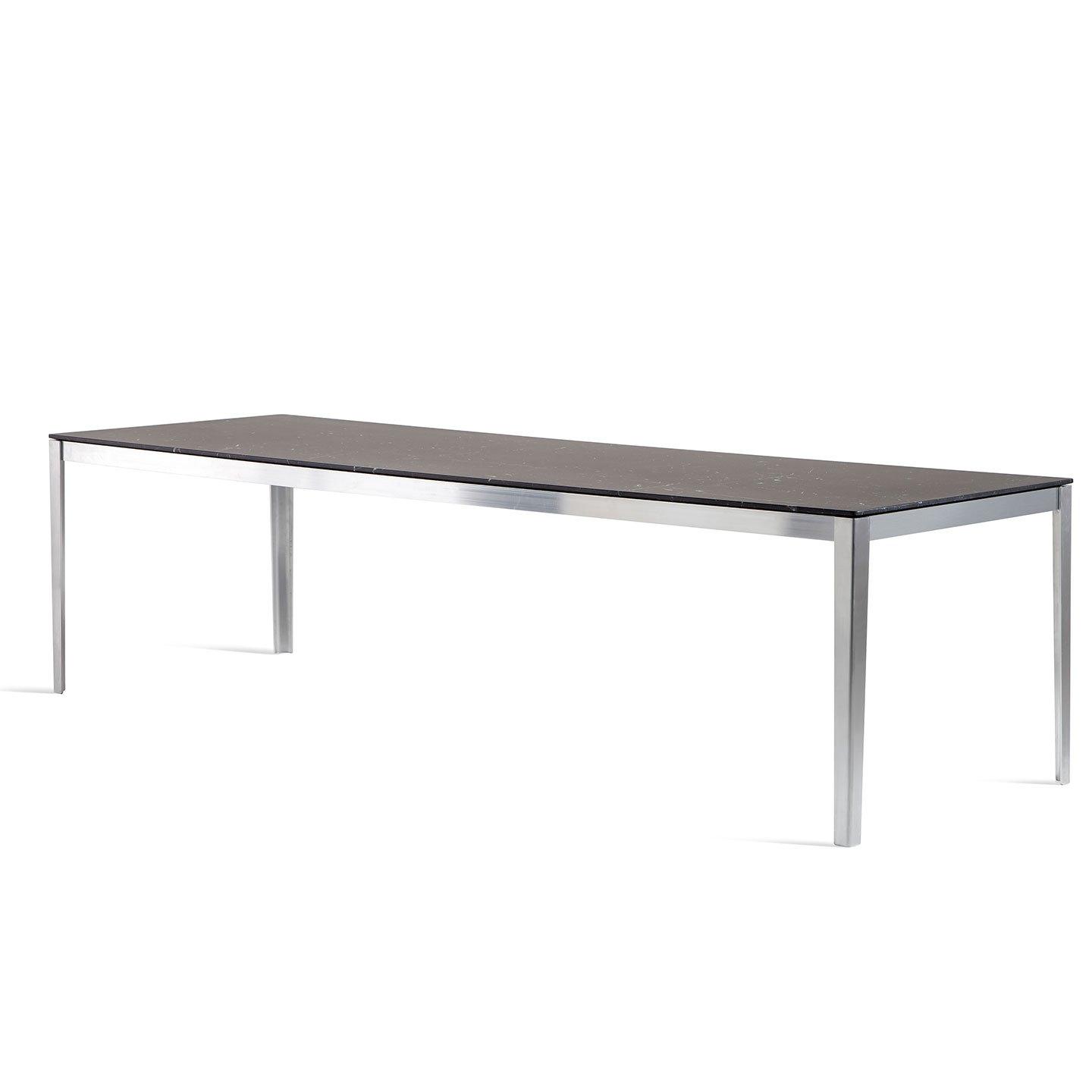

Cotone Tables
