Planes Value Model Height-Adjustable Tables

Haworth

Planes Value Model sit to stand desks give people a choice while they work, and this electric standing desk features a flexible design to fit any office floorplate. Adjustable work tables are key to ergonomic comfort and also help improve energy and productivity.

Planes Value Model Height-Adjustable Tables Overview

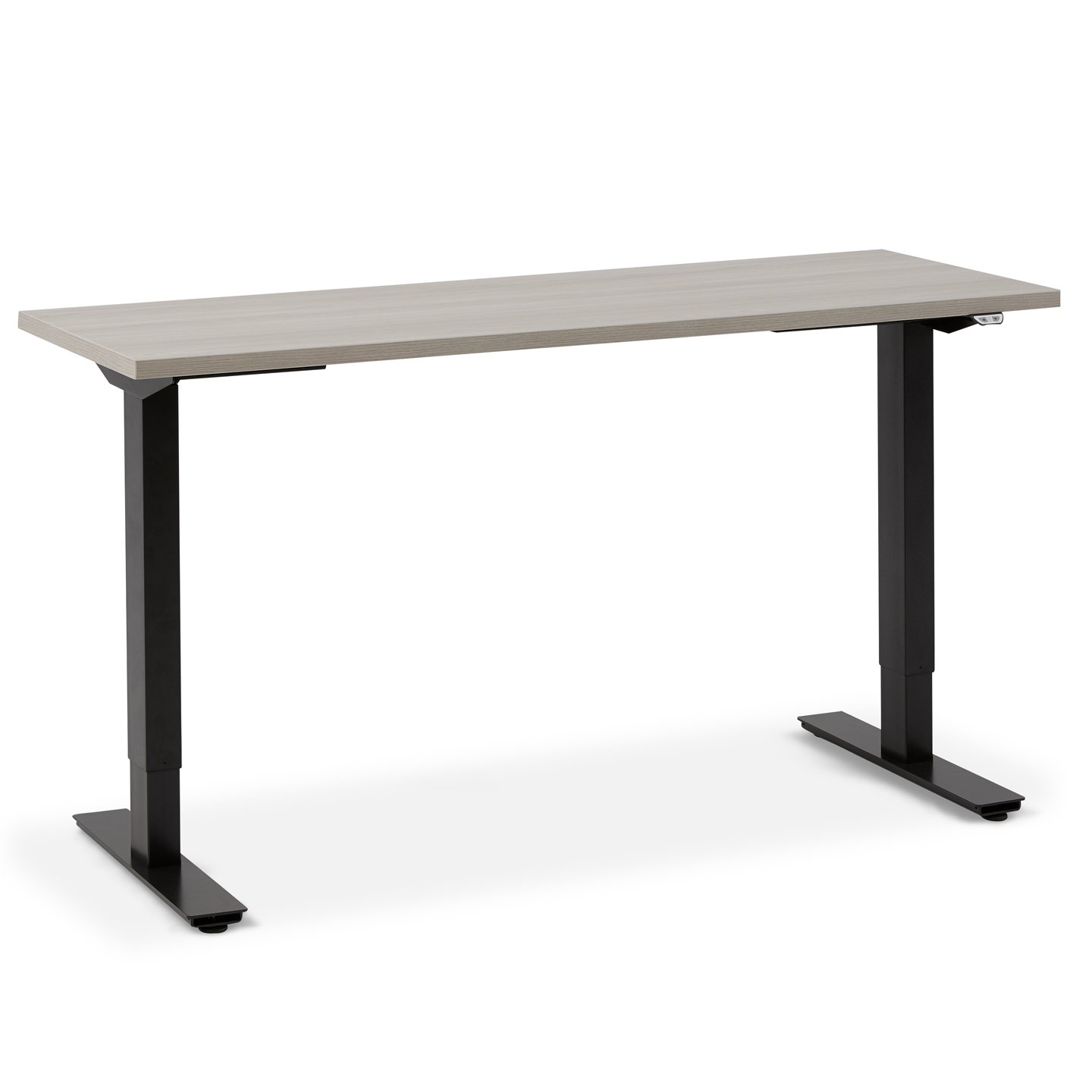

Planes Value Model sit to stand desks provide ergonomic solutions that give people the choice to sit or stand and change postures throughout the day. These adjustable work tables allow for a good fit to people of all heights. Among electric standing desks, this is a budget-conscious offering featuring flexible design that supports easy reconfiguration as a company's floorplate needs change.

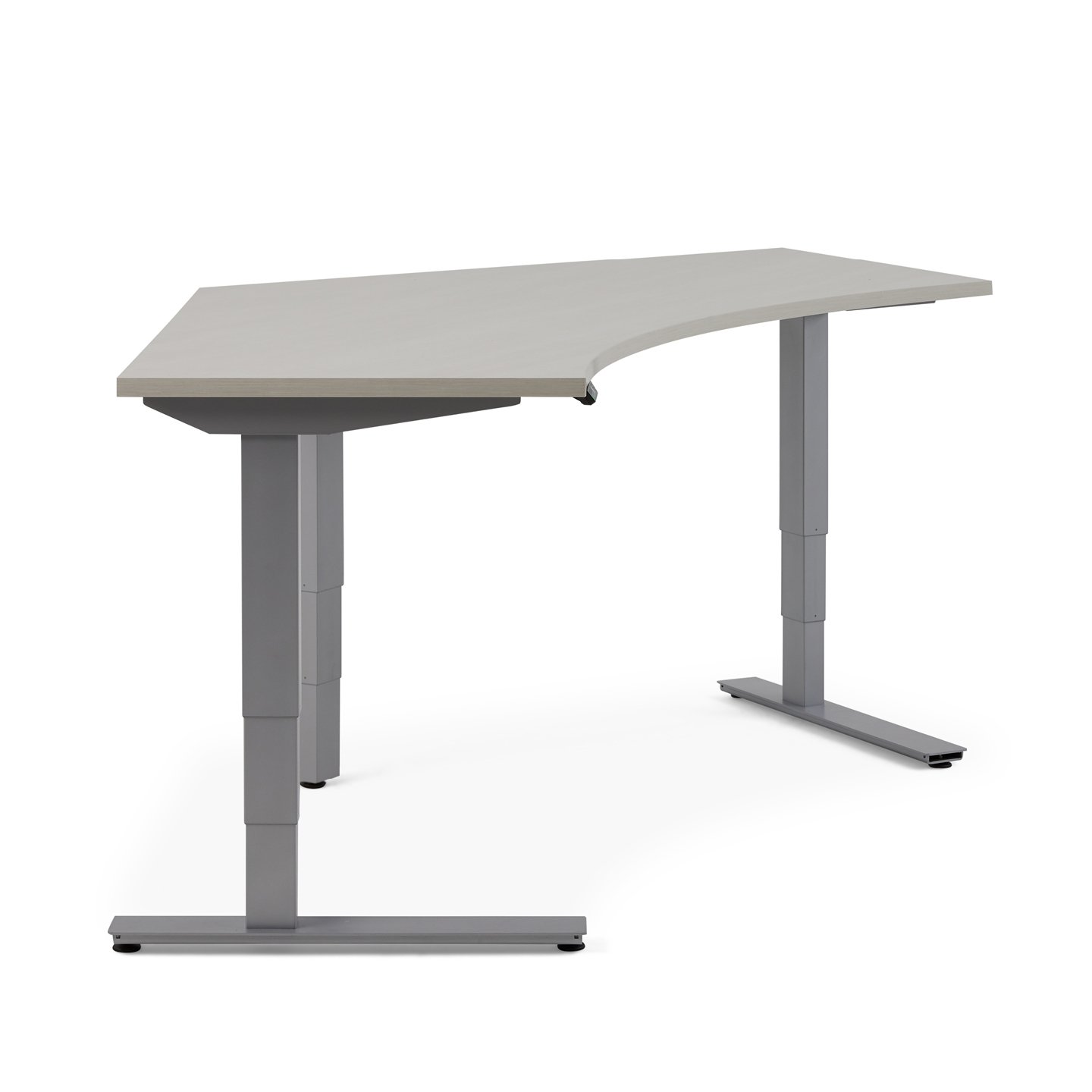

    • Configurations: 2-leg, 3-leg corner, and 120° in a variety of widths
    • Electric height adjustment ranges: Standard (single-stage) is 27” – 46”; Extended (dual-stage) is 23” – 48.7”
    • Depths: 23” and 29”
    • Worksurfaces in all standard Haworth high-pressure laminates
    • Edgeband

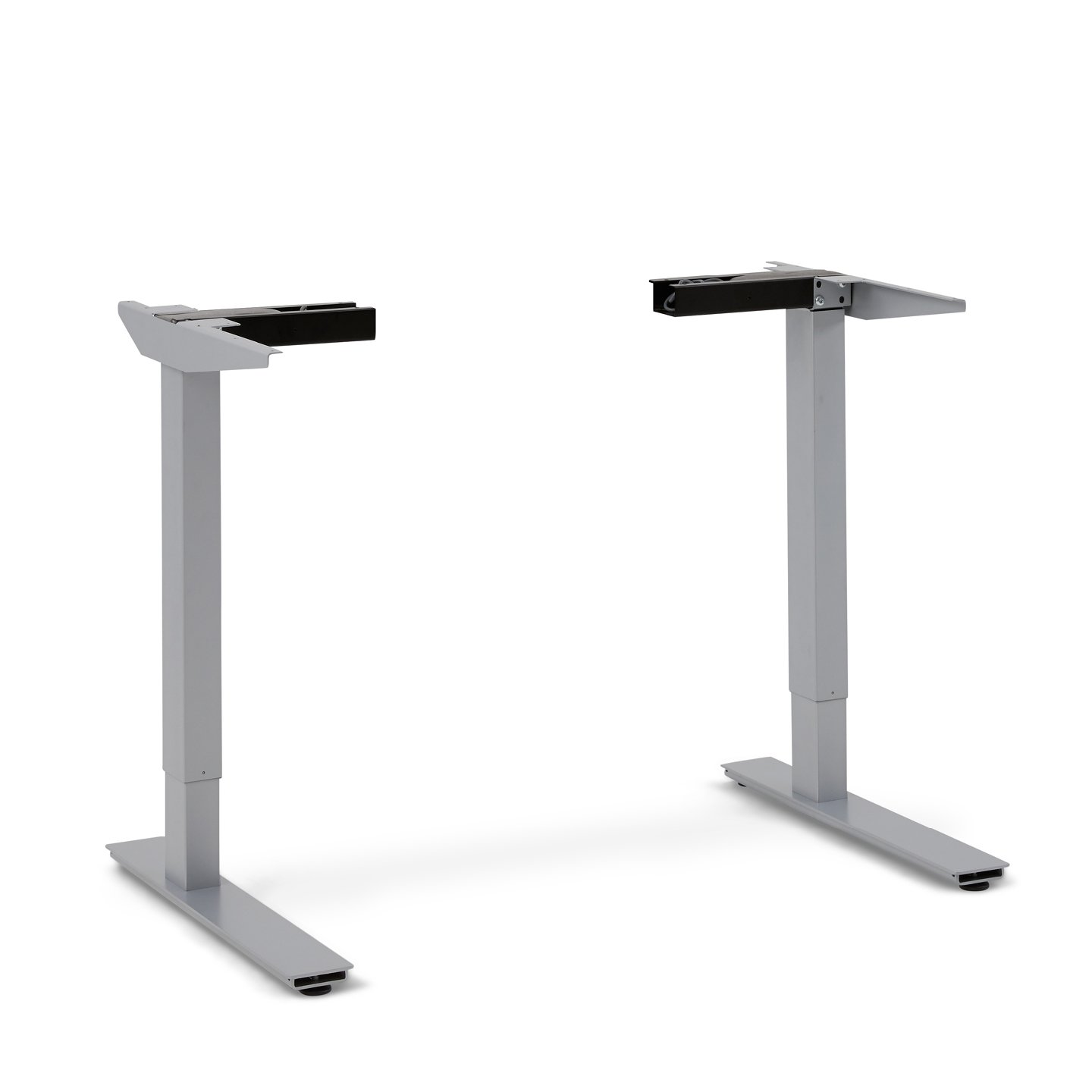

    • C-leg or T-leg base in full Integrated Palette™ paint offering
    • Programmable control with 4-height memory
    • Collision sensor kit
    • Caster kit
    • Supports a variety of work tools, including screens, monitor arms, adjustable keyboard pads, security drawer, and select suspended storage
    • BIFMA LEVEL 3 Certified
    • FSC® Certified
    • GREENGUARD Certified
    • May Contribute Toward LEED® Credits

Price Guides

CAD/Symbols

{{alt}}

Planes

Table

Rectangular

T-Leg

3mm Edgeband

Depth: 23in.

Width: 46-70 in.

Catalog Number: TLRA-23xx-LJSNTx

Catalog Number TLRA-23xx-LJSNTx

2D DWG 3D DWG

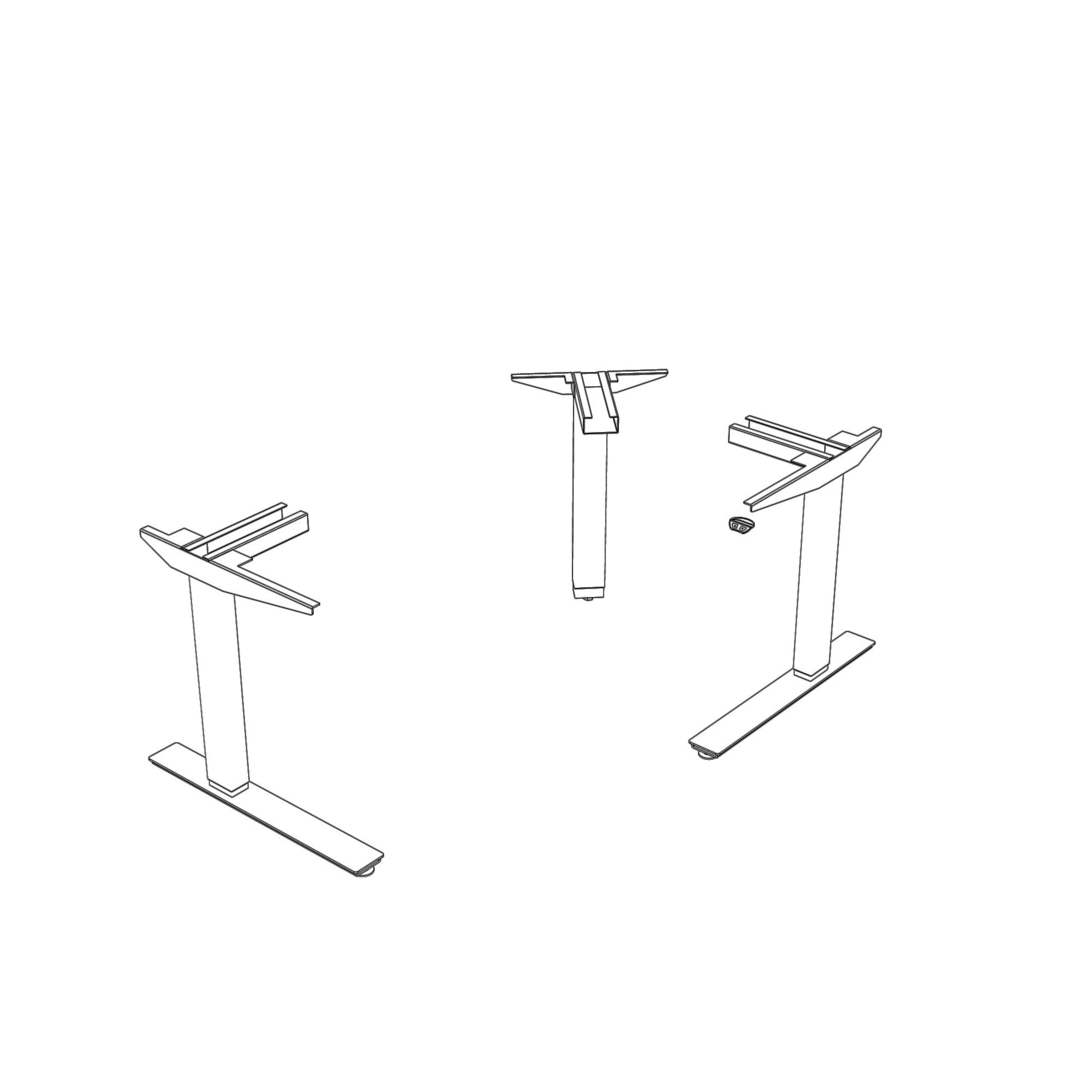

{{alt}}

Planes

Table Base

Corner 90 Degree Wrap-Around Extended

C-Leg

3mm Edgeband

Depth: 29in.

Width: 52-70 in.

Catalog Number: TLCE-xxxx-NNNNCxC

Catalog Number TLCE-xxxx-NNNNCxC

2D DWG 3D DWG
{{alt}}

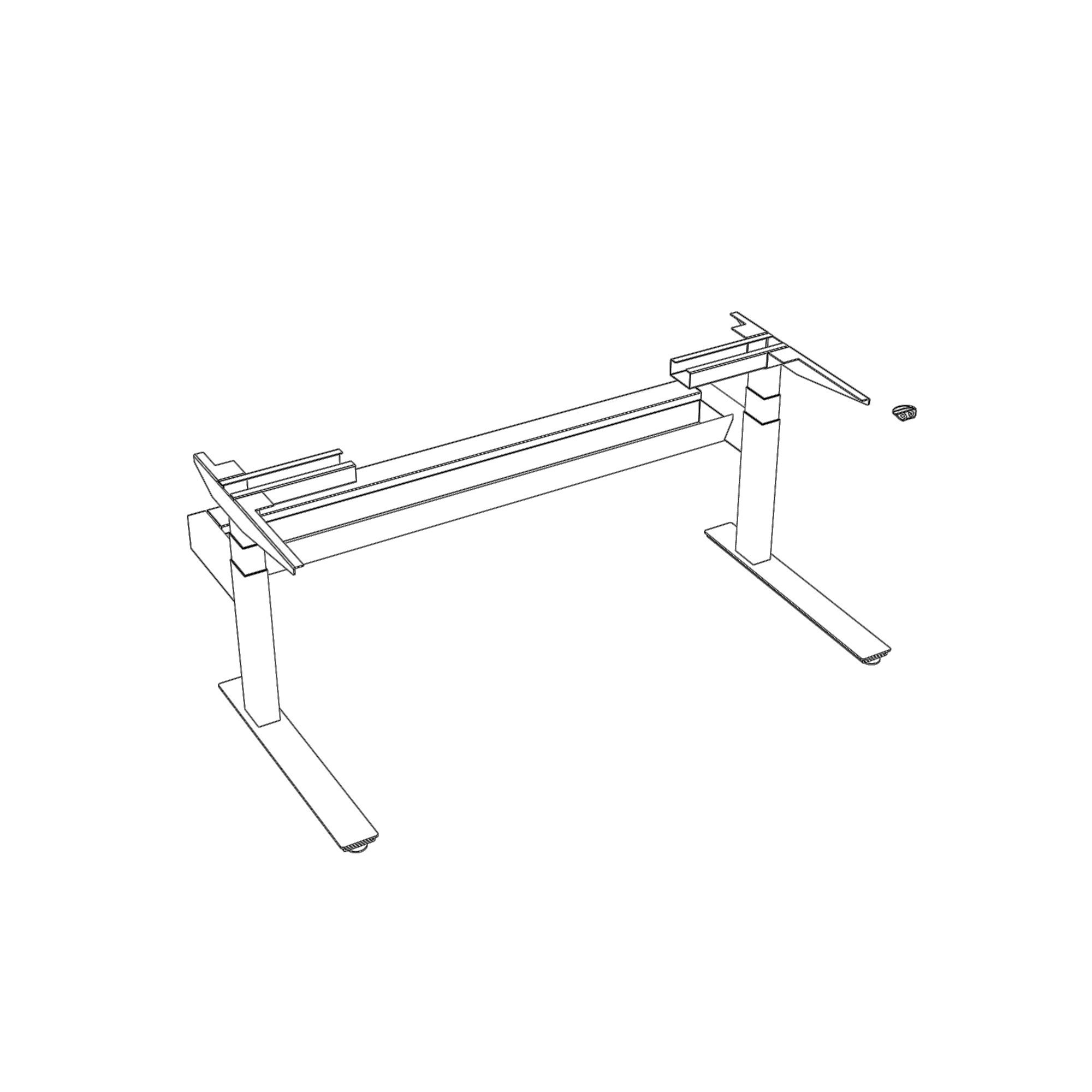

Planes

Bench - Base Only

Rectangular

Single-Sided Bench

3mm Edgeband

Depth: 29in.

Width: 46-70 in.

Catalog Number: TLRA-29xx-NNNNSx

Catalog Number TLRA-29xx-NNNNSx

2D DWG 3D DWG
{{alt}}

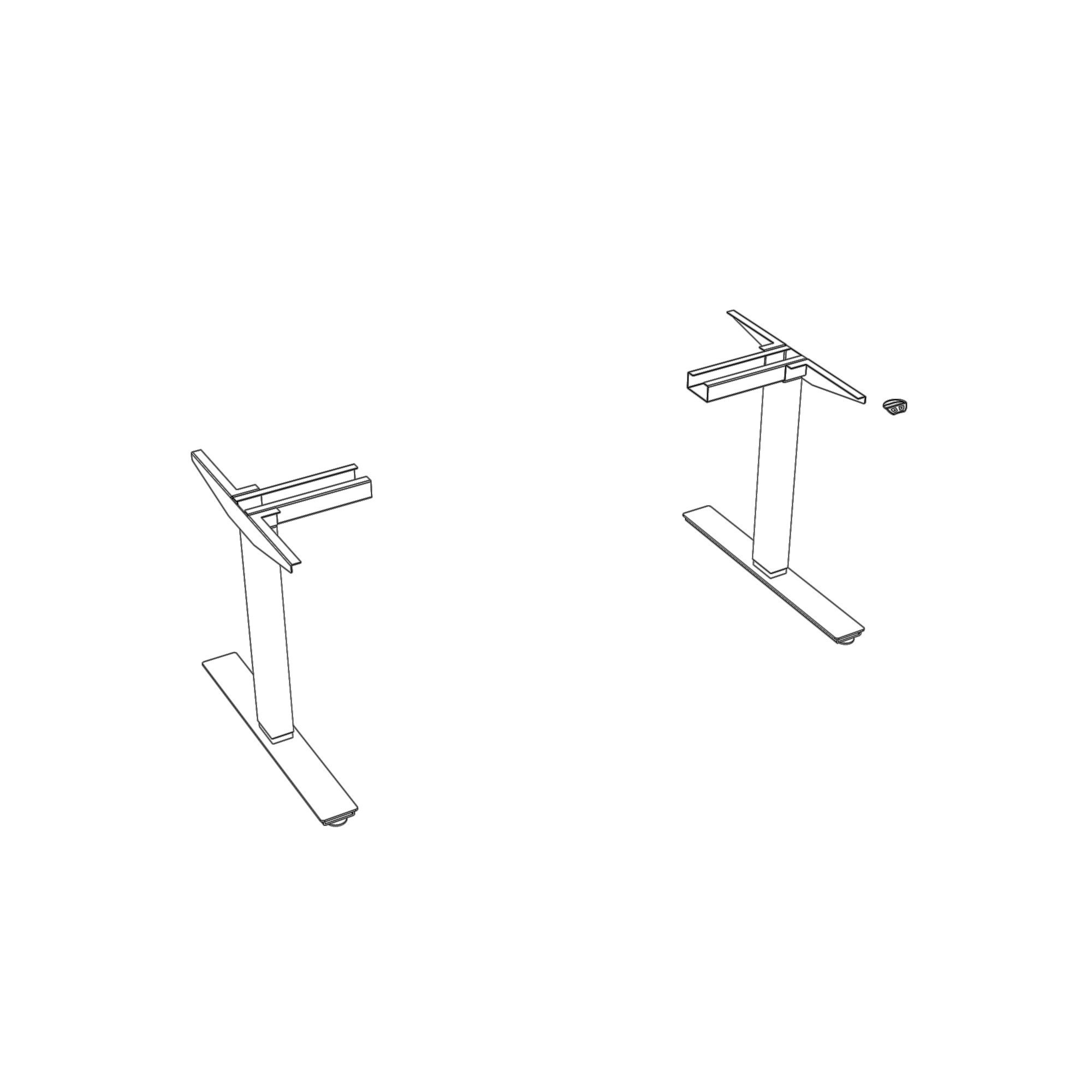

Planes

HAT Base

Rectangular

T-Leg

3mm Edgeband

Depth: 29in.

Width: 46-70 in.

Catalog Number: TLRA-29xx-NNNNTx

Catalog Number TLRA-29xx-NNNNTx

2D DWG 3D DWG
{{alt}}

Planes

Bench

Corner 120 Degree

Full-Sized Bench

3mm Edgeband

Depth: 24in.

Width: 46-58 in.

Catalog Number: TLCZ-xxxx-LJSNHxD

Catalog Number TLCZ-xxxx-LJSNHxD

2D DWG 3D DWG
{{alt}}

Planes

Table

Rectangular

T-Leg

3mm Edgeband

Depth: 29in.

Width: 46-70 in.

Catalog Number: TLRA-29xx-LJSNTx

Catalog Number TLRA-29xx-LJSNTx

2D DWG 3D DWG

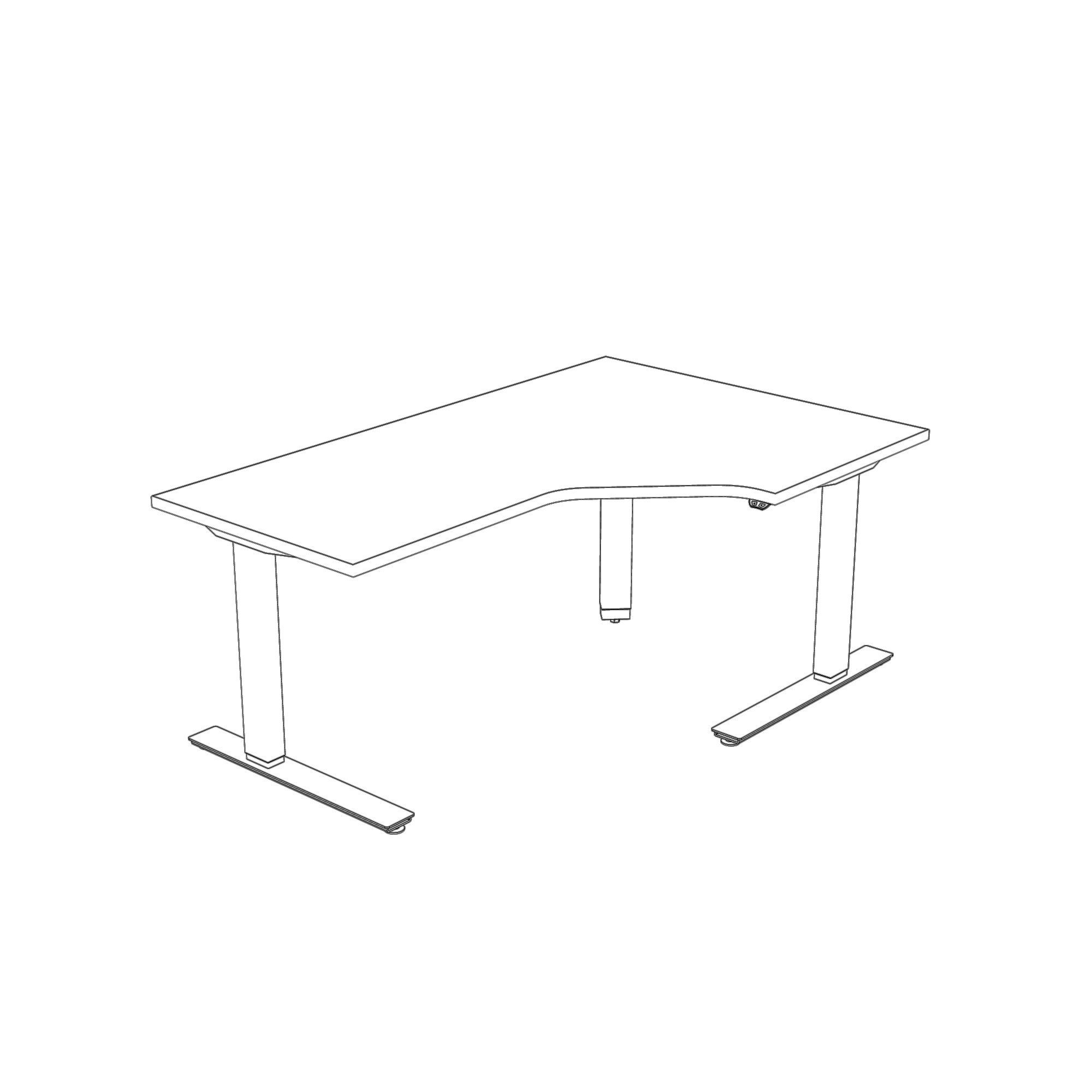

{{alt}}

Planes

Table

Corner 90 Degree Notched Extended

C-Leg

3mm Edgeband

Depth: 23-29 in.

Width: 52-70 in.

Catalog Number: TLCP-xxxx-LJSNCxx

Catalog Number TLCP-xxxx-LJSNCxx

2D DWG 3D DWG
{{alt}}

Planes

HAT Base

Corner 120 Degree

Full-Sized Bench

3mm Edgeband

Depth: 29in.

Width: 46-58 in.

Catalog Number: TLCZ-xxxx-NNNNHxC

Catalog Number TLCZ-xxxx-NNNNHxC

2D DWG 3D DWG
{{alt}}

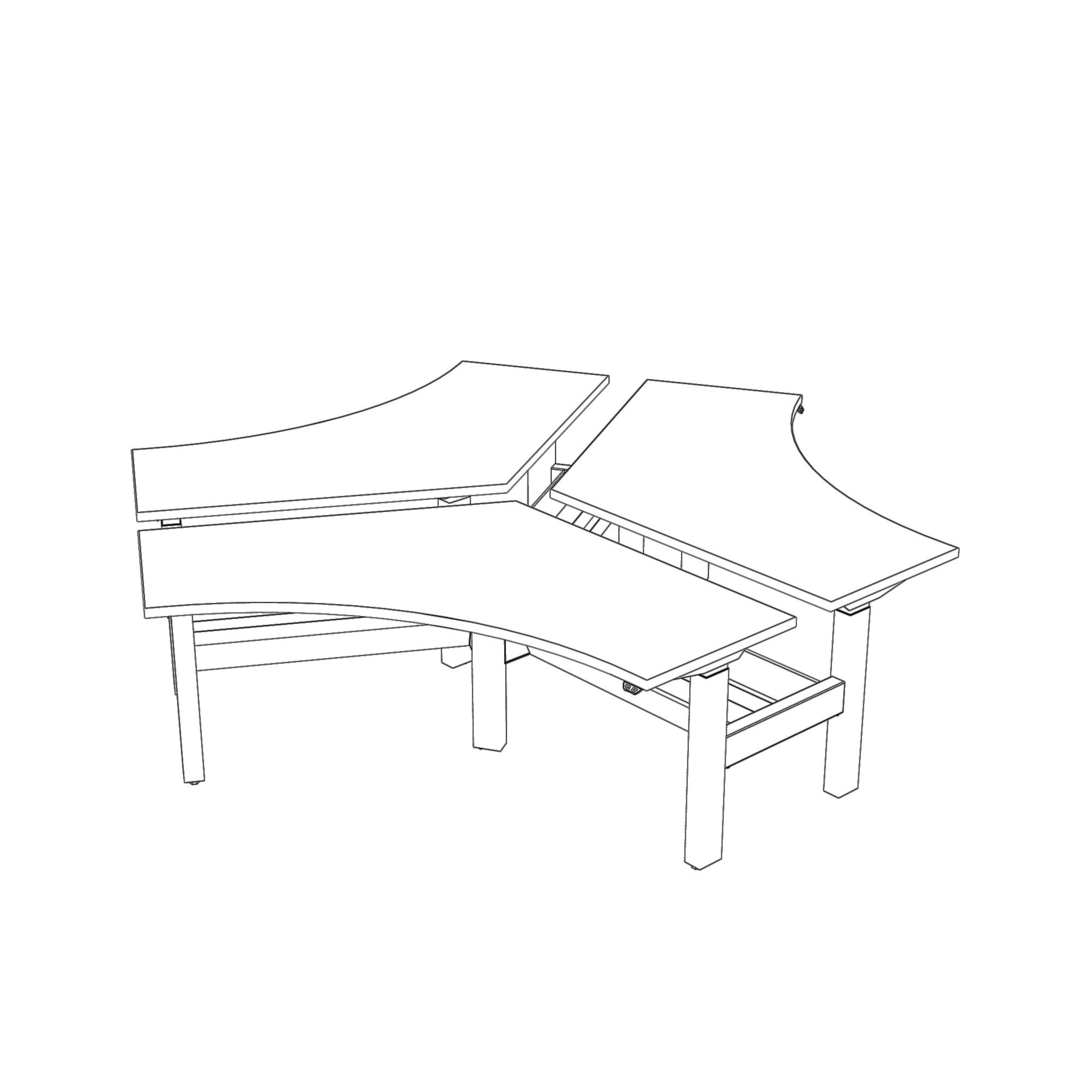

Planes

Bench

Corner 120 Degree

Full-Sized Bench

3mm Edgeband

Depth: 23in.

Width: 46-58 in.

Catalog Number: TLCZ-xxxx-LJSNHxB

Catalog Number TLCZ-xxxx-LJSNHxB

2D DWG 3D DWG
{{alt}}

Planes

Table

Corner 90 Degree Wrap-Around Extended

C-Leg

3mm Edgeband

Depth: 23-29 in.

Width: 52-70 in.

Catalog Number: TLCE-xxxx-LJSNCxx

Catalog Number TLCE-xxxx-LJSNCxx

2D DWG 3D DWG

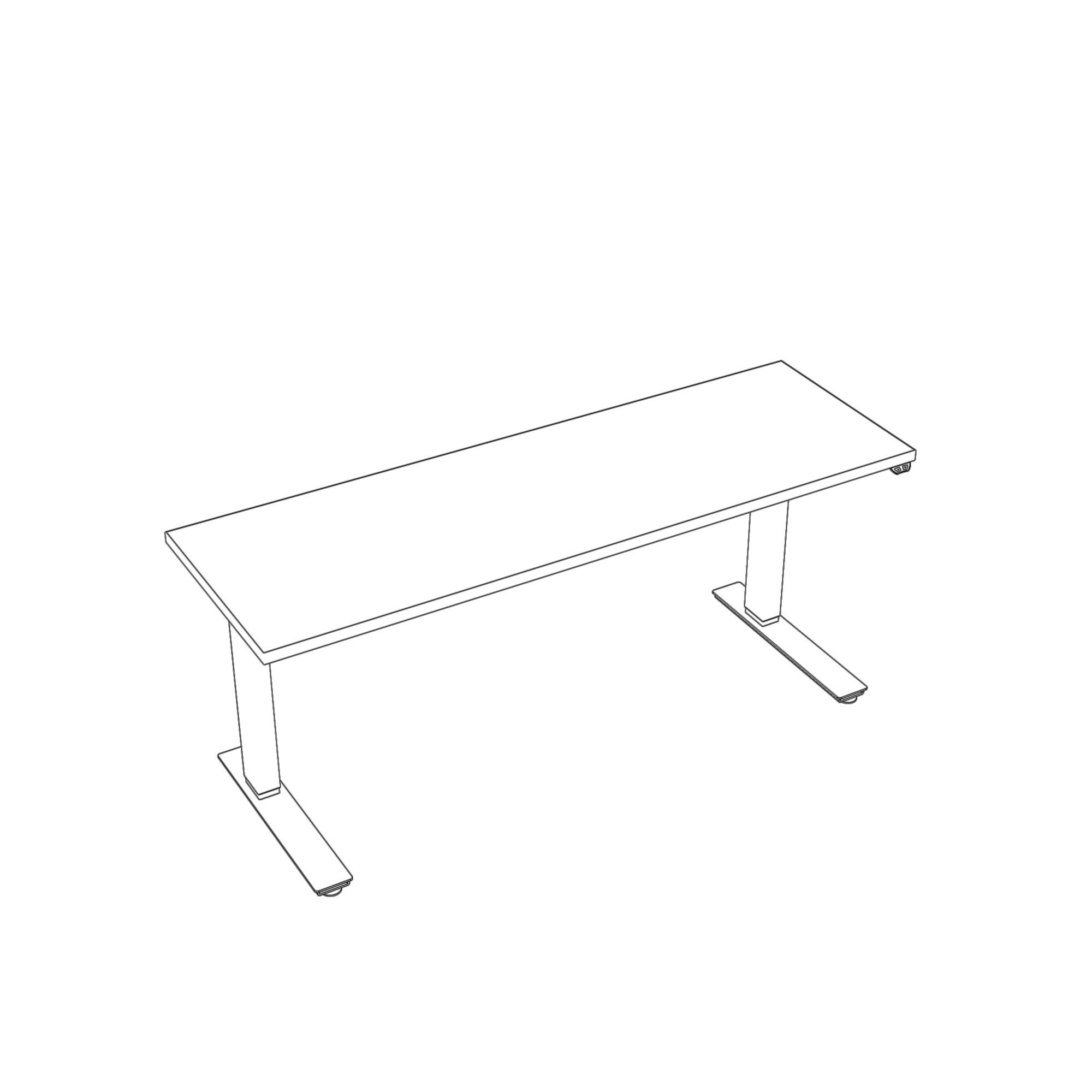

{{alt}}

Planes

Table

Rectangular

C-Leg

3mm Edgeband

Depth: 23in.

Width: 46-70 in.

Catalog Number: TLRA-23xx-LJSNCx

Catalog Number TLRA-23xx-LJSNCx

2D DWG 3D DWG
{{alt}}

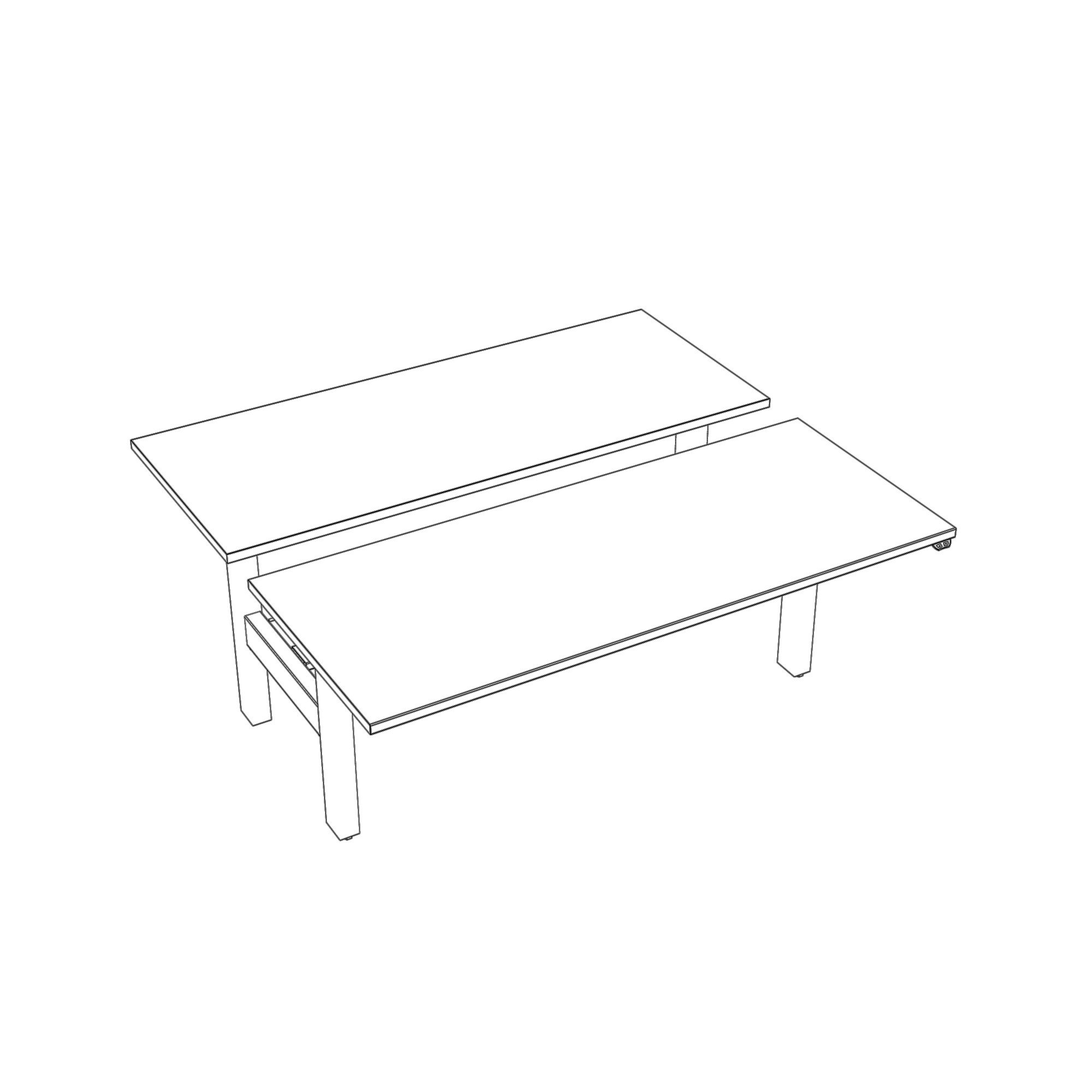

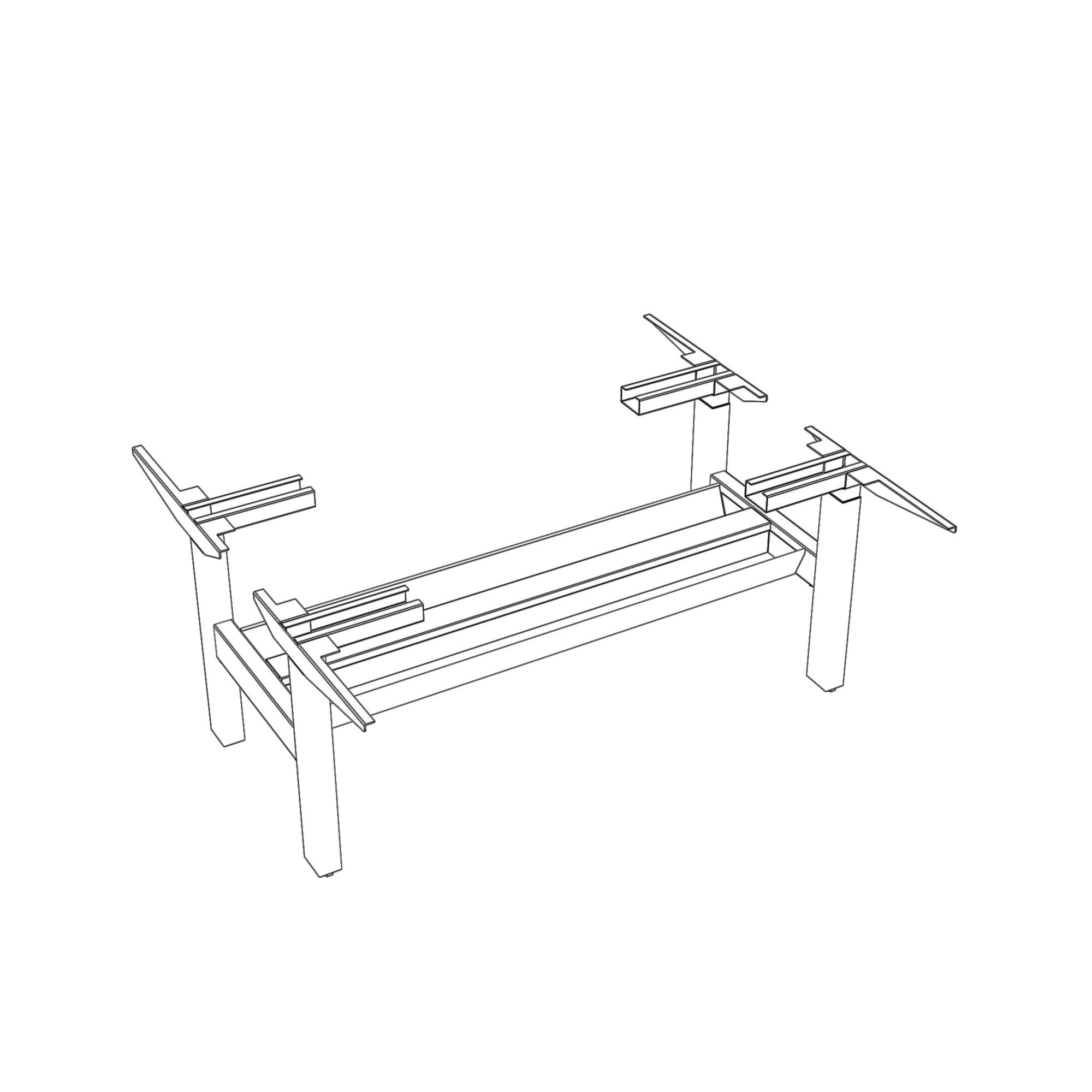

Planes

Bench

Rectangular

Full-Sized Bench

3mm Edgeband

Depth: 29in.

Width: 46-70 in.

Catalog Number: TLRA-29xx-LJSNHx

Catalog Number TLRA-29xx-LJSNHx

2D DWG 3D DWG

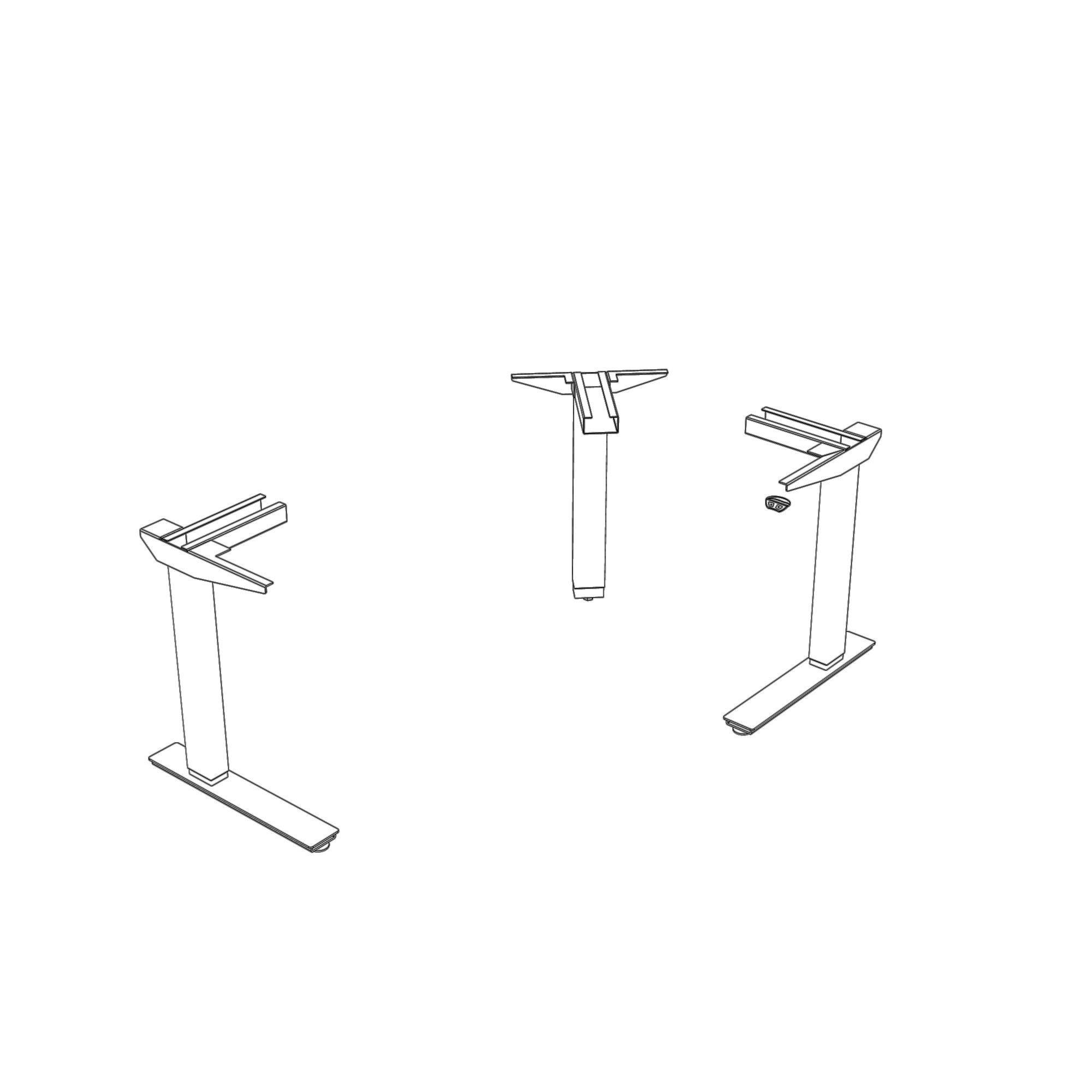

{{alt}}

Planes

Table Base

Corner 90 Degree Wrap-Around Extended

C-Leg

3mm Edgeband

Depth: 23in.

Width: 52-70 in.

Catalog Number: TLCE-xxxx-NNNNCxB

Catalog Number TLCE-xxxx-NNNNCxB

2D DWG 3D DWG

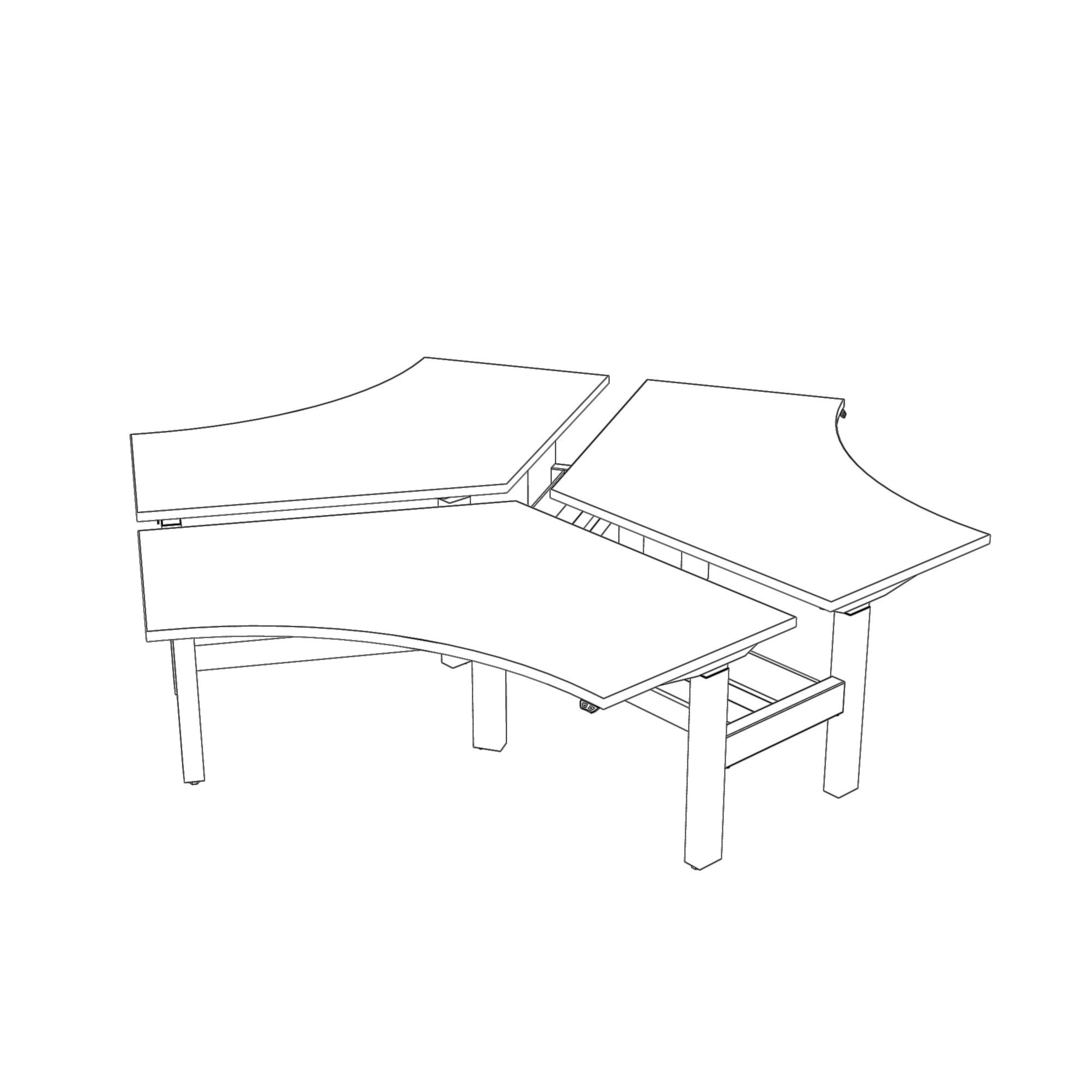

{{alt}}

Planes

Bench

Corner 120 Degree

Full-Sized Bench

3mm Edgeband

Depth: 29in.

Width: 46-58 in.

Catalog Number: TLCZ-xxxx-LJSNHxC

Catalog Number TLCZ-xxxx-LJSNHxC

2D DWG 3D DWG

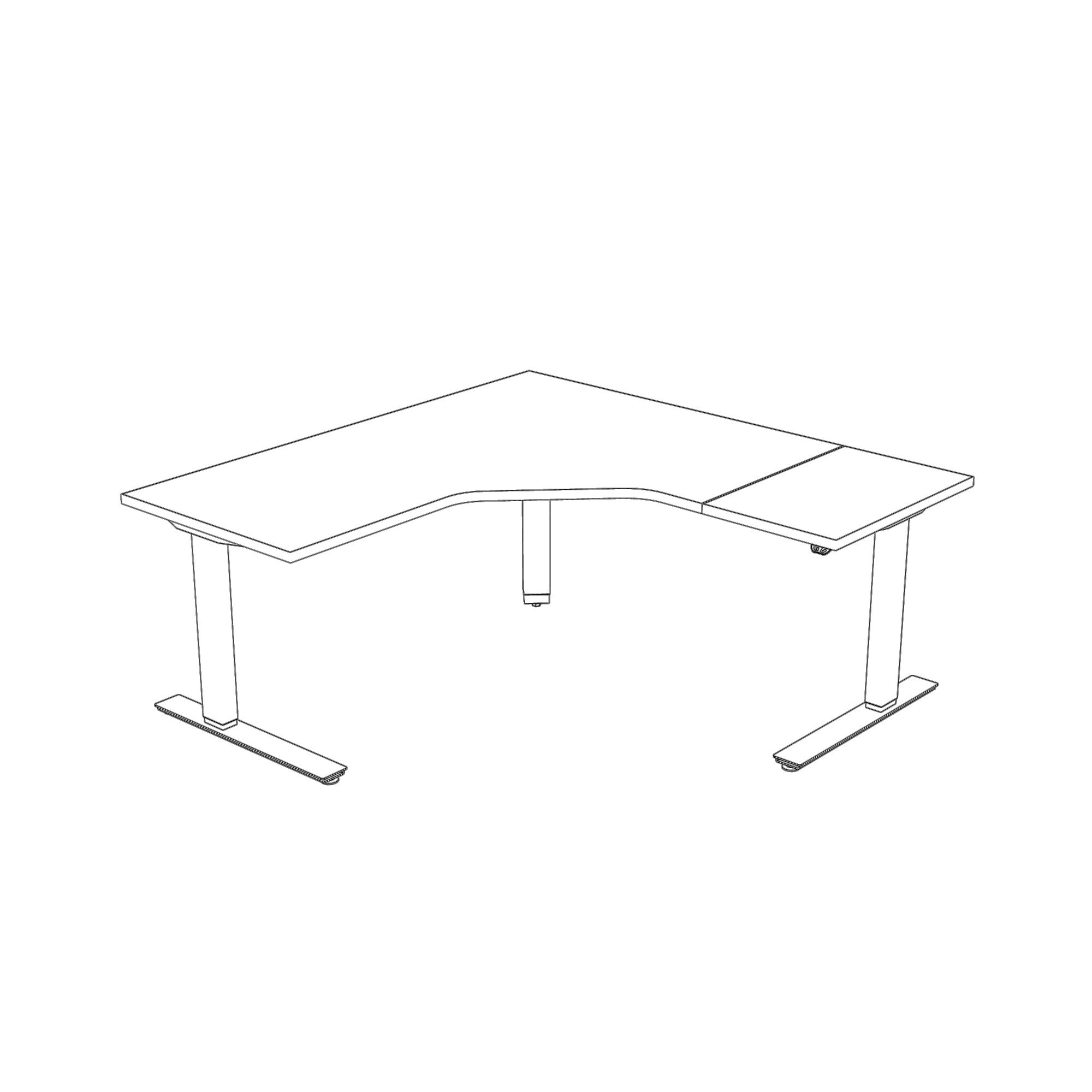

{{alt}}

Planes

Table

Corner 90 Degree Notched

C-Leg

3mm Edgeband

Depth: 23-29 in.

Width: 52-70 in.

Catalog Number: TLCN-xxxx-LJSNCxx

Catalog Number TLCN-xxxx-LJSNCxx

2D DWG 3D DWG
{{alt}}

Planes

Bench Stretcher Cover

For Use w/ Rectangular Table

Catalog Number: TABC-00xx-R

Catalog Number TABC-00xx-R

2D DWG 3D DWG
{{alt}}

Planes

Bench

Rectangular

Single-Sided Bench

3mm Edgeband

Depth: 24in.

Width: 46-70 in.

Catalog Number: TLRA-24xx-LJSNSx

Catalog Number TLRA-24xx-LJSNSx

2D DWG 3D DWG
{{alt}}

Planes

Bench Stretcher Cover

For Use w/ 120 Degree Table

Catalog Number: TABC-00xx-Z

Catalog Number TABC-00xx-Z

2D DWG 3D DWG
{{alt}}

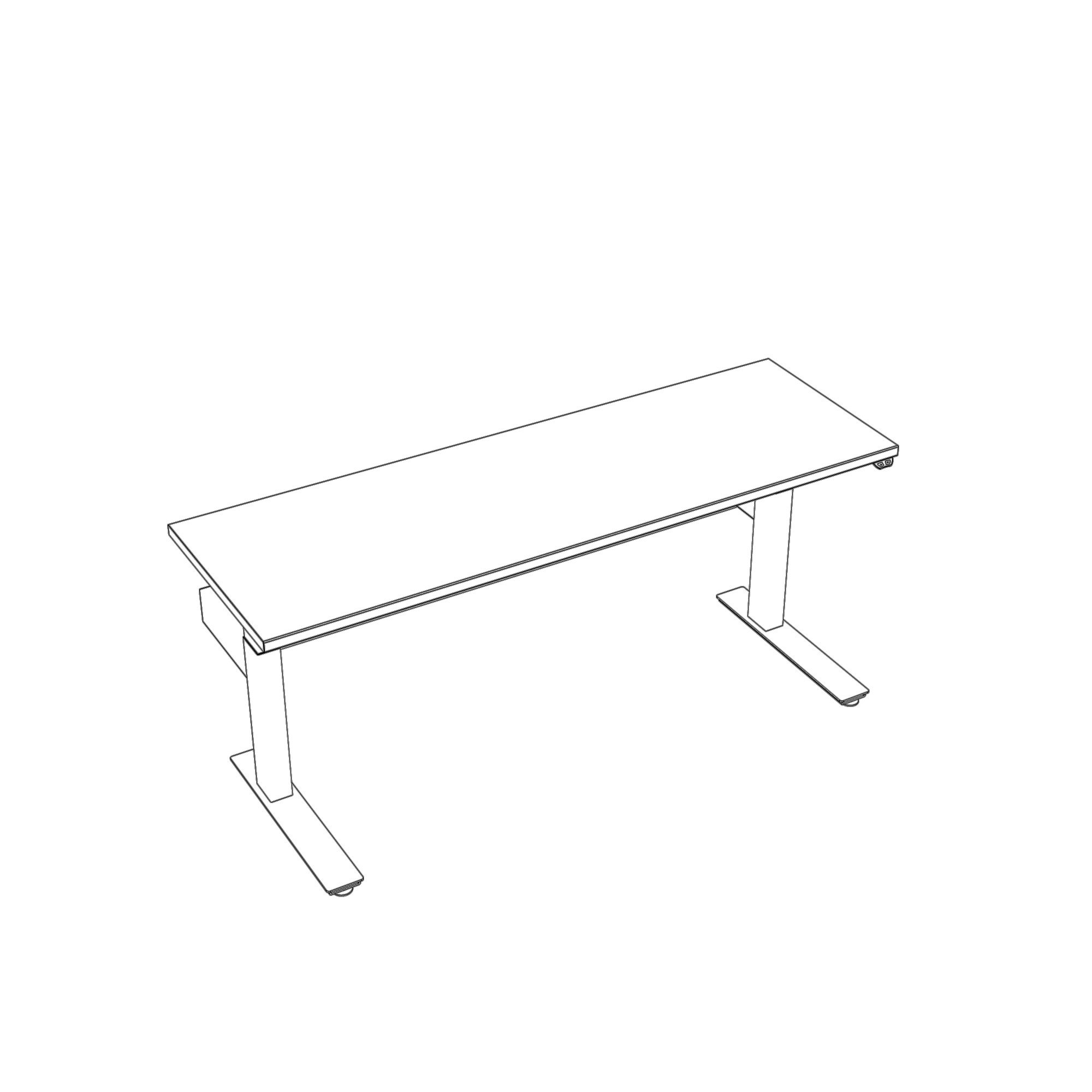

Planes

Bench

Rectangular

Single-Sided Bench

3mm Edgeband

Depth: 23in.

Width: 46-70 in.

Catalog Number: TLRA-23xx-LJSNSx

Catalog Number TLRA-23xx-LJSNSx

2D DWG 3D DWG
{{alt}}

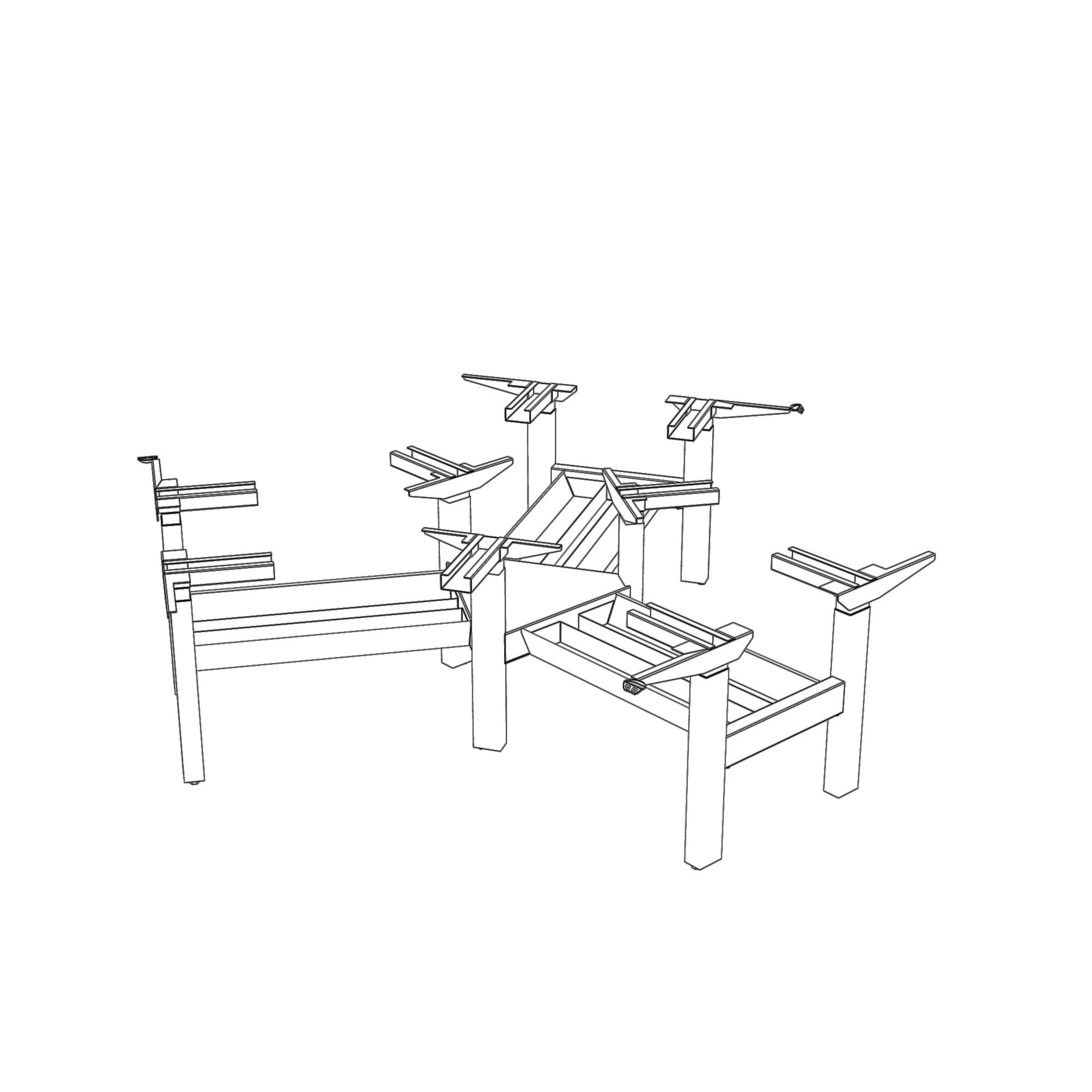

Planes

HAT Base

Corner 120 Degree

Full-Sized Bench

3mm Edgeband

Depth: 23in.

Width: 46-58 in.

Catalog Number: TLCZ-xxxx-NNNNHxB

Catalog Number TLCZ-xxxx-NNNNHxB

2D DWG 3D DWG

Downloads

Value Engineered

Planes Value Model table provides a budget-conscious, height-adjustable solution within the Planes portfolio. Value engineered to optimize manufacturing efficiencies, high-quality yet cost-effective materials, Planes Value Model brings you the broadest range of flexibility in its price segment

Application Variety

Planes Value Model height-adjustable table offers a wide application range to support movement and the dynamic ways people work. The frameless design accommodates a variety of work tools and allows easy reconfiguration as needs change.

Value Engineered

Planes Height Adjustable Table User Guide

Application Variety

Compare with Similar Items

Configurations

Standard Range (Single-Stage)

Extended Range (Dual-Stage)

Top Widths

Top Finishes

Base Options

Base Finishes

Frame

Benching

Warranty

Planes Value Model Height-Adjustable Tables

2-Leg, 3-Leg, 120°

27" – 46”

23” – 48.7”

46", 52", 58", 64", 70"

High Pressure Laminate

C-Leg, T-Leg

36 Colors

Frameless

Yes

10 Years (Mechanical and Electrical)

Configure & Price

Planes Height-Adjustable Tables

2-Leg, 3-Leg, 120°

27" - 46"

L

34", 40", 46", 52", 58", 64", 70"

High Pressure Laminate, Veneer

C-Leg

36 Colors

Fixed

Yes

10 Years (Mechanical and Electrical)

Haworth Hop Electric Height Adjustable Table with 2 grey legs and rectangle top

Hop Height-Adjustable Tables

2-Leg, 3-Leg, 120°

27" – 46.7”

25.7" - 51.3"

46", 52", 58", 64", 70"

High Pressure Laminate, Veneer

C-Leg, T-Leg

5 Colors

Expandable

No

10 Years (Mechanical and Electrical)

Haworth Upside Height Adjustable Table with chalk rectangular top and steel legs

Upside Height-Adjustable Tables

2-Leg

27.4” – 46.6”

22.6"-48.7" (BIFMA G1 compliant)

46", 52", 58", 64", 70", 76", 82"

High Pressure Laminate, Veneer

C-Leg, T-Leg

Standard Model - 20 colors Value Model - 3 colors

Expandable

No

10 Years (Mechanical and Electrical)
