Planes Height-Adjustable Benching

Haworth

By Dan West

The Planes family includes a variety of height adjustable tables and benching applications for multiple environments.

Planes Height-Adjustable Benching Overview

Planes height-adjustable benching provides ergonomic solutions that give people the choice to sit or stand and change postures throughout the day. Choose from single-sided and dual rectangles or 3-pack 120° configurations.

    • Single-sided, dual-sided, or 120° configurations
    • Crank adjustment height range of 27" - 45"
    • Electric adjustment (up/down or programmable handset) height ranges - Standard (single-stage): 26.6" - 45.6"; extended (dual-stage): 22.5" - 48.5" (low), or 23" - 50" (high)
    • 2 top shapes in high pressure laminate or veneer
    • Glides
    • Part of Integrated Palette
    • Trim colors available in all Integrated Palette colors
    • Edgeband or knife edge
    • Collision sensor kit and wire/power management available
    • Supports privacy screens, monitor arms, security drawers, Active Components work tools, and suspended pedestals
    • BIFMA LEVEL 3 Certified
    • FSC® Certified
    • GREENGUARD Certified

Price Guides

CAD/Symbols

{{alt}}

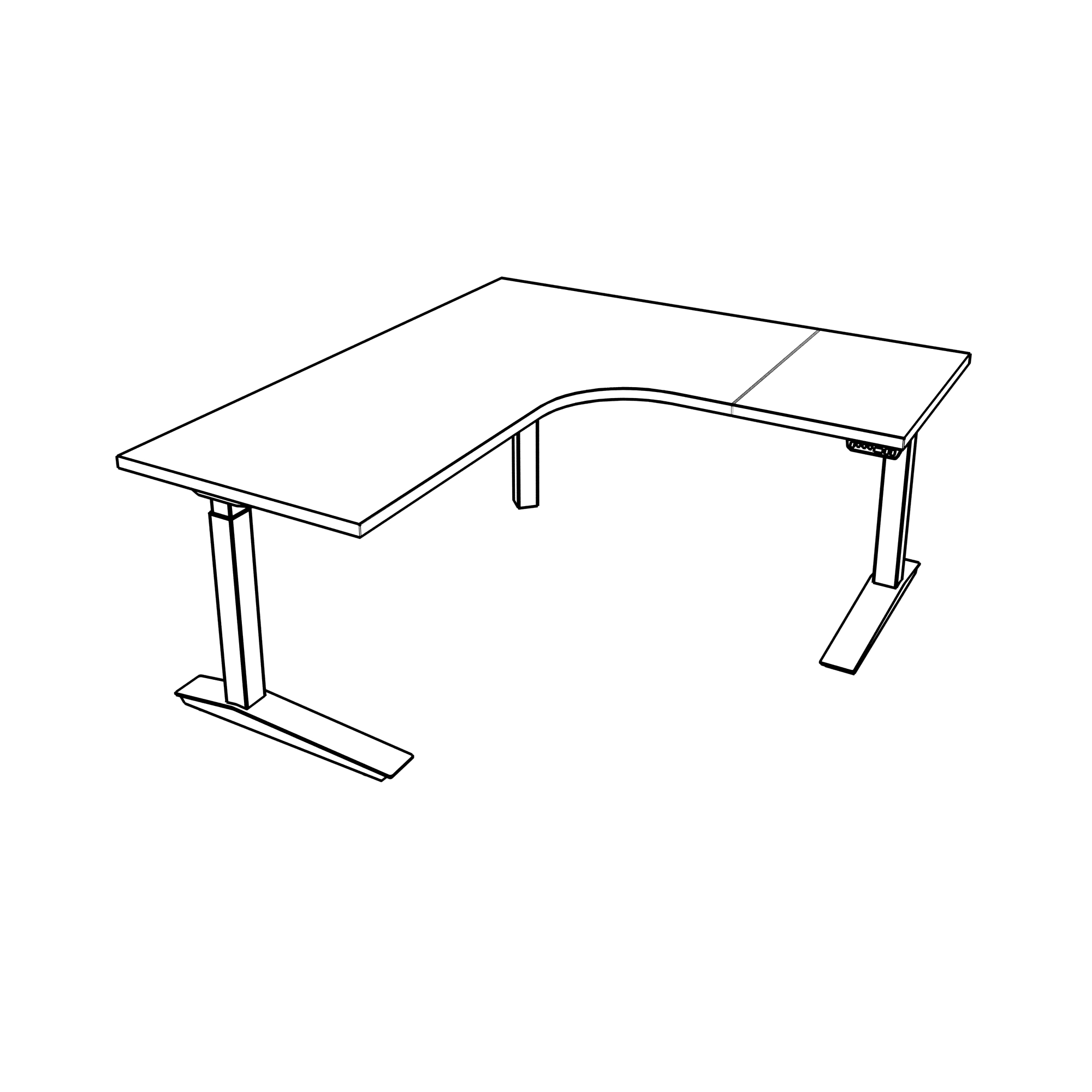

Corner, 90Deg Wrap-Around Extended

Two Pieces

Laminate Top

Edgeband

Standard Core

Single Stage, Progr Adj: 27"-46"

L/R Depth: 29"/29"

Length: 70"

Width: 64"

Orientation: Left

Catalog Number TACE-6470-LJSNCRF

2D DWG 3D DWG

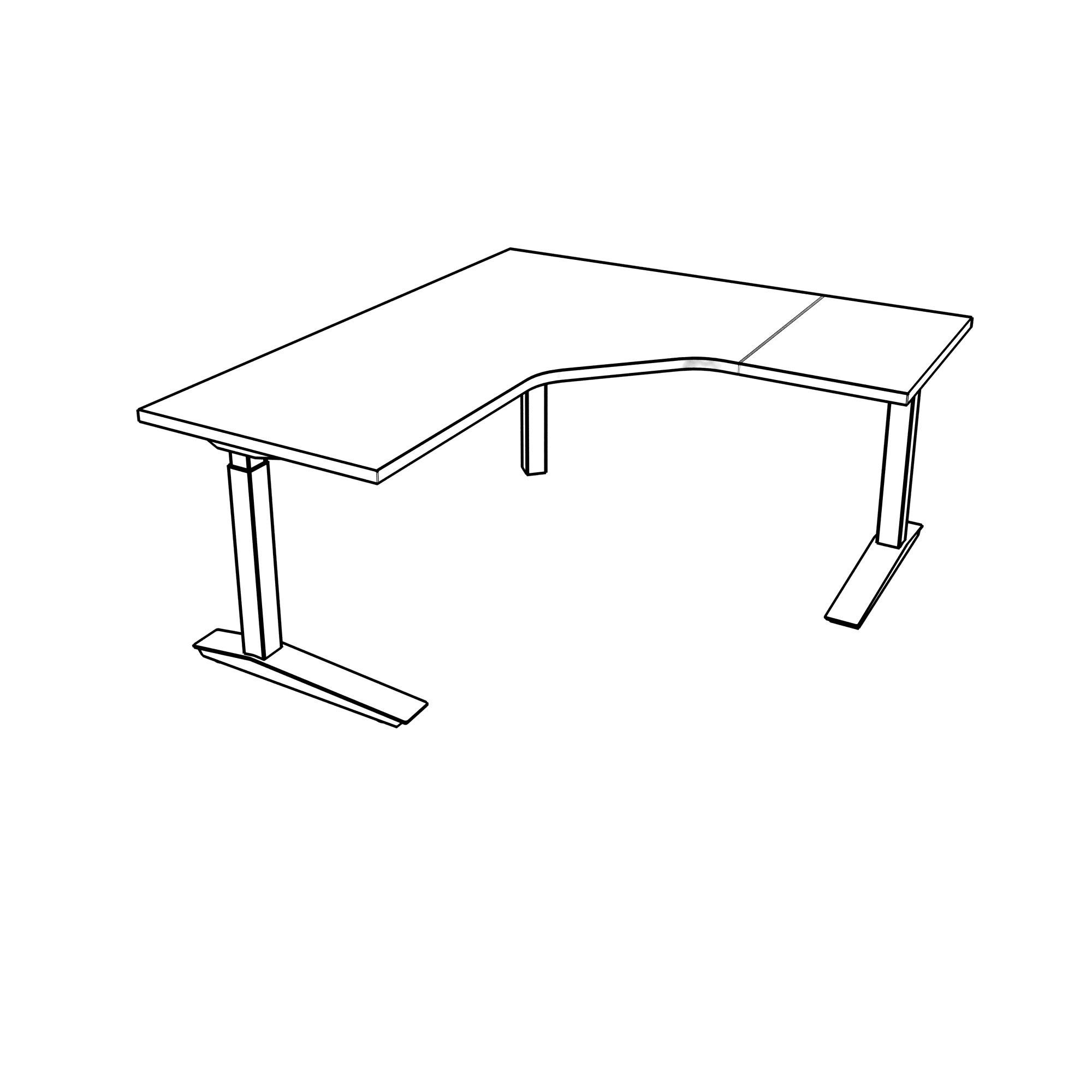

{{alt}}

Corner, 90Deg Notched Extended

Two Pieces

Laminate Top

Edgeband

Standard Core

Incremental Adjustment: 22"-35"

L/R Depth: 29"/29"

Length: 70"

Width: 64"

Orientation: Left

Catalog Number TACP-6470-LJSNCDF

2D DWG 3D DWG

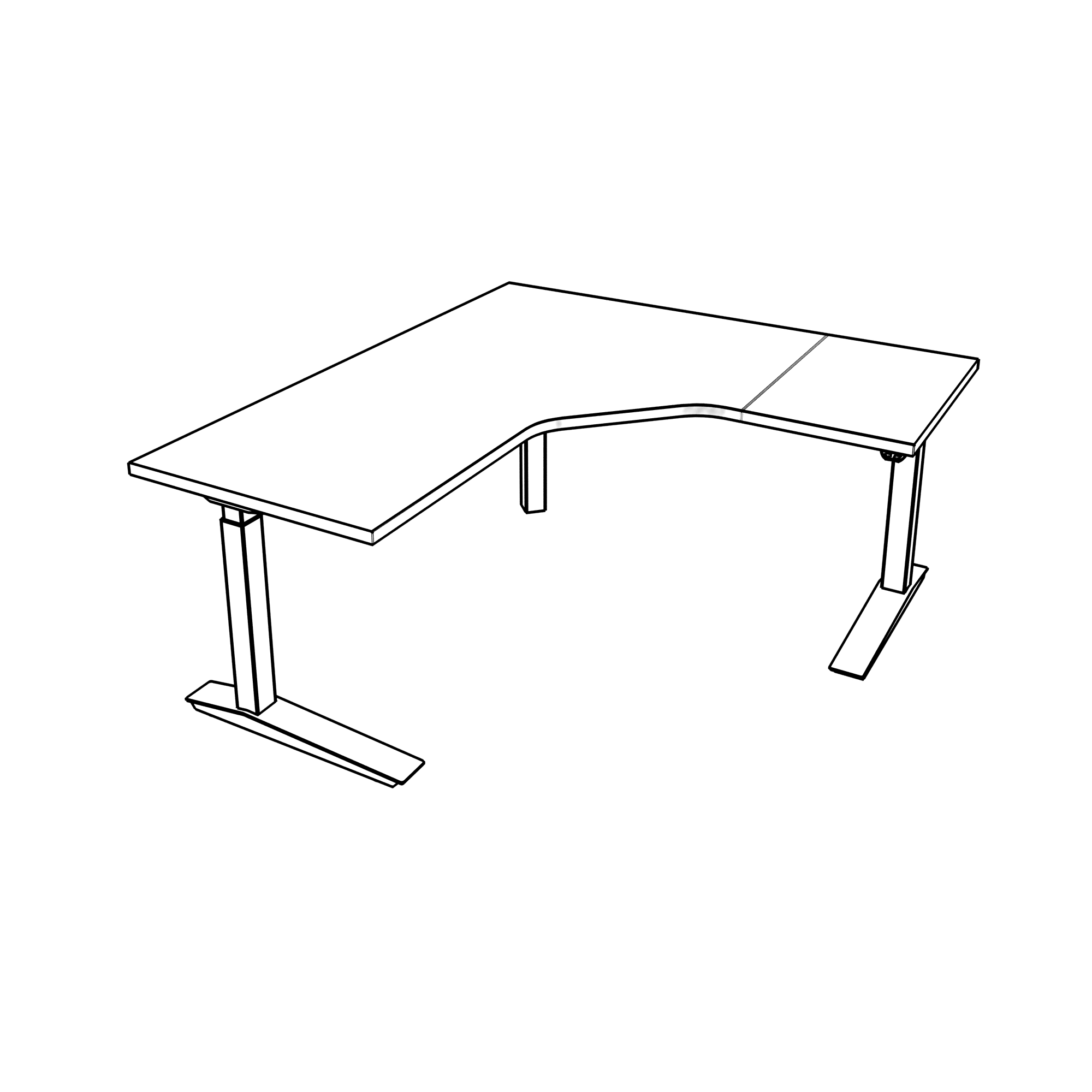

{{alt}}

Corner, 90Deg Notched Extended

Two Pieces

Laminate Top

Edgeband

Standard Core

Single Stage, Std Adj: 27"-46"

L/R Depth: 29"/29"

Length: 70"

Width: 64"

Orientation: Left

Catalog Number TACP-6470-LJSNCEF

2D DWG 3D DWG
{{alt}}

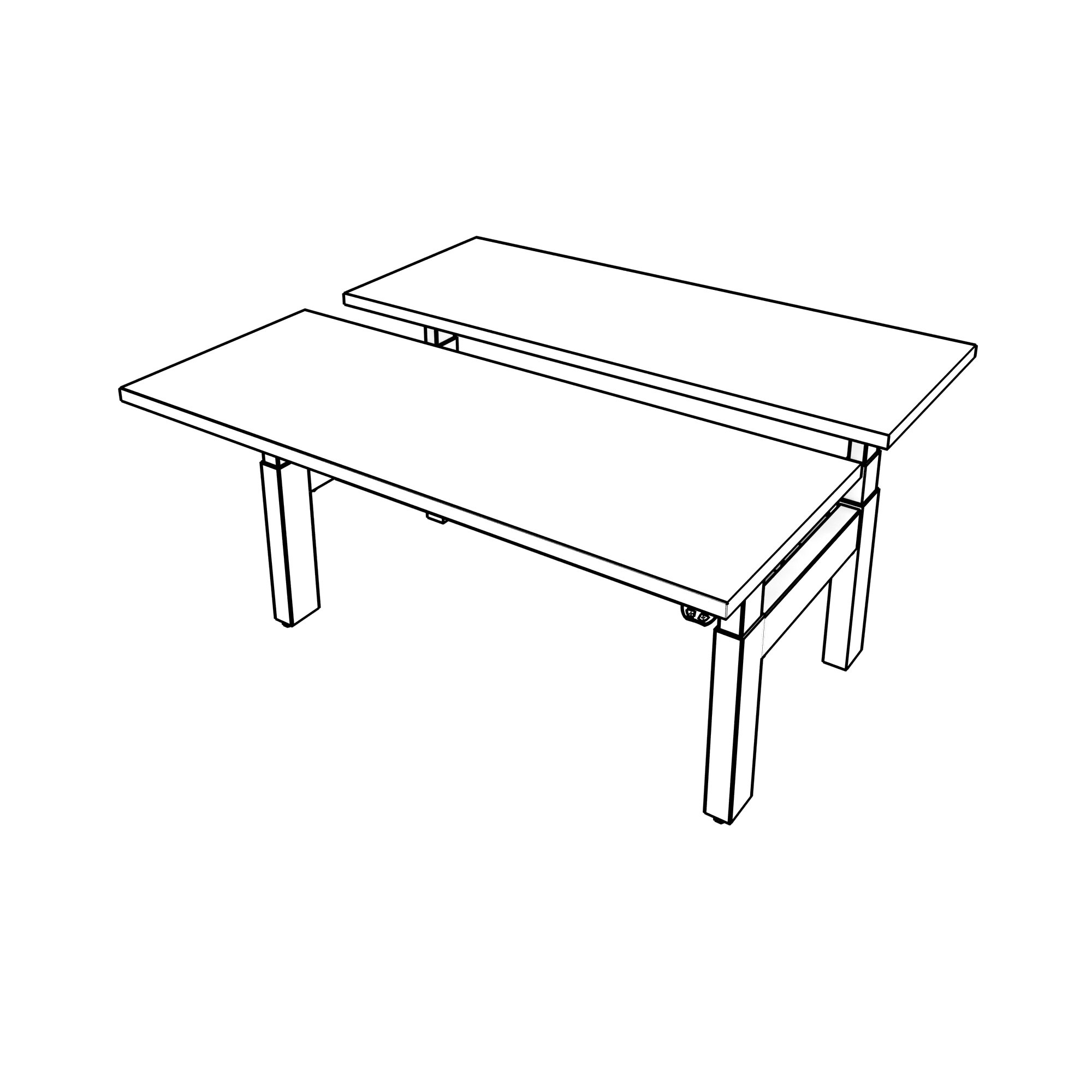

Rectangular - 23" Deep

Bench Base

Laminate Top

Edgeband

Standard Core

No Electrical Cutouts

Dual Stage Low, Std Adj: 22"-48"

Width: 46" - 70"

Catalog Number TARA-23xx-LJSNHP

2D DWG 3D DWG
{{alt}}

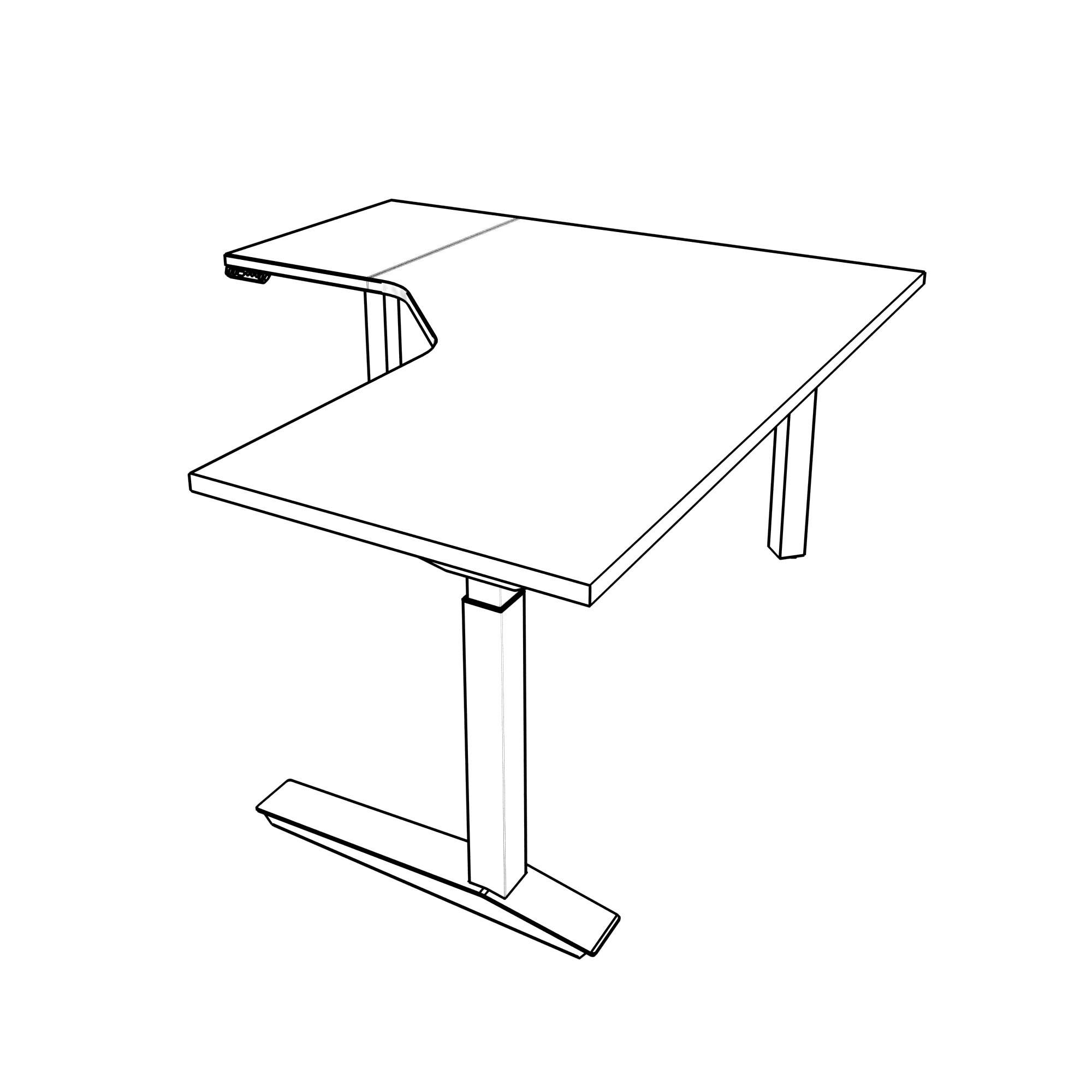

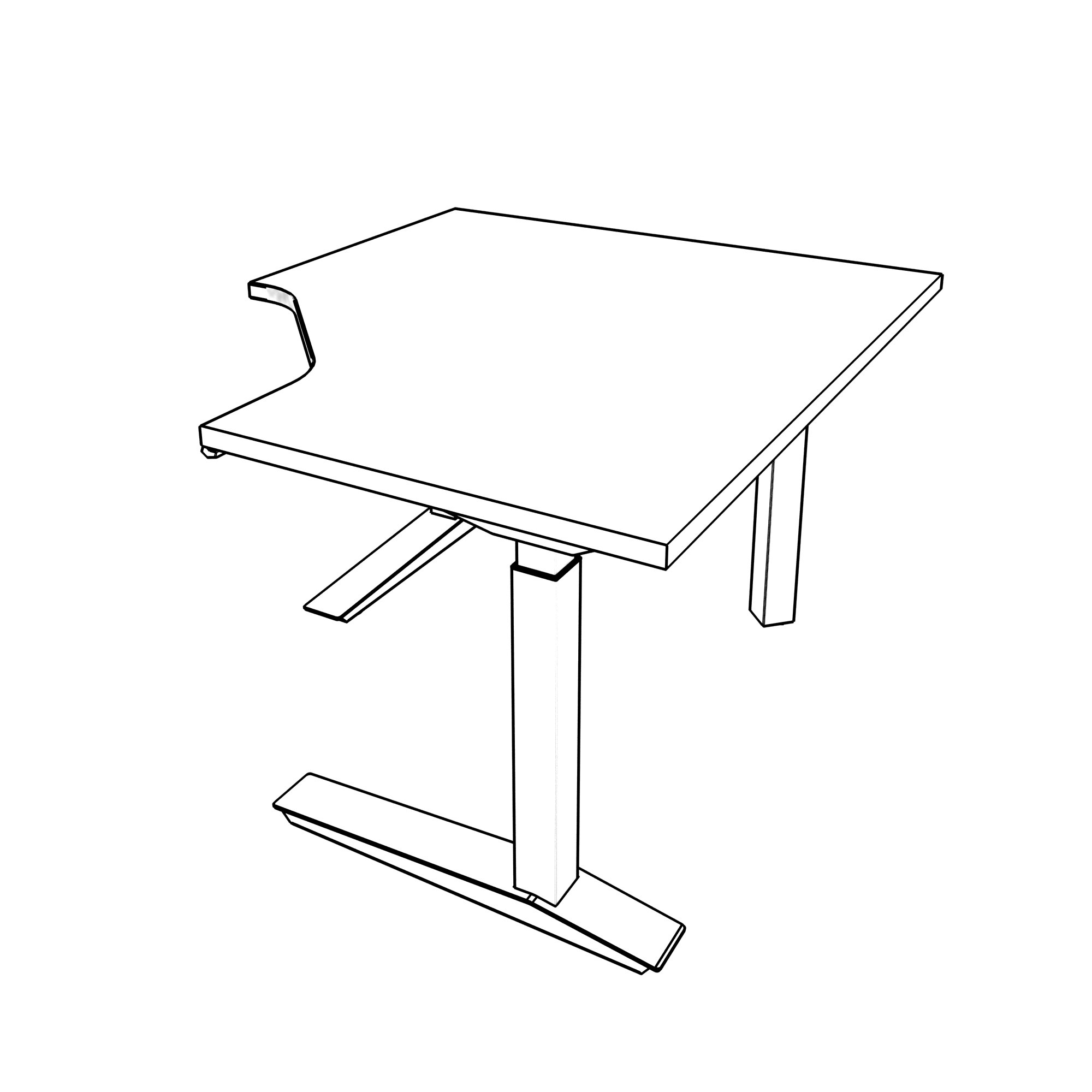

Corner, 90Deg Notched Extended

Two Pieces

Laminate Top

Edgeband

Standard Core

Single Stage, Progr Adj: 27"-46"

L/R Depth: 29"/29"

Length: 70"

Width: 64"

Orientation: Right

Catalog Number TACP-6470-LJSNCRJ

2D DWG 3D DWG
{{alt}}

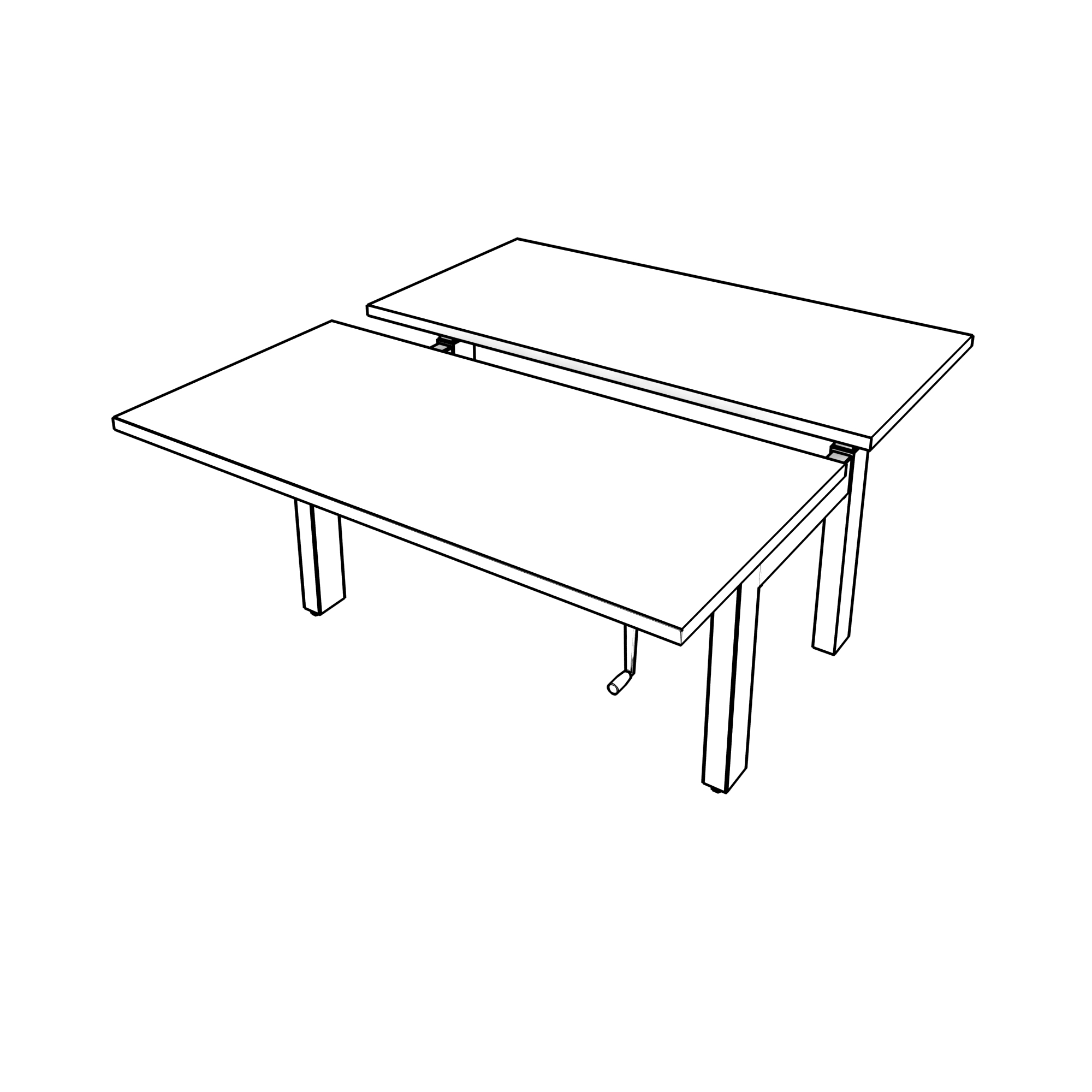

Rectangular - 29" Deep

Bench Base

Laminate Top

Edgeband

Standard Core

No Electrical Cutouts

Manual Adjustment, 27"-45"

Width: 46" - 70"

Catalog Number TARA-29xx-LJSNHB

2D DWG 3D DWG
{{alt}}

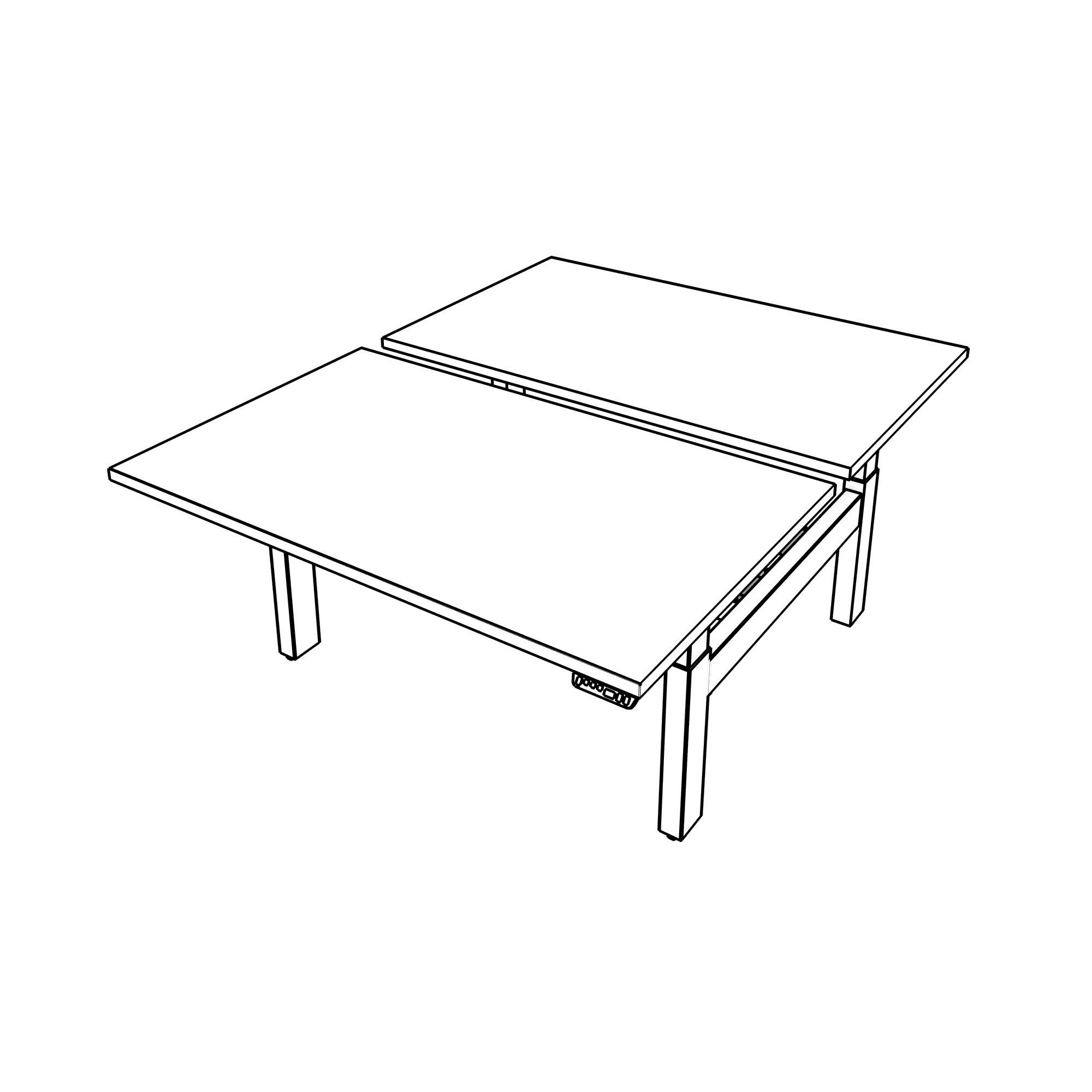

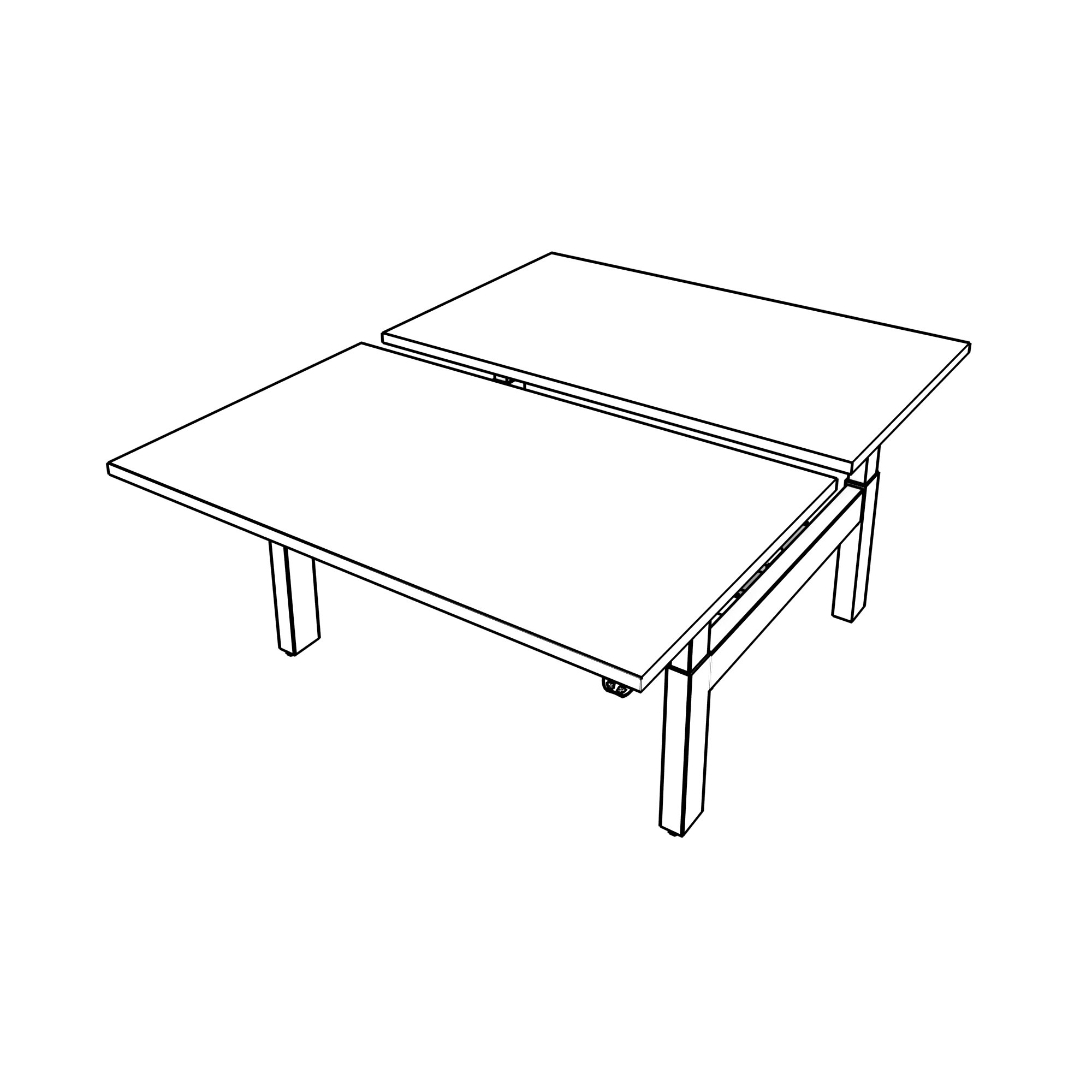

Rectangular - 36" Deep

Bench Base

Laminate Top

Edgeband

Standard Core

No Electrical Cutouts

Dual Stage High, Progr Adj: 24"-50"

Width: 46" - 70"

Catalog Number TARA-36xx-LJSNHT

2D DWG 3D DWG
{{alt}}

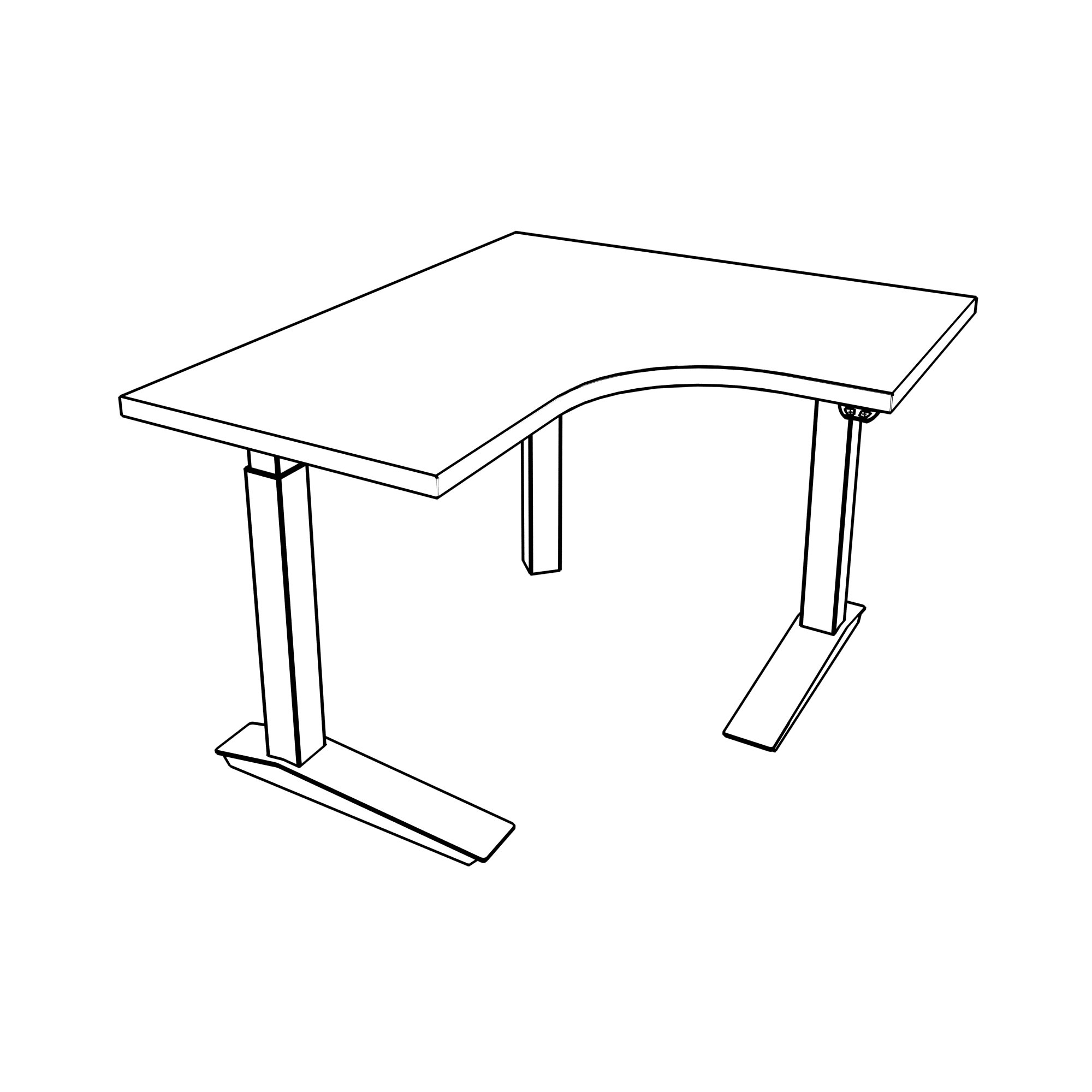

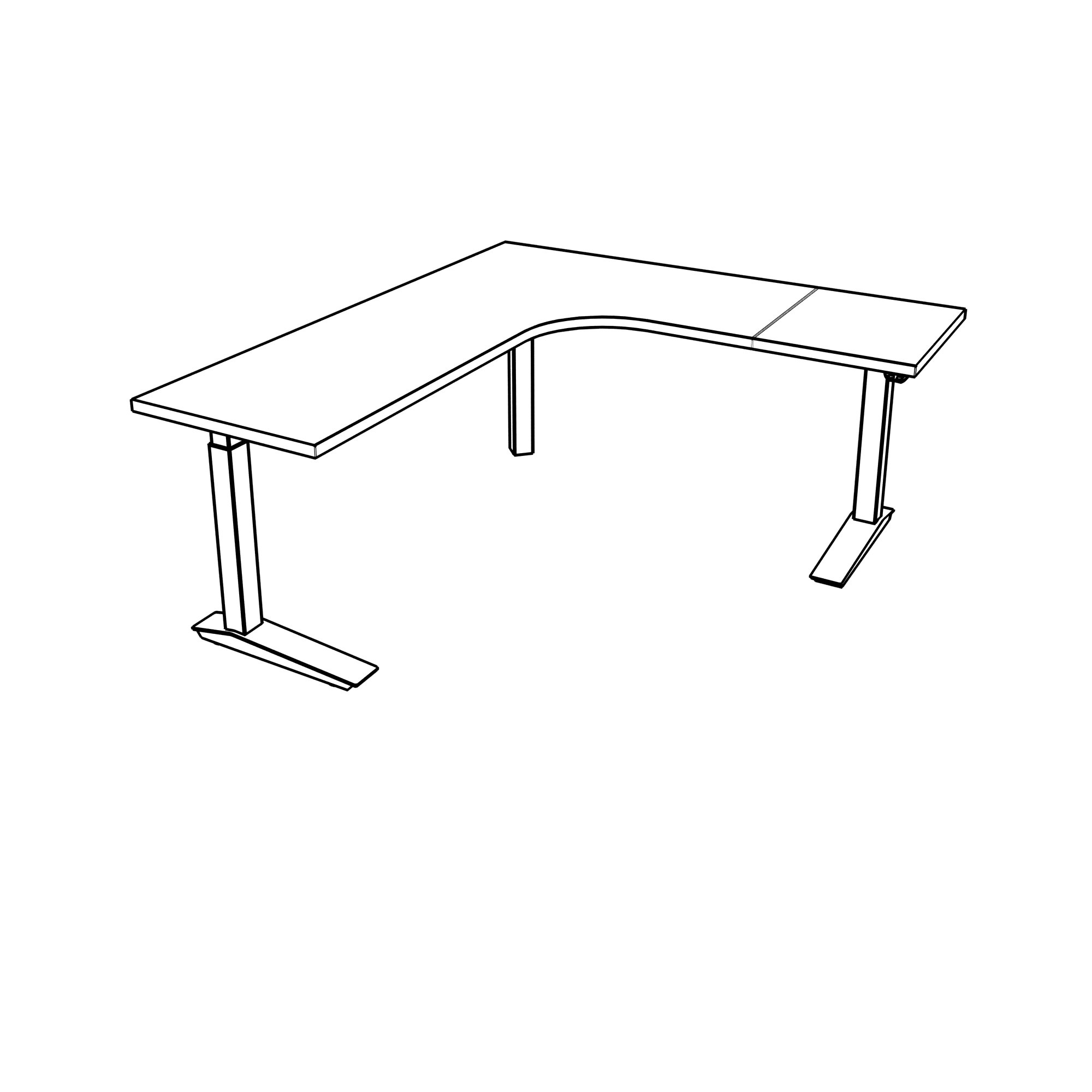

Corner, 90Deg Wrap-Around Extended

One Piece

Laminate Top

Edgeband

Standard Core

Single Stage, Std Adj: 27"-46"

L/R Depth: 23"/23"

Length: 46"/52"/58"/64"/70"

Width: 40"/46"/52"/58"

Orientation: Left

Catalog Number TACE-xxxx-LJSNCEE

2D DWG 3D DWG
{{alt}}

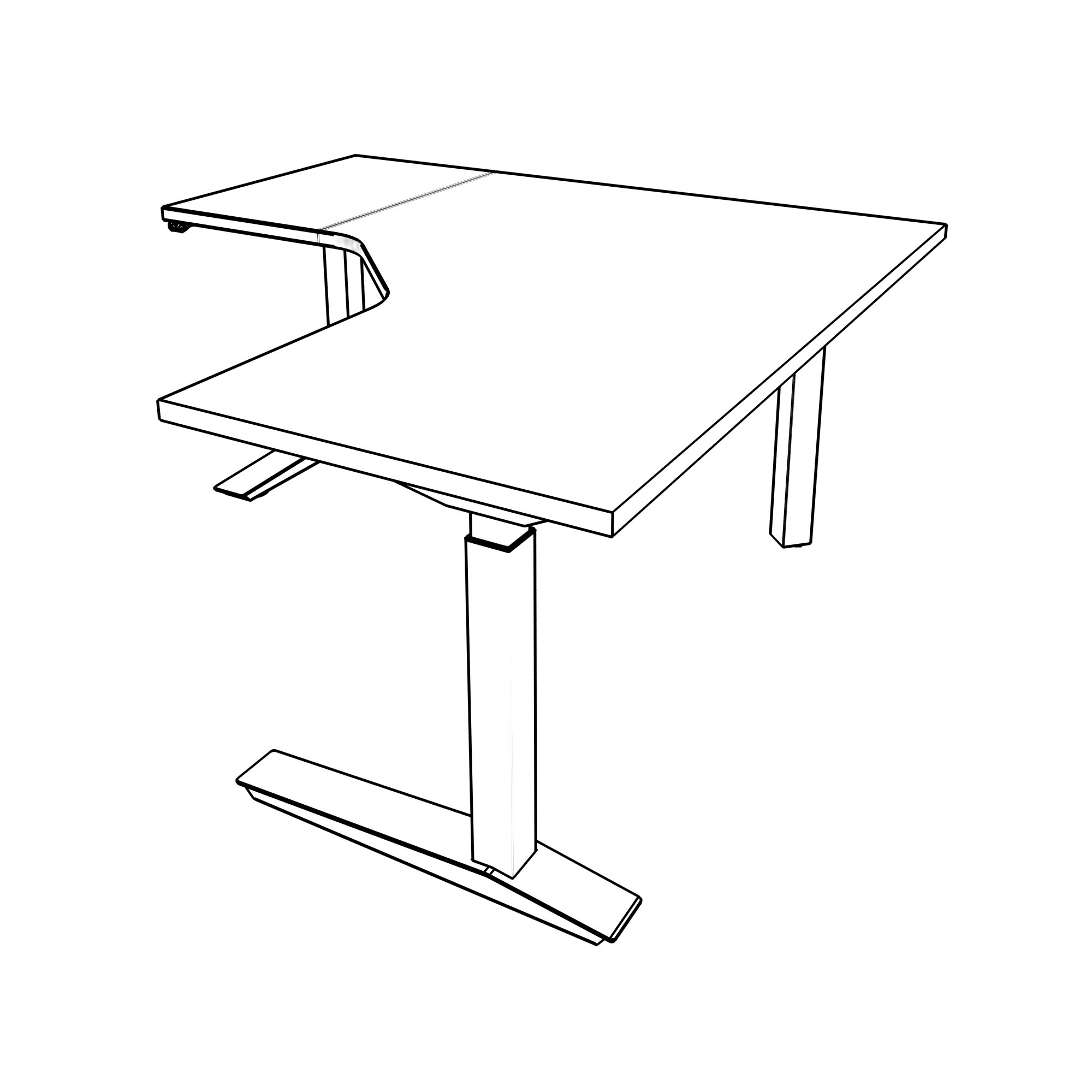

Corner, 90Deg Notched Extended

One Piece

Laminate Top

Edgeband

Standard Core

Single Stage, Std Adj: 27"-46"

L/R Depth: 29"/29"

Length: 52"/58"/64"/70"

Width: 46"/52"/58"

Orientation: Right

Catalog Number TACP-xxxx-LJSNCEJ

2D DWG 3D DWG
{{alt}}

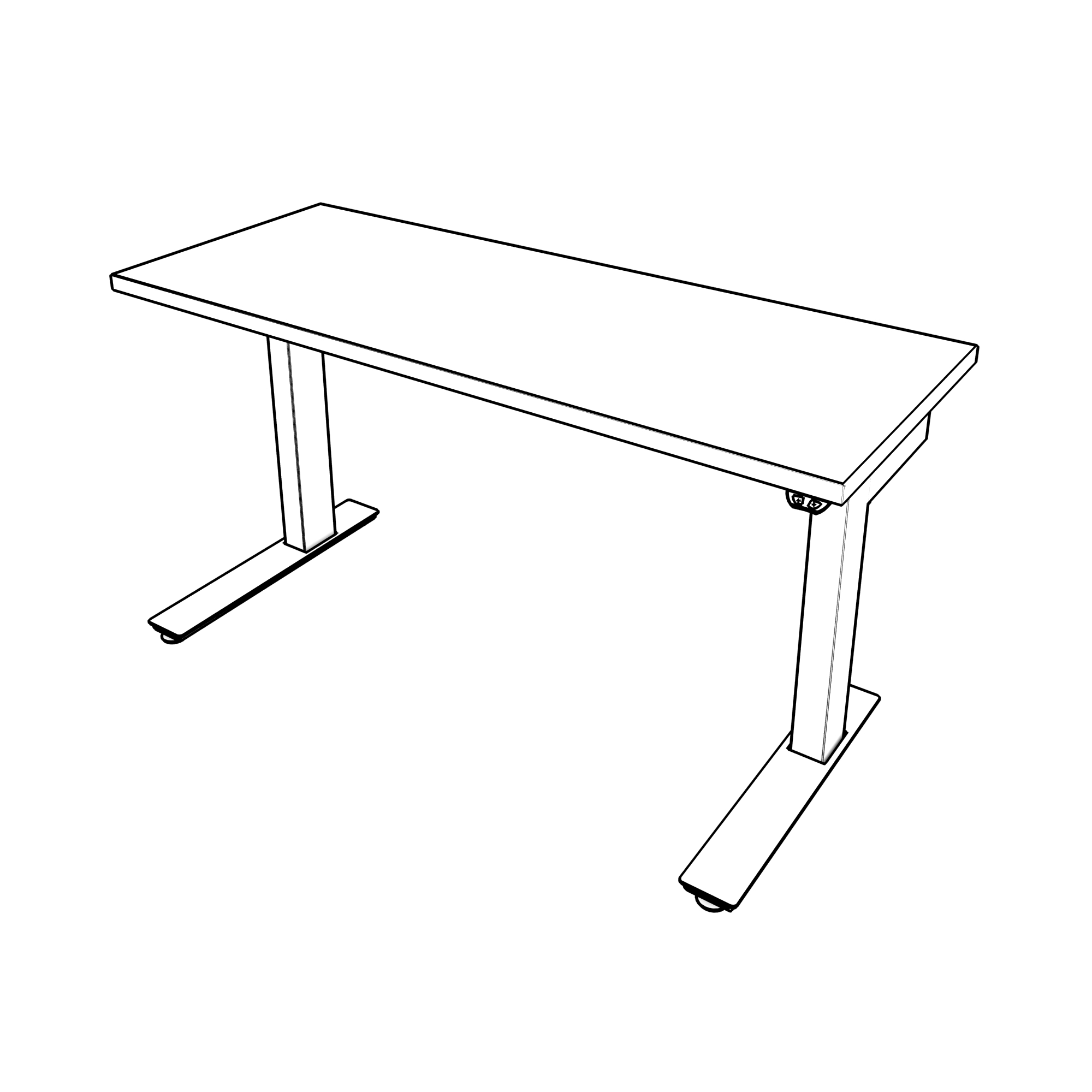

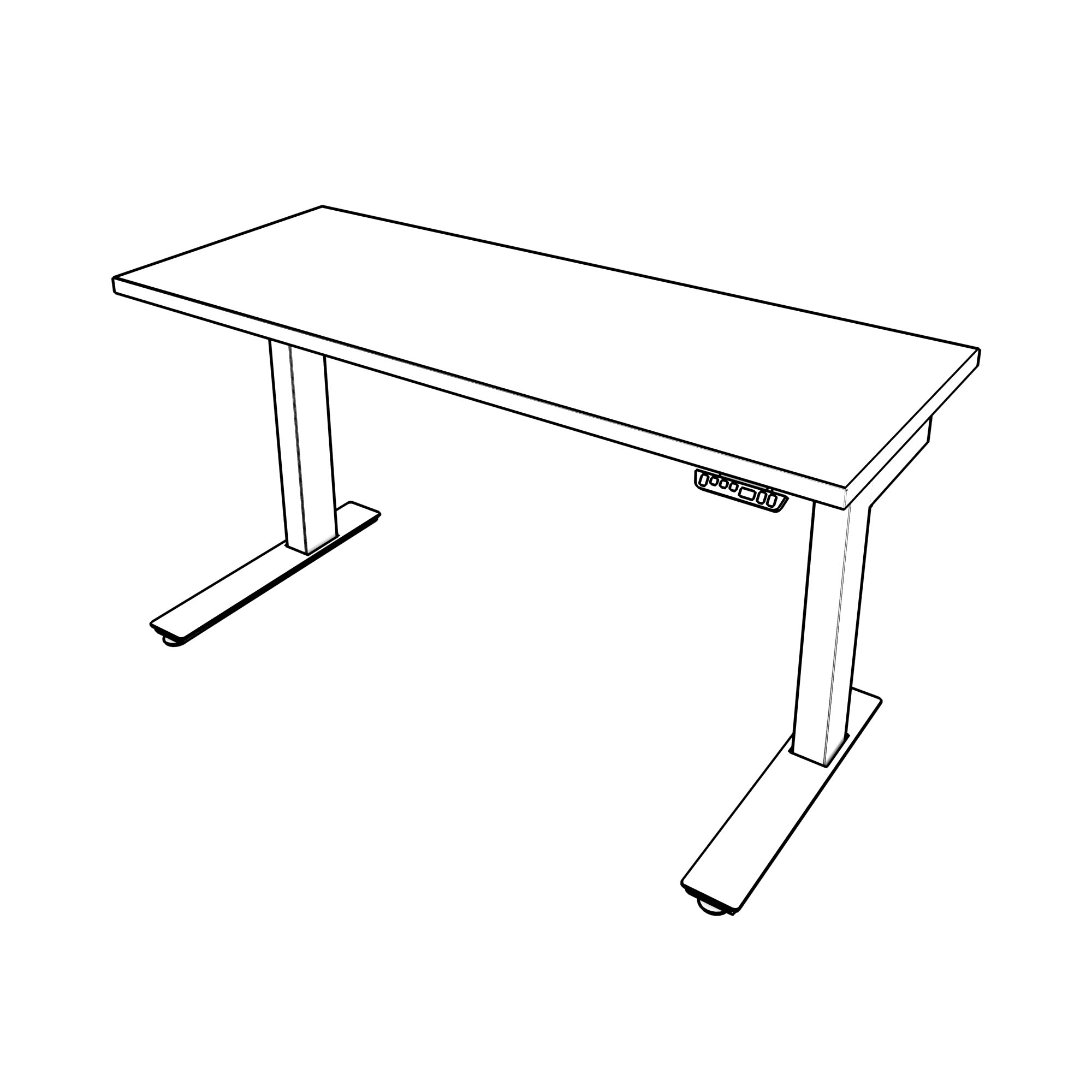

Rectangular - 23" Deep

Bench Base

Laminate Top

Edgeband

Standard Core

No Electrical Cutouts

Single Stage, Std Adj: 27"-46"

Width: 46" - 70"

Catalog Number TARA-23xx-LJSNSE

2D DWG 3D DWG

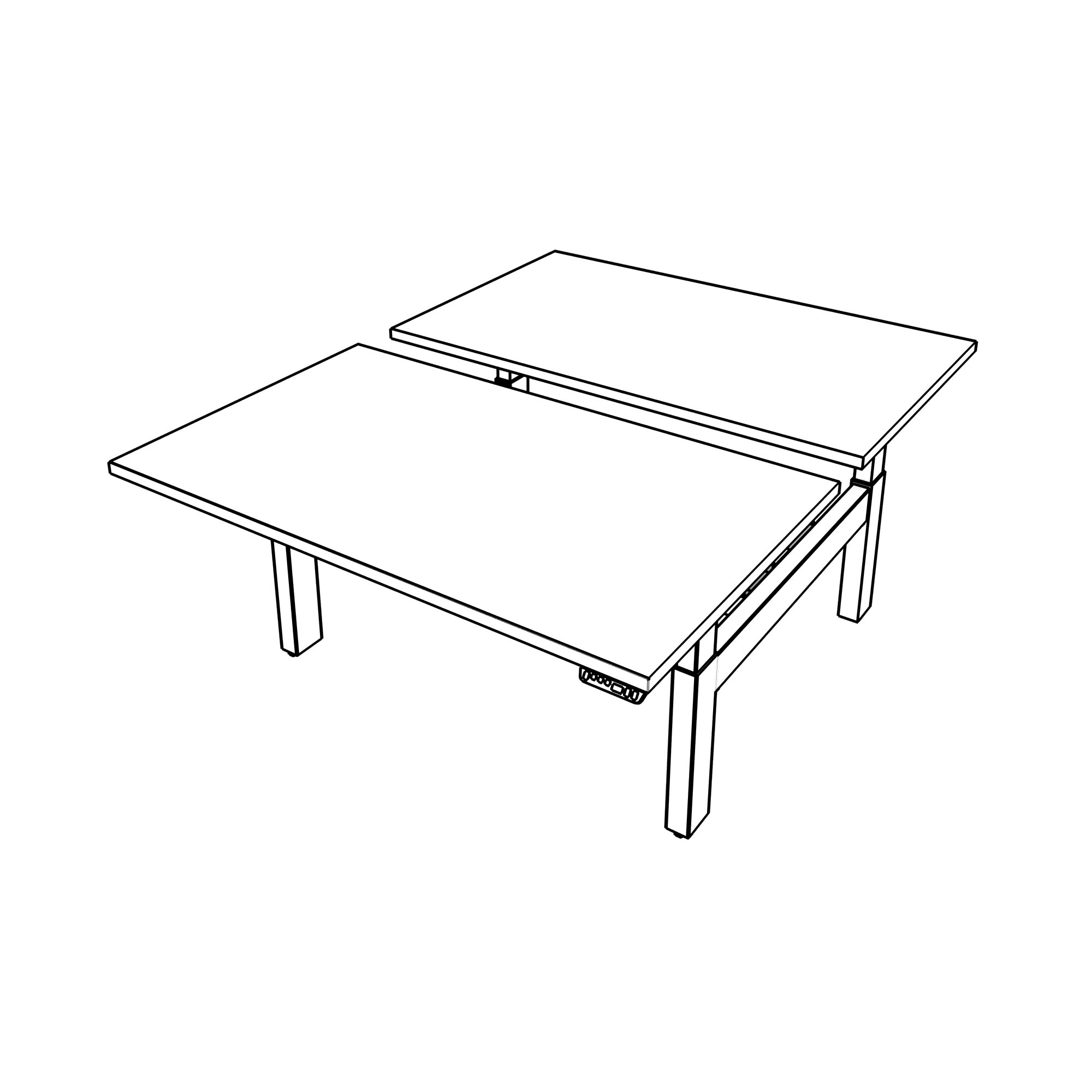

{{alt}}

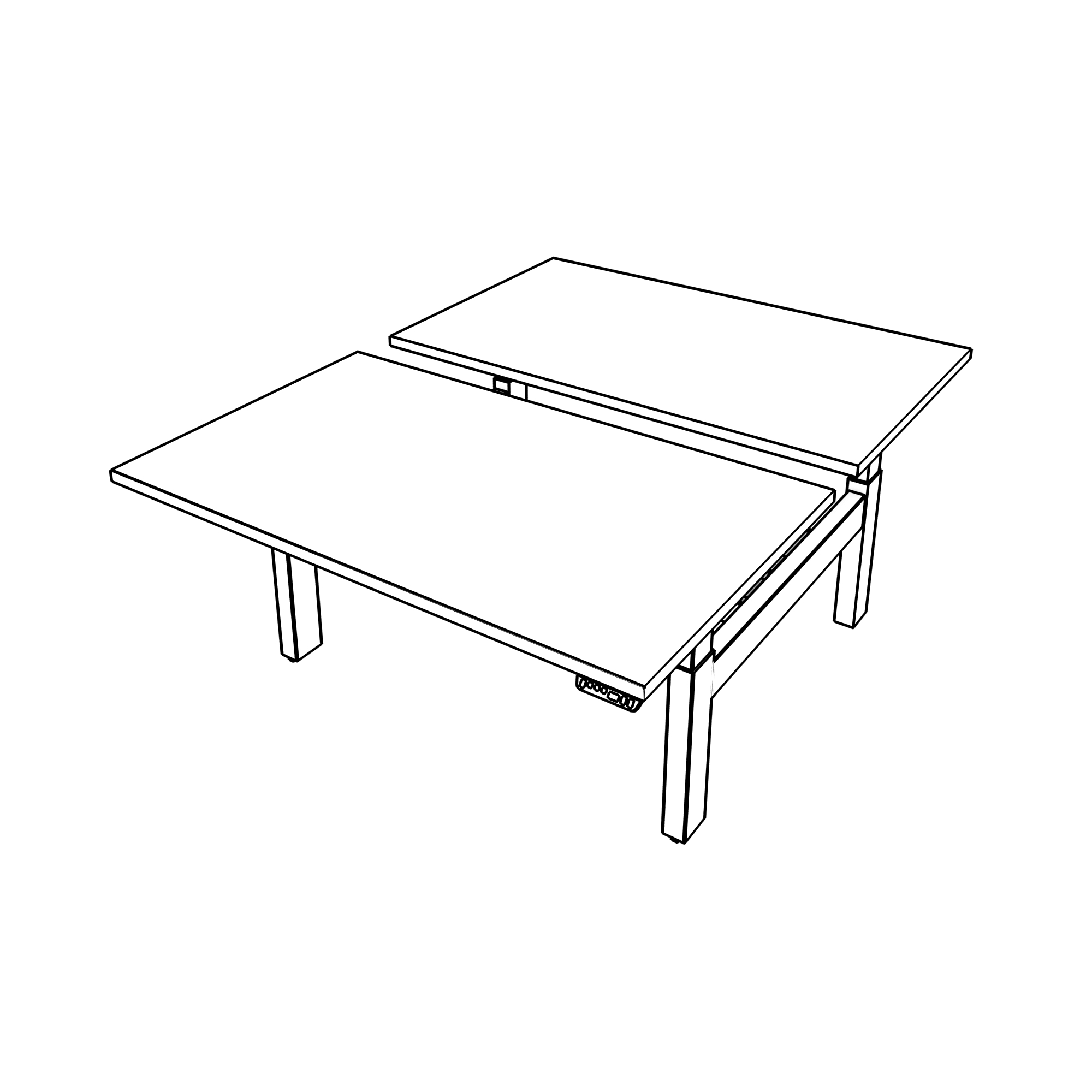

Rectangular - 35" Deep

Bench Base

Laminate Top

Edgeband

Standard Core

No Electrical Cutouts

Dual Stage Low, Progr Adj: 22"-48"

Width: 46" - 70"

Catalog Number TARA-35xx-LJSNHS

2D DWG 3D DWG
{{alt}}

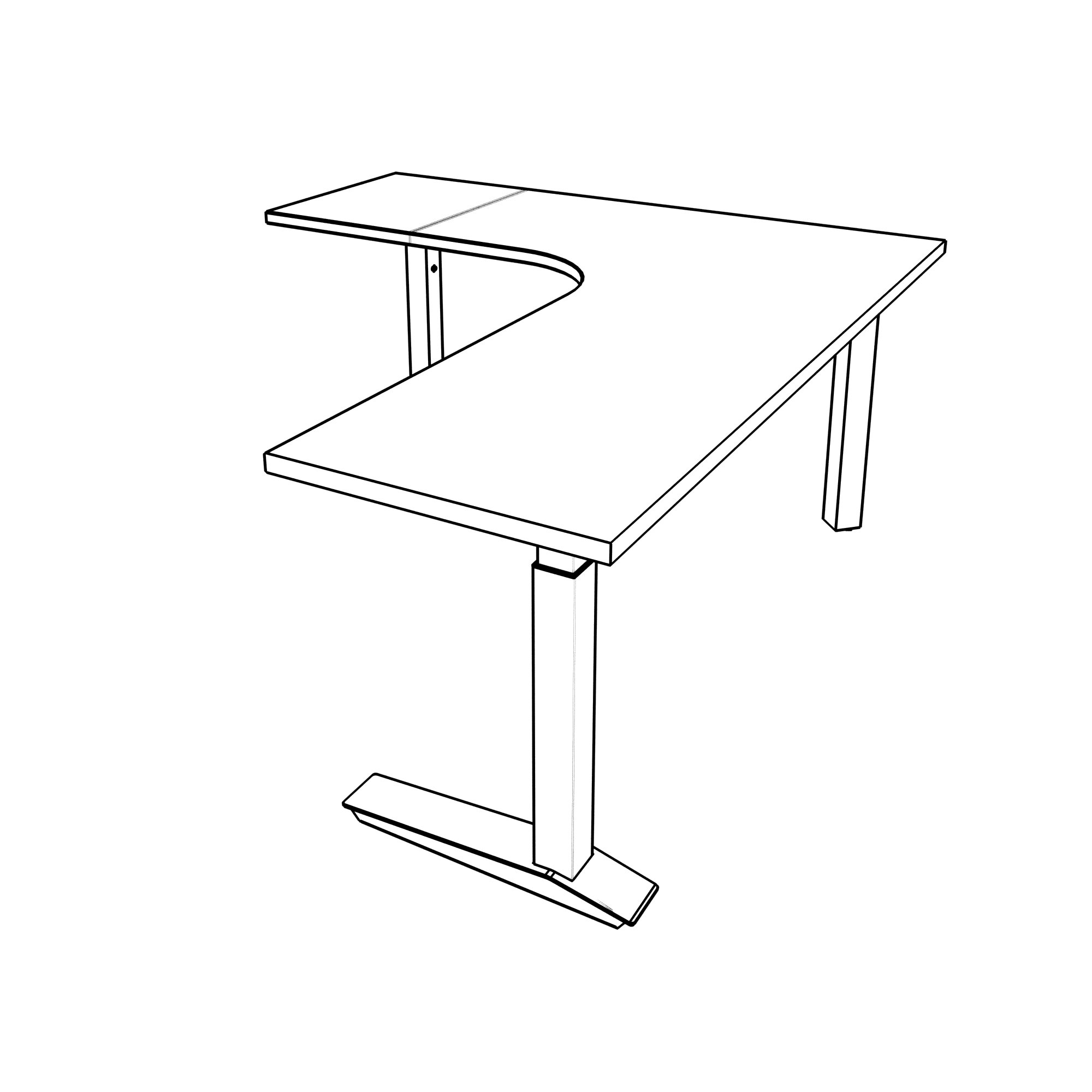

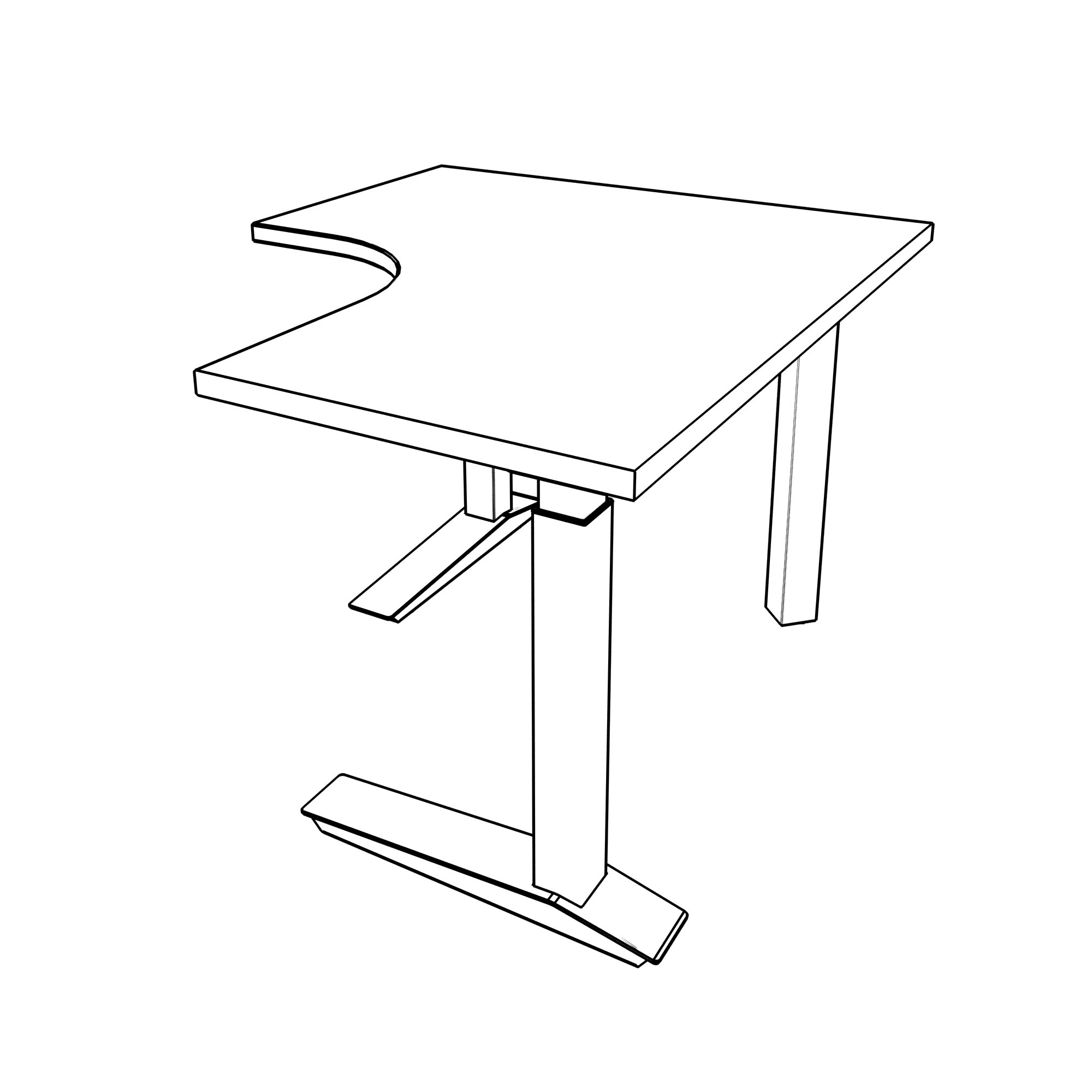

Corner, 90Deg Wrap-Around Extended

Two Pieces

Laminate Top

Edgeband

Standard Core

Incremental Adjustment: 22"-35"

L/R Depth: 23"/23"

Length: 70"

Width: 64"

Orientation: Right

Catalog Number TACE-6470-LJSNCDH

2D DWG 3D DWG
{{alt}}

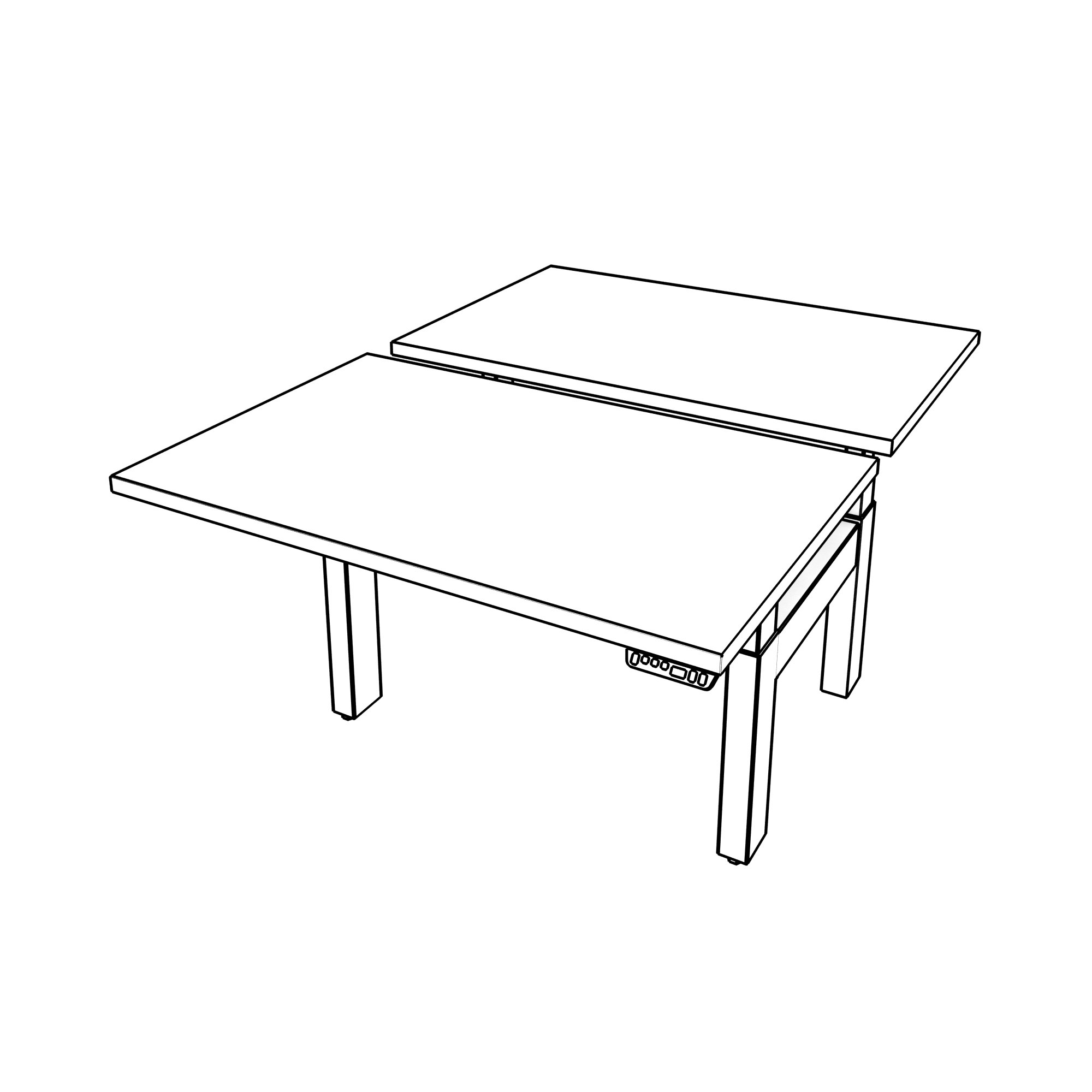

Rectangular - 30" Deep

Bench Base

Laminate Top

Edgeband

Standard Core

No Electrical Cutouts

Dual Stage Low, Progr Adj: 22"-48"

Width: 46" - 70"

Catalog Number TARA-30xx-LJSNHS

2D DWG 3D DWG
{{alt}}

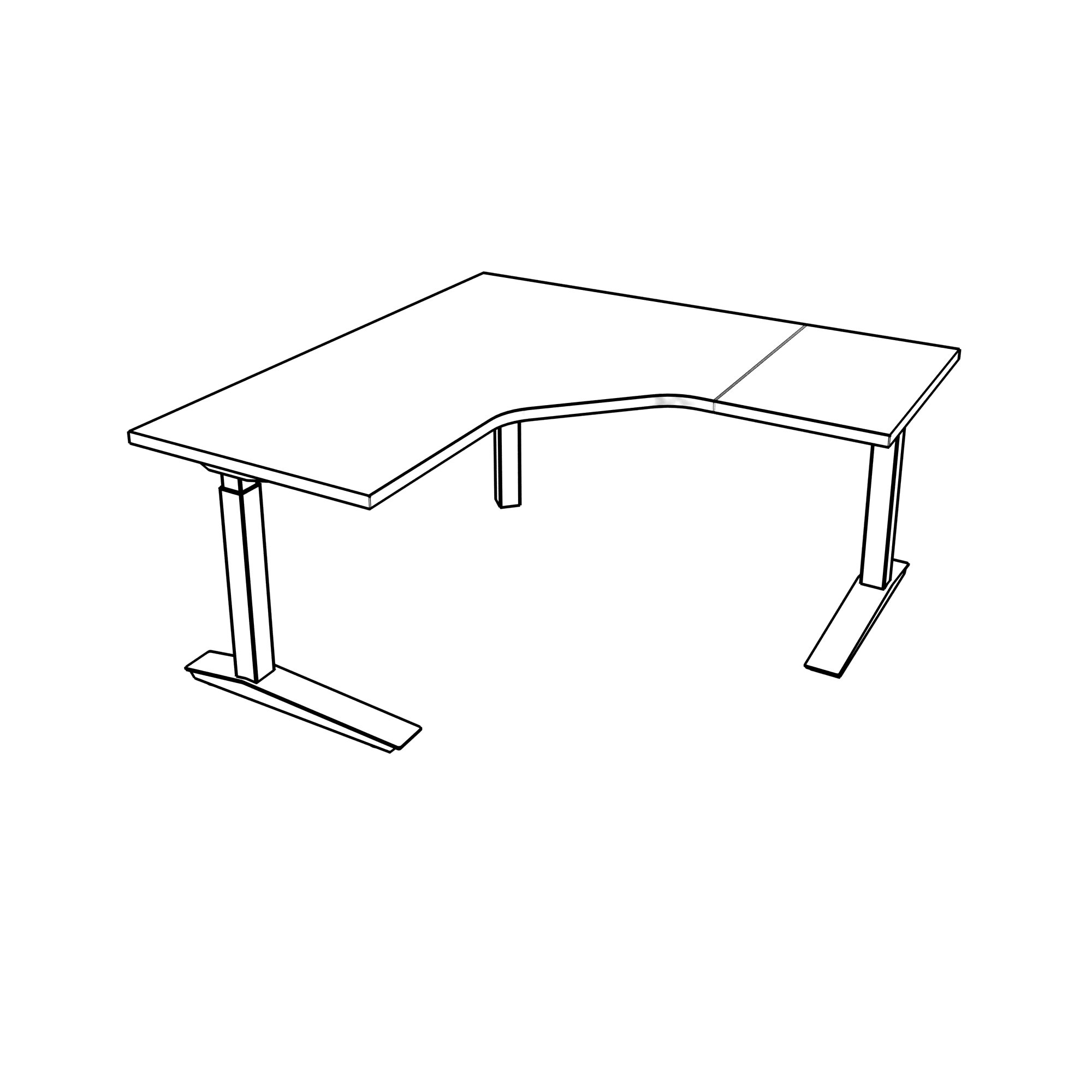

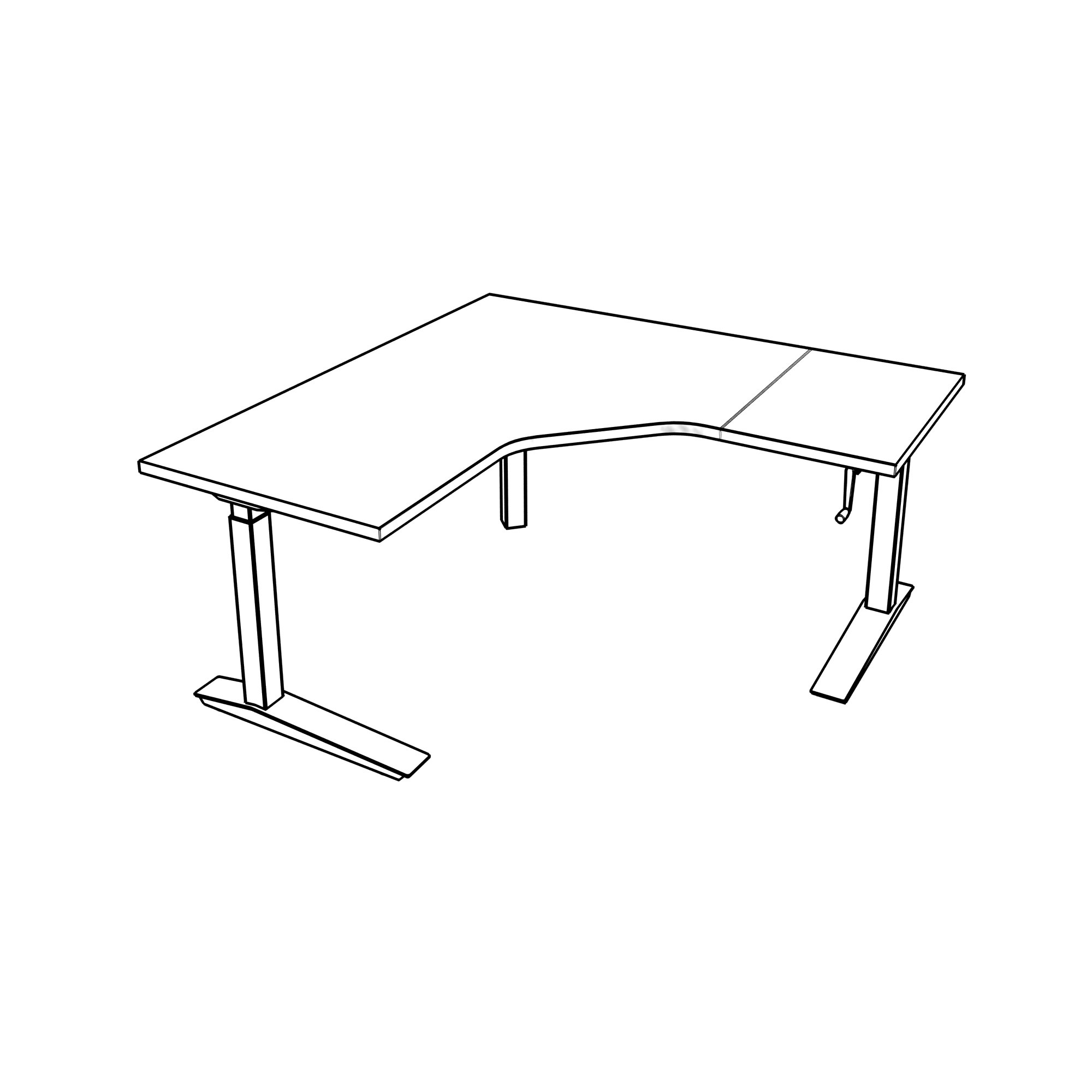

Corner, 90Deg Notched

Two Pieces

Laminate Top

Edgeband

Standard Core

Incremental Adjustment: 22"-35"

L/R Depth: 23"/23"

Width: 64"/70"

Orientation: Right

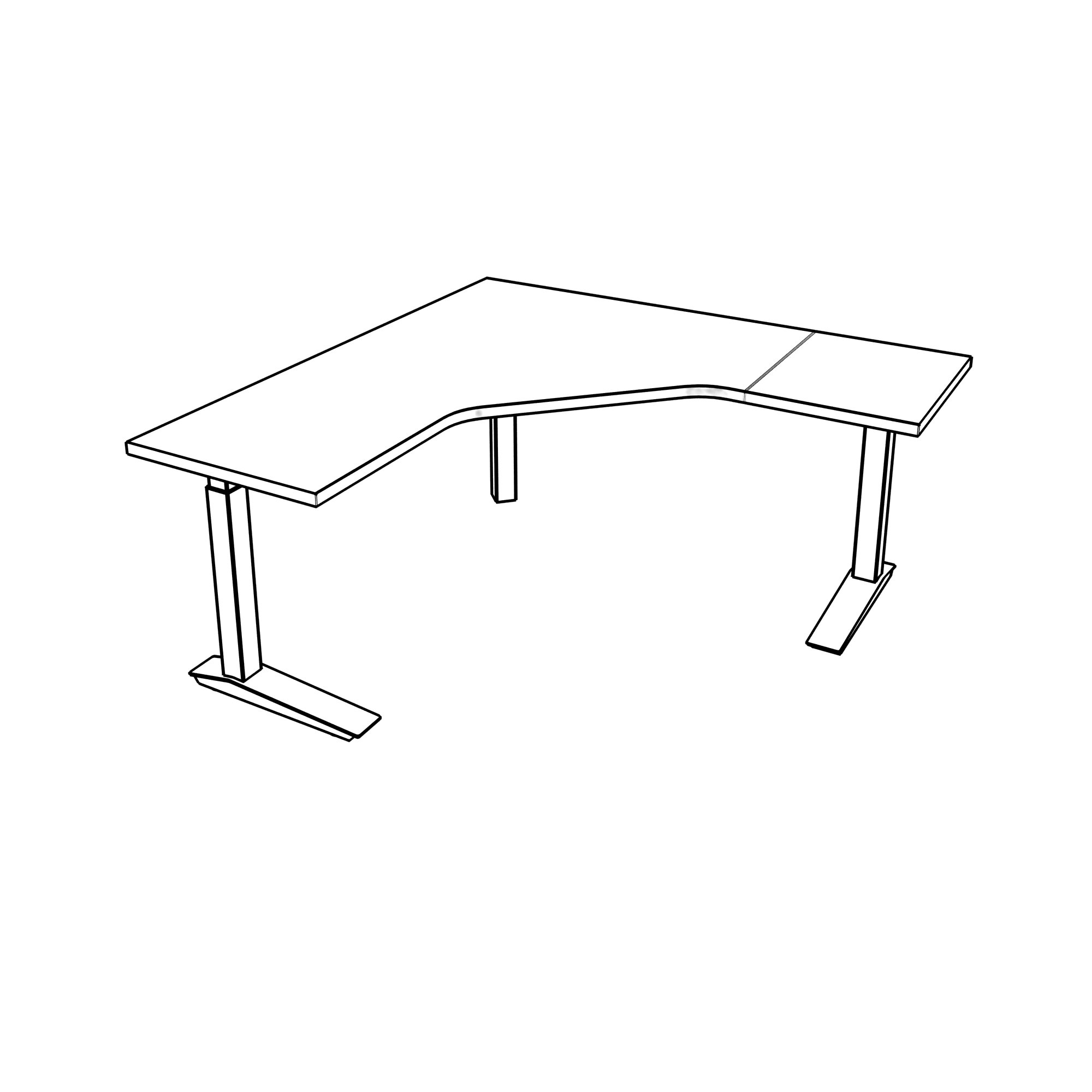

Catalog Number TACN-xxxx-LJSNCDH

2D DWG 3D DWG

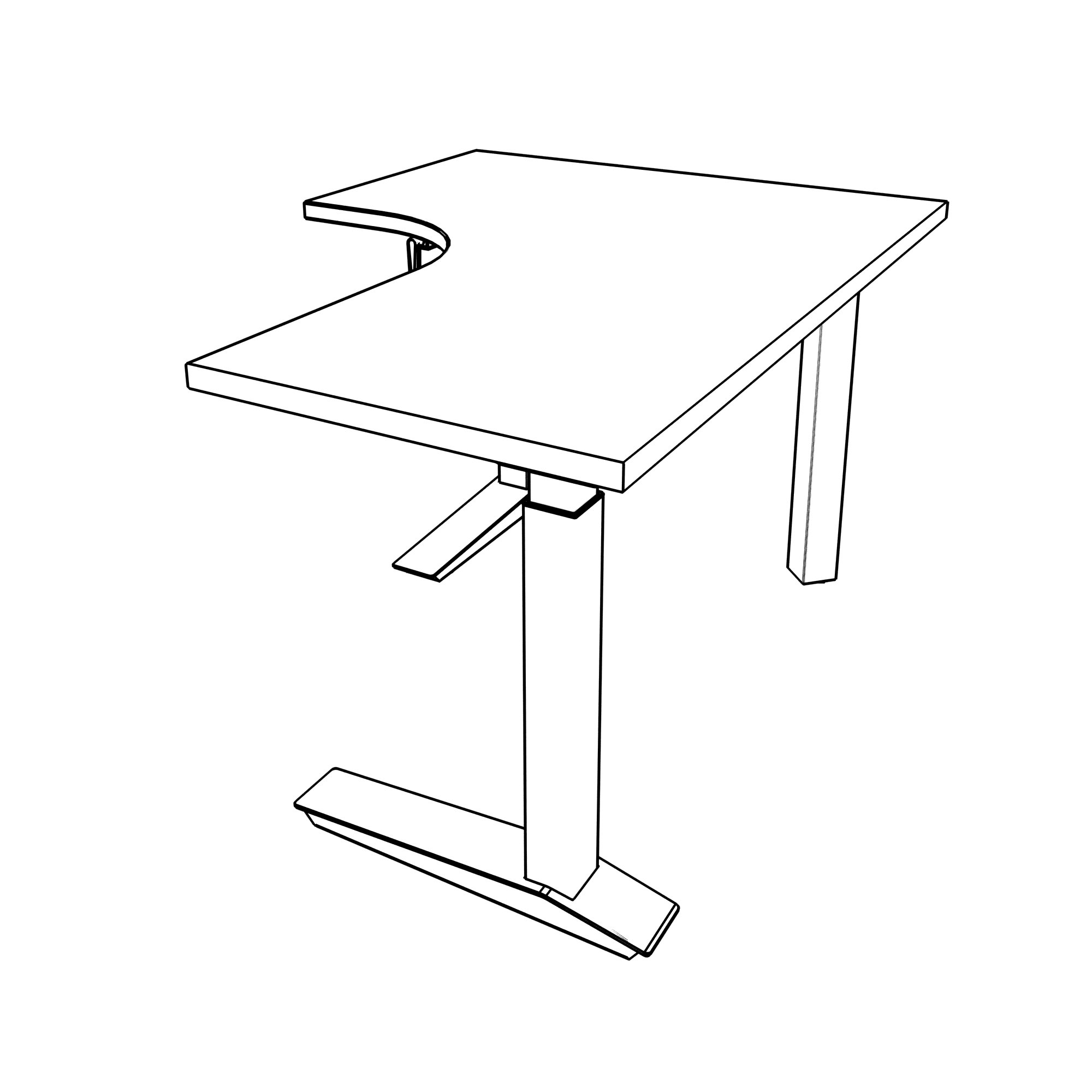

{{alt}}

Corner, 90Deg Wrap-Around Extended

One Piece

Laminate Top

Edgeband

Standard Core

Crank Adjustment: 27"-45"

L/R Depth: 23"/23"

Length: 52"/58"/64"/70"

Width: 40"/46"/52"/58"

Orientation: Right

Catalog Number TACE-xxxx-LJSNCBH

2D DWG 3D DWG

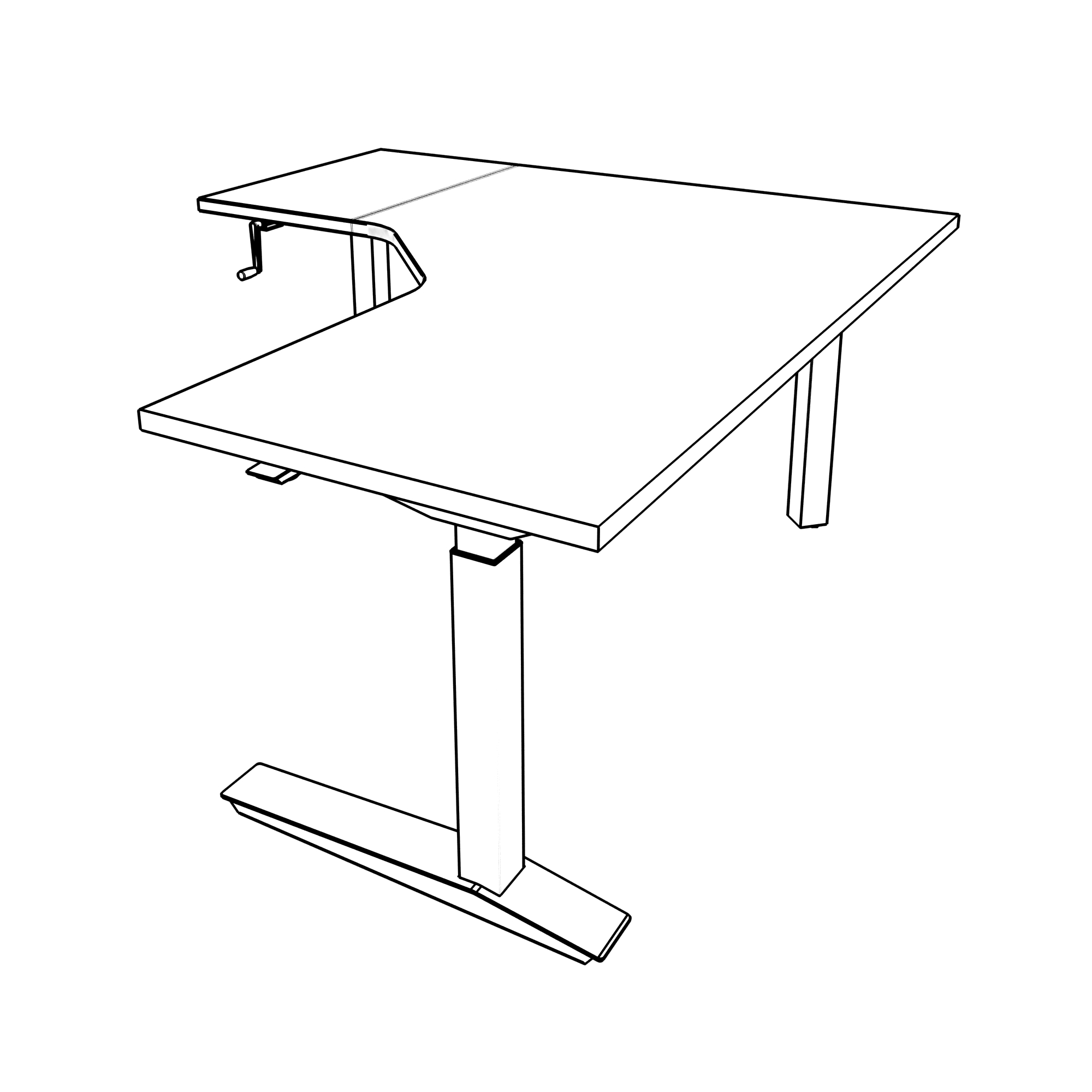

{{alt}}

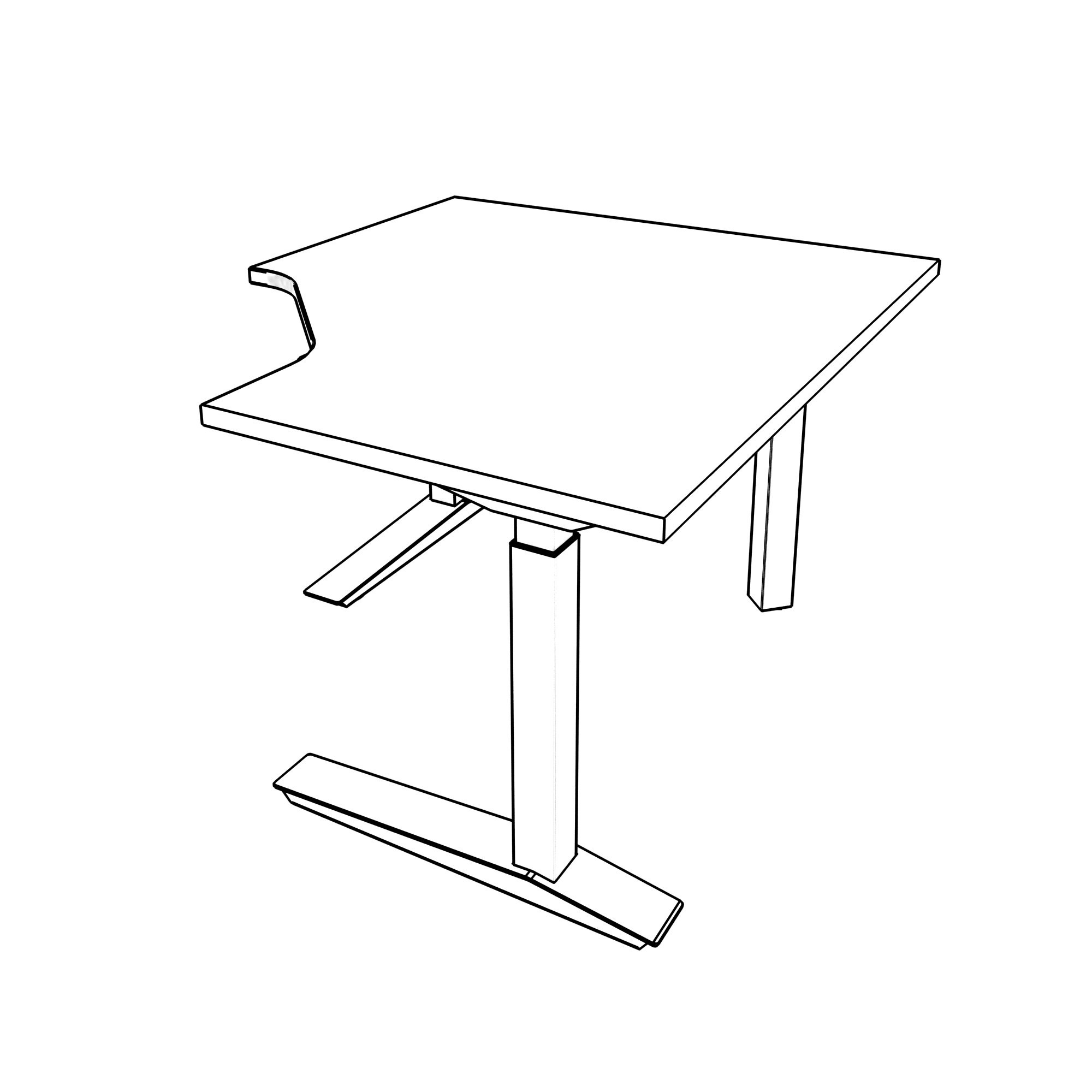

Corner, 90Deg Notched Extended

Two Pieces

Laminate Top

Edgeband

Standard Core

Crank Adjustment: 27"-45"

L/R Depth: 29"/29"

Length: 70"

Width: 64"

Orientation: Right

Catalog Number TACP-6470-LJSNCBJ

2D DWG 3D DWG
{{alt}}

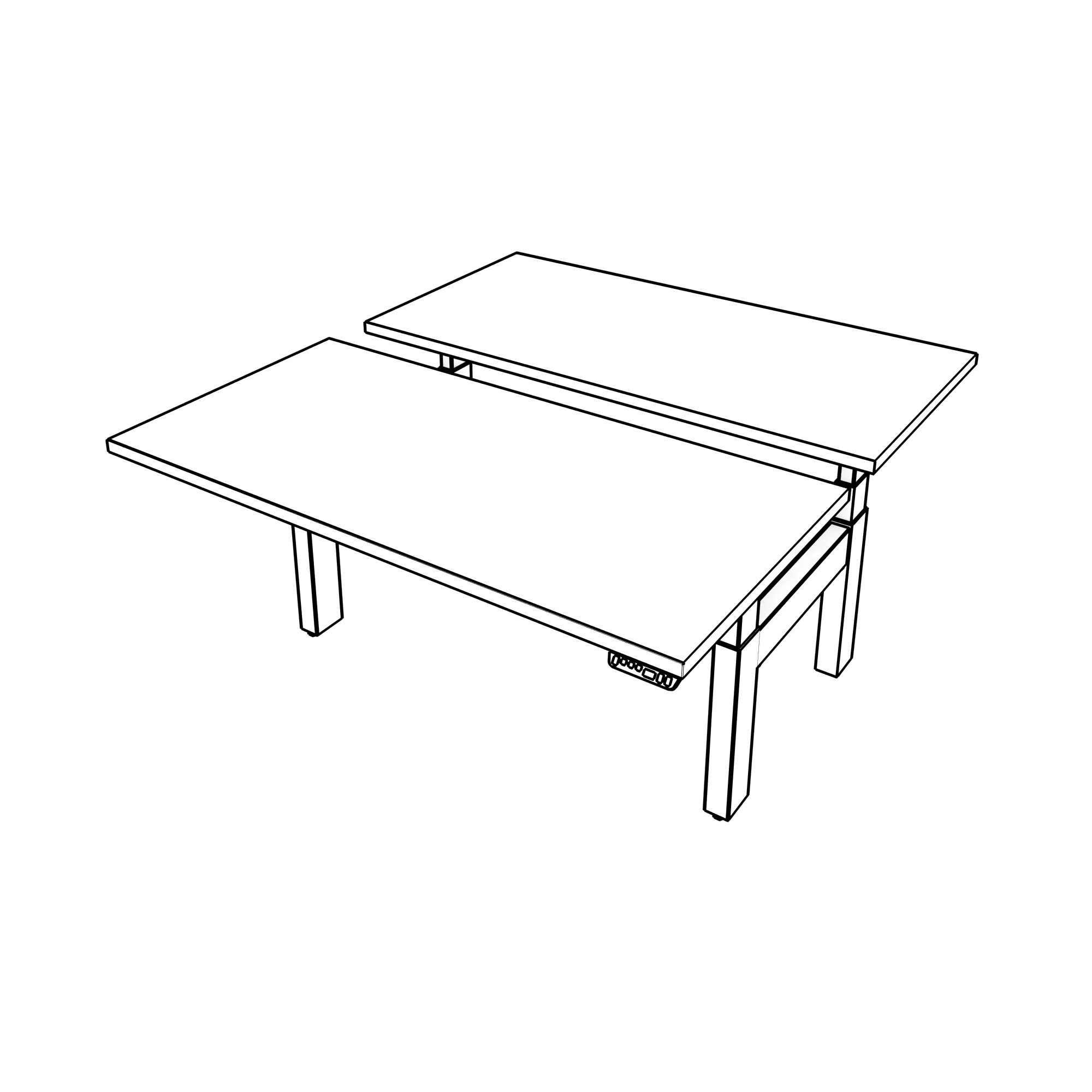

Rectangular - 29" Deep

Bench Base

Laminate Top

Edgeband

Standard Core

No Electrical Cutouts

Dual Stage Low, Progr Adj: 22"-48"

Width: 46" - 70"

Catalog Number TARA-29xx-LJSNHS

2D DWG 3D DWG
{{alt}}

Rectangular - 29" Deep

Bench Base

Laminate Top

Edgeband

Standard Core

No Electrical Cutouts

Dual Stage High, Std Adj: 24"-50"

Width: 46" - 70"

Catalog Number TARA-29xx-LJSNSQ

2D DWG 3D DWG
{{alt}}

Rectangular - 29" Deep

Bench Base

Laminate Top

Edgeband

Standard Core

No Electrical Cutouts

Single Stage, Crank/Std Adj: 27"-46"

Width: 46" - 70"

Catalog Number TARA-29xx-LJSNSB

2D DWG 3D DWG
{{alt}}

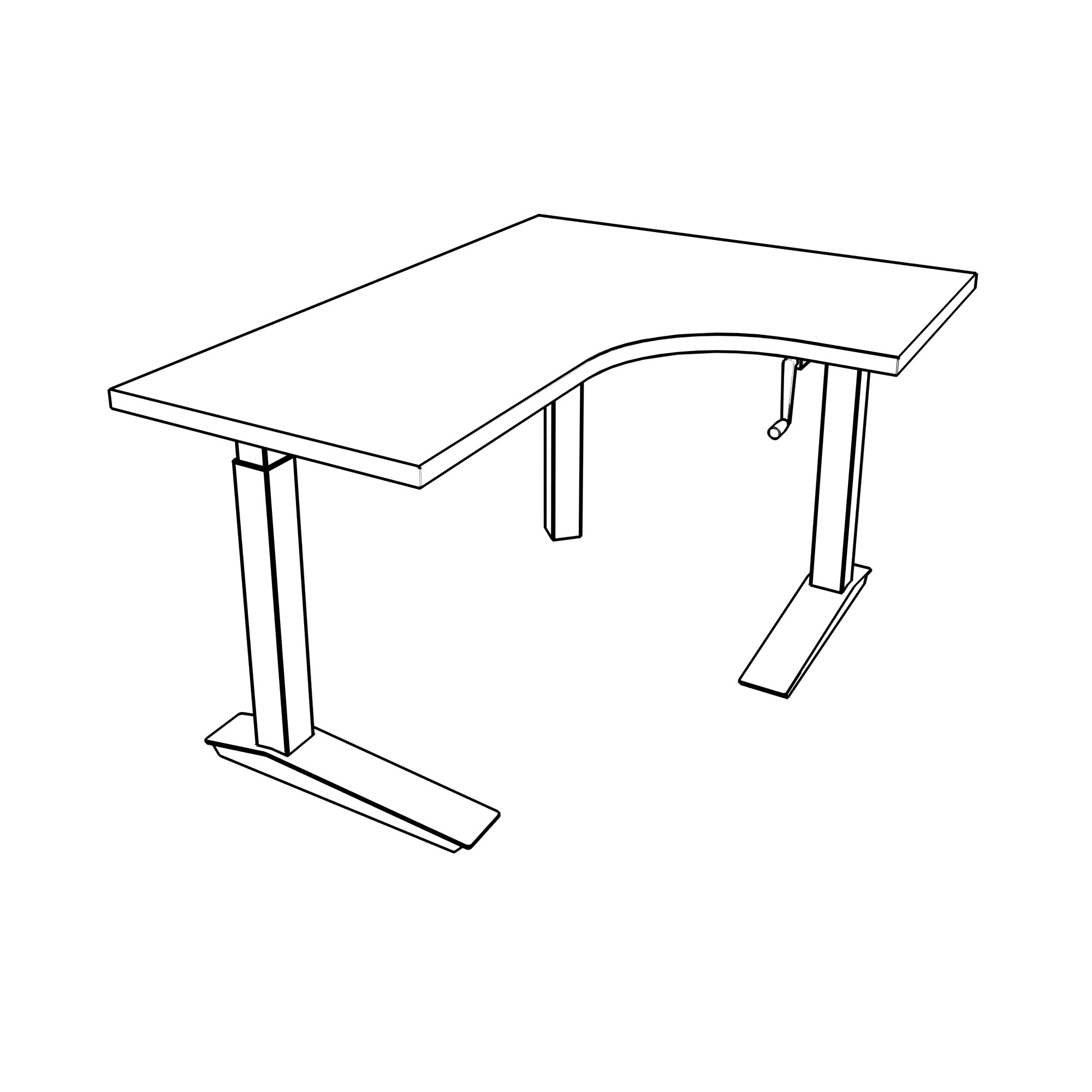

Corner, 90Deg Wrap-Around Extended

One Piece

Laminate Top

Edgeband

Standard Core

Crank Adjustment: 27"-45"

L/R Depth: 23"/23"

Length: 52"/58"/64"/70"

Width: 40"/46"/52"/58"

Orientation: Left

Catalog Number TACE-xxxx-LJSNCBE

2D DWG 3D DWG

Revit

Planes Height-Adjustable Benching Models

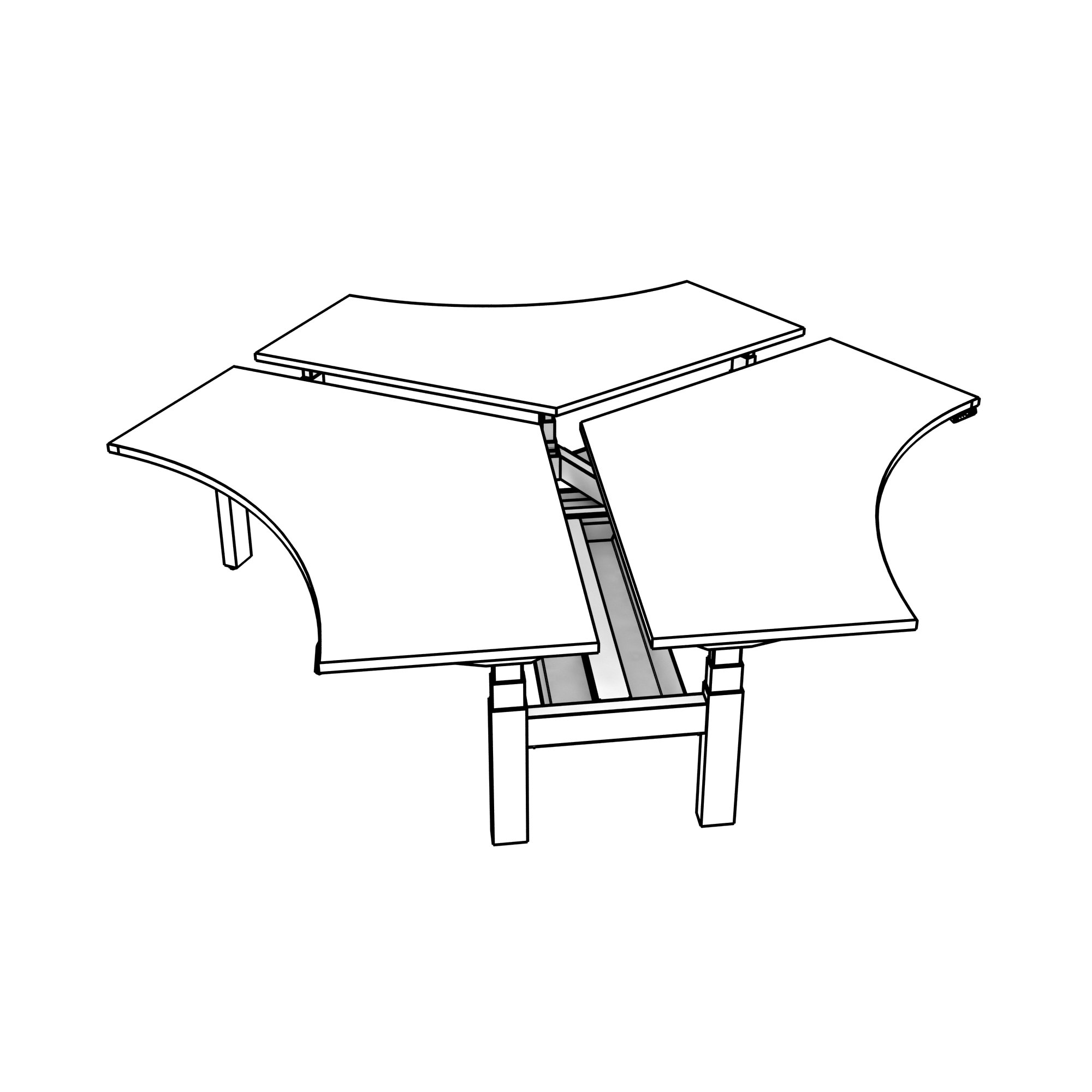

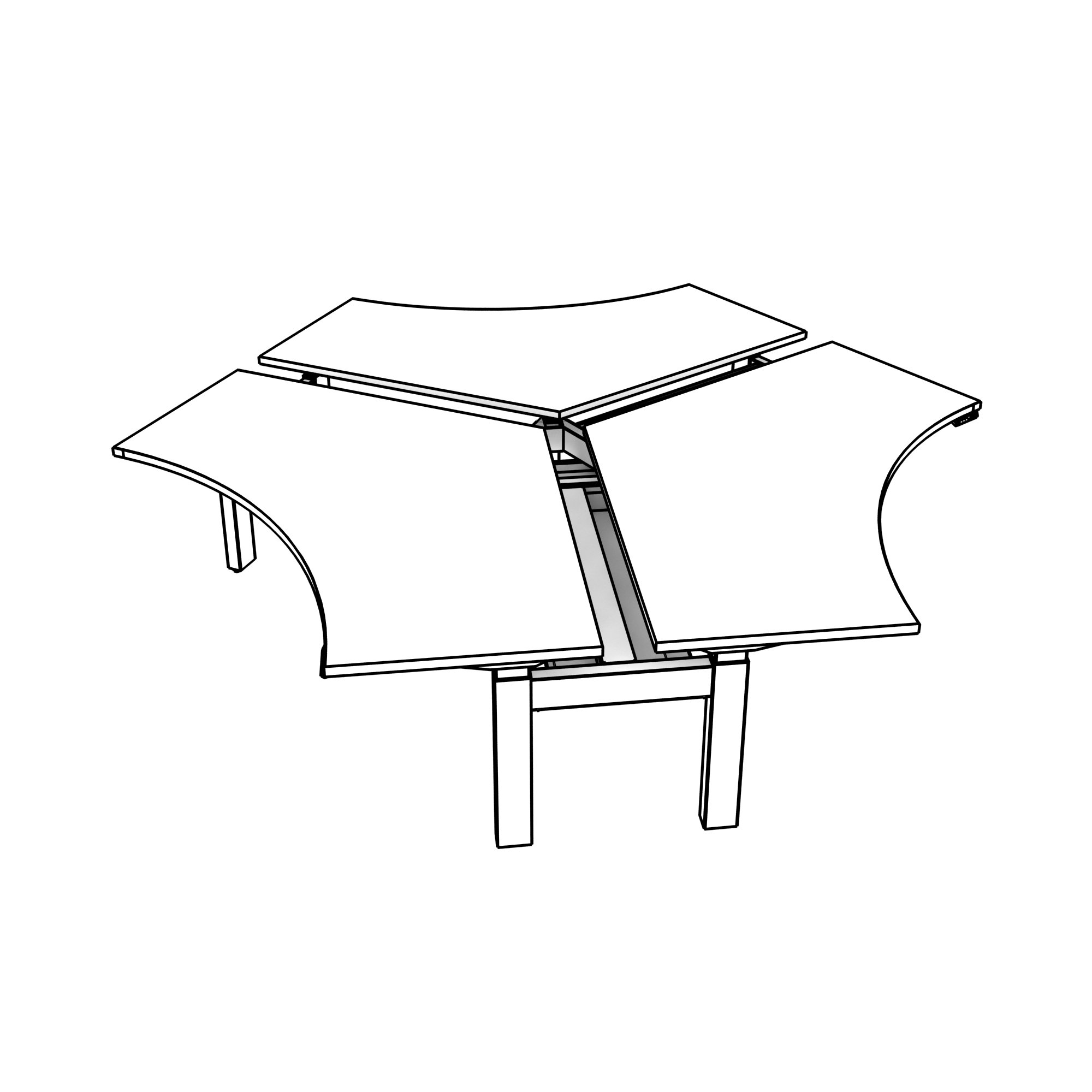

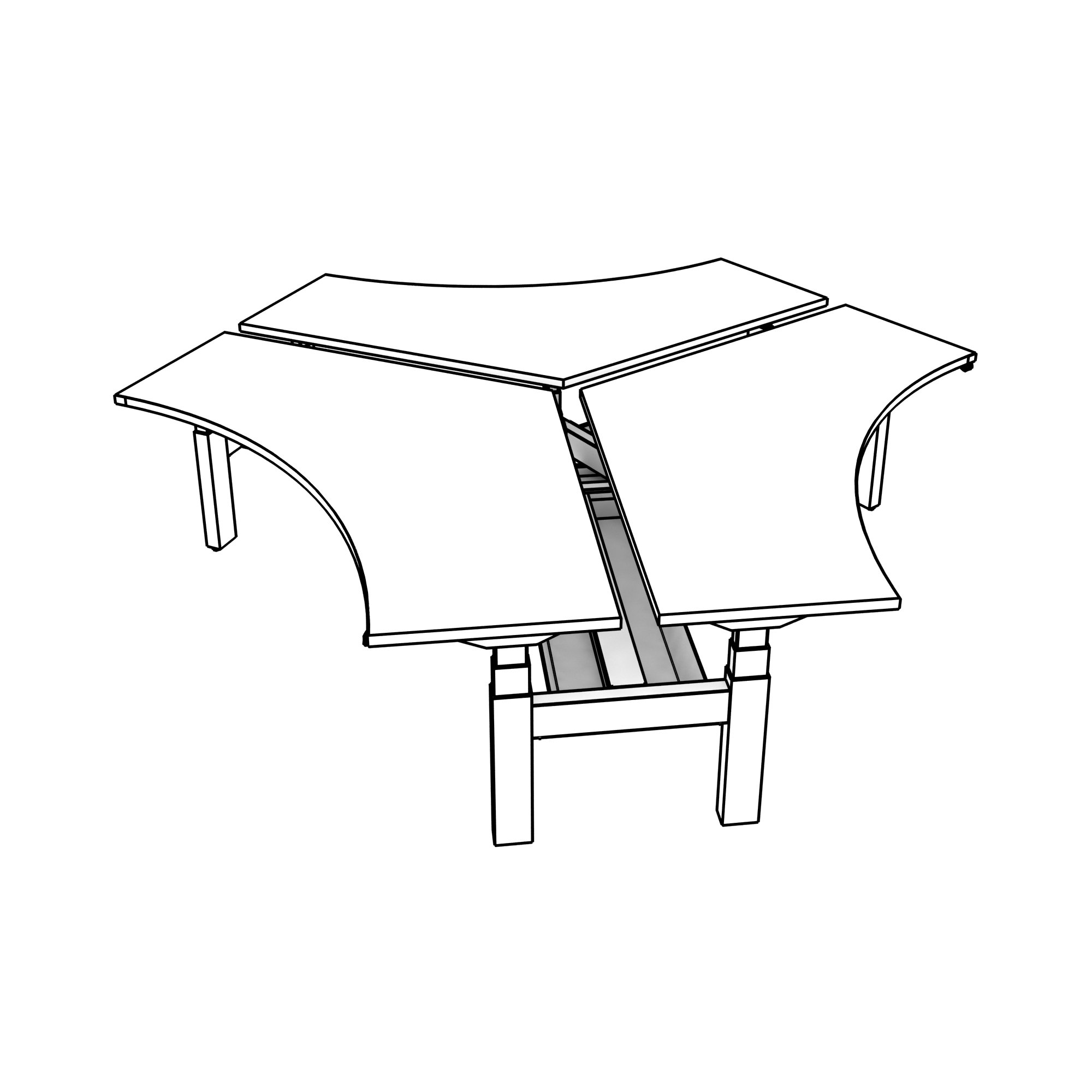

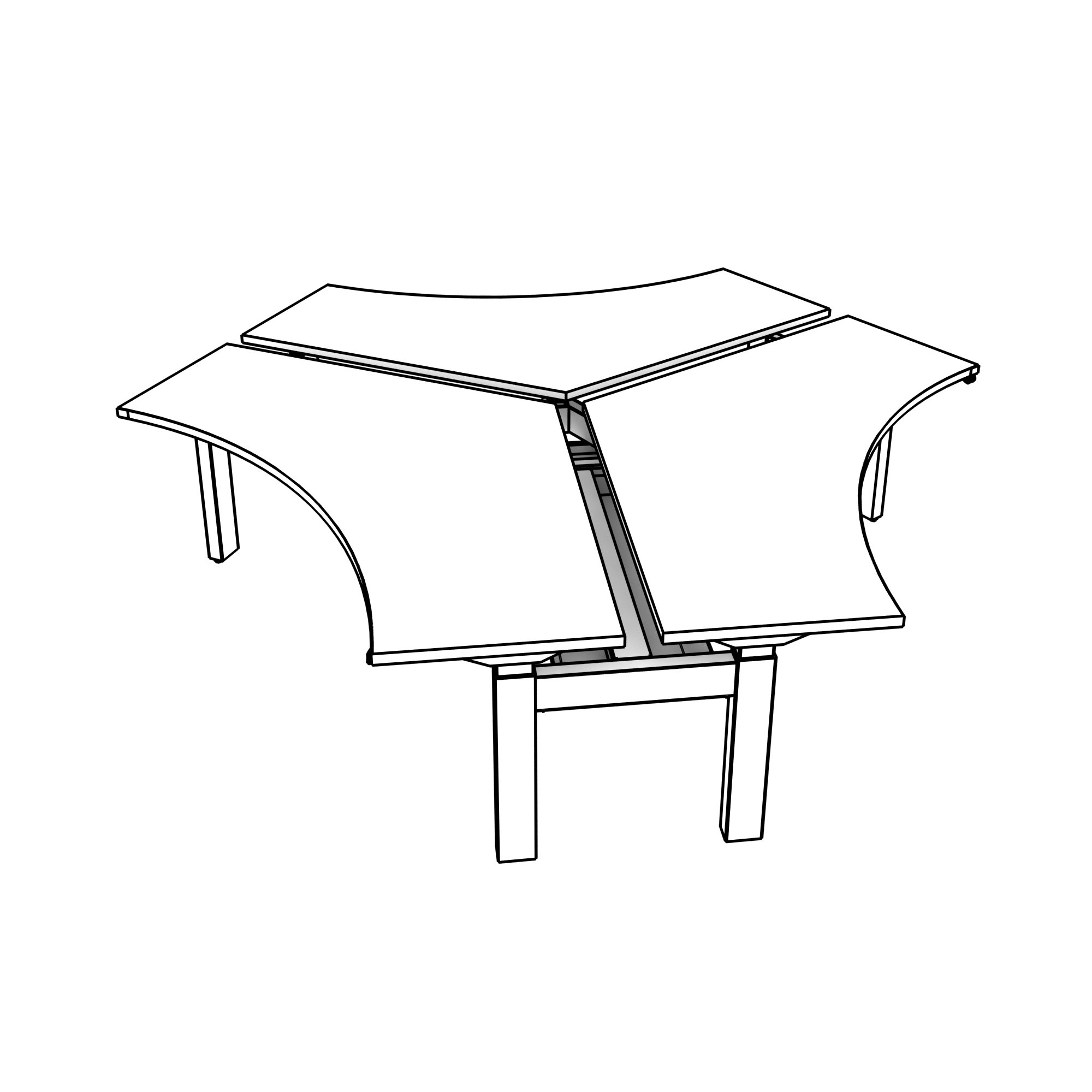

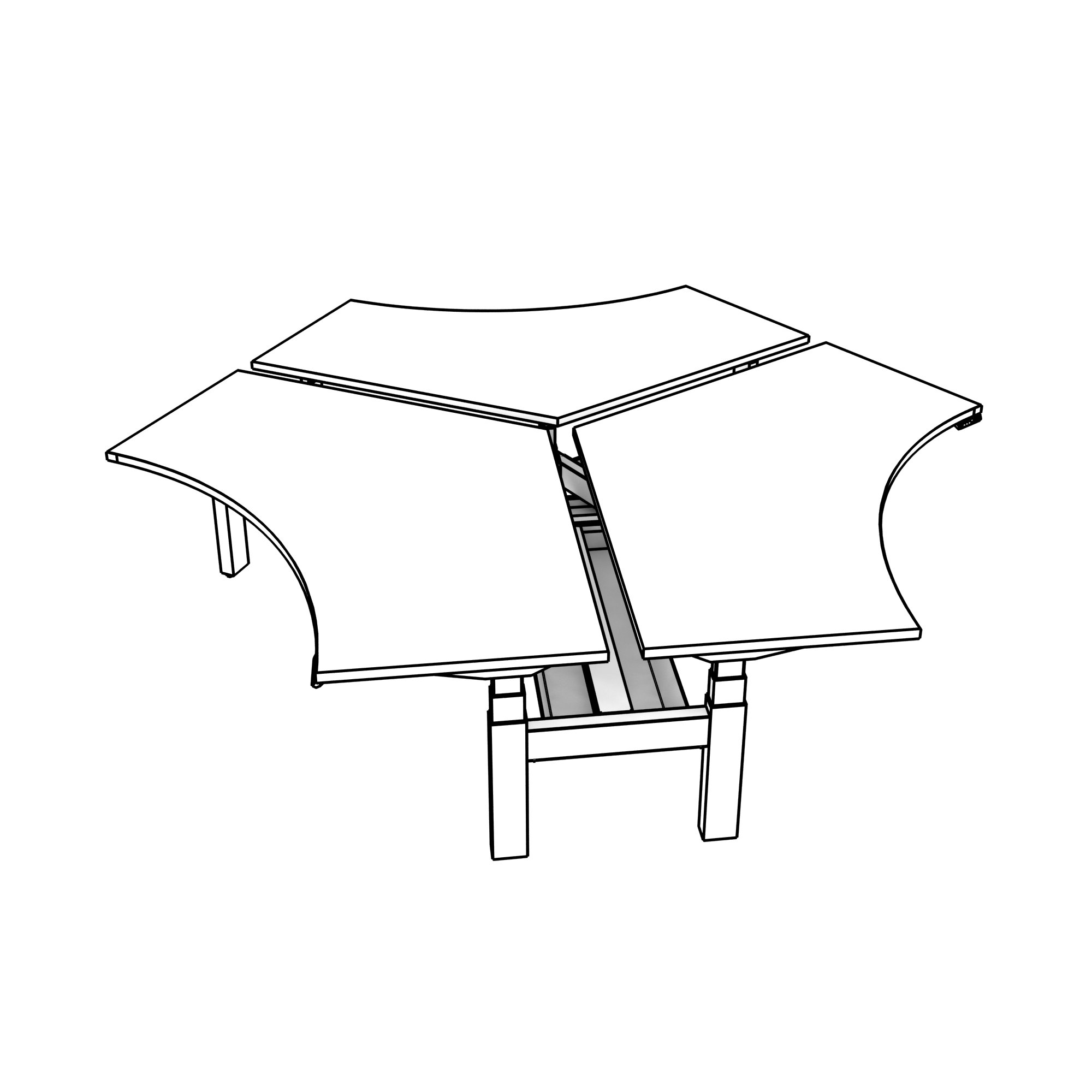

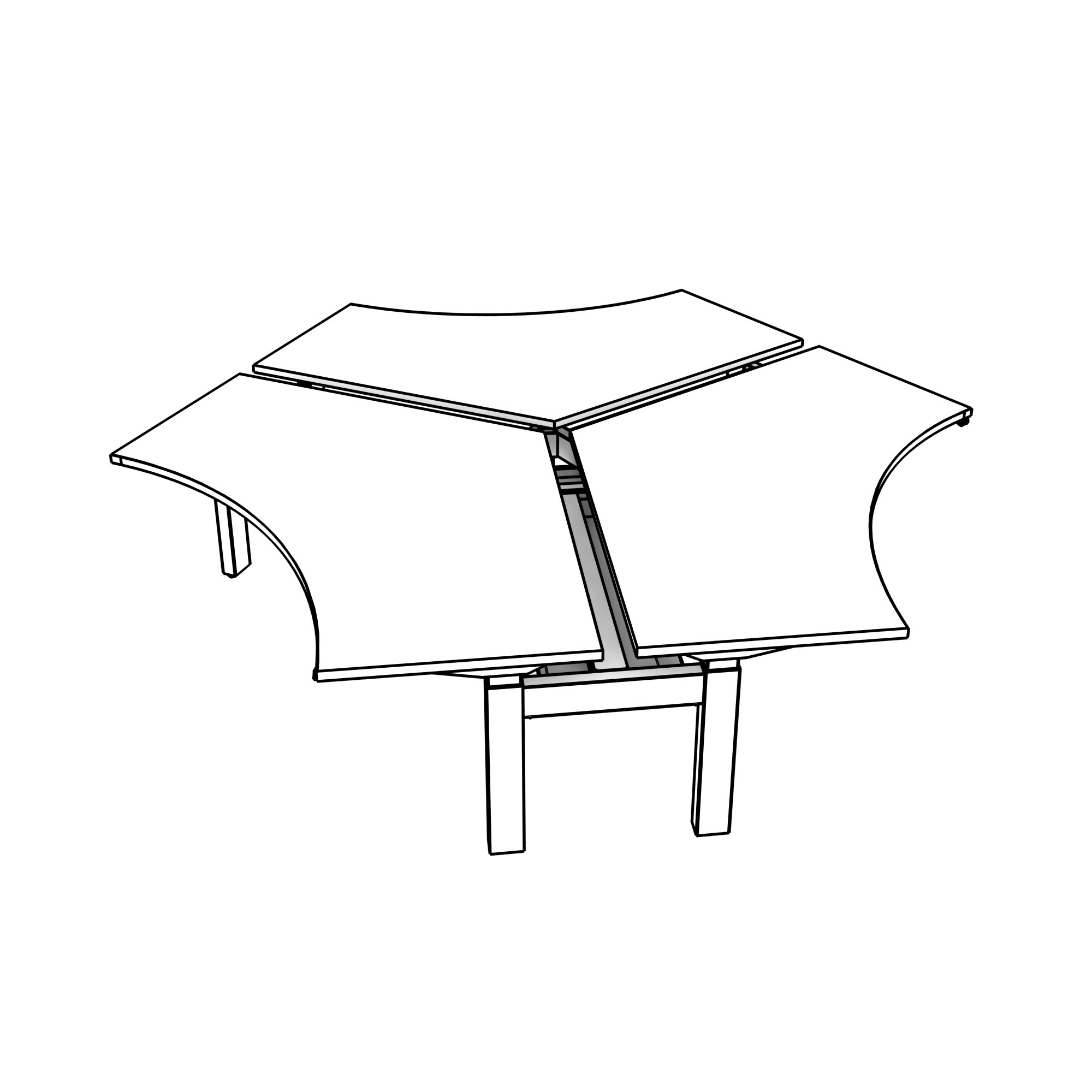

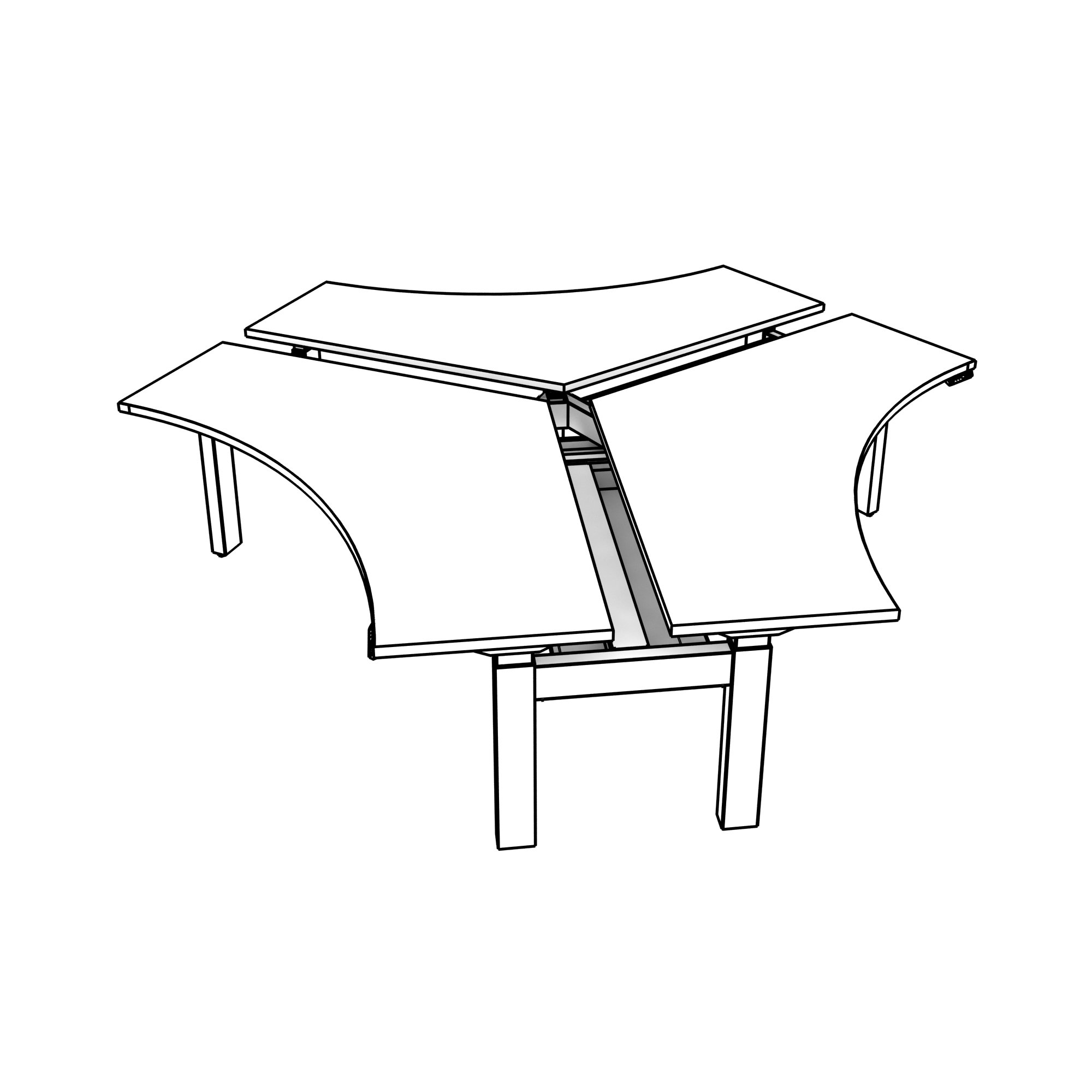

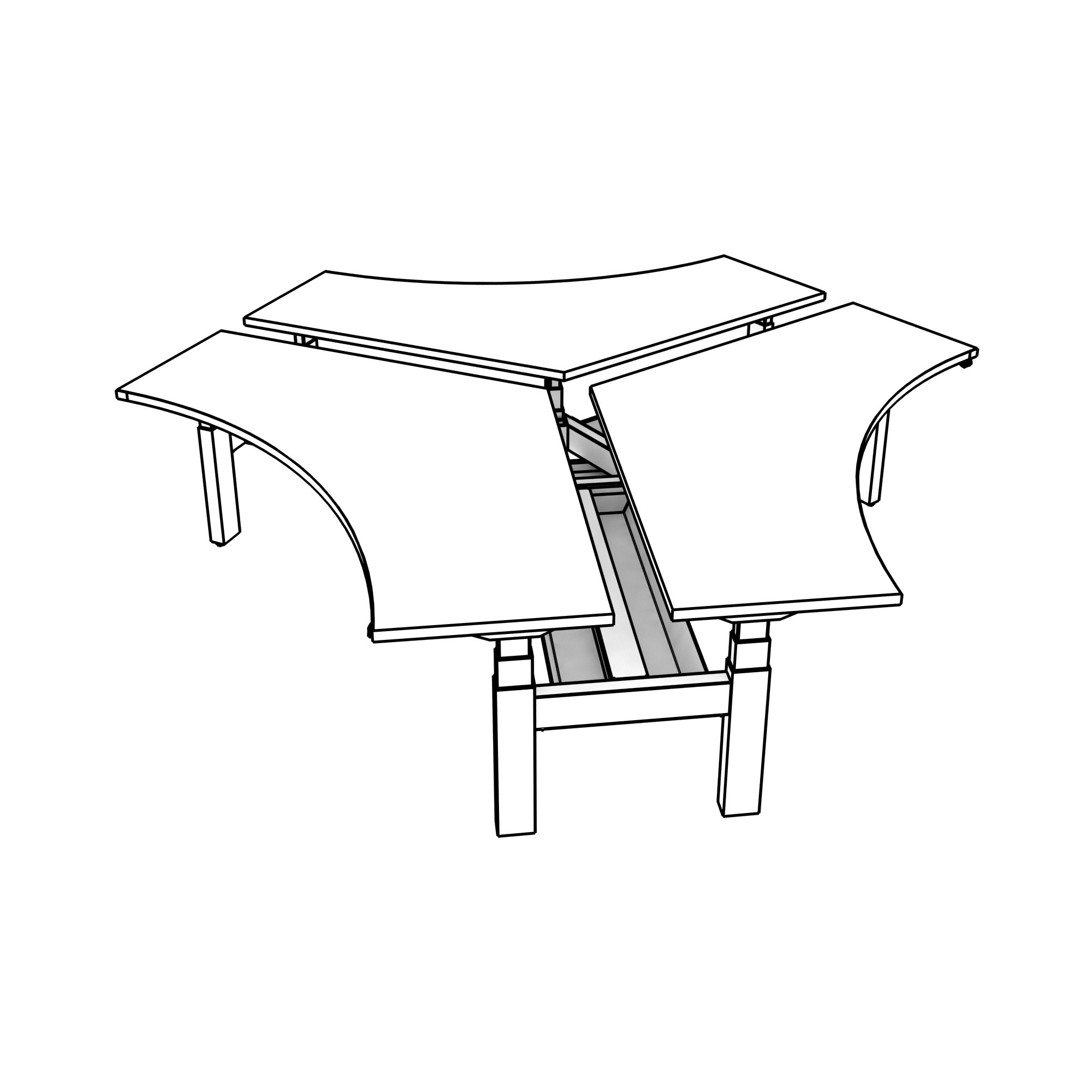

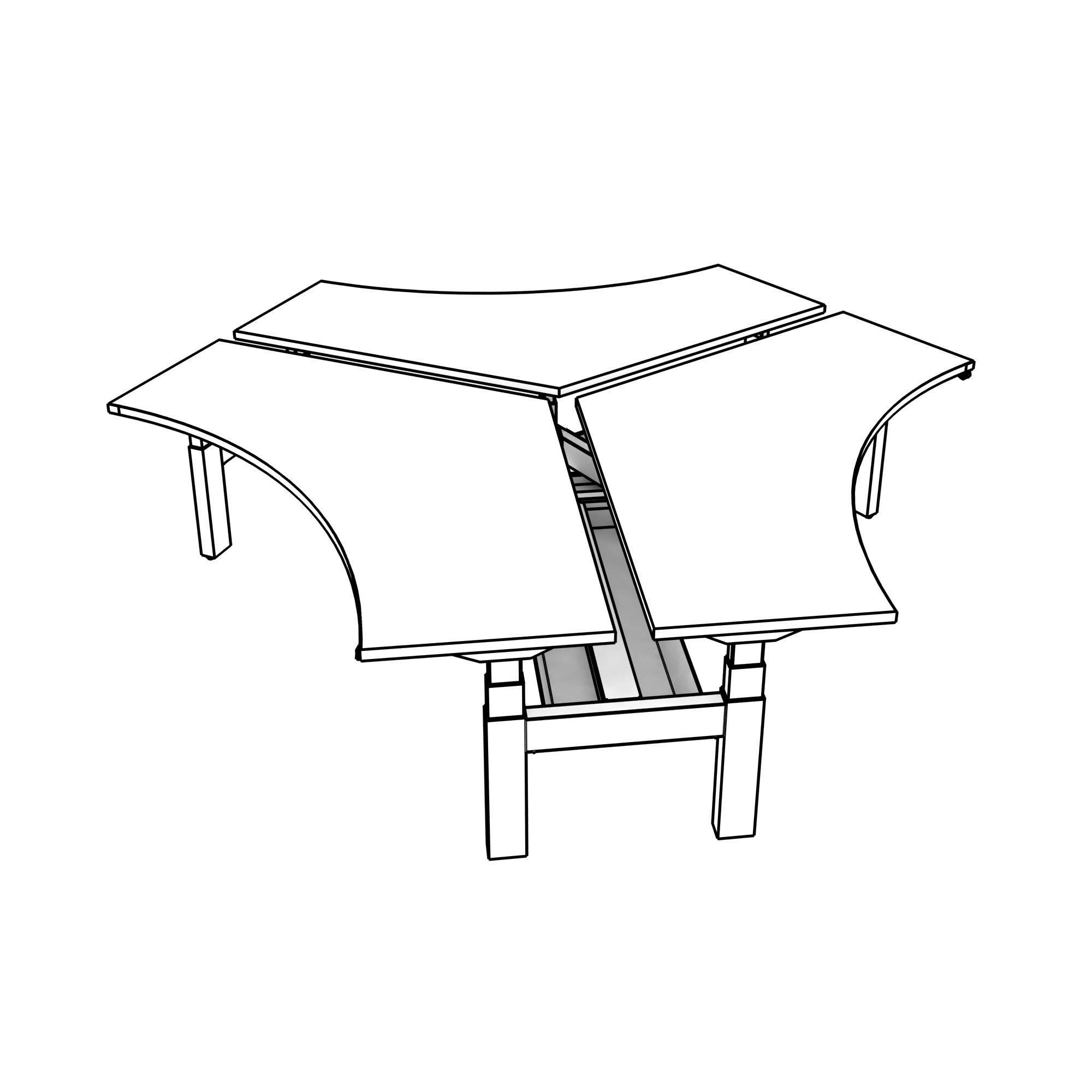

Height Adjustable Benching 120

Height Adjustable Benching Dual Sided

Height Adjustable Benching Single Sided

Downloads

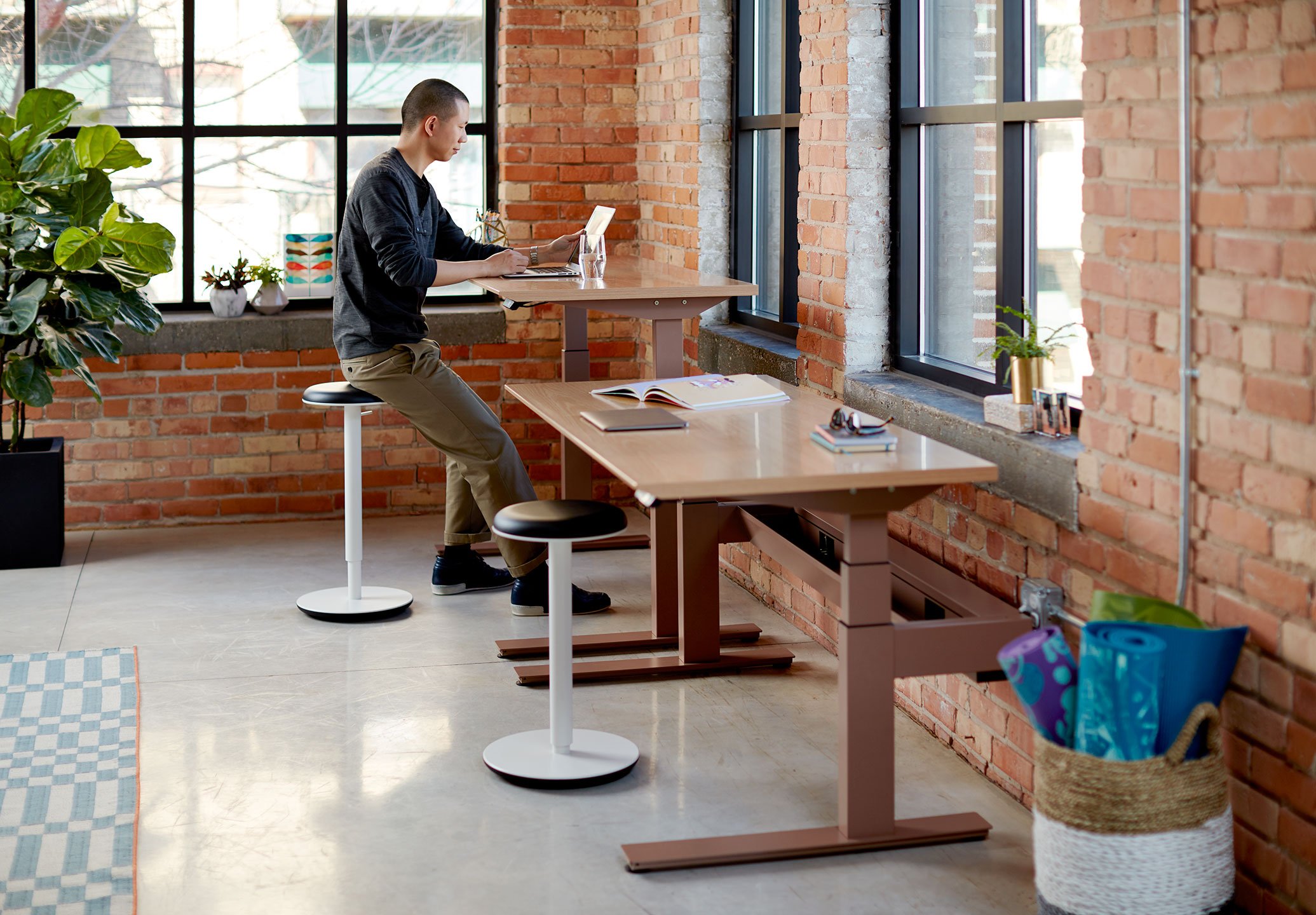

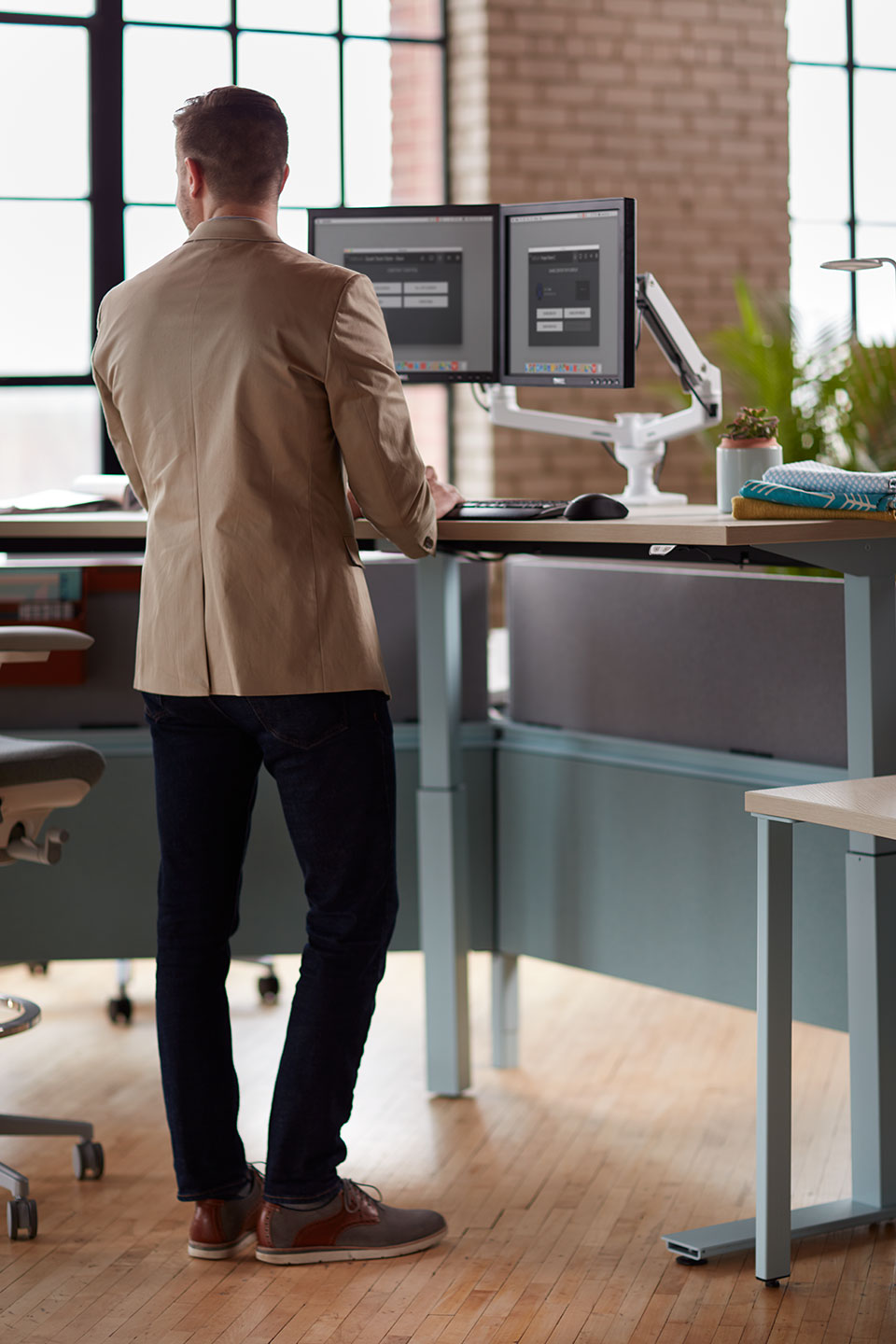

Sit. Stand. Move.

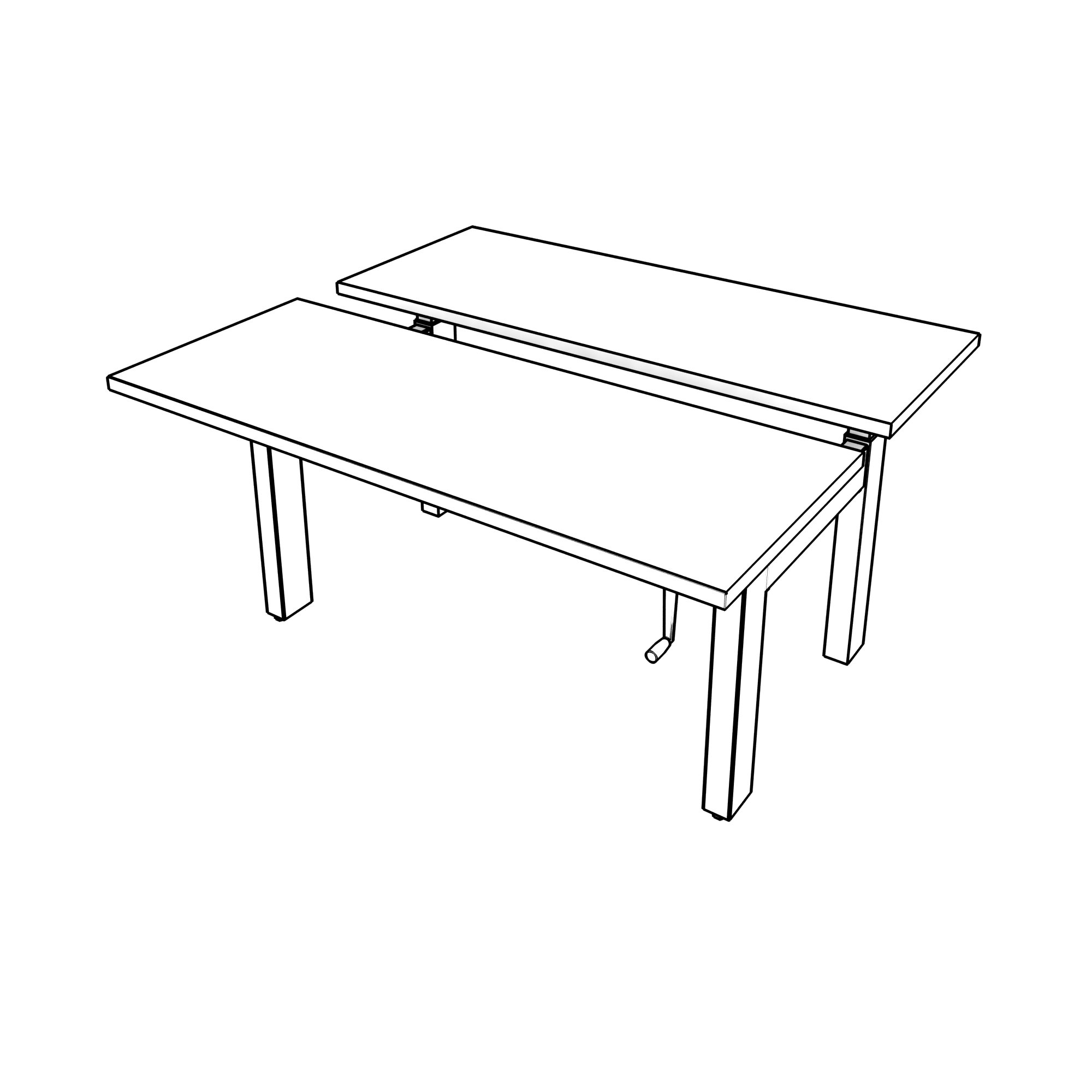

Planes benching offers several manual and electric adjustment options to support ergonomic and well-being needs. The manual adjustment option crank provides 27”- 46” of height range at 1” per six turns while the electric adjustment option offers three ranges: 22"– 48" for sit to stand; 24"– 50"; and 27"– 46".

Power System

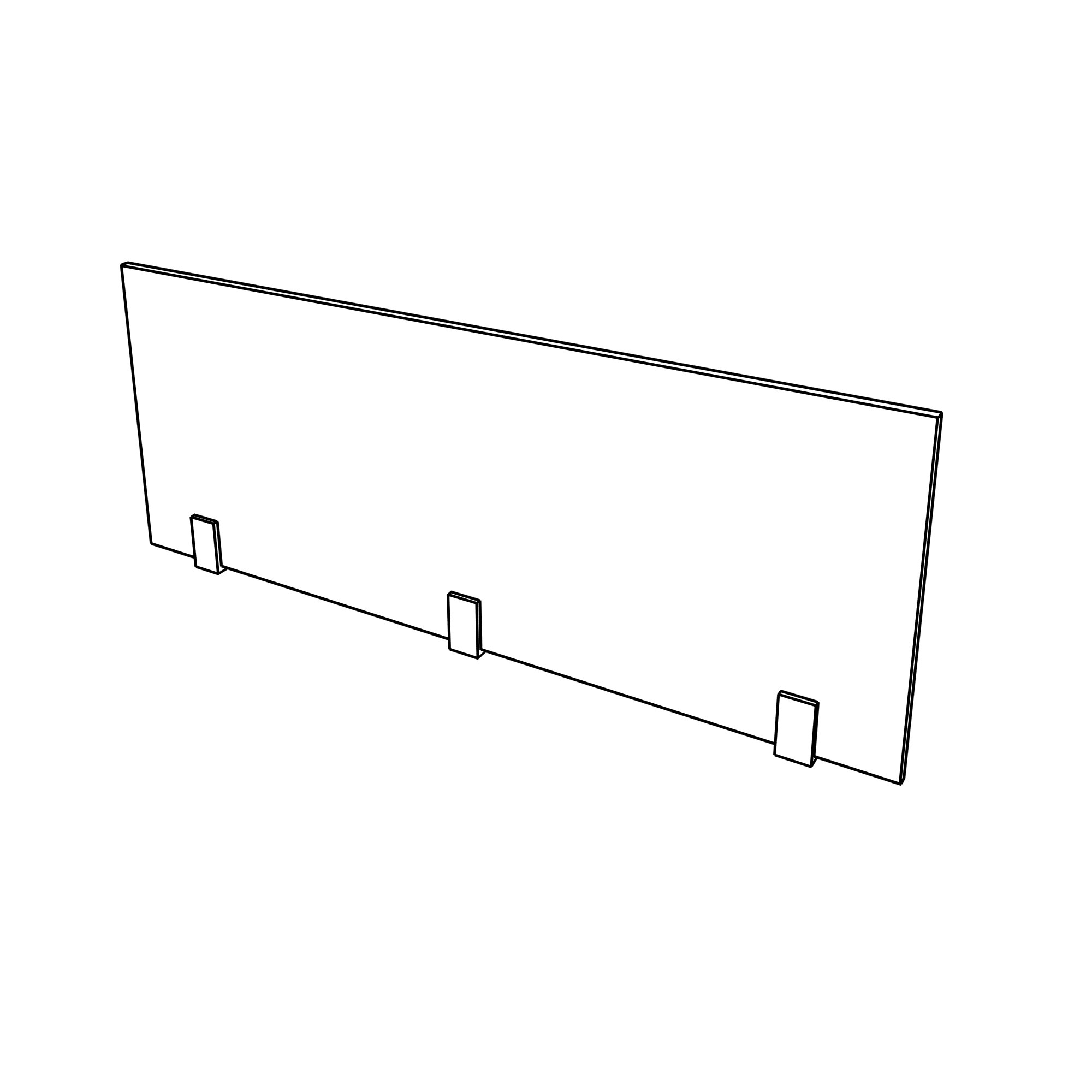

Planes benching utilizes the same 3, 2+2, and 3+1 power system as other Haworth product to address user needs and consistency across the floorplate. Organize and conceal cables and cords in a variety of ways: cable chain between the worksurface and benching structure; or through various base feed options for end or middle of the run as well as above or below worksurface. Optional screens attach to the benching structure or top for visual privacy and color accent. Available in fabric, laminate, veneer, markerboard, and glass.

Colors, Materials, Finishes

Planes worksurfaces are available in standard Haworth finishes, including laminates and veneers. The base is available in all standard Integrated Palette™ paint colors.
