Trivati

Globally inspired. Locally made.

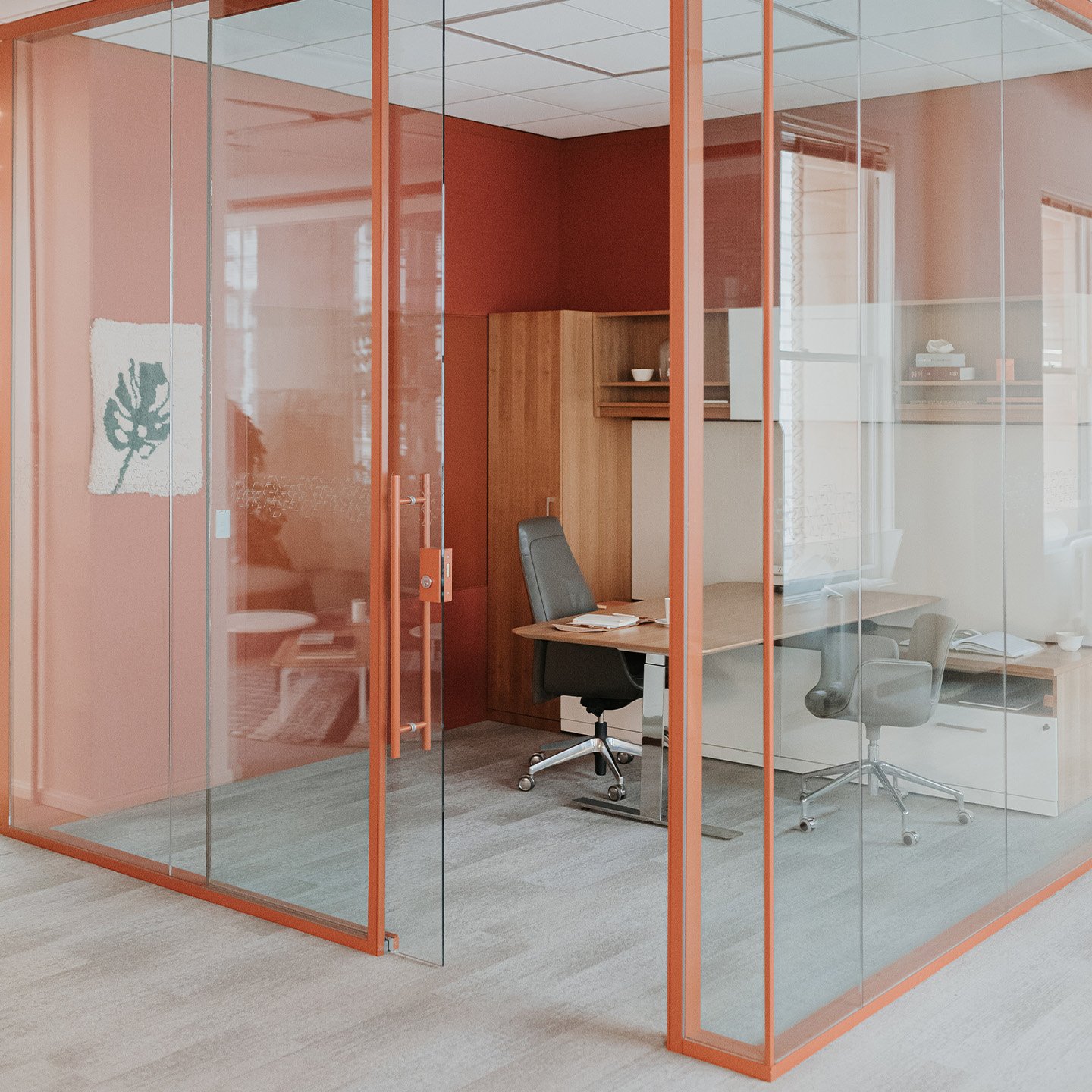

Key Features

  • Site-built, highly customized wall system
  • Clean, simple aesthetic
  • Flexible tri-channel system
  • Accommodates single or dual glazing and solid tiles with one extrusion
  • A third channel can be utilized for a decorative insert
  • Mimics the look and feel of permanent, custom construction

Inspiration

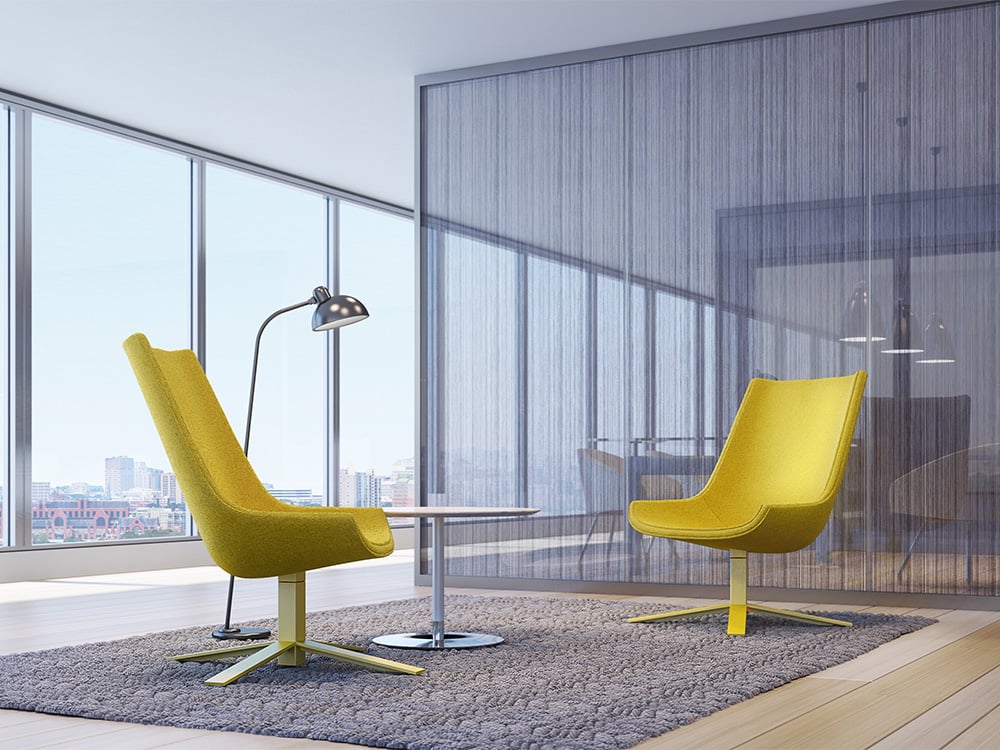

Trivati wall systems bring together the best traits of factory-built modular walls with the customizability of traditional walls. These wall partitions can be tailored to work anywhere—providing the ultimate space planning freedom.

SEE APPLICATIONS

Components

Learn about the Trivati family product details and capabilities below.

DOWNLOAD INSIGHT BROCHURE

System Fundamentals

Trivati’s flexible tri-channel rail can be fitted with up to three layers of vertical insert panels—letting you fine-tune aesthetics, visual and acoustical privacy, and budget—room by room, with a cohesive look.

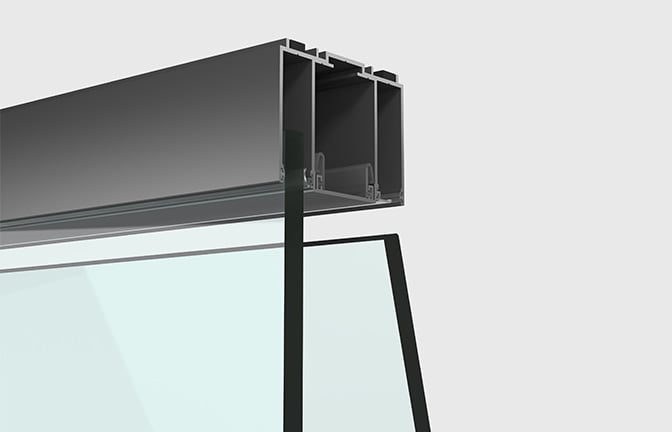

Top Rail

Top rails come in lengths up to 12’ and are cut on site.

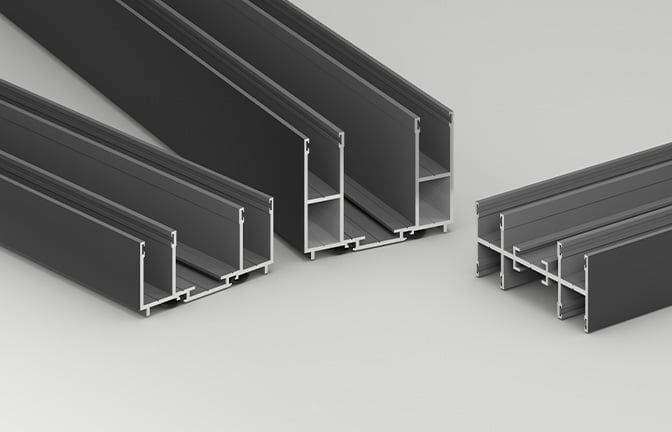

Starter, Bottom, and Transition Rails

Use rail extrusions in horizontal or vertical configurations to create countless design details.

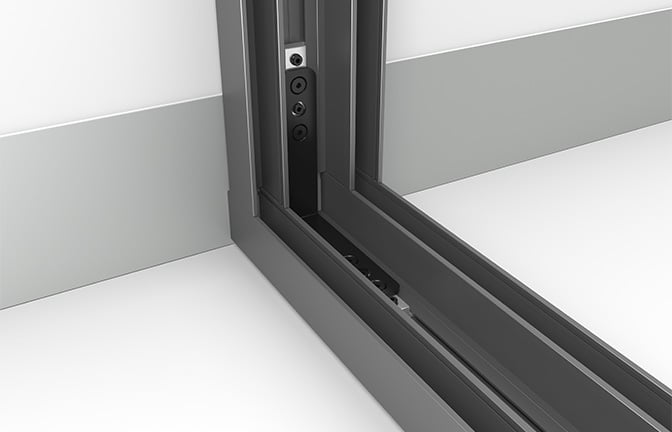

Rail Bracket Kits

Hidden from view upon installation, the rail brackets connect rail extrusions together in a seamless manner.

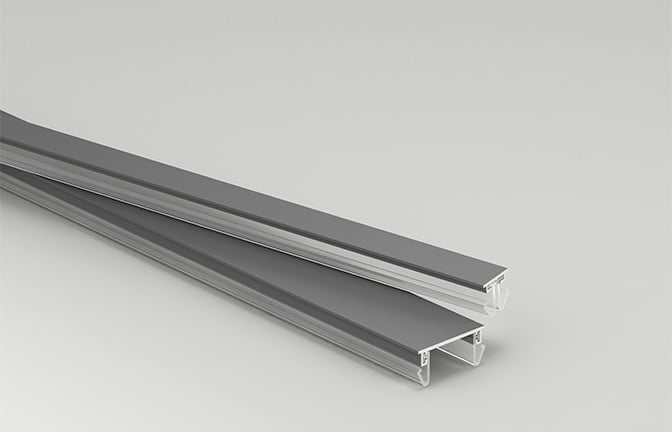

Channel Caps

Aluminum caps seamlessly close off channels not in use.

Wall Types

Trivati is a site-built, highly customizable architectural wall system featuring a unique tri-channel design. It accommodates single or dual glazing and solid tiles in one extrusion while mimicking the look and feel of permanent construction.

Trivati walls include Frameless Glass Center, Frameless Glass Offset, Frameless Glass Double Glazed, Solid, and Combination.

Door Types

Two door types to choose from.

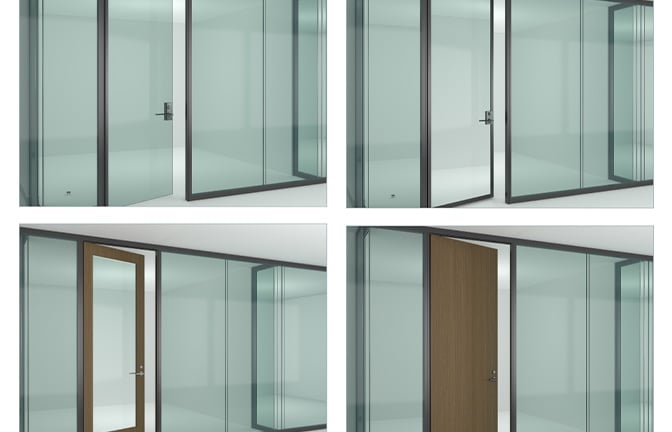

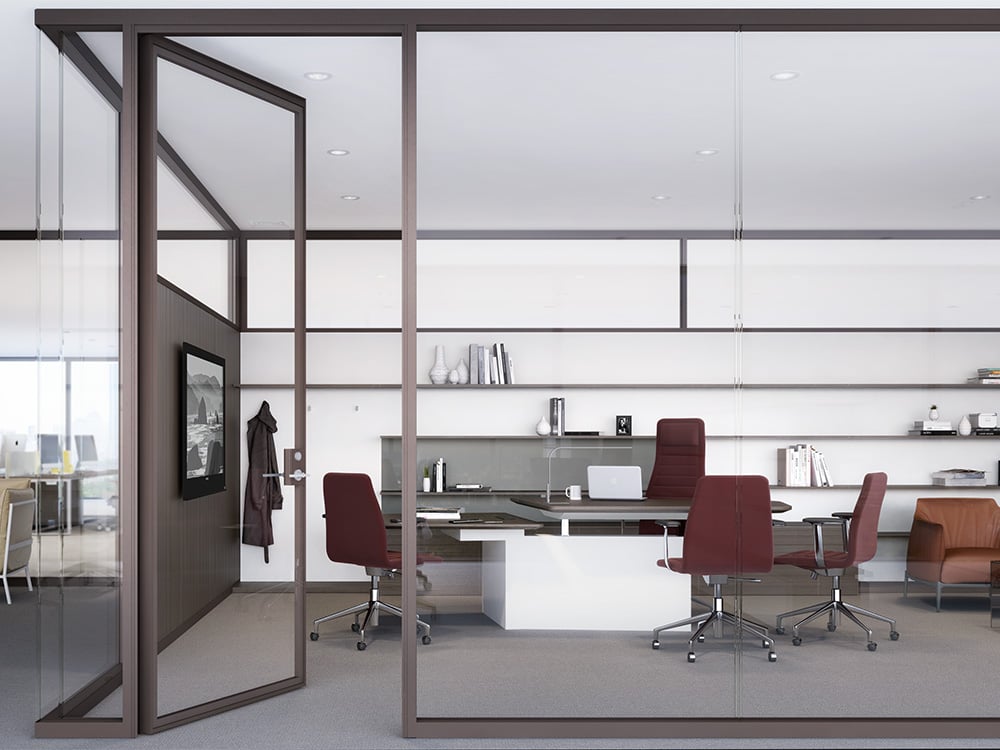

Swing Doors

Available in Glass Slab, Double Glazed, Wood Glazed, and Wood.

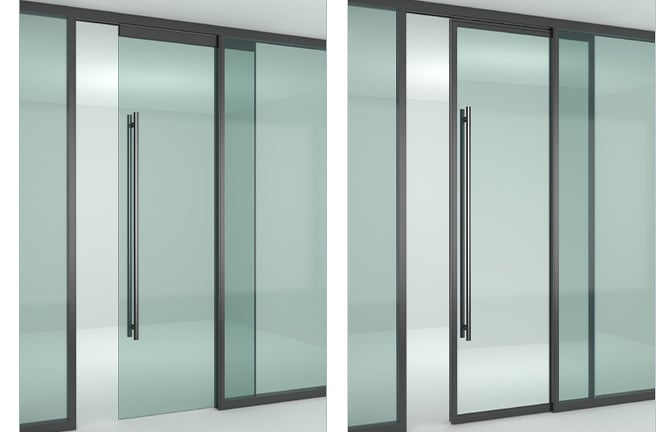

Sliding Doors

Available in Glass Slab and Double Glazed.

Hardware Types

Numerous hardware types to choose from based on door type.

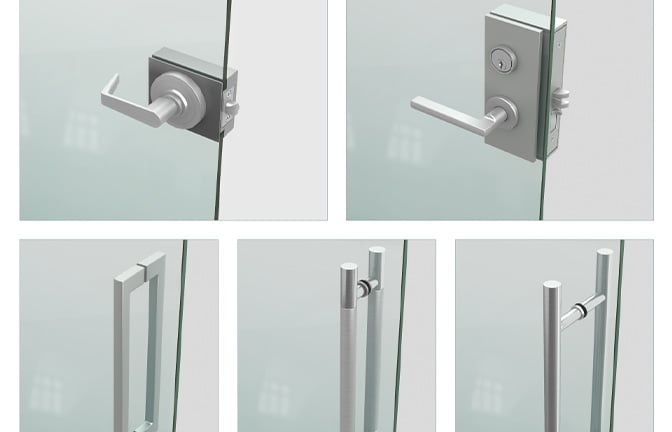

Swing

Locksets: Cylindrical, Mortise. Pulls: Rectilinear, Tubular, Architectural.

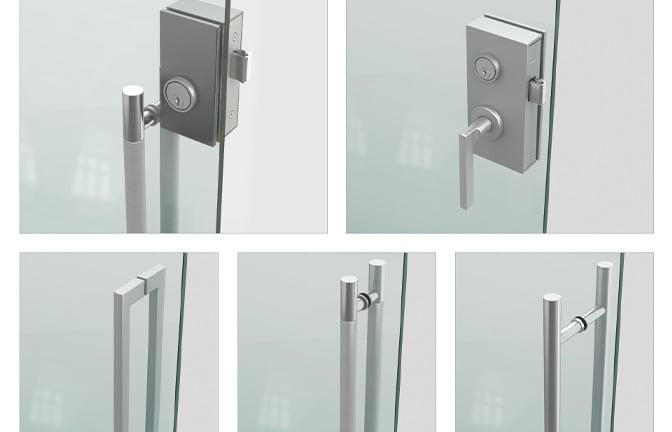

Sliding

Locksets: Deadbolt, Single Action. Pulls: Rectilinear, Tubular, Architectural.

Glazing & Solid Options

Trivati offers an array of glazing options to suit the needs of each space.

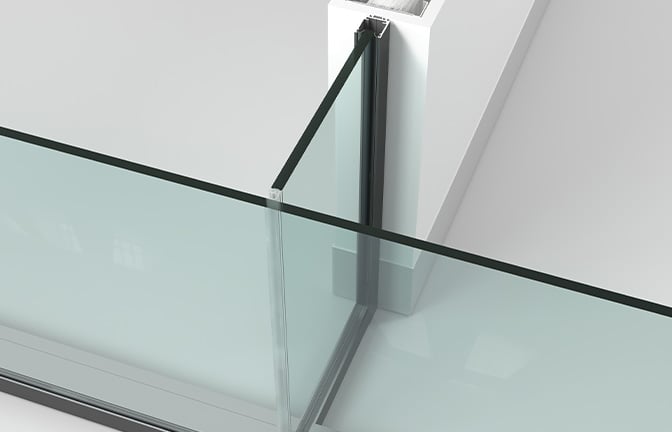

1 Channel

Leverage only one of the 3 channels available in Trivati for a glass front interface with bulb seal.

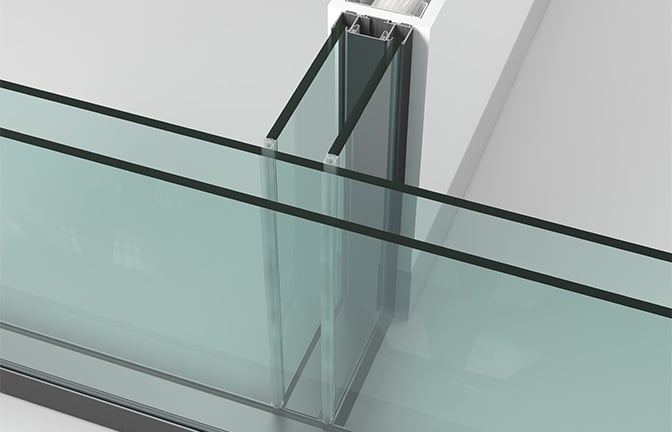

Double Glazed 3-Way

Connect two double glazed systems with a bulb seal interface.

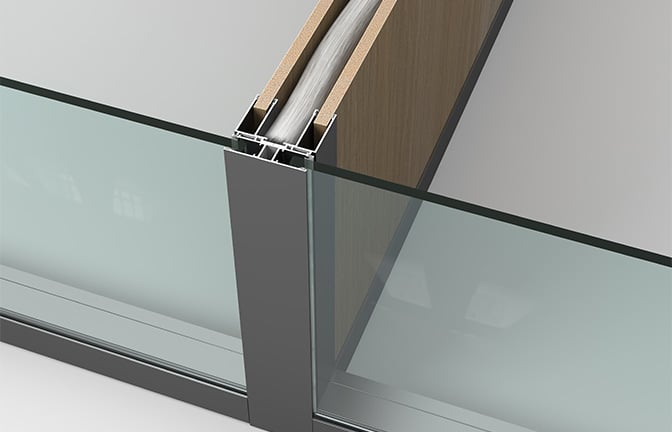

Modular Fly-By

Solid run interfaces glass front with 3-way 90-degree one channel transition rail.

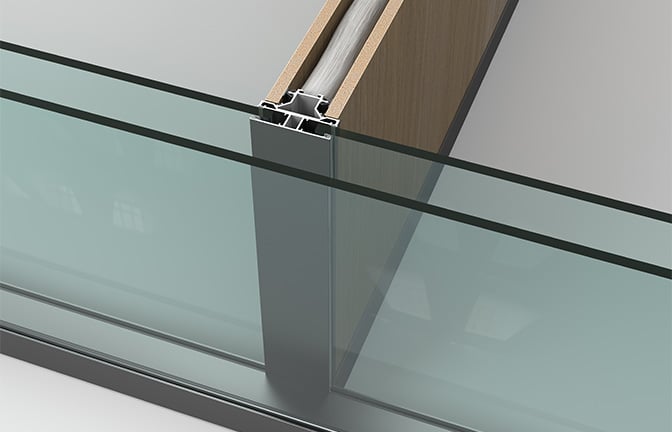

Glazed Fly-By

Solid run interfaces double glazed glass front with 3-way 90-degree one channel transition rail.

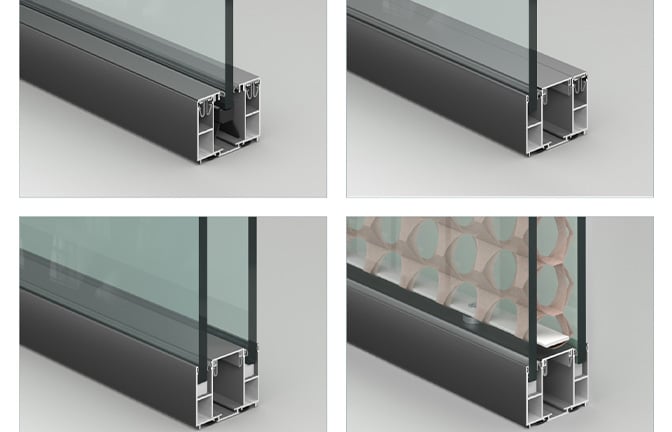

Channel Activation Options

Center Glazed, Offset Glazed, Double Glazed, Tri-Channel Activation

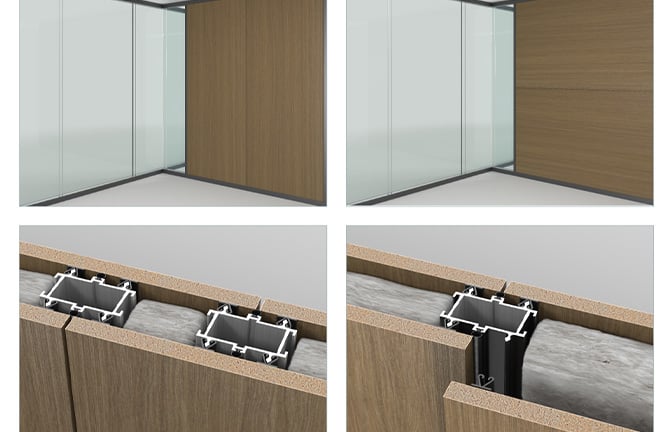

Transitions and Attachments

Vertical Tiles, Horizontal Tiles, Off Module Reveals, Wall Assembly

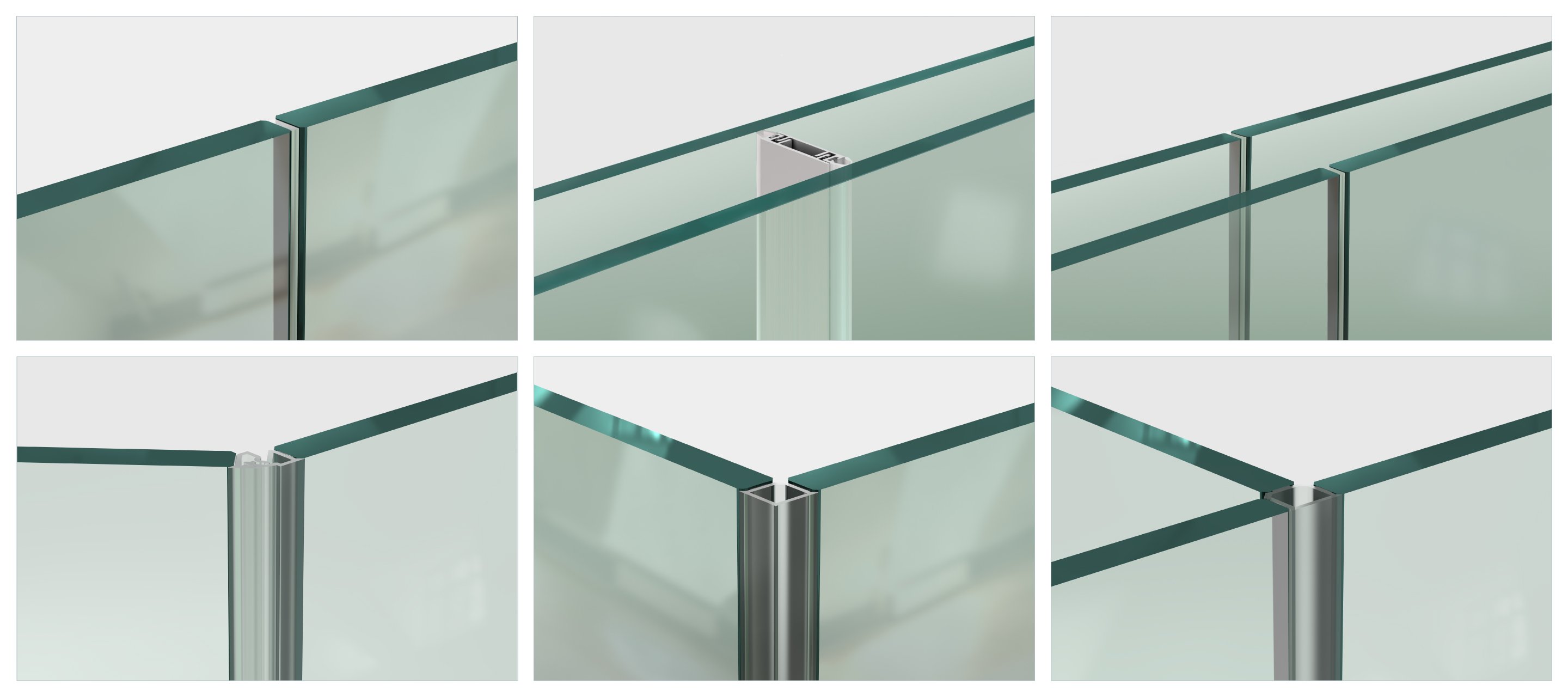

Glazing Connectors

Glazing connectors bring installation speed and aesthetic consistency to each project.

Performance

Essential Info

Structural

Wall system and components are designed in accordance with the governing building codes to account for:

  • Load Bearing Capacity (ANSI/BIFMA X5.6)
  • Transverse-Load Capacity (ASTM E72)
  • Glass Thickness (ASTM E1300)
  • Glazing Materials (ANSI Z97.1) and markings
  • Seismic Loads (per zone requirements)

Acoustics

STC ratings are determined by testing a representative sample according to ASTM E90 and classified according to ASTM E413 by an accredited independent testing agency.

  • Single Glazed, Frameless:
    • 10mm Tempered – 35
    • 12mm Tempered – 36
    • 12mm Laminated – 37

  • Double Glazed, Frameless:
    • 10mm Tempered + 12 mm Tempered – 47
    • 10mm Tempered + 12mm Laminated – 48
    • 12mm Tempered + 12mm Laminated – 50
    • 12mm Laminated + 12mm Laminated – 50

Surface Burning Classification

In accordance with ASTM E 84

Materials comply with non-combustible building types

Electrical & Classification

Prewired components and electrical components attached to assemblies comply with NFPA 70, National Electric Code 2014 and CSA C22.1 Canadian Electrical Code 2012, Part 1

Modular electrical components comply with UL 183 Standard for Manufactured Wiring Systems and SA C22.2 #203.1 Standard for Manufactured Wiring Systems

Indoor Air Quality

GREENGUARD certified to be low-emitting

In compliance with ANSI/BIFMA Standard Method M7.1-2011

Sustainability

GREENGUARD GOLD Certified

BIFMA Level 3 Certified

Living Building Challenge Declare®

Check out Ecomedes for more sustainability information on Trivati.

Surface Materials

Trivati offers a wide array of material choices to create a space that suites each customer’s needs.
