4SPACE Fronts
A new frame of reference

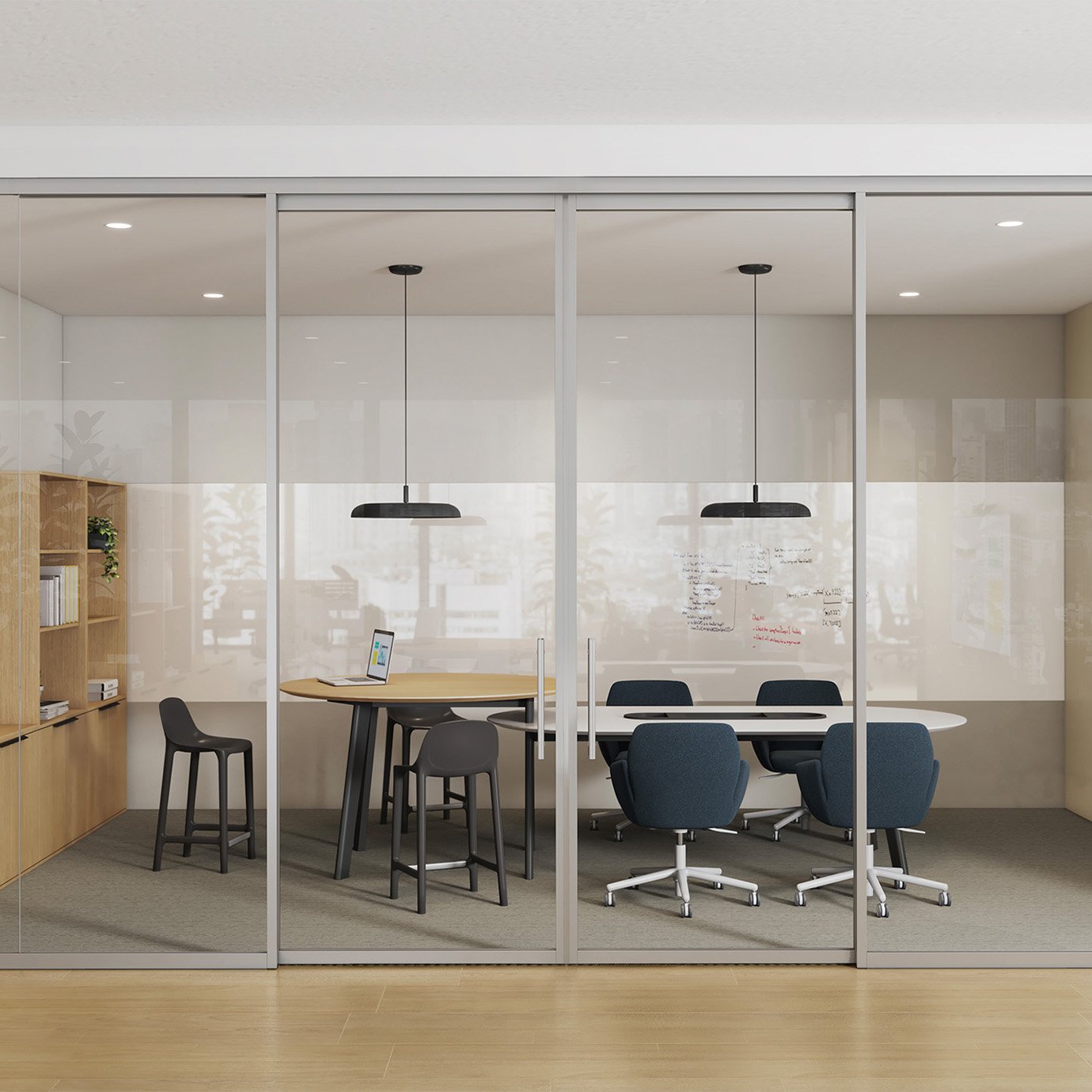

4SPACE Fronts Features
A simple yet elegant glass front solution for any environment
Curated, single-glazed wall system that offers a variety of door styles, door options, and hardware
Provides acoustic privacy with proven sustainability benefits
Takes the guesswork out of design, delivery, and installation
Designed with slim lines and seamless transitions
Configure with confidence using Haworth tools

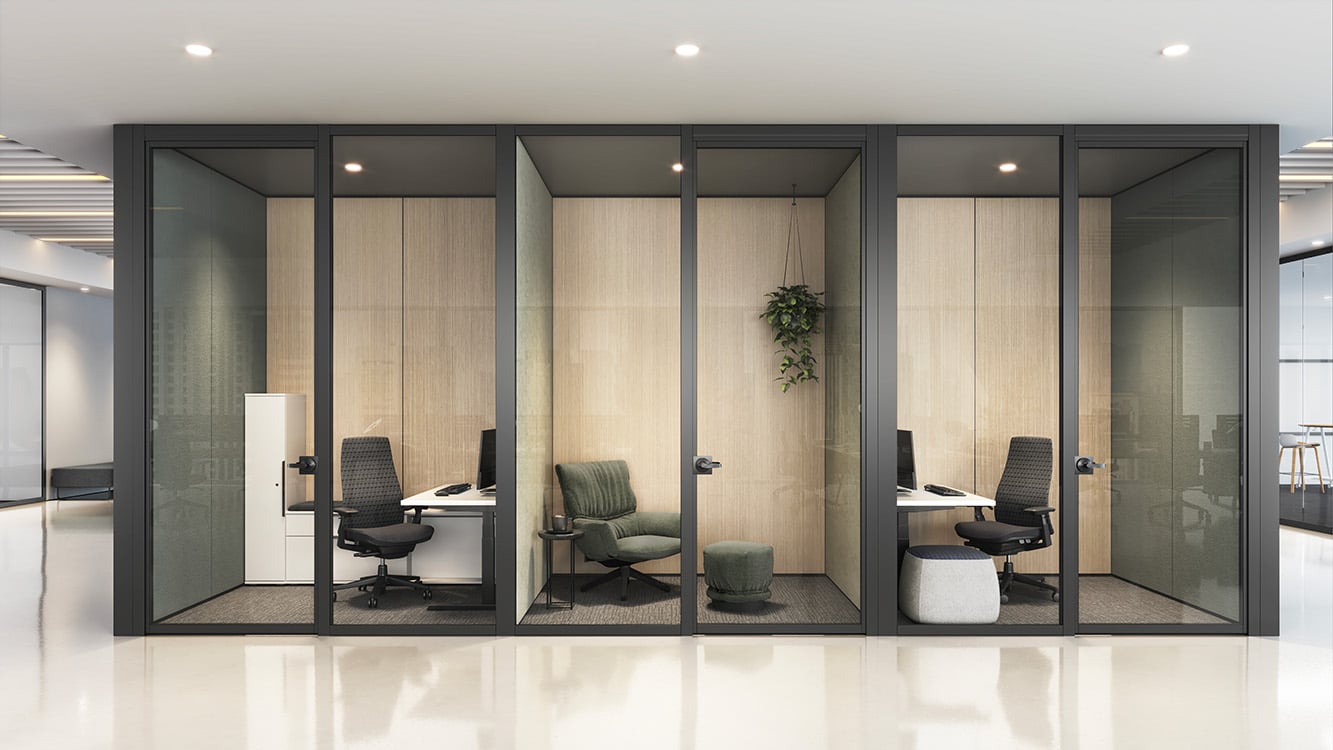

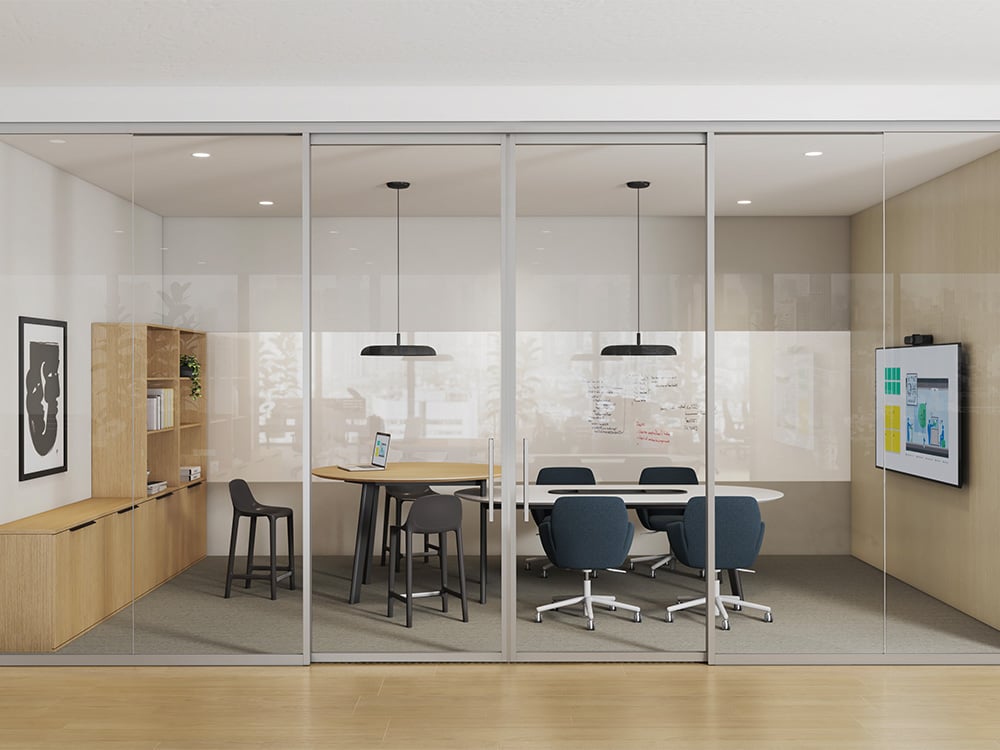

Inspiration

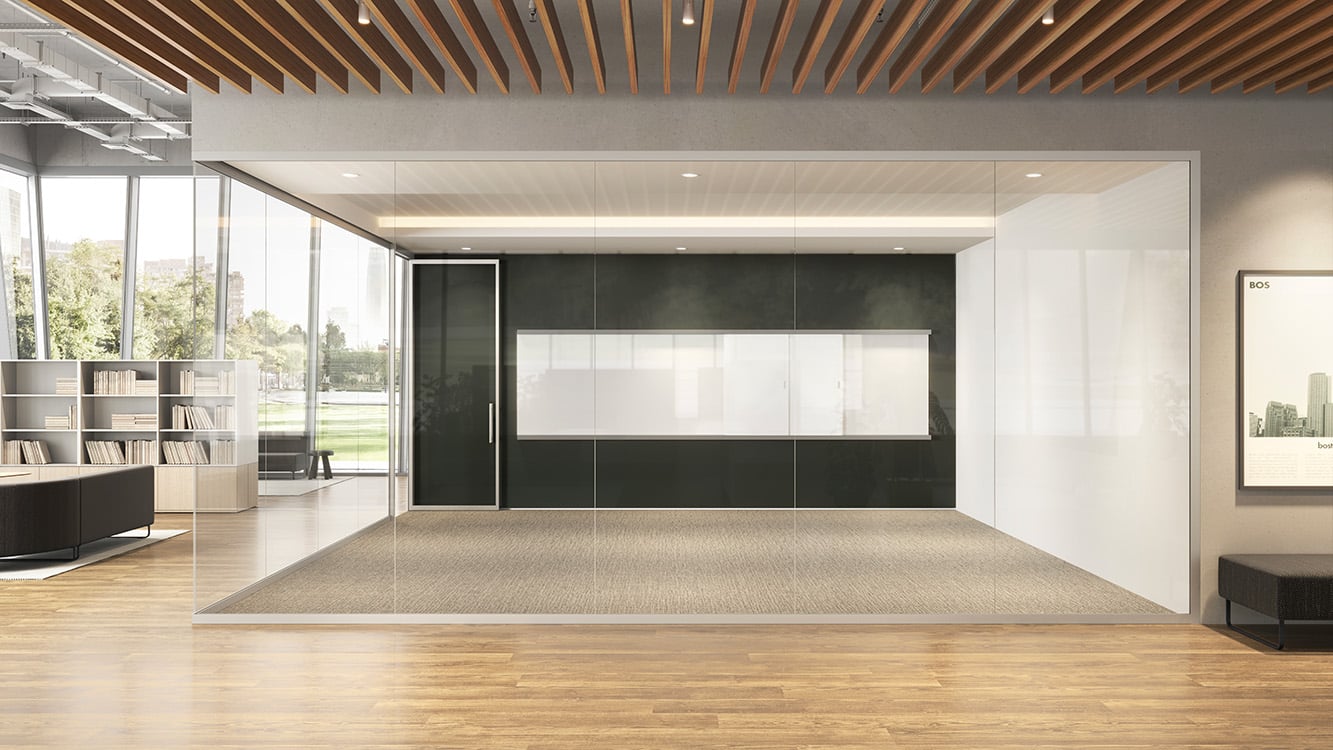

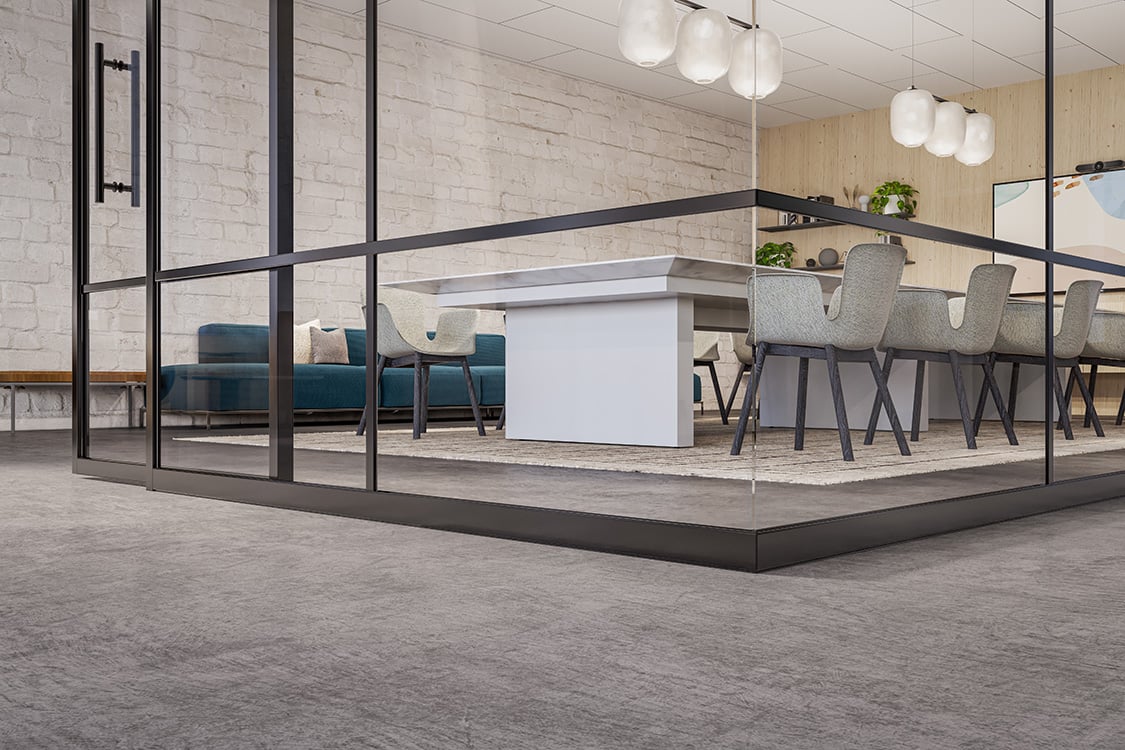

The timeless, clean aesthetic of 4SPACE™ fronts opens space for expression. Its minimal presence frames
space rather than distracts from it. Mix and match pieces in the most popular colors to create adaptable
solutions for every project.
4SPACE Design Story
4SPACE Fronts were designed by Haworth Design Studio, led by Design Studio Manager Nathan Shedd, in collaboration with Modus ID. 4SPACE fronts pair elegant space division with modern expression. Make it blend in or stand out; either way you can count on the efficiency and reliability of 4SPACE.
Haworth Design Studio
Drawing from resources and knowledge from around the world, the Haworth Design Studio collaborates with research and development partners to identify, develop, and launch new and breakthrough innovations.
Components
4SPACE fronts are a glass fronts system that offers the capability to do a variety of applications. The product
includes popular finish options with a curated selection of door types and hardware.

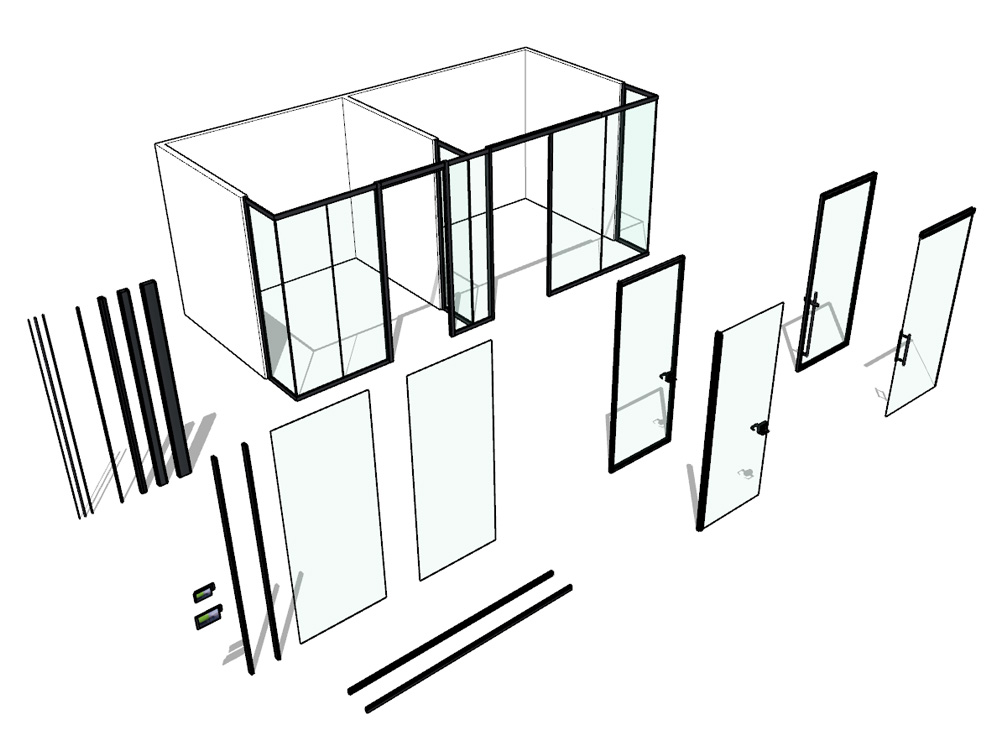

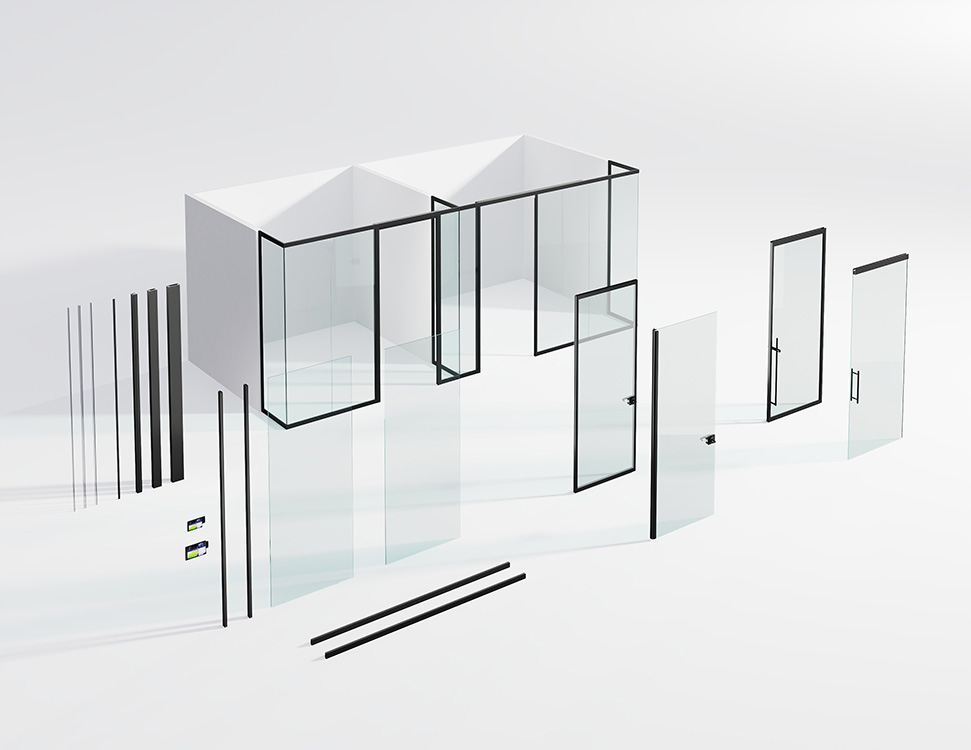

Glass Wall System
4SPACE fronts are a component-based wall system.
Framing
Single-channel glass front wall system designed with simple, slim lines and seamless transitions.

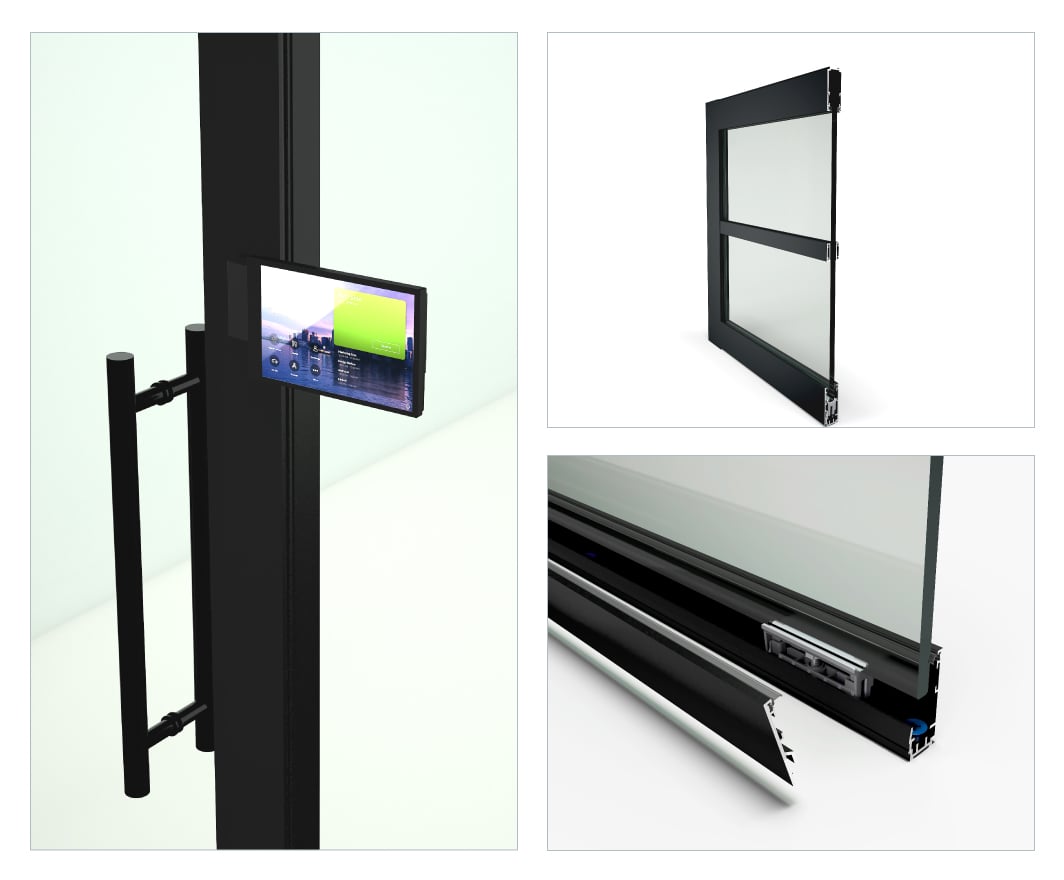

Details
The details make the difference. Room scheduler brackets and Glazing Strips allow for design customization. The removable clad simplifies installation.
Transitions
Available in plastic, 2way, 3way, inline glazing connectors connect adjacent glass panels with adhesive tape. Inline Transition Post is used to create flyby connection with Haworth solid walls or traditional construction.
Door Types, Door Hardware & Detail
Two door types to choose from.
Swing Doors

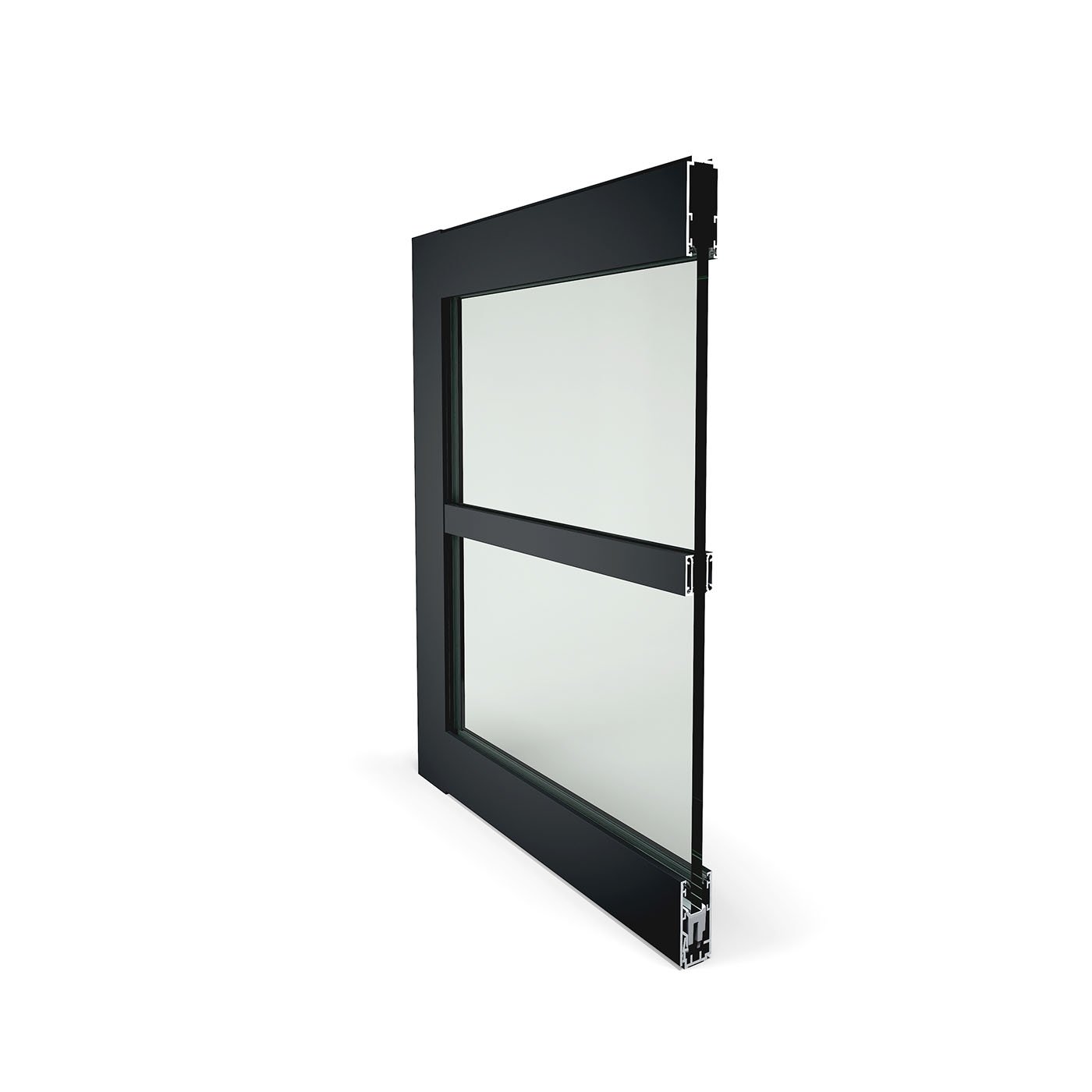

Available with a pivot hinge. Framed single glazed and glass slab door leaf options in single-door and double-door configurations.
Hardware
Hardware available on 4SPACE include cylinder locks, locking ladder pull, non-locking ladder pull, soft close sliding doors, closers, and drops seals.

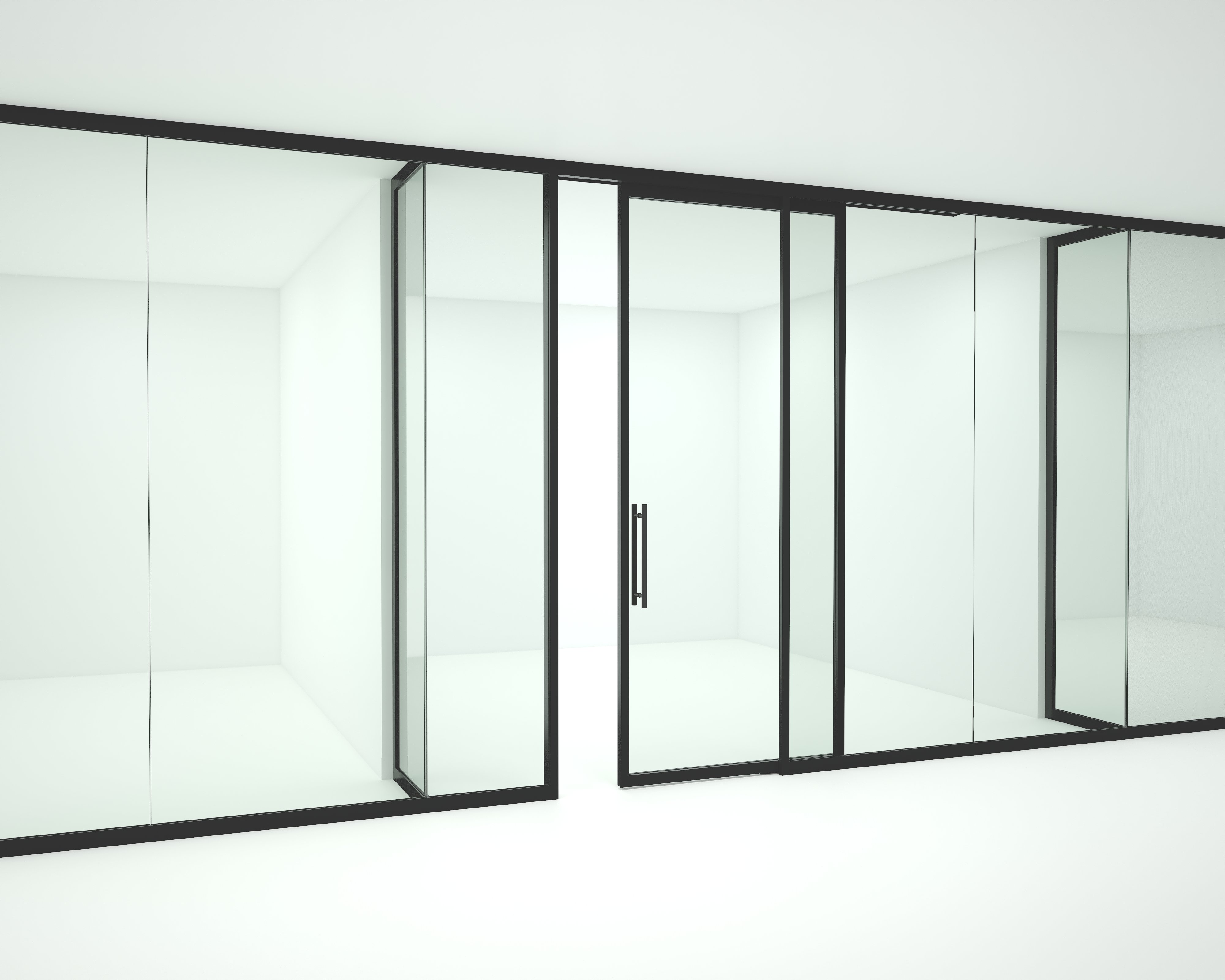

Sliding Doors
Framed single glazed and glass slab door leaf options in single-door and double-door configurations.
Performance
4SPACE fronts are a simple yet elegant glass front solution that delineates space for a variety of environments.
It’s a cost-effective system that creates resilient, agile, and adaptable architectural spaces across existing and
new markets.
Essental Info
Structural
Dead & Live Loads
4SPACE fronts are anchored to the floor and ceiling allowing it to meet loads of 1.6 SDS.
Seismic Loads
An additional bracket is provided to provide lateral bracing of the 4SPACE product to the base building to support installation in high seismic zones.
Acoustics
STC Ratings

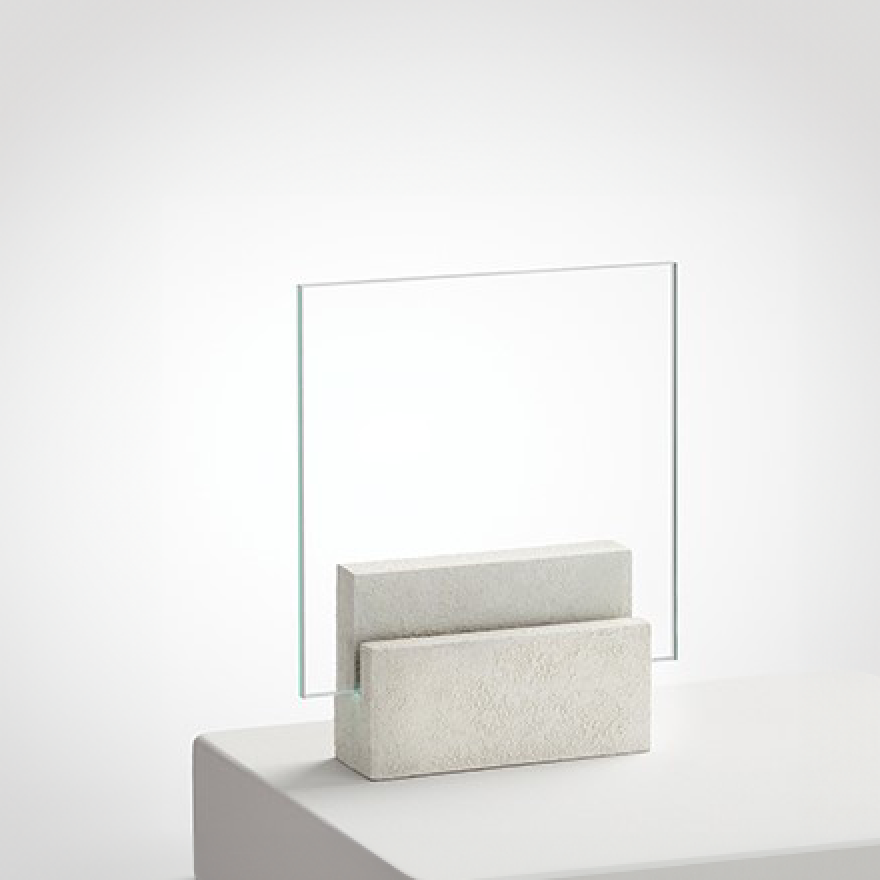

Single Glazed 3/8" (10mm) Tempered - 35
Single Glazed 1/2" (12mm) Tempered - 36
Single Glazed 1/2" (12mm) Laminated - 37
Indoor Air Quality
Greenguard Gold Certification
Electrical & Communications
Low voltage electrical can be run through the door jambs to support room schedulers or card readers.
The electrical box bracket paired with the inline post allows electrical outlets and switches to be installed in a glass run or adjacent to a door.
Sustainability
4SPACE fronts are manufactured in a zero landfill, ISO 14001 certified facility in Holland, MI. Its processes use no/low VOC chemicals to ensure healthy indoor air quality for employees and end users. 4SPACE is primarily made from aluminum and glass, both of which are widely recyclable.
Demountable partitions are modular and can be rearranged as the space changes. This helps reduce the environmental impact and waste associated with traditional drywall construction.
4SPACE is Greenguard Gold Certified, and will have BIFMA level 3, a Declare label and Environmental product declaration later this year.
Surface Materials
Create engaging spaces that invite people in, with our collection of materials, colors, and finishes. Here, you’ll
find the information and tools you need to bring your design vision to life with simple, sustainable solutions that
are integral to each product and space.
4SPACE fronts are available in Metallic Silver and Smooth Black powdercoat for the framing elements, black and
silver door hardware, and 3/8” and 1/2" glazing.
