HOBSON (RAILROAD)

3JV_HOBSON_RR

Share Link
Print Link

Discontinued


Color Correction Disclaimer: The images shown and color representations are subject to your monitor quality and screen resolution settings. Physical samples are recommended, and available through your local Haworth dealer or Material Bank.

HOBSON (RAILROAD)

3JV_HOBSON_RR

Share Link
Print Link
  • Material Type
    Vertical Fabric
    Material Sub-type
    Woven Standard
    Price Grade
    B
    Image Shown
    Railroad
    Brand
    Haworth
    Program
    Standard
    COM/Alliance Partner
    Other
  • Abrasion
    100,000
    Content
    20% POLYESTER
    Content
    30% POST CON RECYCLED POLY
    Content
    50% REPREVE OUR OCEAN PCR
    Image Shown
    Railroad
    ACT

    Abrasion!

    (resistance to damage from wear and rubbing)

    • Heavy-duty specification ASTM 4157-02 modified (#10 cotton duck); 30,000 double rubs Wyzenbeek method.
    • Heavy-duty specification ASTM D4966-98 (21 oz. weight); 40,000 cycles Martindale method.

    Fire Retardancy

    (resistance to burning)

    Seating upholstery meets California Technical Bulletin 117-2013

    Vertical fabrics meet ASTM E-84 Class A on Haworth panel systems

    Colorfastness to Light

    (fabric retains its color when exposed to light)

    All textiles meet AATCC option 1 or 3 - 2003, Class 4 minimum at 40 hours.

    Physical Properties

    (resistance to pilling, tearing and coming apart at the seams)

    Seating upholstery meets:

    • Brush pill ASTM D3511, 3-4 minimum
    • Breaking strength ASTM D5034-95 50lbs. minimum in warp and weft
    • Seam slippage ASTM D3597-02 D434-95 25 lbs. minimum in warp and weft.
  • Composition
    WOVEN
    Width
    54 inches
    Pattern Repeat H
    0.19 inches
    Pattern Repeat V
    0.25 inches
    Directional
    SEMI_DIR
    Backing
    No
  • Finish Code Grade Application Program

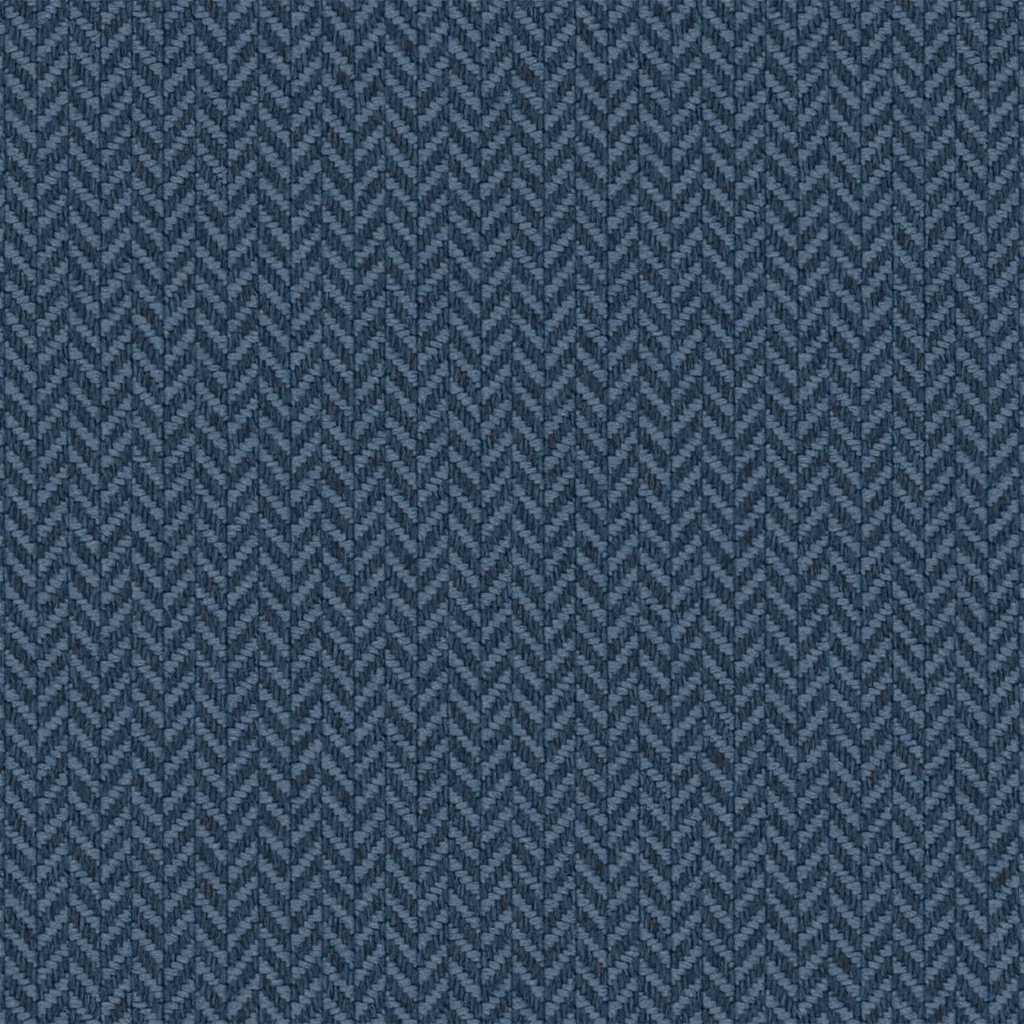

    3J-1     		A Seating Standard

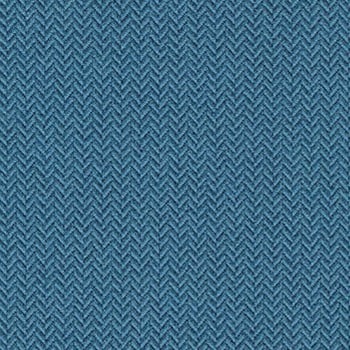

    3JV-1     		B Vertical Standard

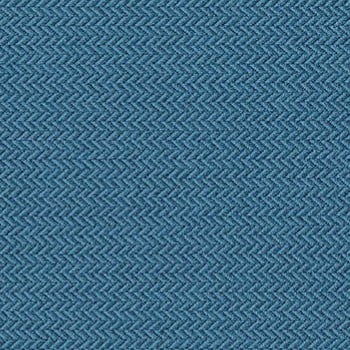

    RR-509     		B Vertical Railroad Standard

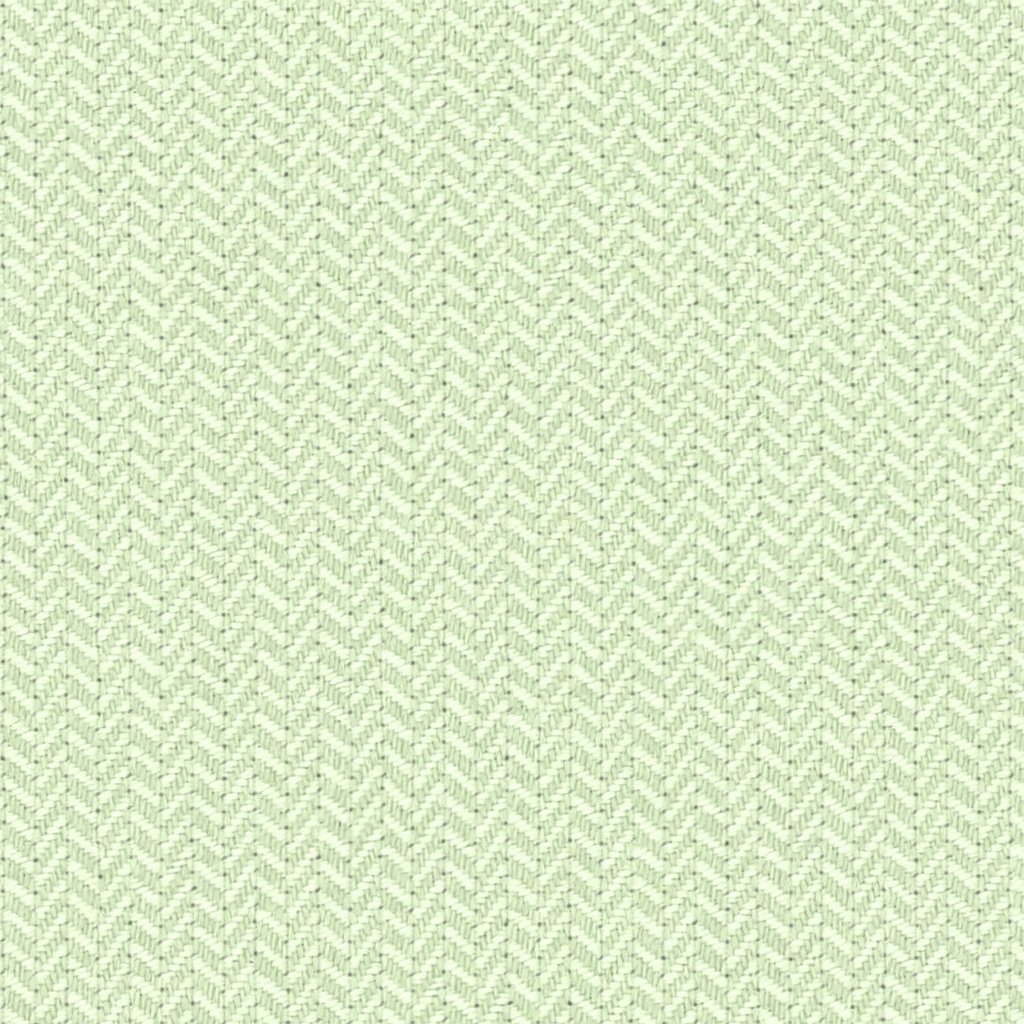

    3J-2     		A Seating Standard

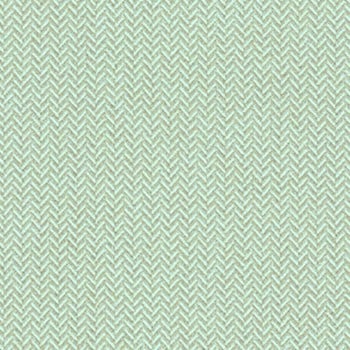

    3JV-2     		B Vertical Standard

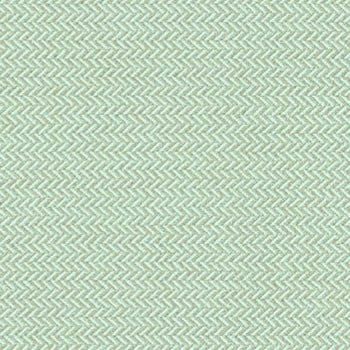

    RR-510     		B Vertical Railroad Standard

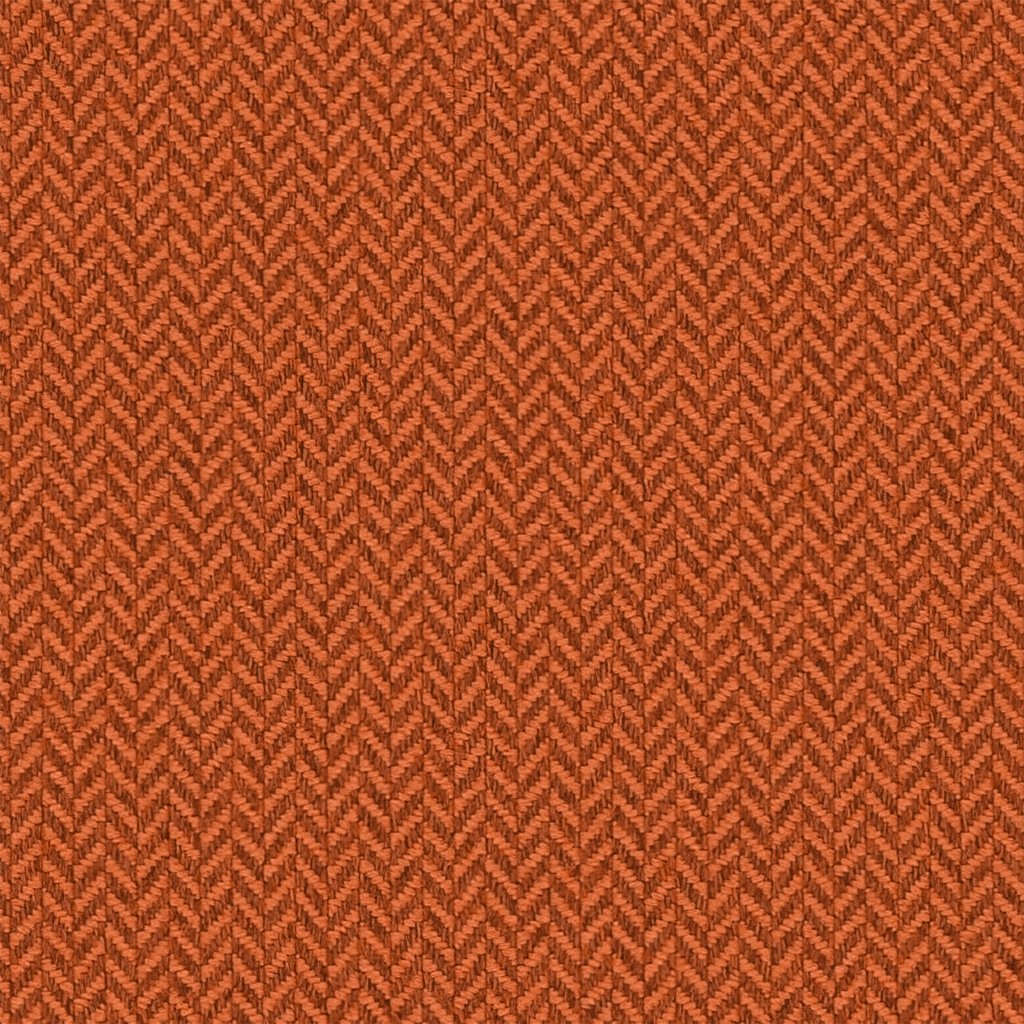

    3J-3     		A Seating Standard

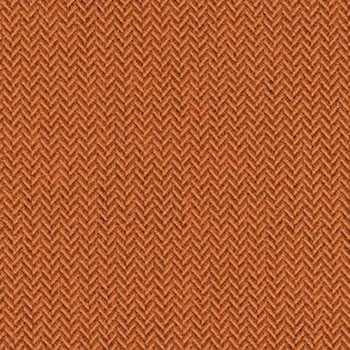

    3JV-3     		B Vertical Standard

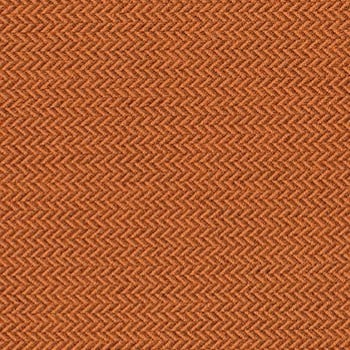

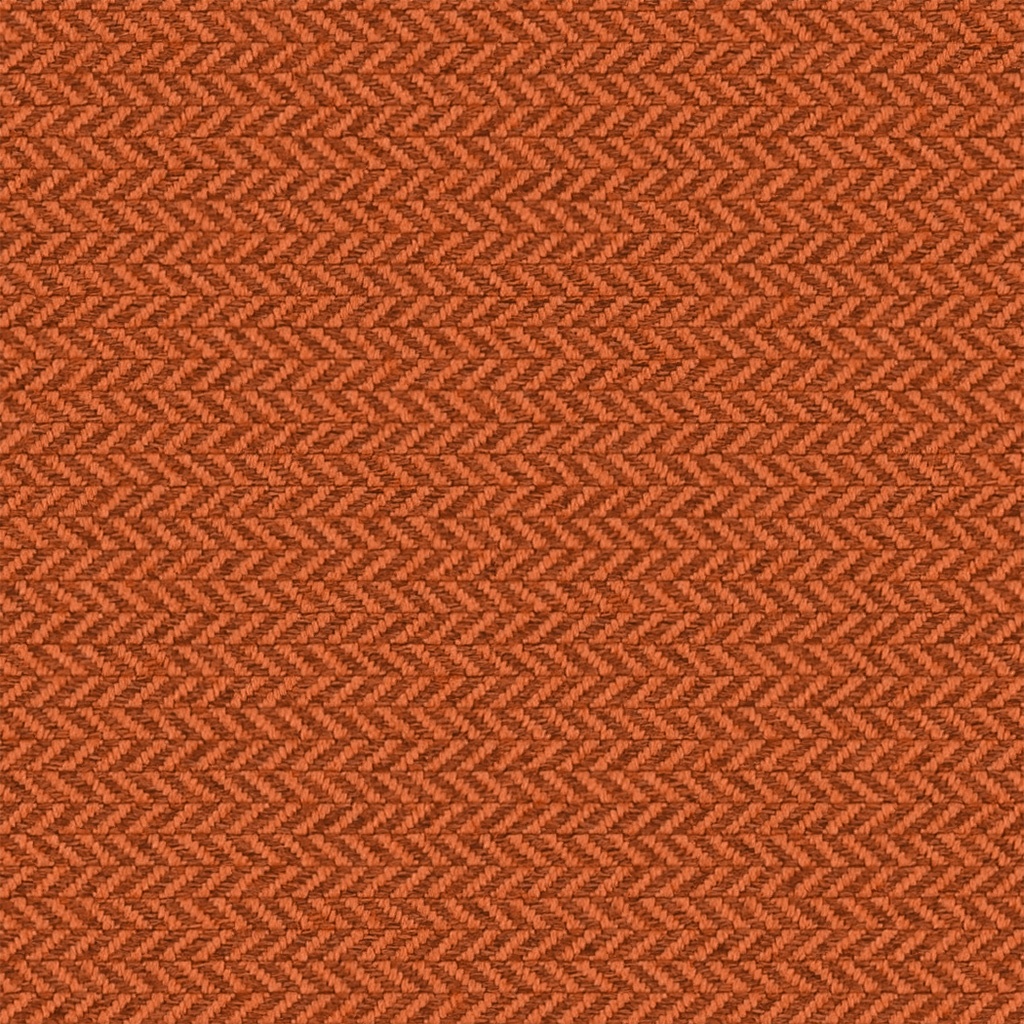

    RR-511     		B Vertical Railroad Standard

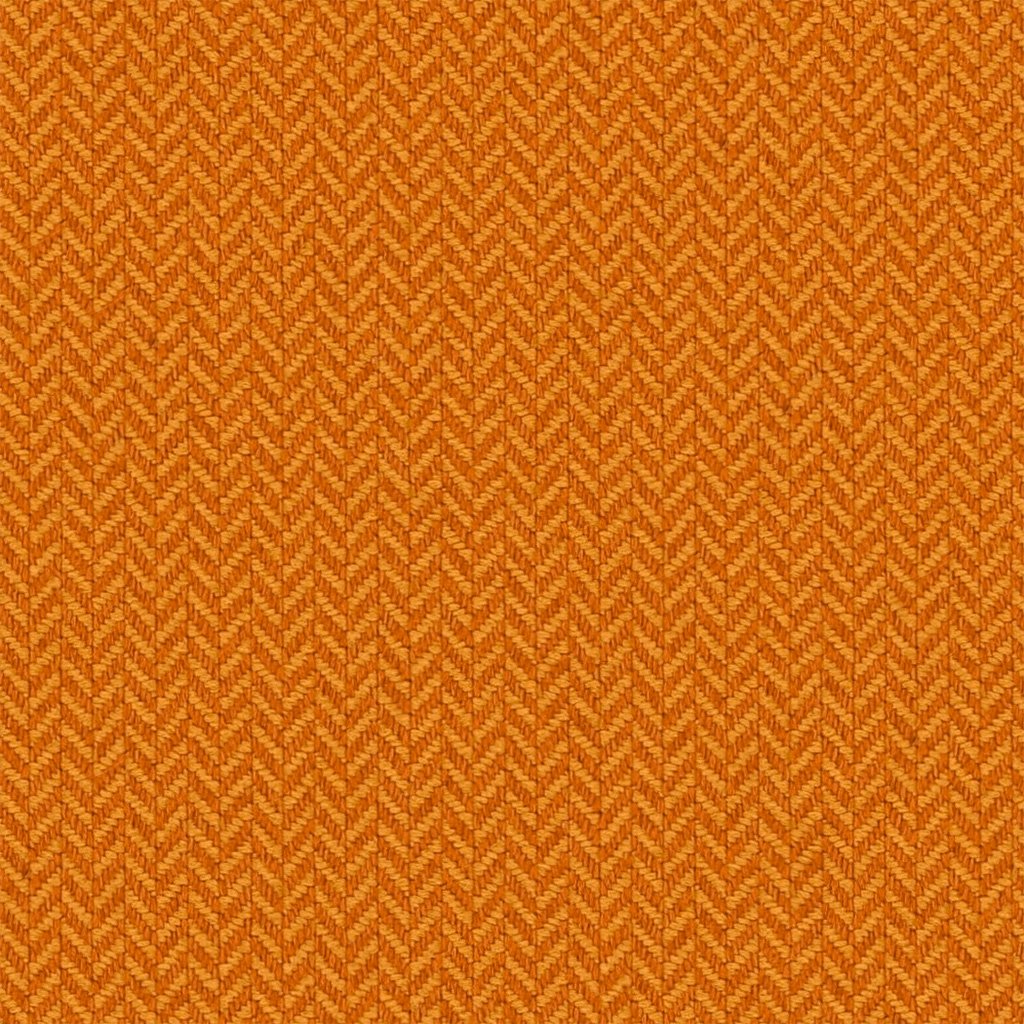

    3J-4     		A Seating Standard

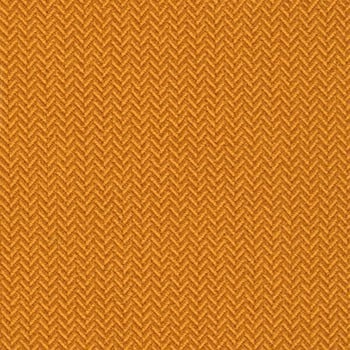

    3JV-4     		B Vertical Standard

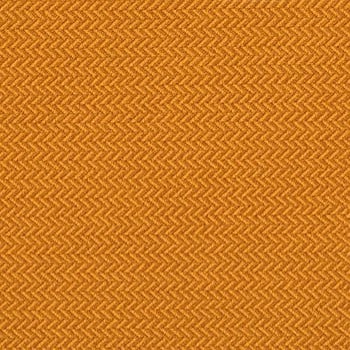

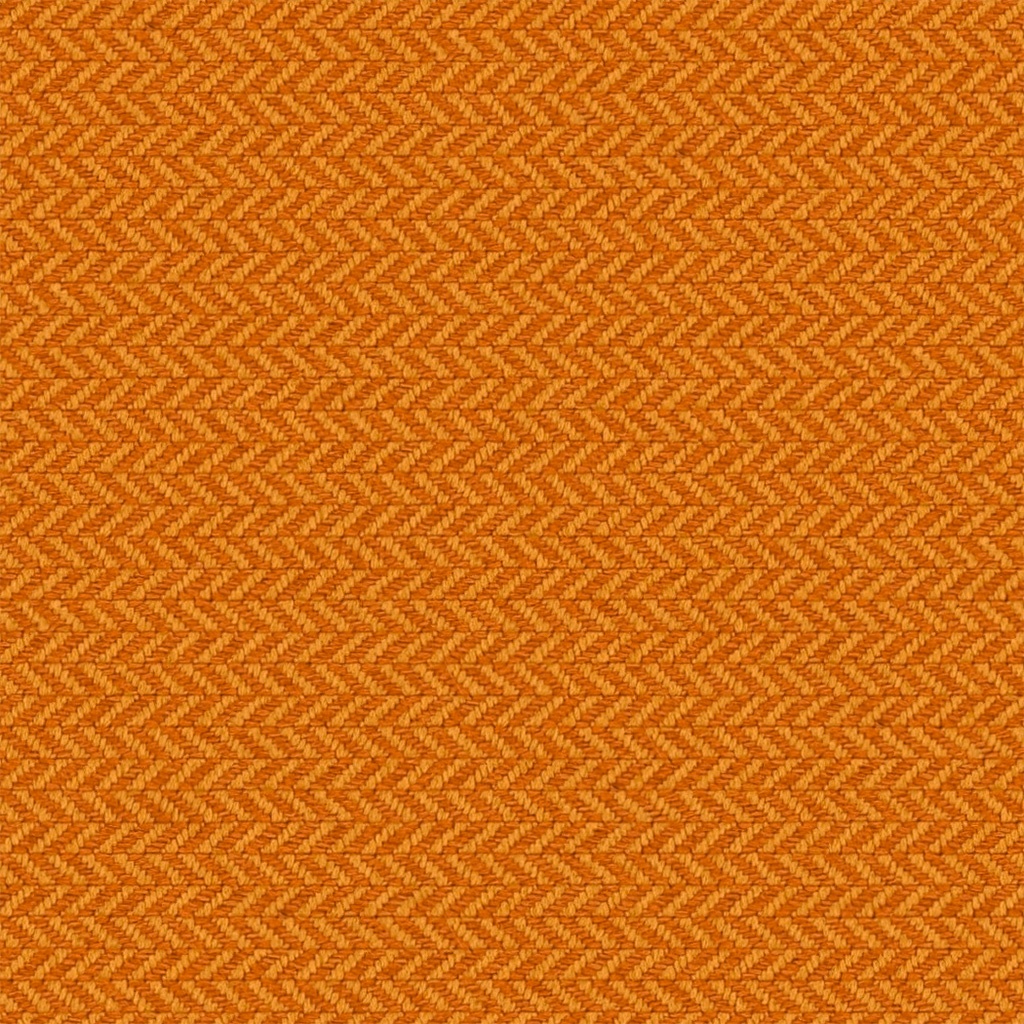

    RR-512     		B Vertical Railroad Standard

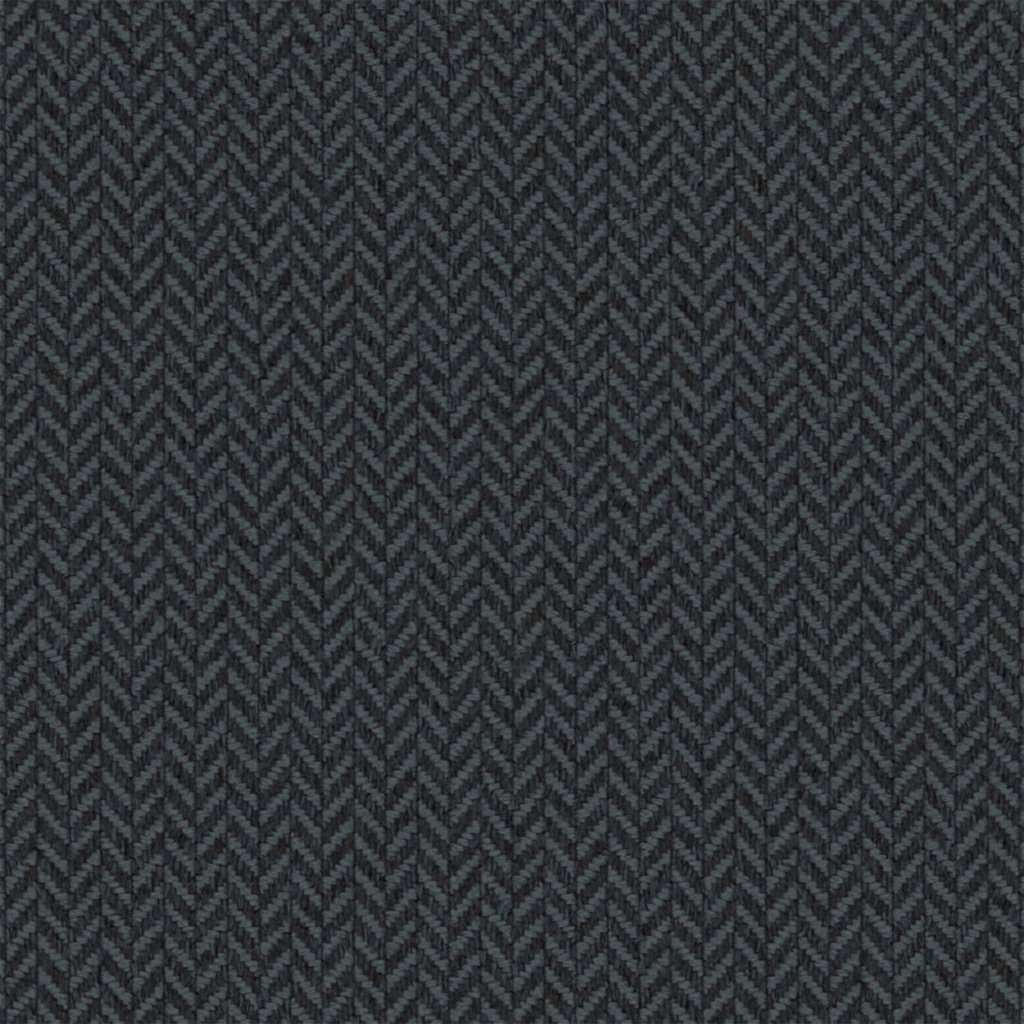

    3J-5     		A Seating Standard

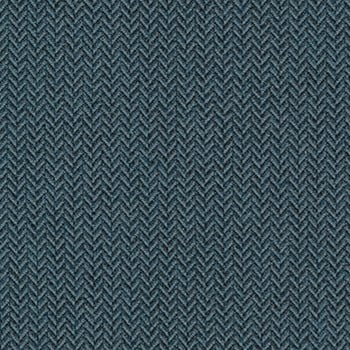

    3JV-5     		B Vertical Standard

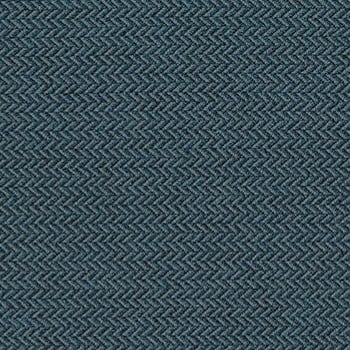

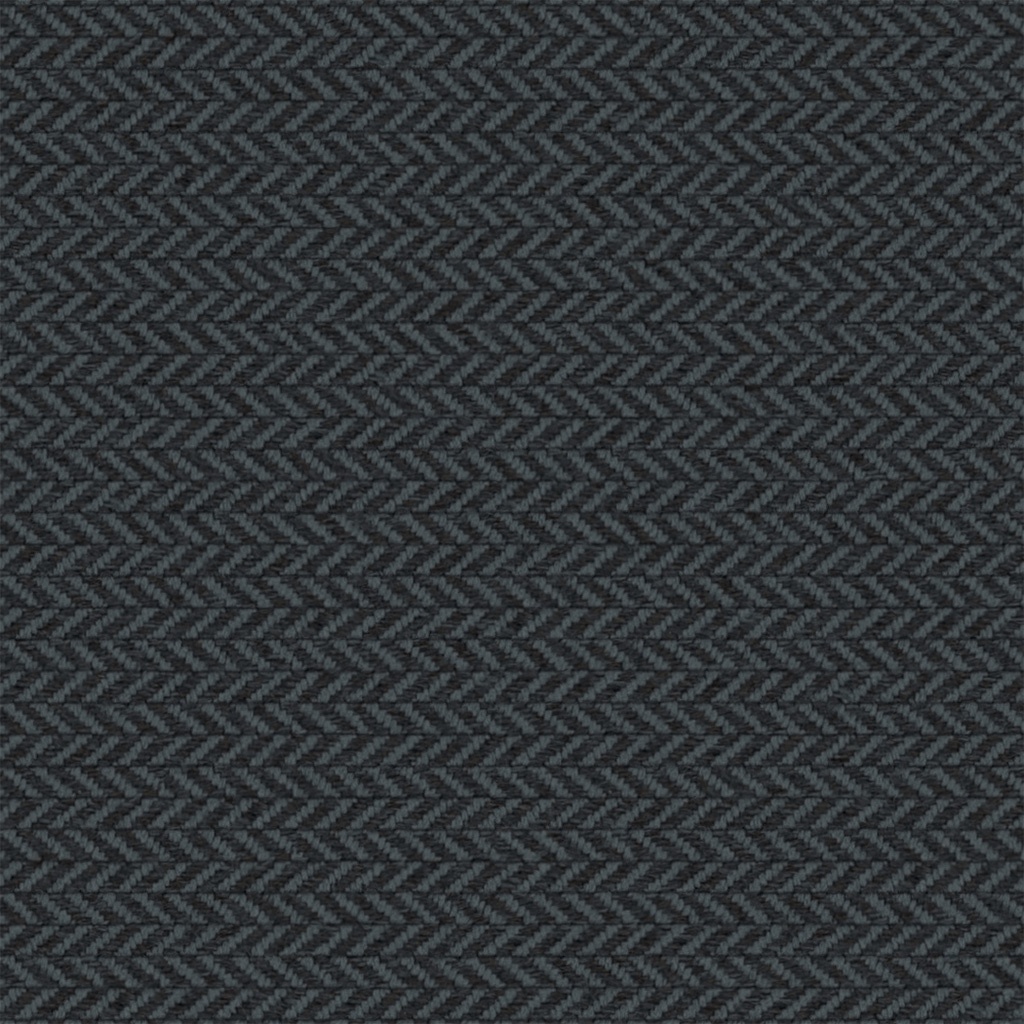

    RR-513     		B Vertical Railroad Standard

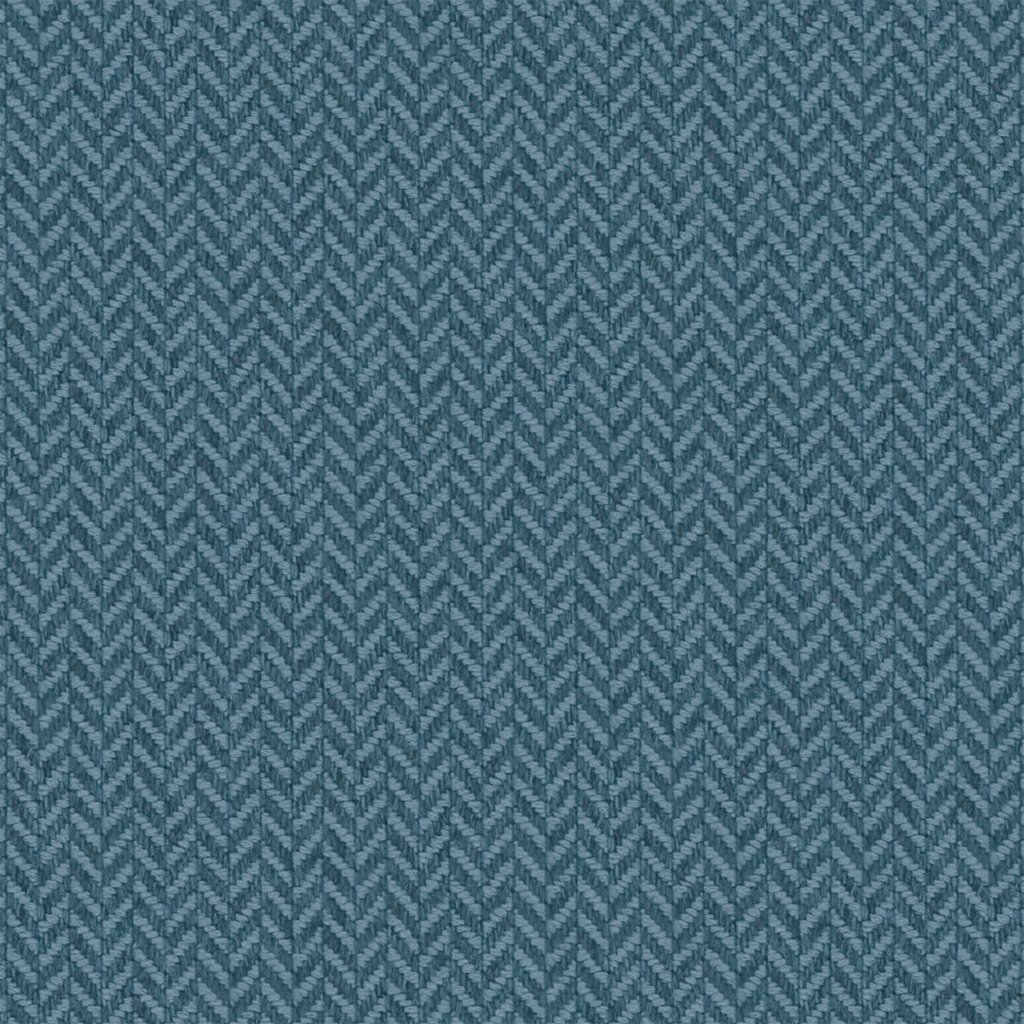

    3J-6     		A Seating Standard

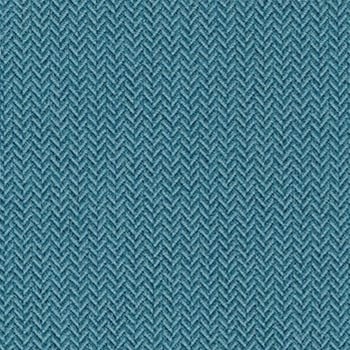

    3JV-6     		B Vertical Standard

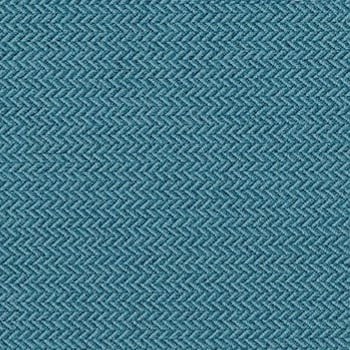

    RR-514     		B Vertical Railroad Standard

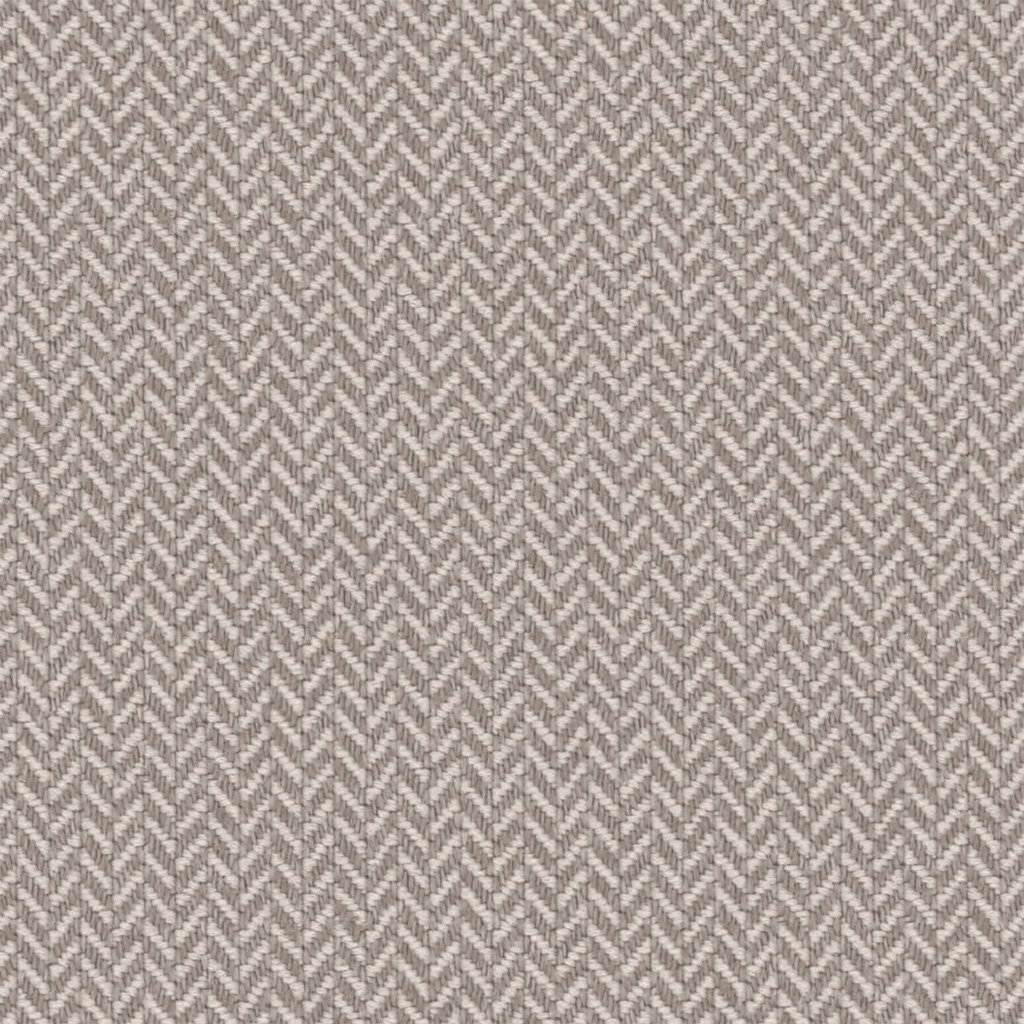

    3J-7     		A Seating Standard

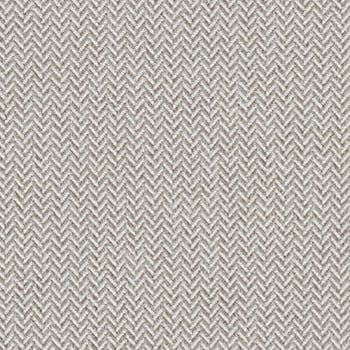

    3JV-7     		B Vertical Standard

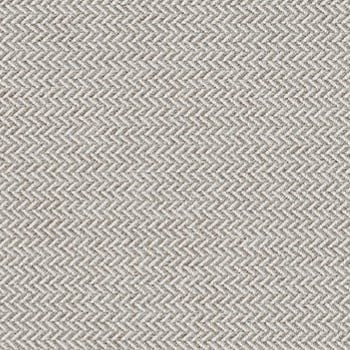

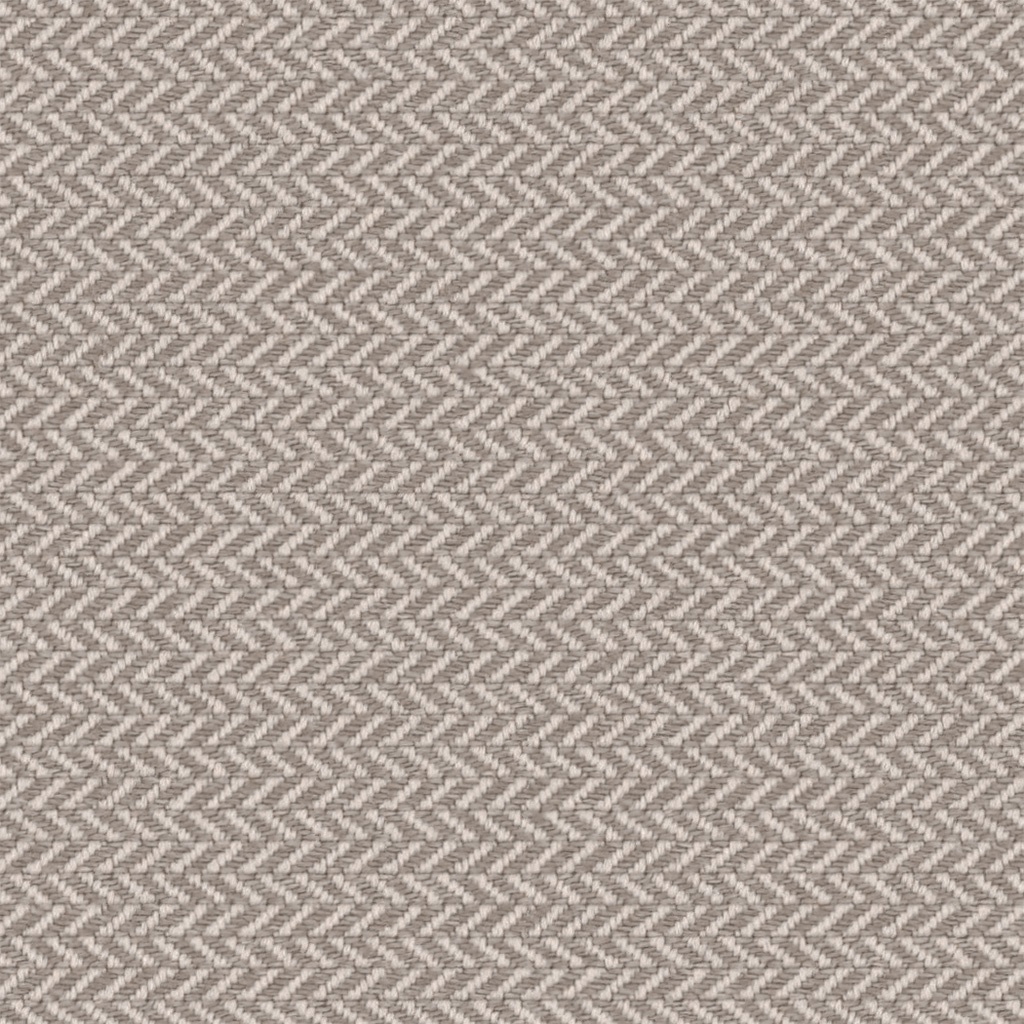

    RR-515     		B Vertical Railroad Standard

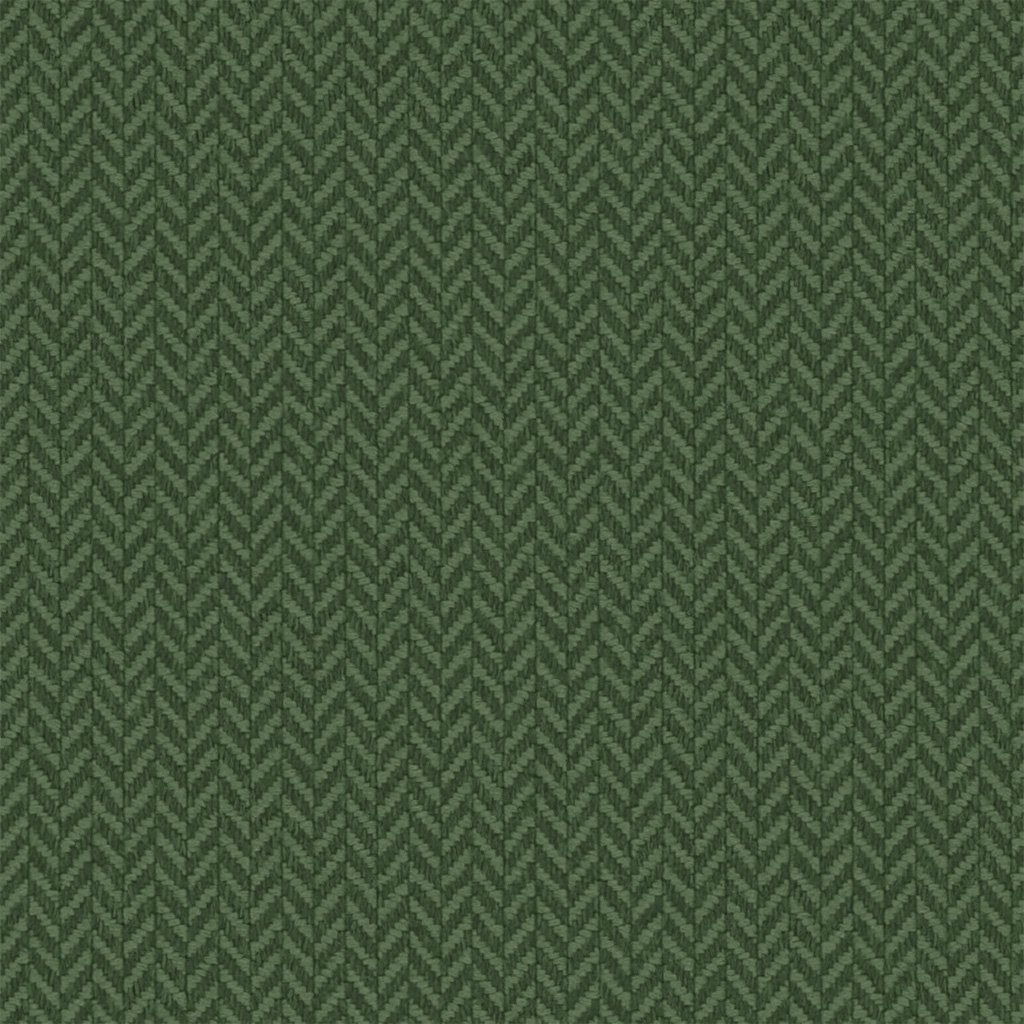

    3J-8     		A Seating Standard

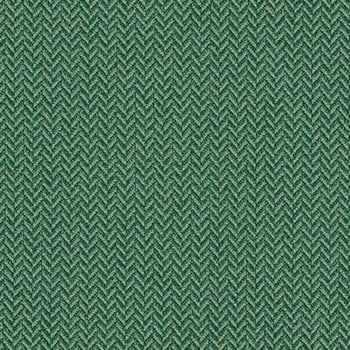

    3JV-8     		B Vertical Standard

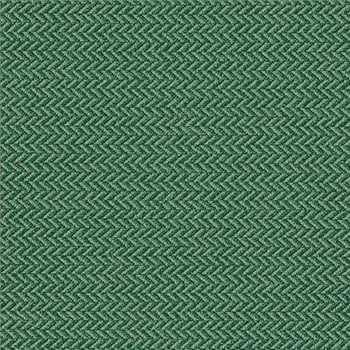

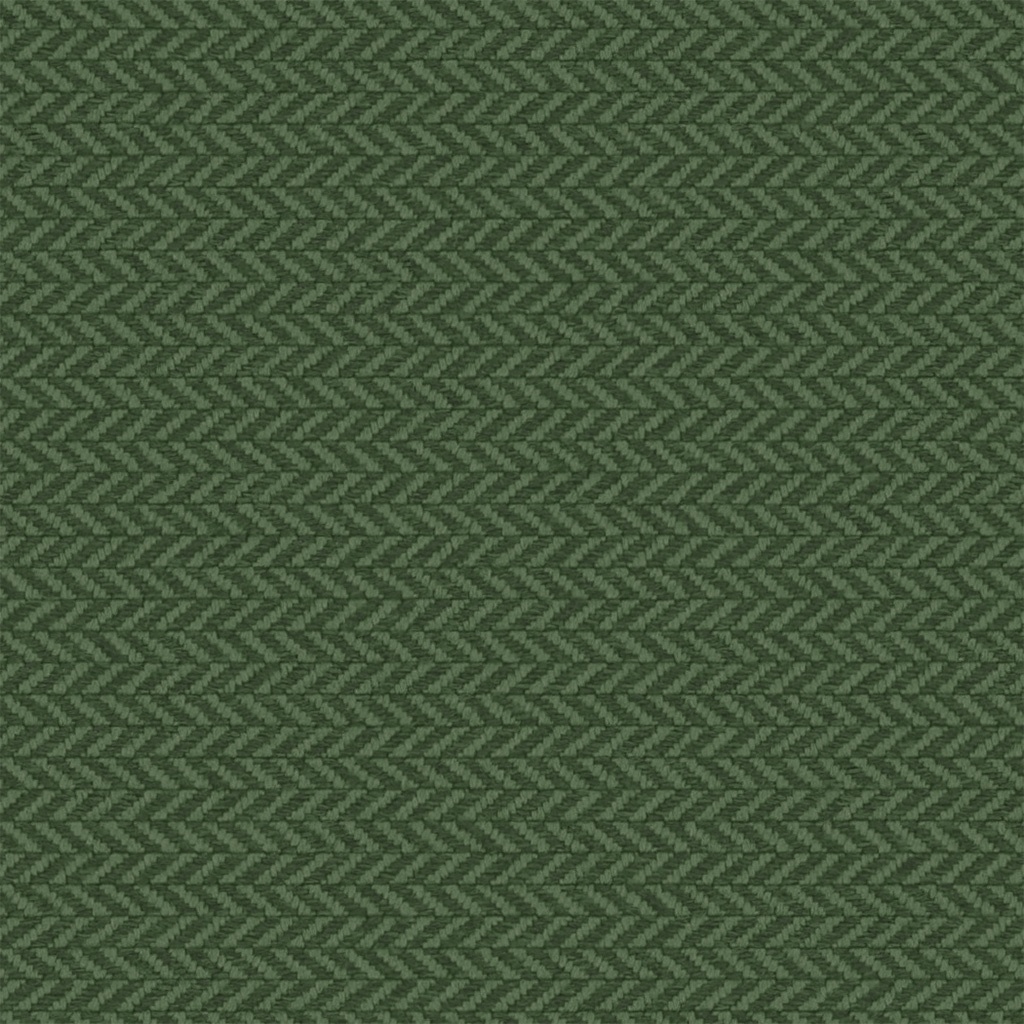

    RR-516     		B Vertical Railroad Standard

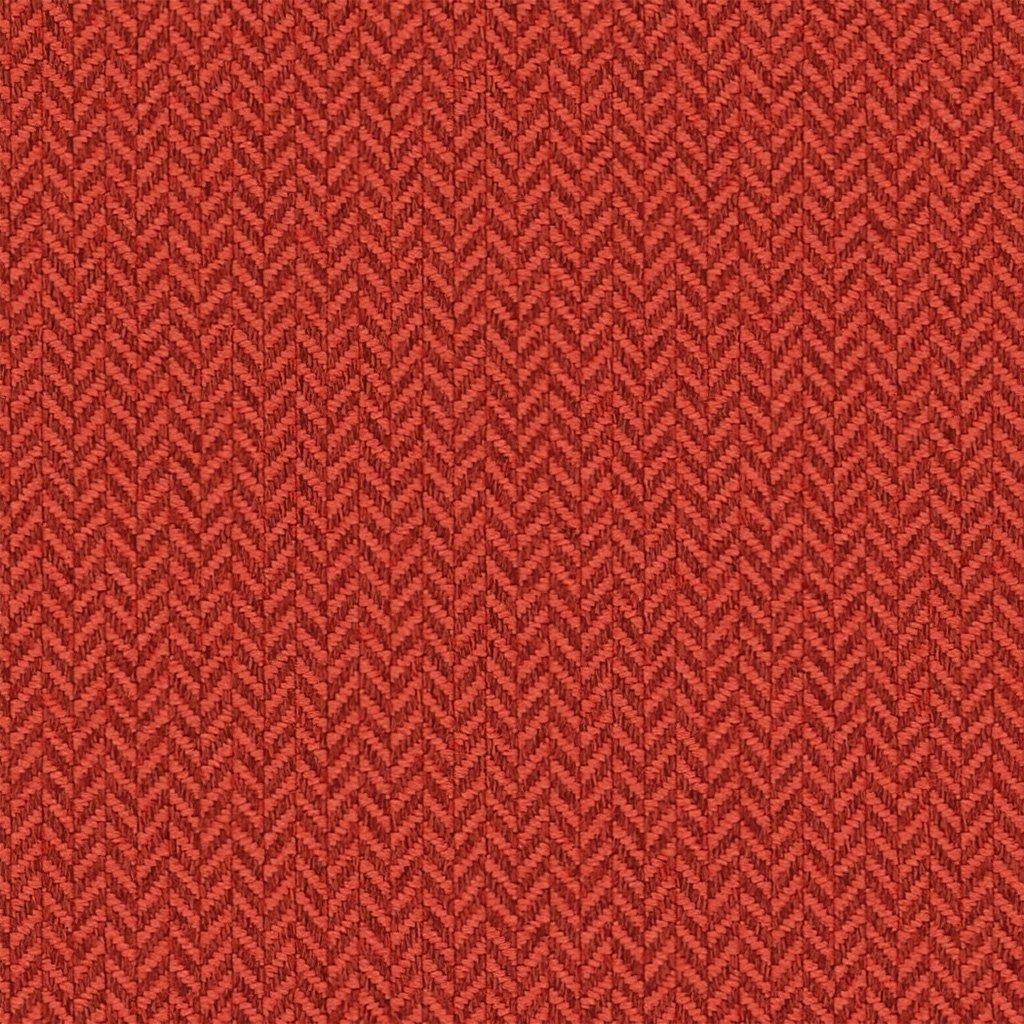

    3J-9     		A Seating Standard

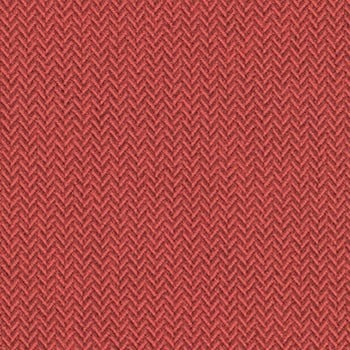

    3JV-9     		B Vertical Standard
    RR-517     		B Vertical Railroad Standard

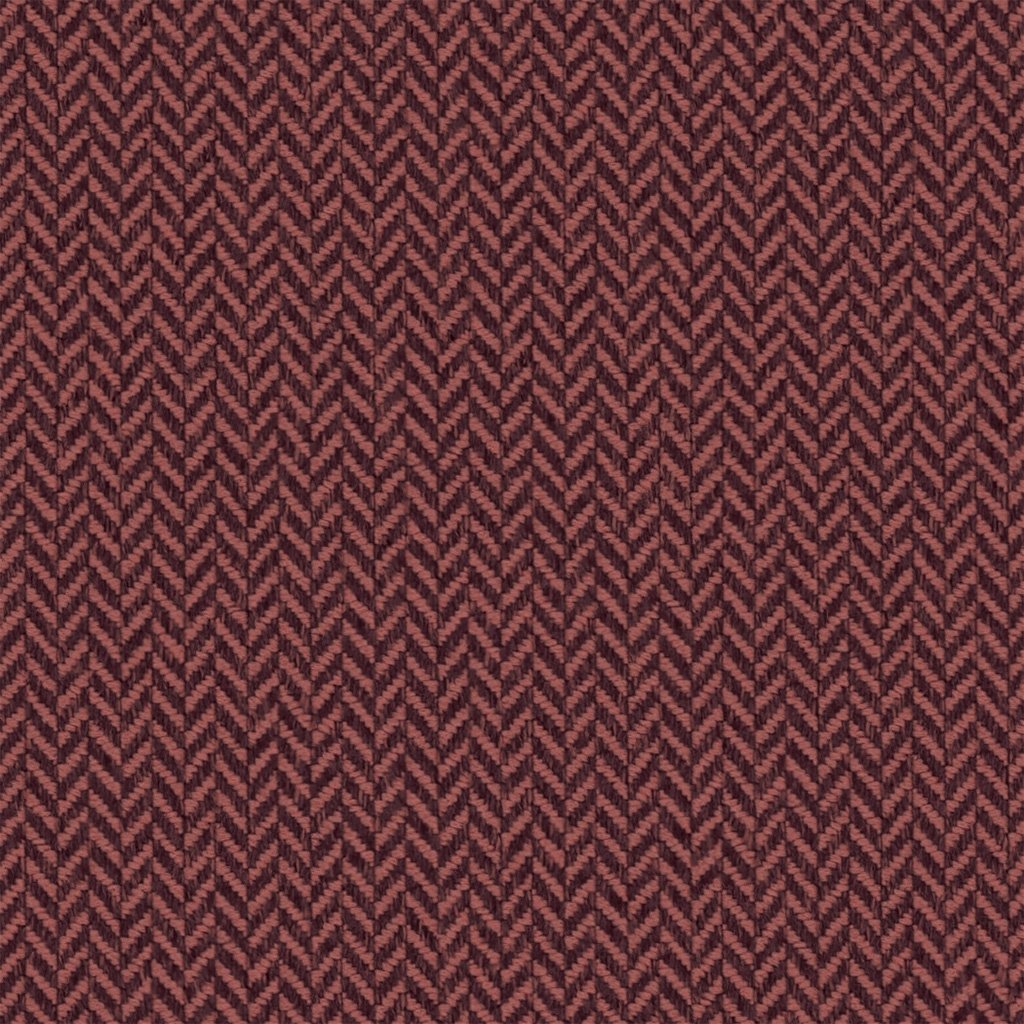

    3J-10     		A Seating Standard

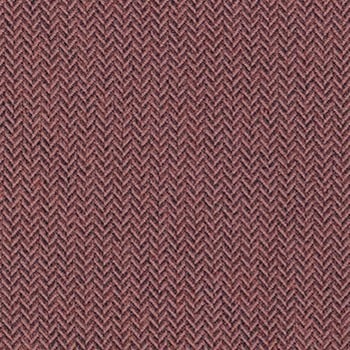

    3JV-10     		B Vertical Standard

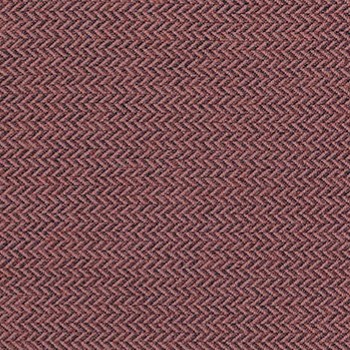

    RR-518     		B Vertical Railroad Standard

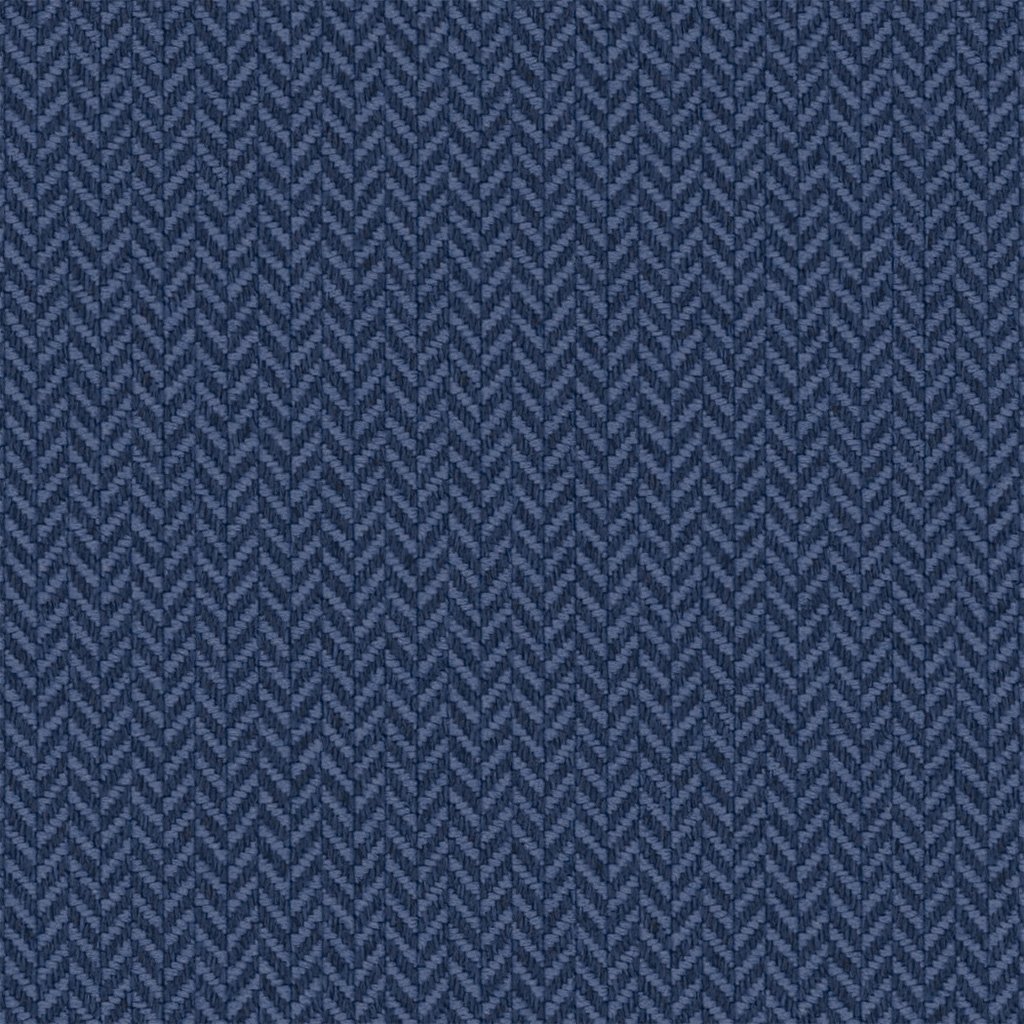

    3J-11     		A Seating Standard

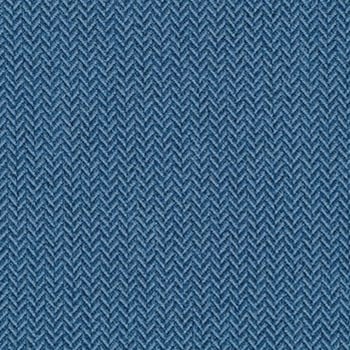

    3JV-11     		B Vertical Standard

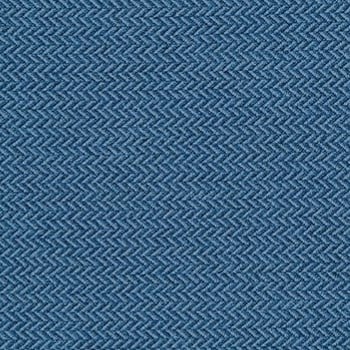

    RR-519     		B Vertical Railroad Standard

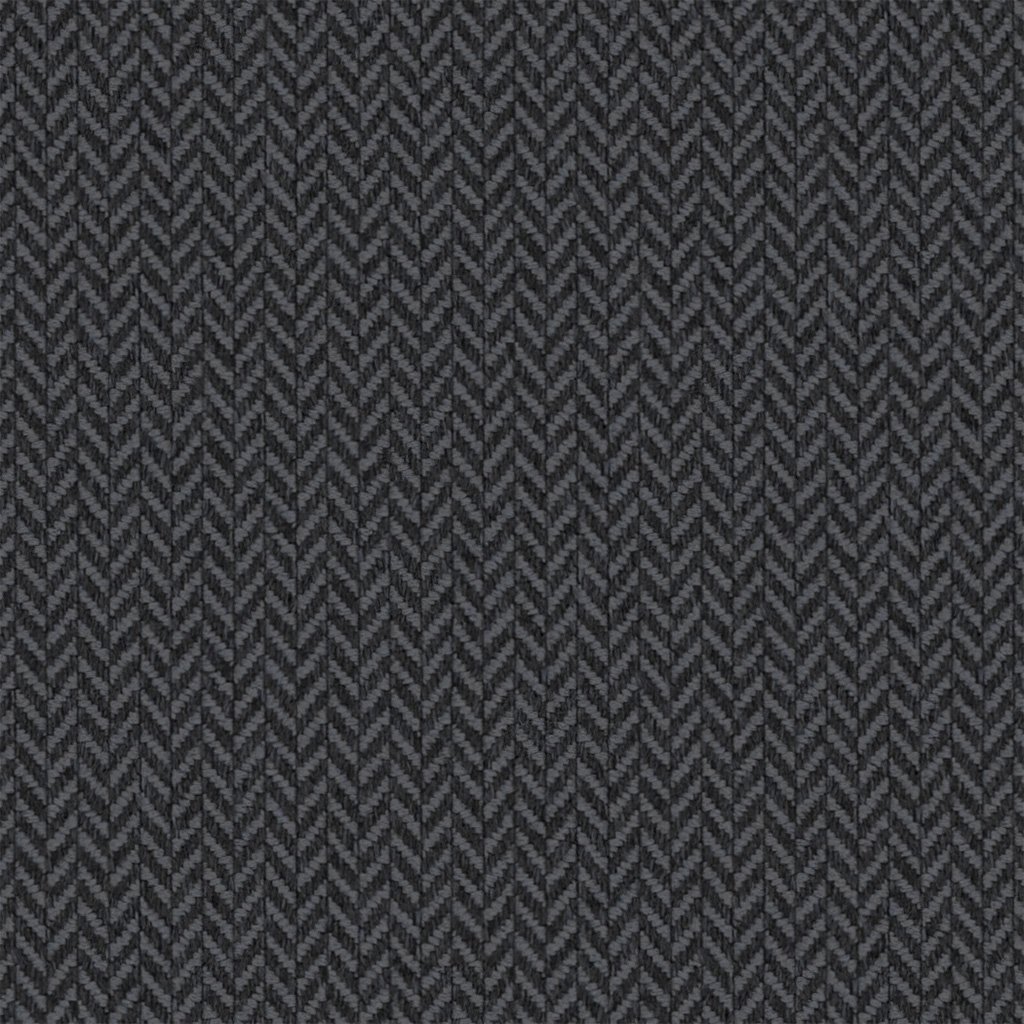

    3J-12     		A Seating Standard

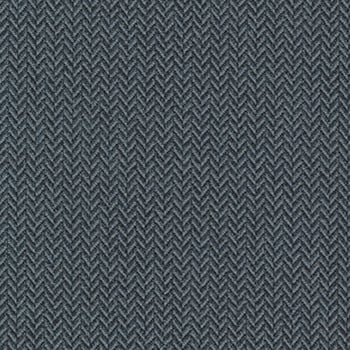

    3JV-12     		B Vertical Standard

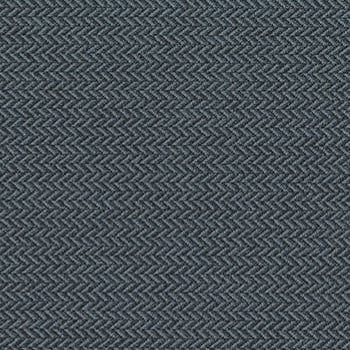

    RR-520     		B Vertical Railroad Standard

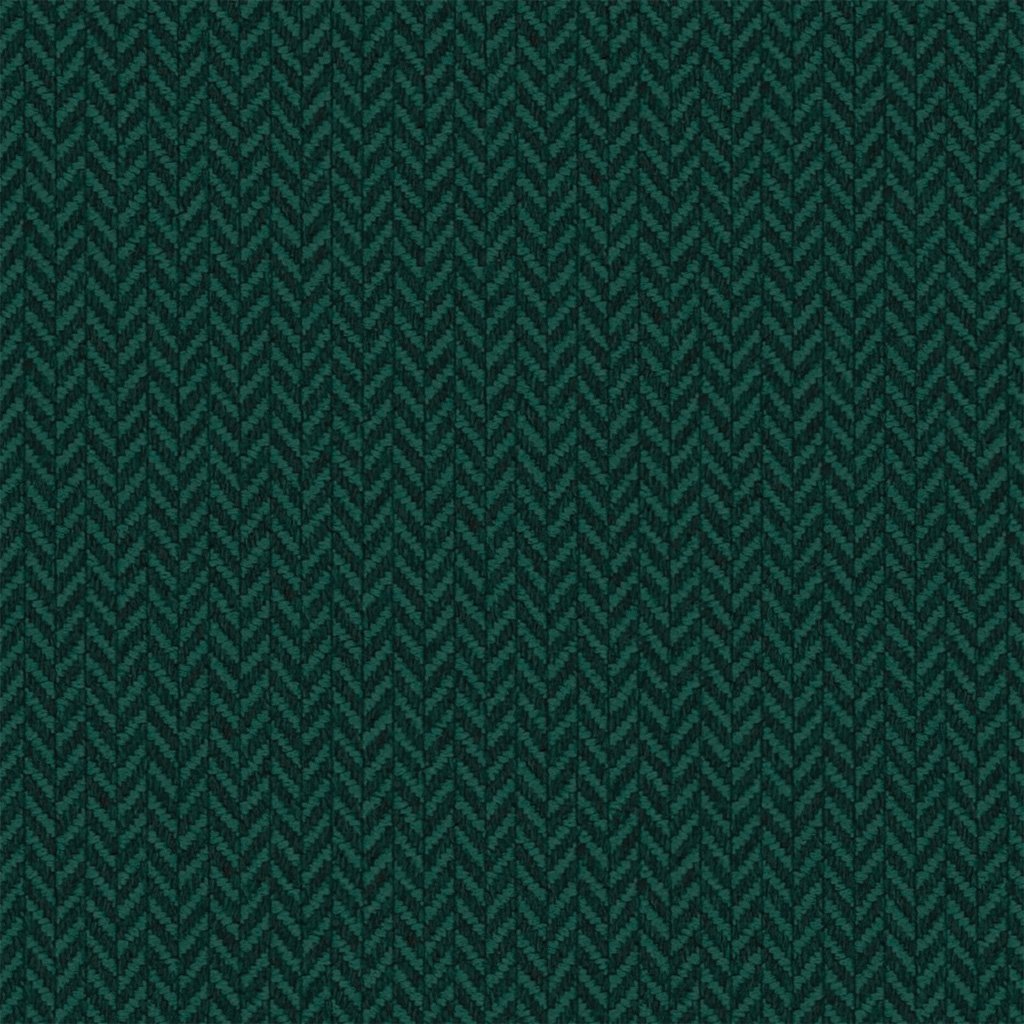

    3J-13     		A Seating Standard

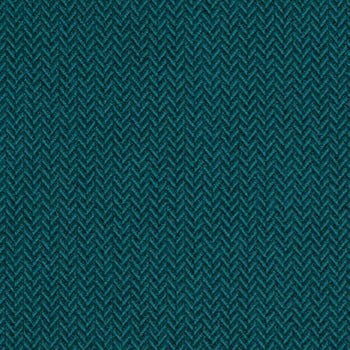

    3JV-13     		B Vertical Standard

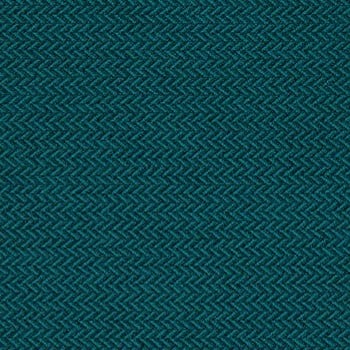

    RR-521     		B Vertical Railroad Standard

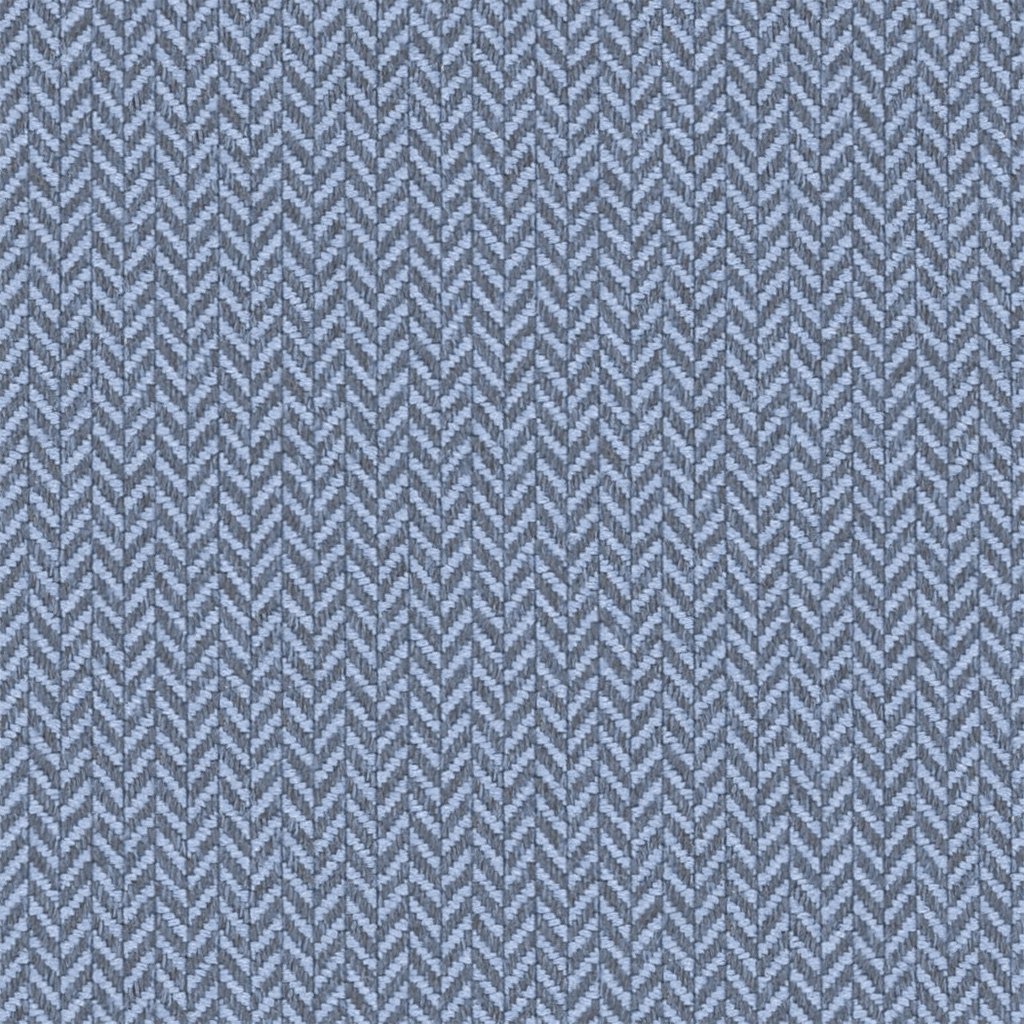

    3J-14     		A Seating Standard

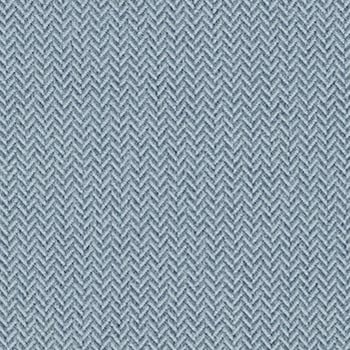

    3JV-14     		B Vertical Standard

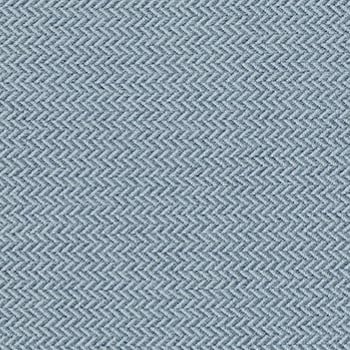

    RR-522     		B Vertical Railroad Standard

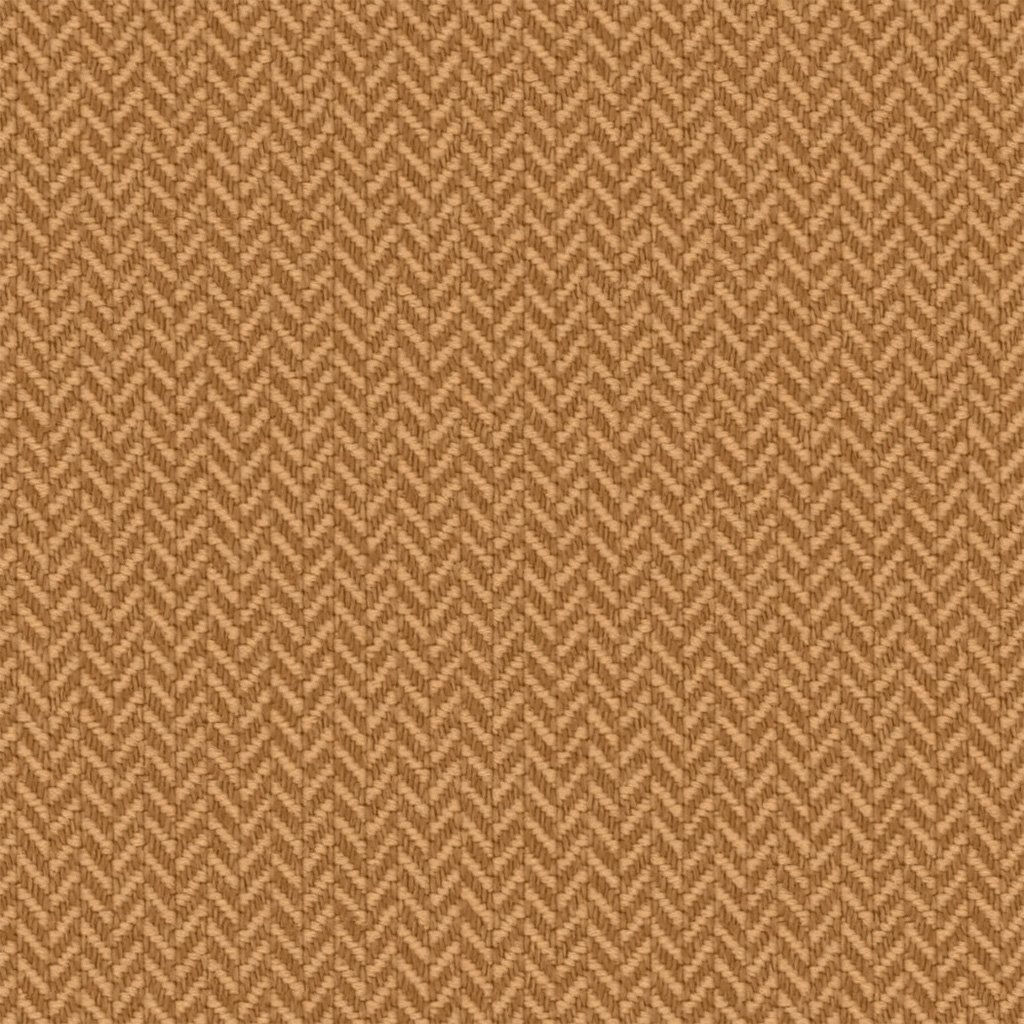

    3J-15     		A Seating Standard

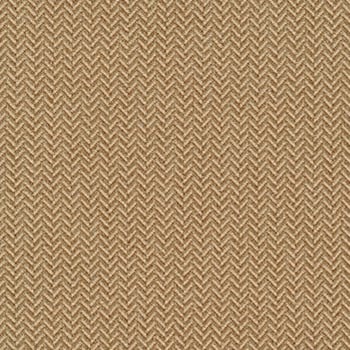

    3JV-15     		B Vertical Standard

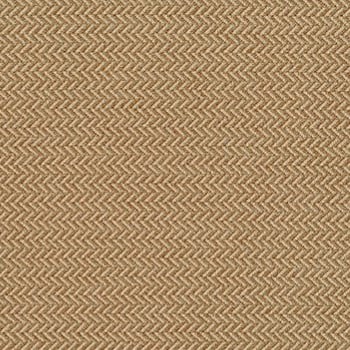

    RR-523     		B Vertical Railroad Standard

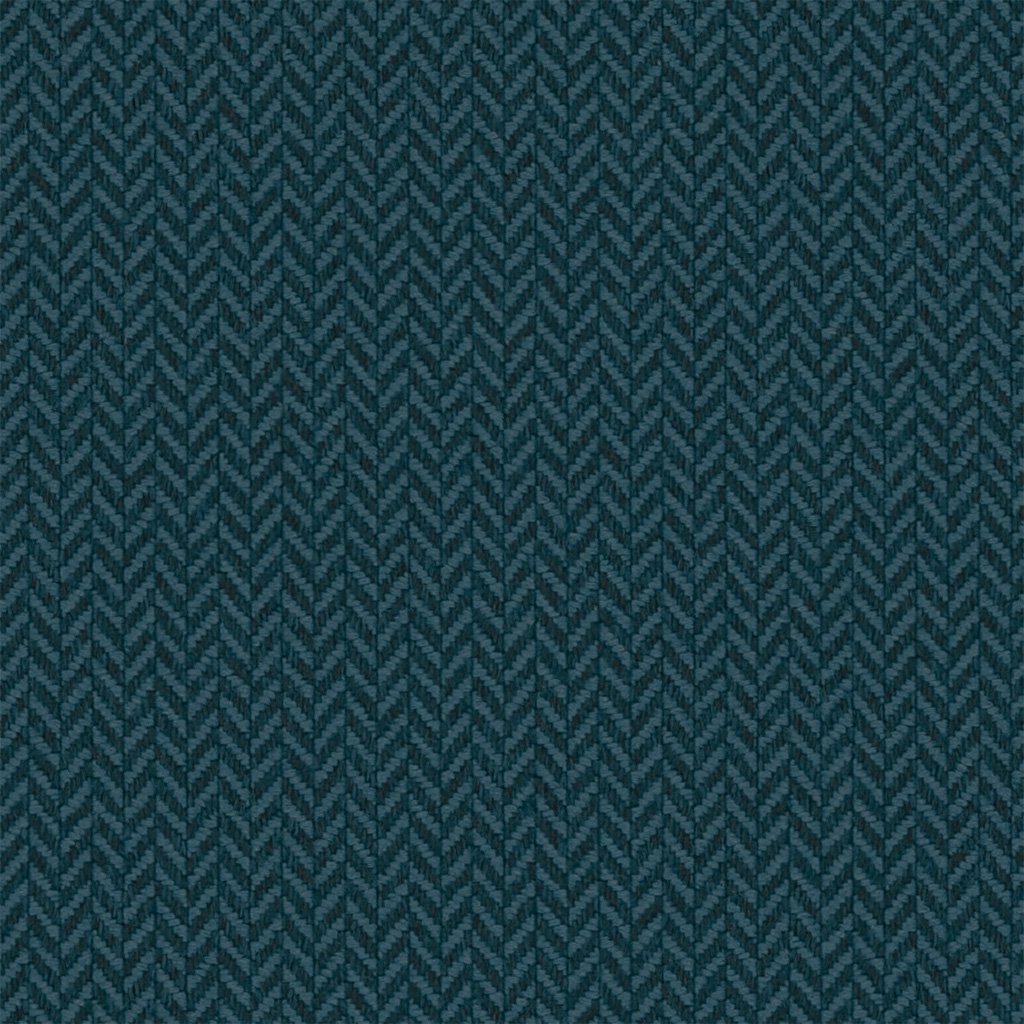

    3J-16     		A Seating Standard

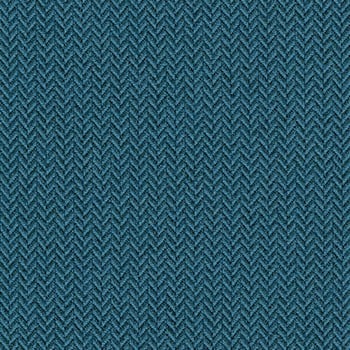

    3JV-16     		B Vertical Standard

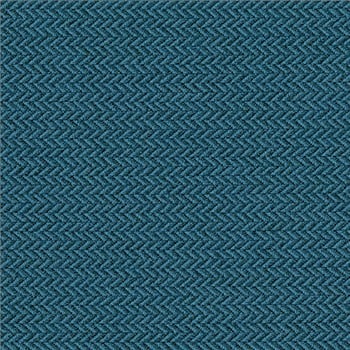

    RR-524     		B Vertical Railroad Standard

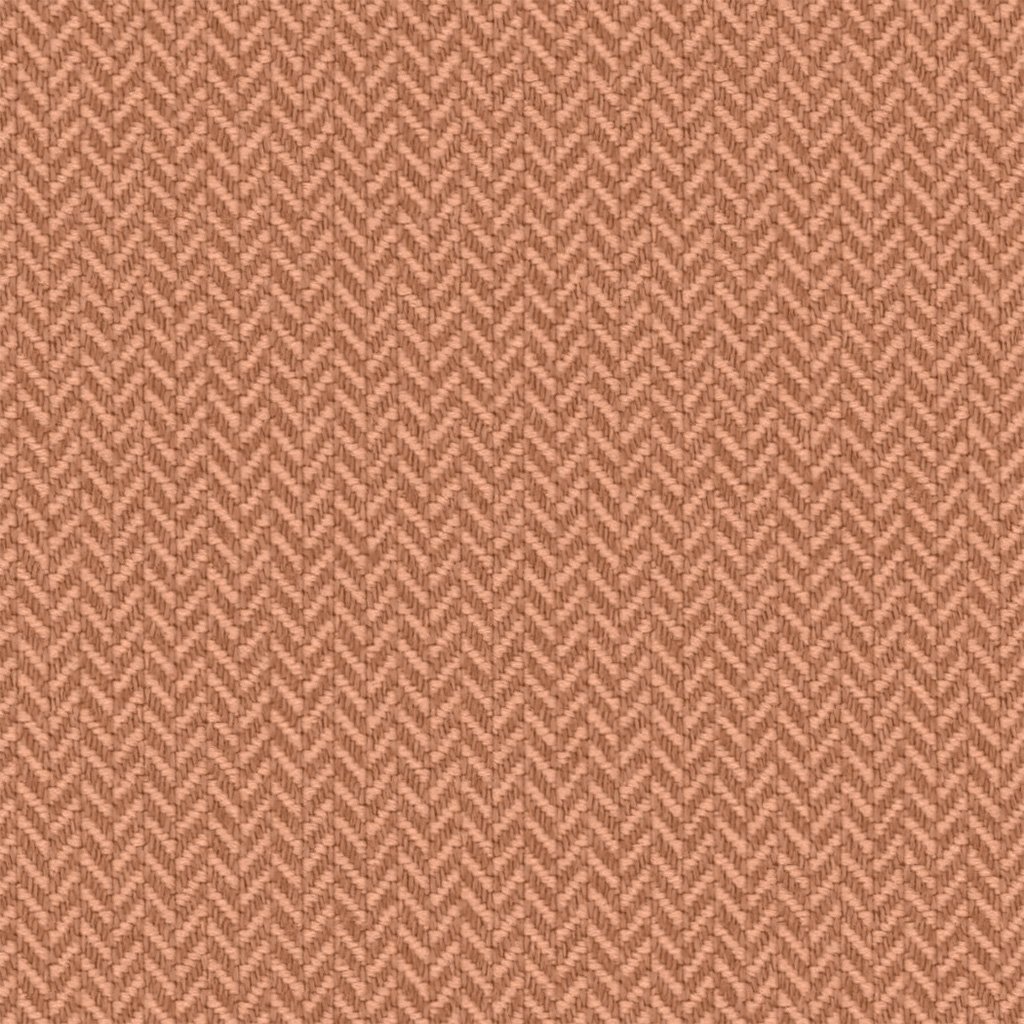

    3J-17     		A Seating Standard

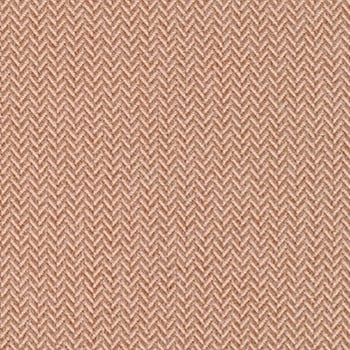

    3JV-17     		B Vertical Standard

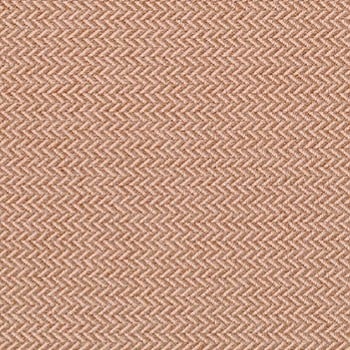

    RR-525     		B Vertical Railroad Standard

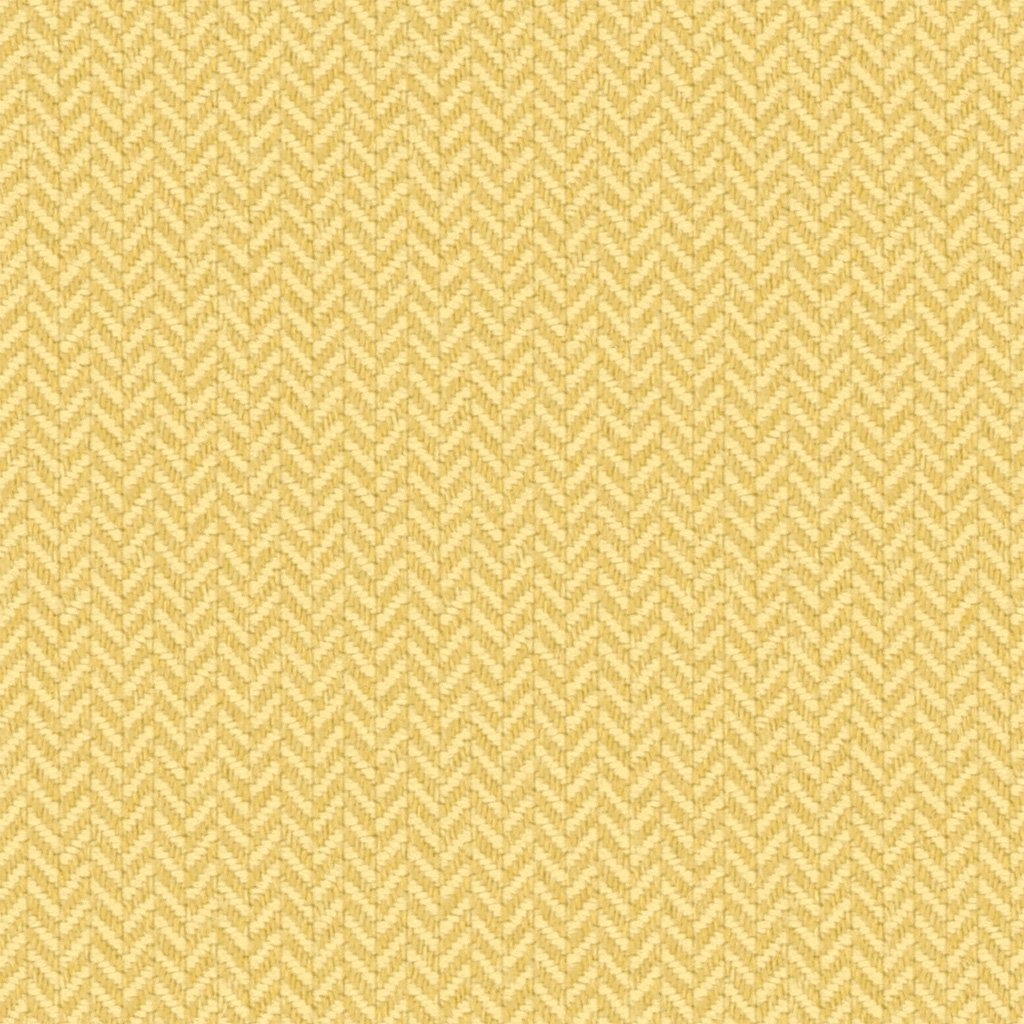

    3J-18     		A Seating Standard

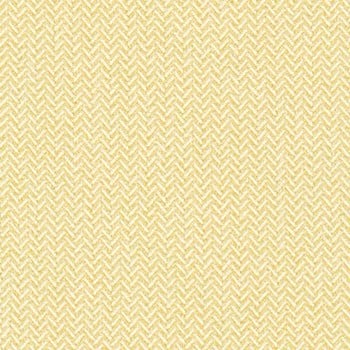

    3JV-18     		B Vertical Standard

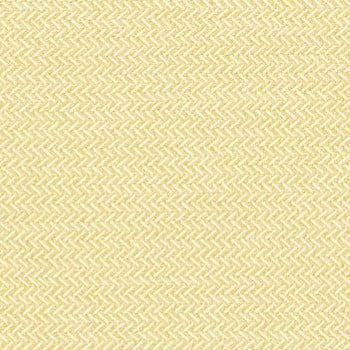

    RR-526     		B Vertical Railroad Standard

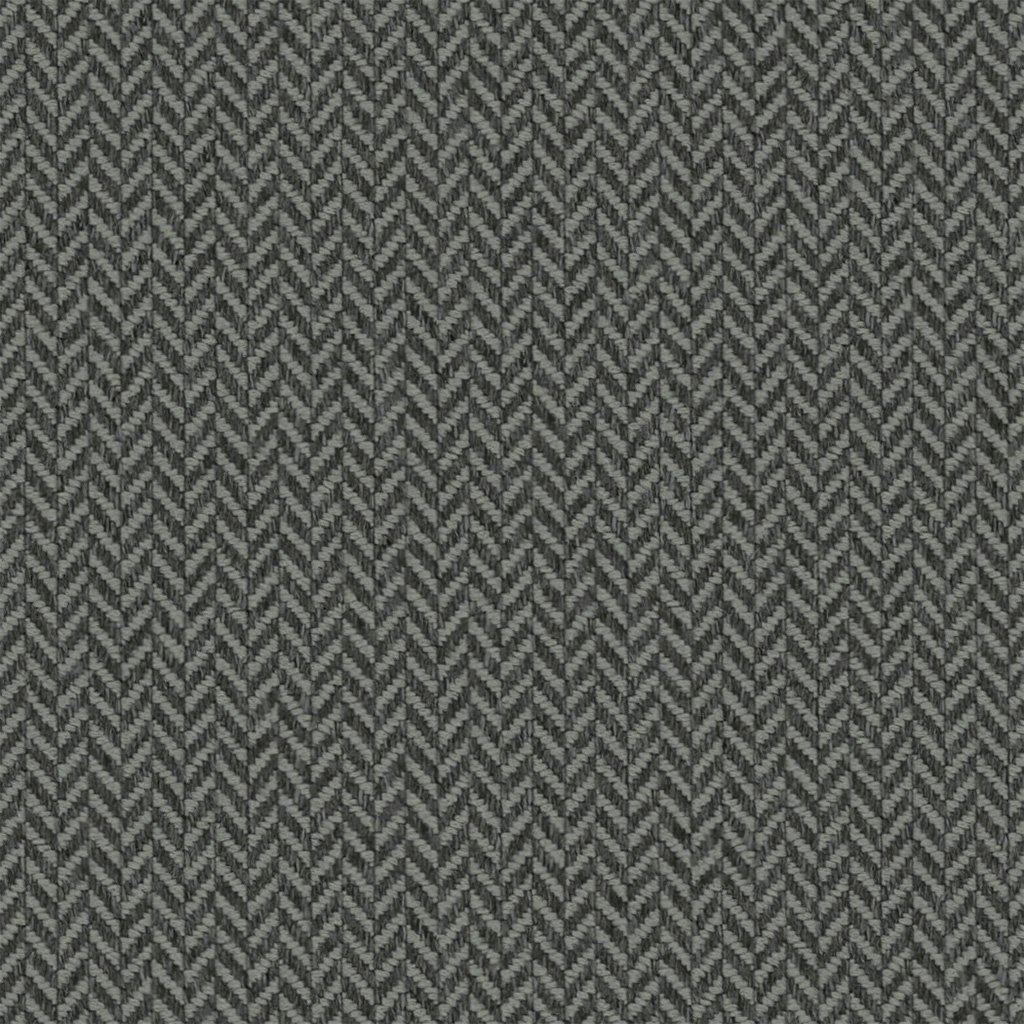

    3J-19     		A Seating Standard

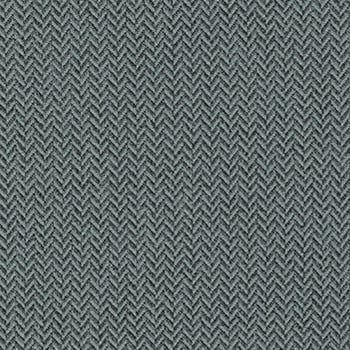

    3JV-19     		B Vertical Standard

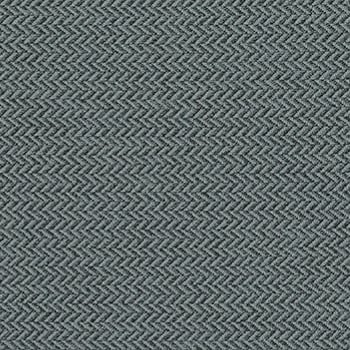

    RR-527     		B Vertical Railroad Standard

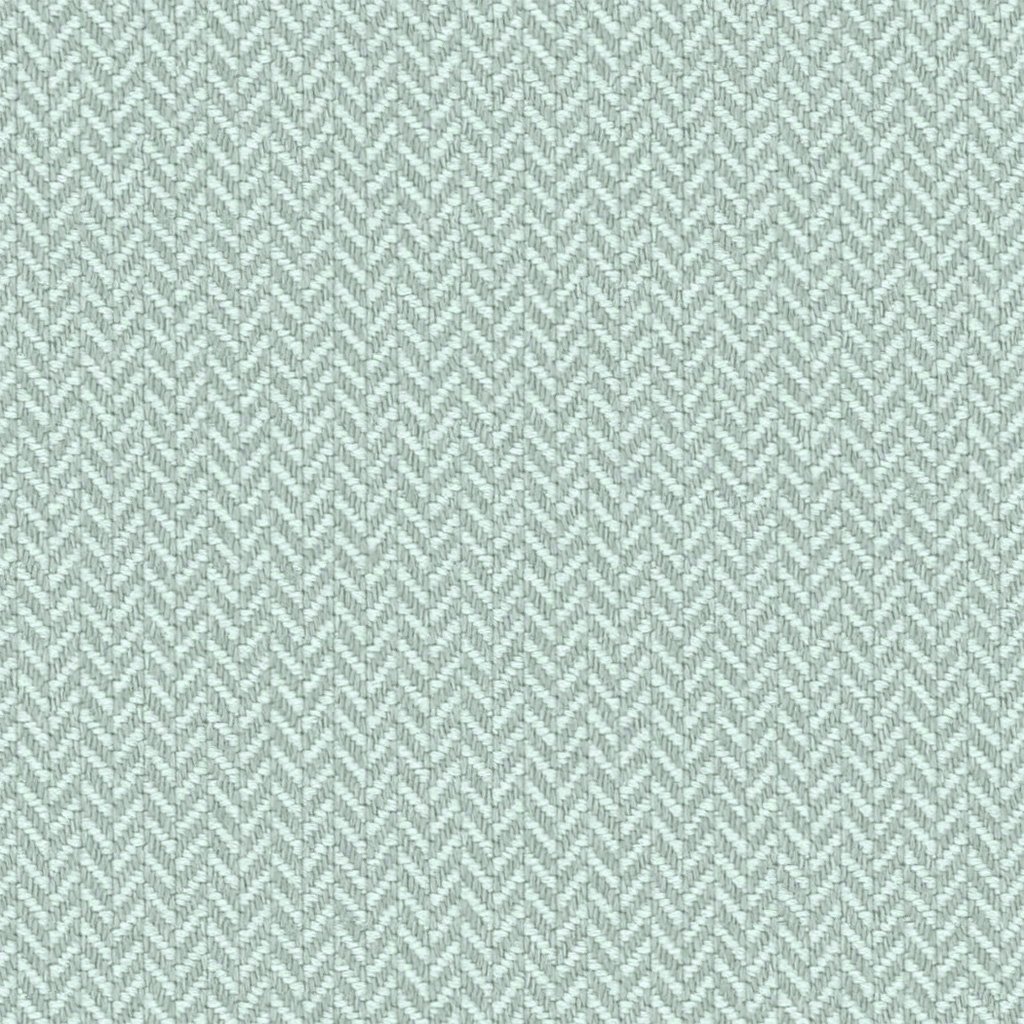

    3J-20     		A Seating Standard
    3JV-20     		B Vertical Standard

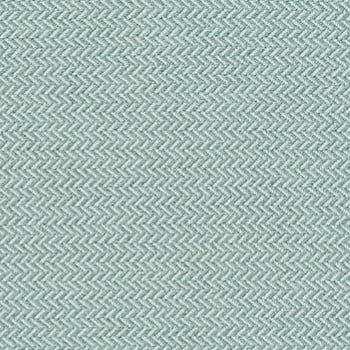

    RR-528     		B Vertical Railroad Standard

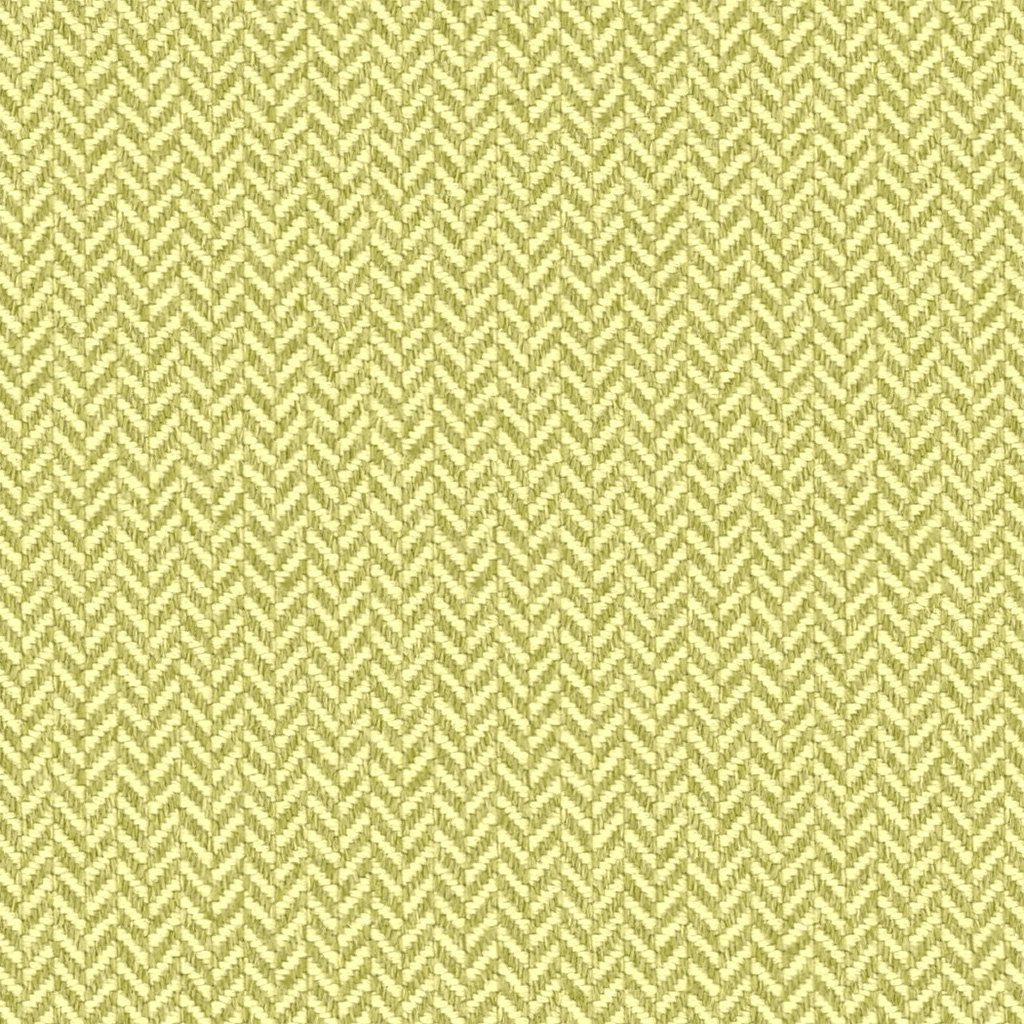

    3J-21     		A Seating Standard

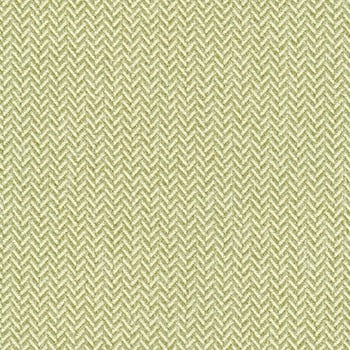

    3JV-21     		B Vertical Standard

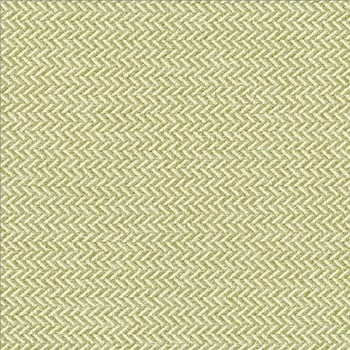

    RR-529     		B Vertical Railroad Standard

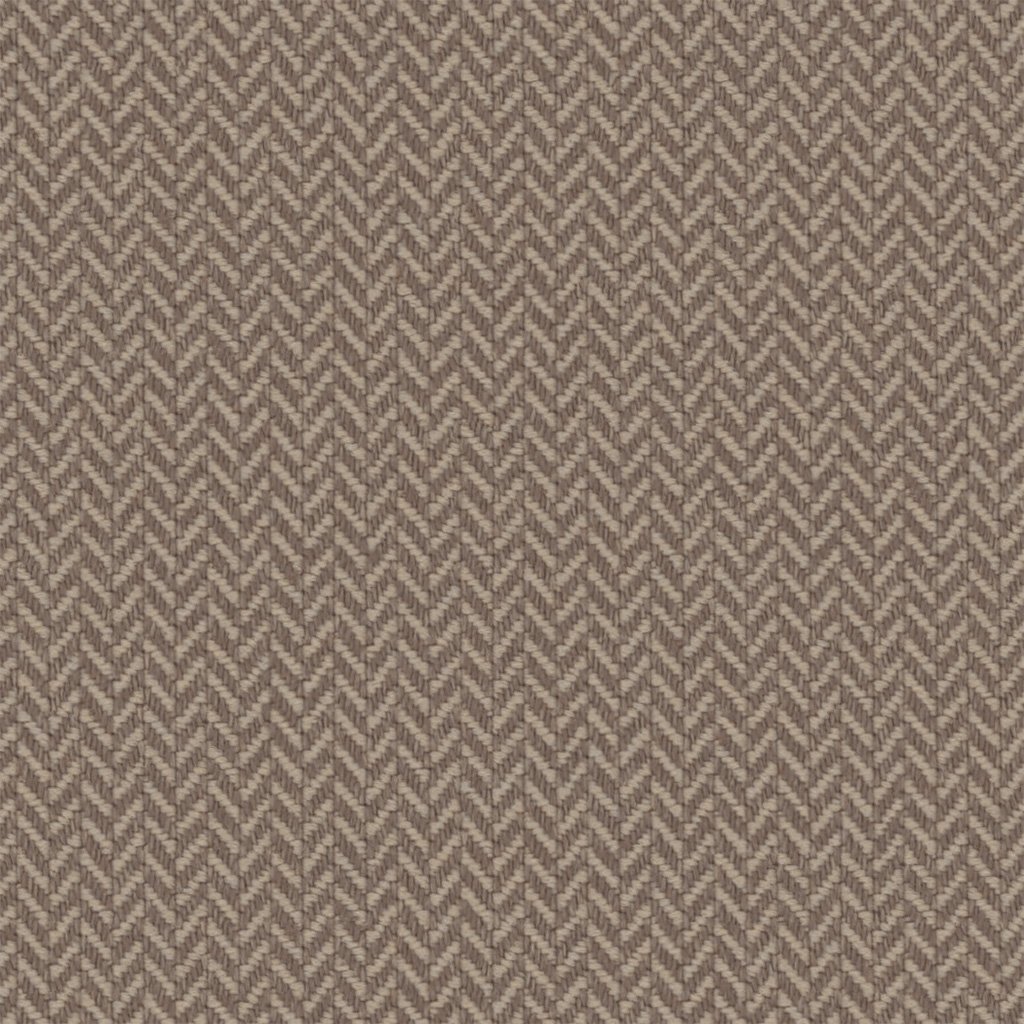

    3J-22     		A Seating Standard

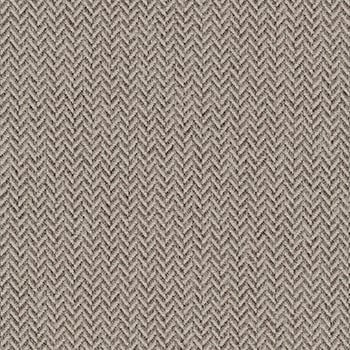

    3JV-22     		B Vertical Standard

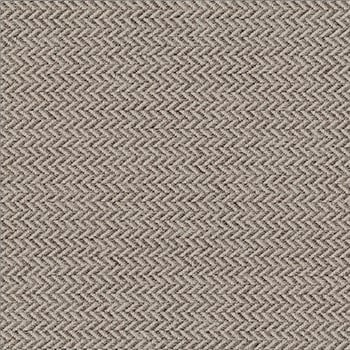

    RR-530     		B Vertical Railroad Standard

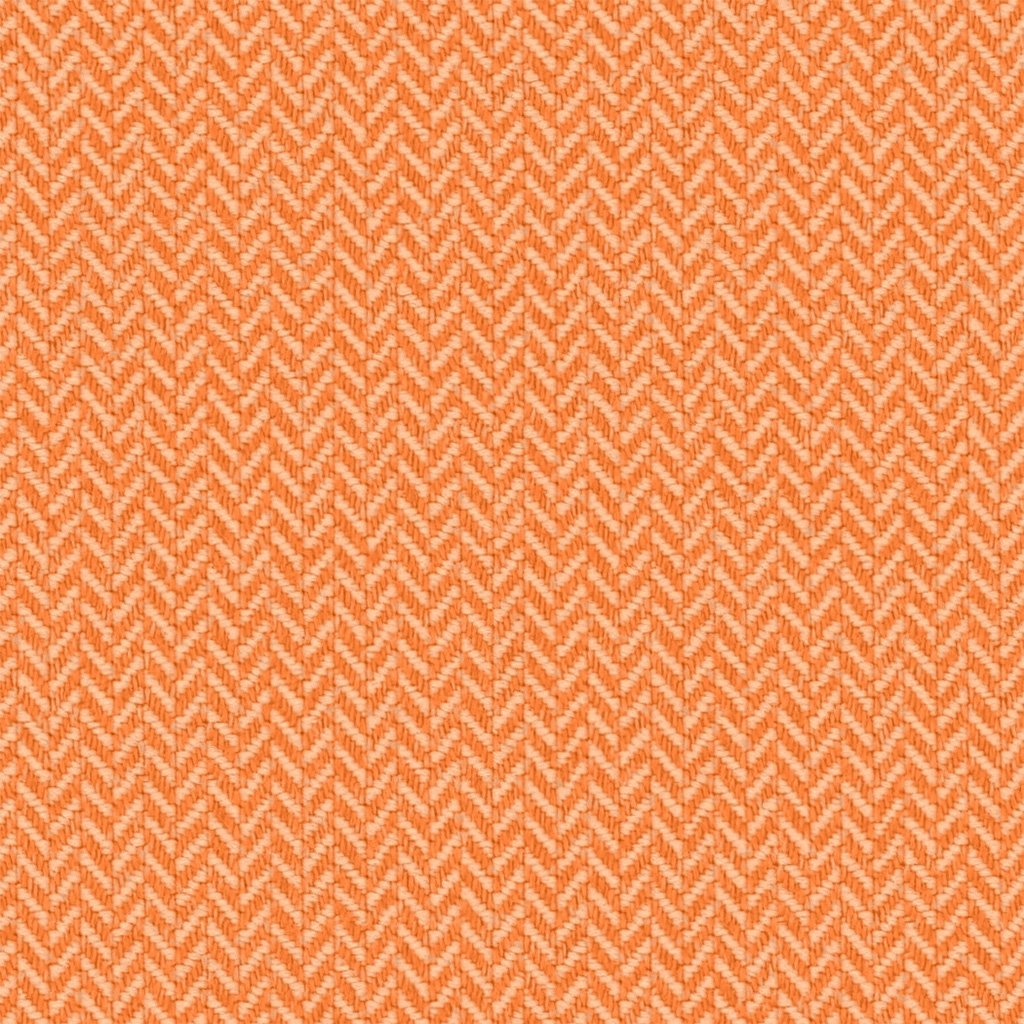

    3J-23     		A Seating Standard

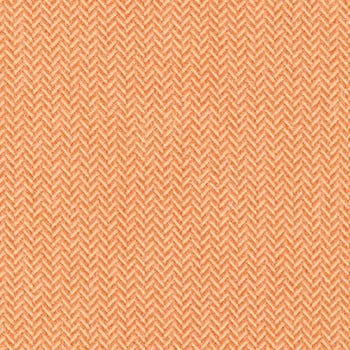

    3JV-23     		B Vertical Standard
    RR-531     		B Vertical Railroad Standard

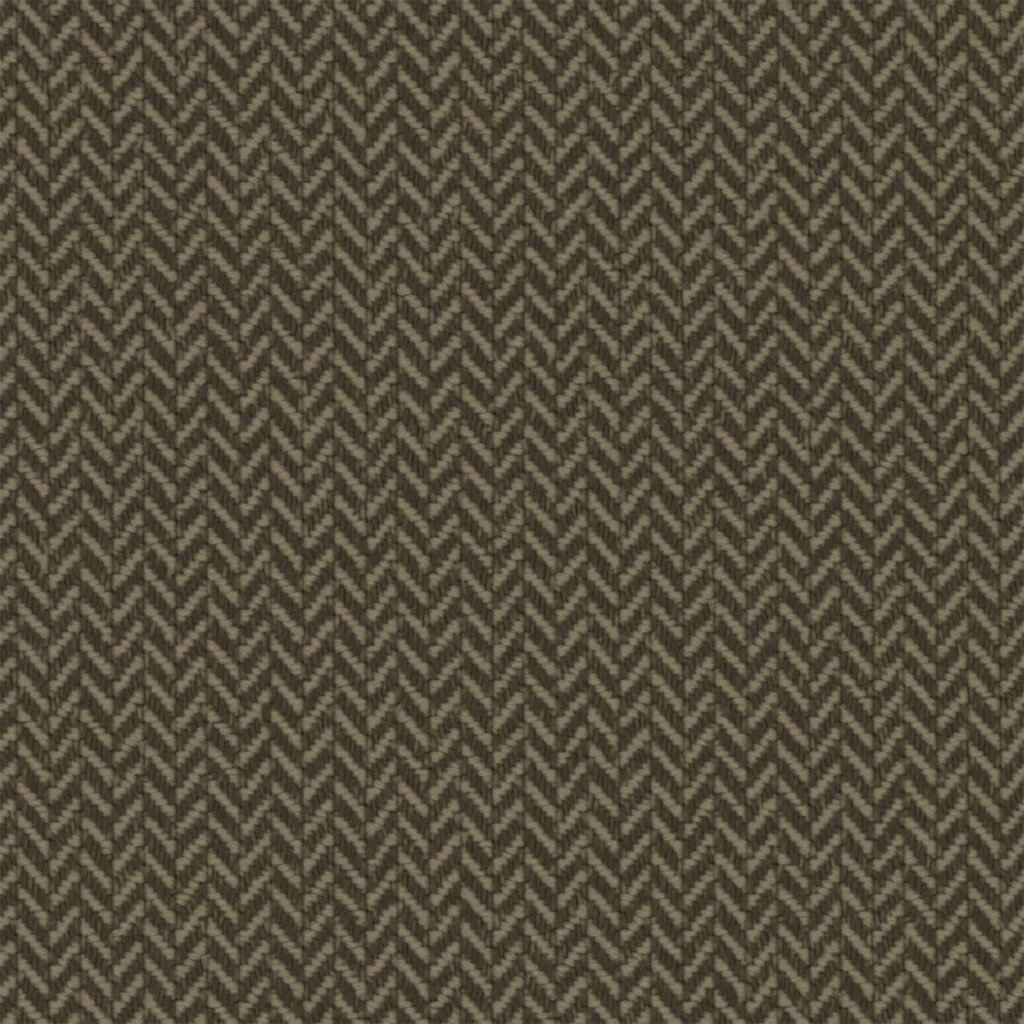

    3J-24     		A Seating Standard

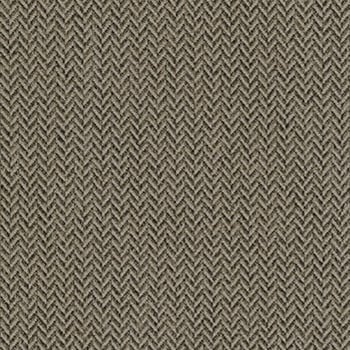

    3JV-24     		B Vertical Standard

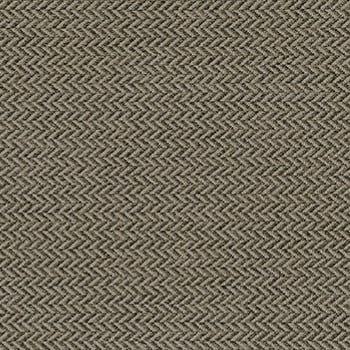

    RR-532     		B Vertical Railroad Standard

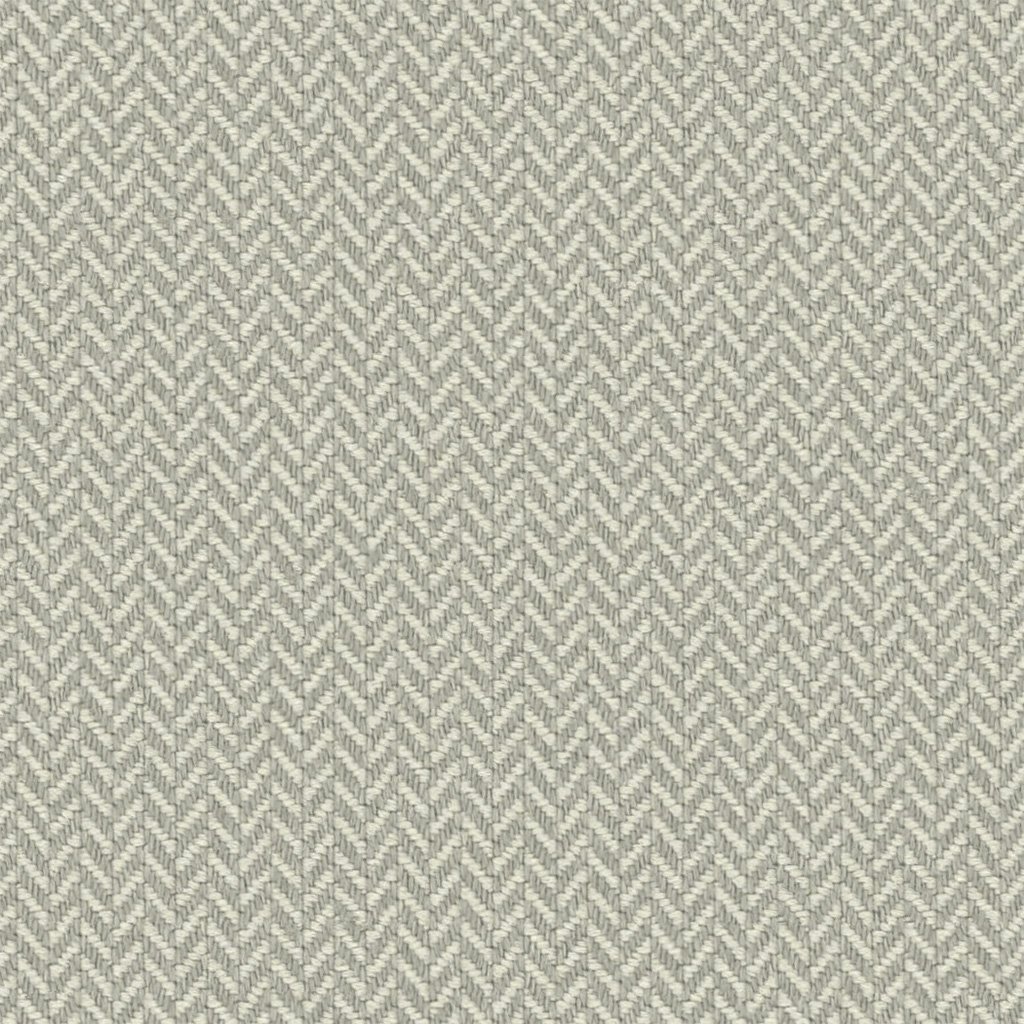

    3J-25     		A Seating Standard

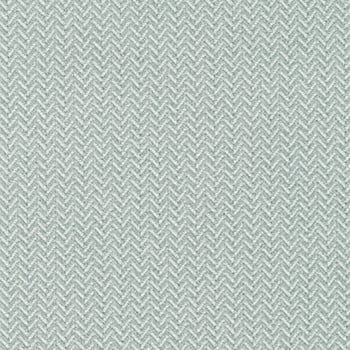

    3JV-25     		B Vertical Standard

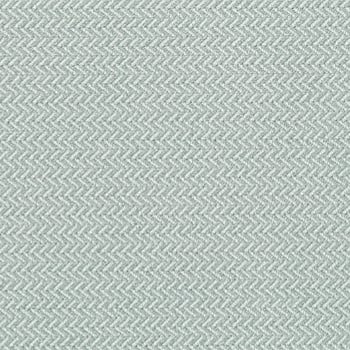

    RR-533     		B Vertical Railroad Standard

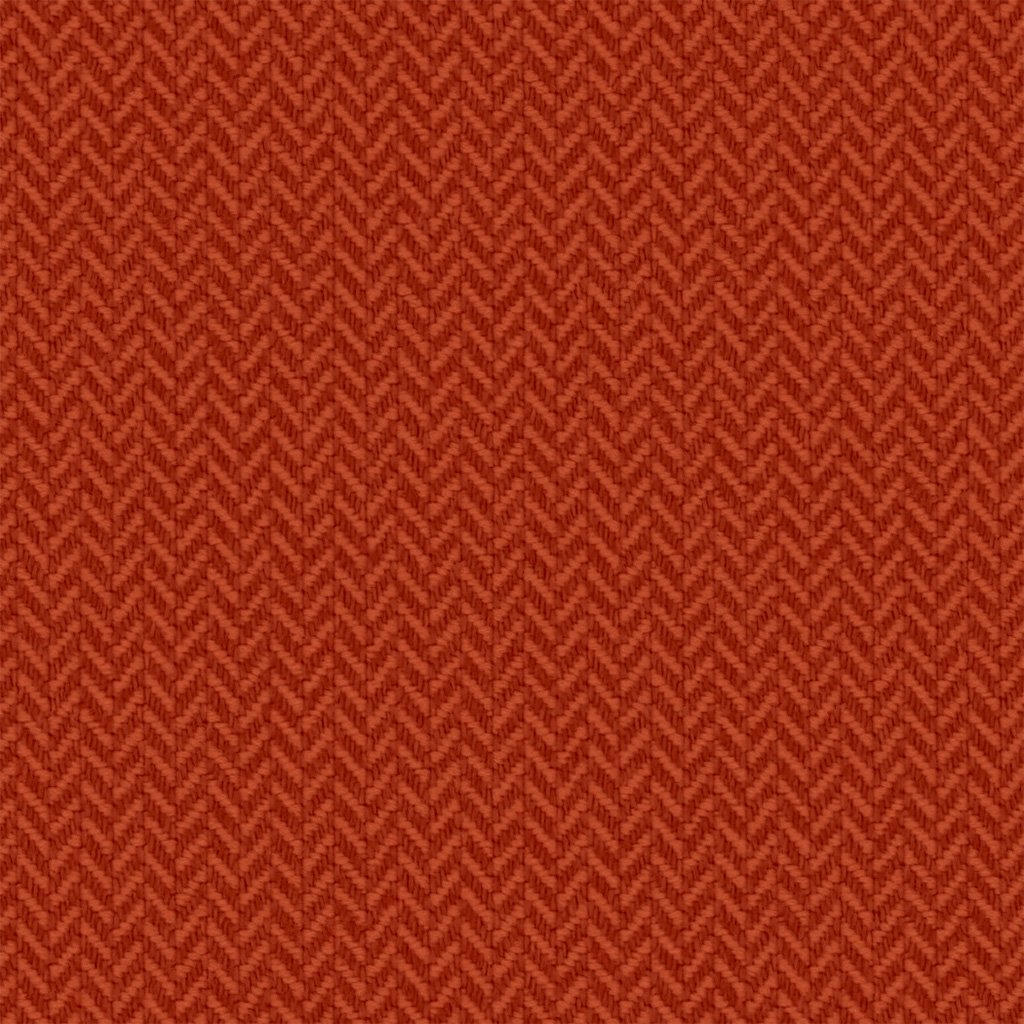

    3J-26     		A Seating Standard

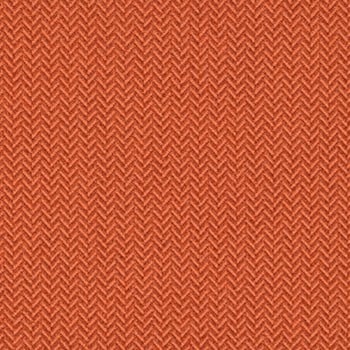

    3JV-26     		B Vertical Standard

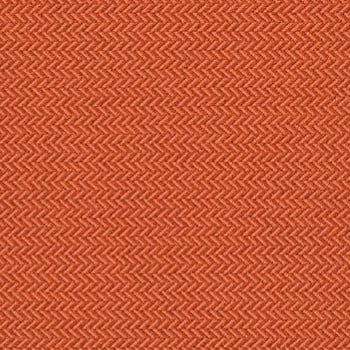

    RR-534     		B Vertical Railroad Standard
