Aloha Active AX

Haworth

Our Aloha task seating family has a long track record of success. Known for providing great design and comfort at an affordable price, Aloha is no stranger to meeting – and exceeding – strict project requirements. Now, the Aloha family is extending its expertise with a new member – Aloha Active AX. Developed to meet the highest level of the European Ergonomic norms for seating (type Ax) and GS certified.

Aloha Active AX Overview

Aloha Active AX is a chair for special tasks. This addition to the Aloha family is designed to provide a comfortable, ergonomic sitting experience to the largest possible number of body shapes in the general population.

Aloha Active AX has received the GS-Sign for task chairs. Aloha Active AX excelled in the category of ergonomic dimensions, reaching the highest AX type according to DIN EN 1335.

The GS certification is necessary for most public and large private projects. Testing occurs at an external and independent certifier. In the European Union, the GS sign is a trusted symbol of safety – proof that the product has been evaluated and confirmed to meet the requirements of The Product Safety Act (‘ProdSG’).

Aloha Active AX provides a wide range of adjustments to maximize everyone’s seating experience – without compromising quality and comfort. In Aloha Active AX, every type of body figure will find support.

    • Weight-activated mechanism to provide more personalized recline..
    • Pneumatic height adjustment to adjust the seat to fit different user heights.
    • Seat depth adjustment to move the seat pan to accommodate different leg lengths.
    • 5-position back lock allows users to lock the back of a chair at a convenient position.
    • Lumbar support can be adjusted for every back curvature.
    • Fire retardant foam.
    • 4D arms for proper support of the user’s arms, with the possibility to adjust the distance between the arm uprights.
    • Great balance between price and performance.
    • GS sign, type AX.
    • Portugal

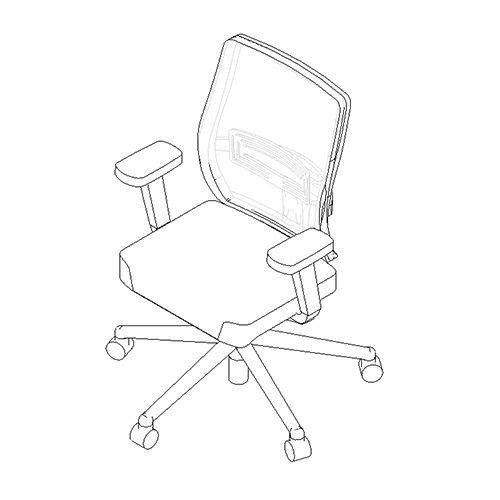

Revit Files

Individual Family Files

Aloha Active AX

Downloads

Side by side

SEAT ERGONOMICS

Weight Capacity

Pneumatic Height

Seat Forward Tilt

Seat Depth Adjustment

Seat Pad

Armrest

BACK ERGONOMICS

Recline Mechanism

Tension Control

Back Stop/ Lock

Height-adjustable Lumbar

Asymmetric Lumbar Adjustment

SUSTAINABILITY / CERTIFICATION

Recycled Content

Recyclability

GreenGuard Certificate

GreenGuard Gold Certificate

FEMB level® Certification

GS Sign / Type

Aloha Active AX

< 120kg

39 - 55cm

-

+71mm

Fire resistant

4D

Automatic weight / tension synchro

-

Lock in front and 4 back stop position

-

-

31%

>75%

Type AX according to EN 1335-1:2020

Design Your Own

Aloha Active

< 120 kg

40 - 52 cm

-

+60 mm

Standard

4D, 1D

Automatic weight/tension synchro

-

Lock in front and 2 back stop position

-

20%

89%

-

-

Lively

< 120kg

40 - 52 cm

+60mm

Standard / Fire Resistant Ergonomic

3D, NPR

Automatic weight/tension synchro

Fine tune

Lock in front and 3 back stop position

-

14%

>99%

level 3

Type A according to EN 1335-1:2020
